HYDRAULIC STEERING BOX AND SERPENTINE of Ferrari Ferrari 360 Challenge Stradale

View All

Ferrari 360 Challenge Stradale - HYDRAULIC STEERING BOX AND SERPENTINE

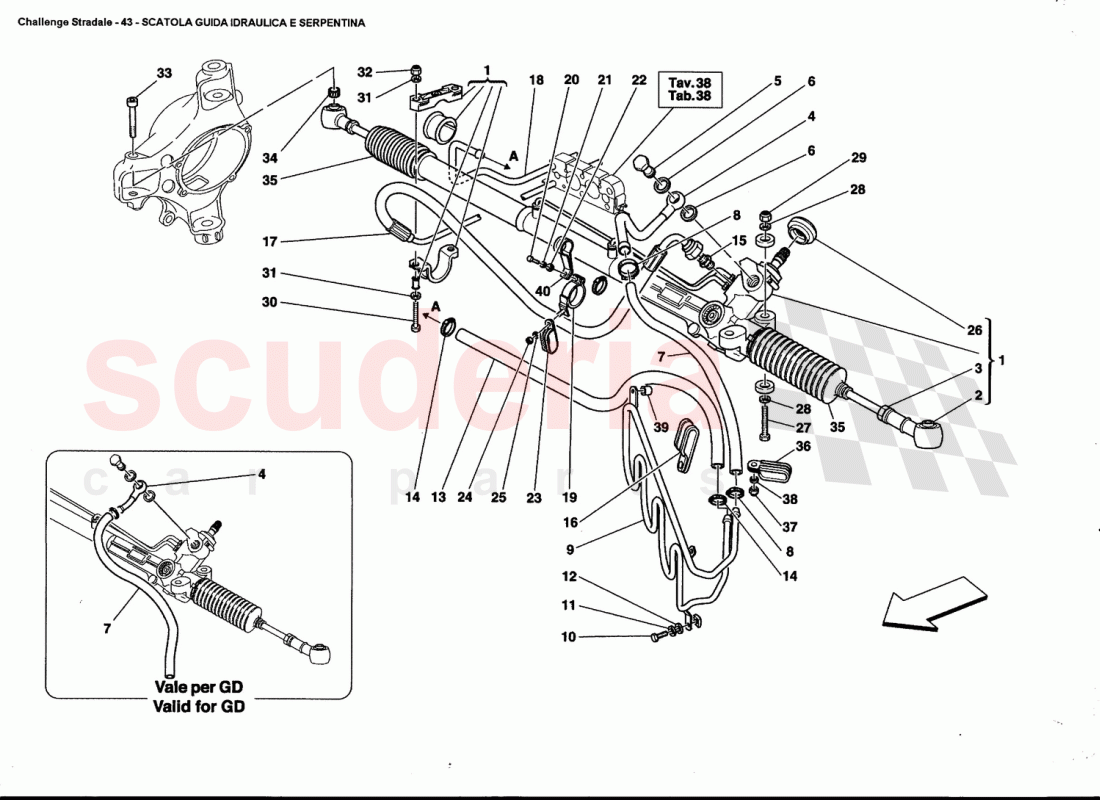

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	196171	STEERING BOX TO POWER-ASSISTED RACK	Enquire	To Order
	196172	STEERING BOX TO POWER-ASSISTED RACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181882	BALL TIE ROD	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10791324	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177943	SWIVELLING UNION	Enquire	To Order
	186719	SWINGING UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277407	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187696	PIPE FROM RACK STEERING BOX TO UNION -Valid for GD- -Not as spare part- -Replaced by	Enquire	To Order
	169890	PIPE FROM SERPENTINE COIL TO TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179106	REFRIGERATING COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181920	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201706	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66076900	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204080	UNION	Enquire	To Order
	204084	LH DELIVERY PIPE FROM UNION TO STEERING BOX	Enquire	To Order
	185515	COMPLETE DELIVERY PIPE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	184980	RETURN PIPE UNDER THE FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177631	TUBE FASTENING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441690	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171519	COMPLETE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	277720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	179556	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179555	COMPENSATOR RING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000948	BELLOW REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139512	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166730	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65996800	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	196171	STEERING BOX TO POWER-ASSISTED RACK	196171 STEERING BOX TO POWER-ASSISTED RACK POWER STEERING / Not for GD	-	1	Enquire
1	196172	STEERING BOX TO POWER-ASSISTED RACK	196172 STEERING BOX TO POWER-ASSISTED RACK POWER STEERING / Valid for GD	-	1	Enquire
2	181882	BALL TIE ROD ARRIVING SOON	181882 BALL TIE ROD ARRIVING SOON	-	2	Enquire
3	10791324	NUT	10791324 NUT	-	2	Enquire
4	177943	SWIVELLING UNION	177943 SWIVELLING UNION Valid for GD	-	1	Enquire
4	186719	SWINGING UNION	186719 SWINGING UNION Not for GD	-	1	Enquire
5	277407	HOSE CONNECTOR	277407 HOSE CONNECTOR	-	1	Enquire
6	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	2	Enquire
7	187696	PIPE FROM RACK STEERING BOX TO UNION -Valid for GD- -Not as spare part- -Replaced by	187696 PIPE FROM RACK STEERING BOX TO UNION -Valid for GD- -Not as spare part- -Replaced by Not for GD	-	1	Enquire
7	169890	PIPE FROM SERPENTINE COIL TO TANK	169890 PIPE FROM SERPENTINE COIL TO TANK Valid for GD	-	1	Enquire
8	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
9	179106	REFRIGERATING COIL	179106 REFRIGERATING COIL	-	1	Enquire
10	81591700	SCREW	81591700 SCREW	-	3	Enquire
11	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
12	10519424	WASHER	10519424 WASHER	-	4	Enquire
13	181920	RUBBER HOSE	181920 RUBBER HOSE	-	1	Enquire
14	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
15	201706	THREADED CONNECTOR	201706 THREADED CONNECTOR	-	1	Enquire
16	66076900	BRACKET WITH SHEATH	66076900 BRACKET WITH SHEATH	-	1	Enquire
17	204080	UNION	204080 UNION UNDER THE FLOOR / Valid till Ass. Nr.53102 / Not for GD	-	1	Enquire
17	204084	LH DELIVERY PIPE FROM UNION TO STEERING BOX	204084 LH DELIVERY PIPE FROM UNION TO STEERING BOX TO STEERING BOX / Valid from Ass. Nr. 53103 / Not for GD	-	1	Enquire
17	185515	COMPLETE DELIVERY PIPE	185515 COMPLETE DELIVERY PIPE UNDER THE FLOOR / Valid till Ass. Nr.53102 / Valid for GD	-	1	Enquire
17	204080209768	COMPLETE DELIVERY PIPE UNDER THE FLOOR	204080209768 COMPLETE DELIVERY PIPE UNDER THE FLOOR TO STEERING BOX / Valid from Ass. Nr. 53103 / Valid for GD	-	1	Enquire
18	184980	RETURN PIPE UNDER THE FLOOR	184980 RETURN PIPE UNDER THE FLOOR	-	1	Enquire
19	177631	TUBE FASTENING BRACKET	177631 TUBE FASTENING BRACKET	-	2	Enquire
20	10902424	SCREW	10902424 SCREW	-	2	Enquire
21	127494	WASHER	127494 WASHER	-	2	Enquire
22	12639724	WASHER	12639724 WASHER	-	2	Enquire
23	10441690	BRACKET WITH SHEATH	10441690 BRACKET WITH SHEATH	-	2	Enquire
24	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
25	12639724	WASHER	12639724 WASHER	-	2	Enquire
26	171519	COMPLETE RING	171519 COMPLETE RING	-	1	Enquire
27	277720	SCREW	277720 SCREW	-	2	Enquire
28	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	4	Enquire
29	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	2	Enquire
30	277720	SCREW	277720 SCREW	-	2	Enquire
31	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	-4	Enquire
32	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	2	Enquire
33	179556	SCREW	179556 SCREW	-	2	Enquire
34	179555	COMPENSATOR RING BUSHING	179555 COMPENSATOR RING BUSHING	-	2	Enquire
35	70000948	BELLOW REPLACEMENT KIT	70000948 BELLOW REPLACEMENT KIT	-	1	Enquire
36	139512	BRACKET WITH SHEATH	139512 BRACKET WITH SHEATH	-	1	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
38	13577724	WASHER	13577724 WASHER	-	1	Enquire
39	166730	SHIM	166730 SHIM	-	1	Enquire
40	65996800	BRACKET	65996800 BRACKET	-	2	Enquire
