PEDALS -Valid for GD- of Ferrari Ferrari 360 Challenge Stradale

View All

Ferrari 360 Challenge Stradale - PEDALS -Valid for GD-

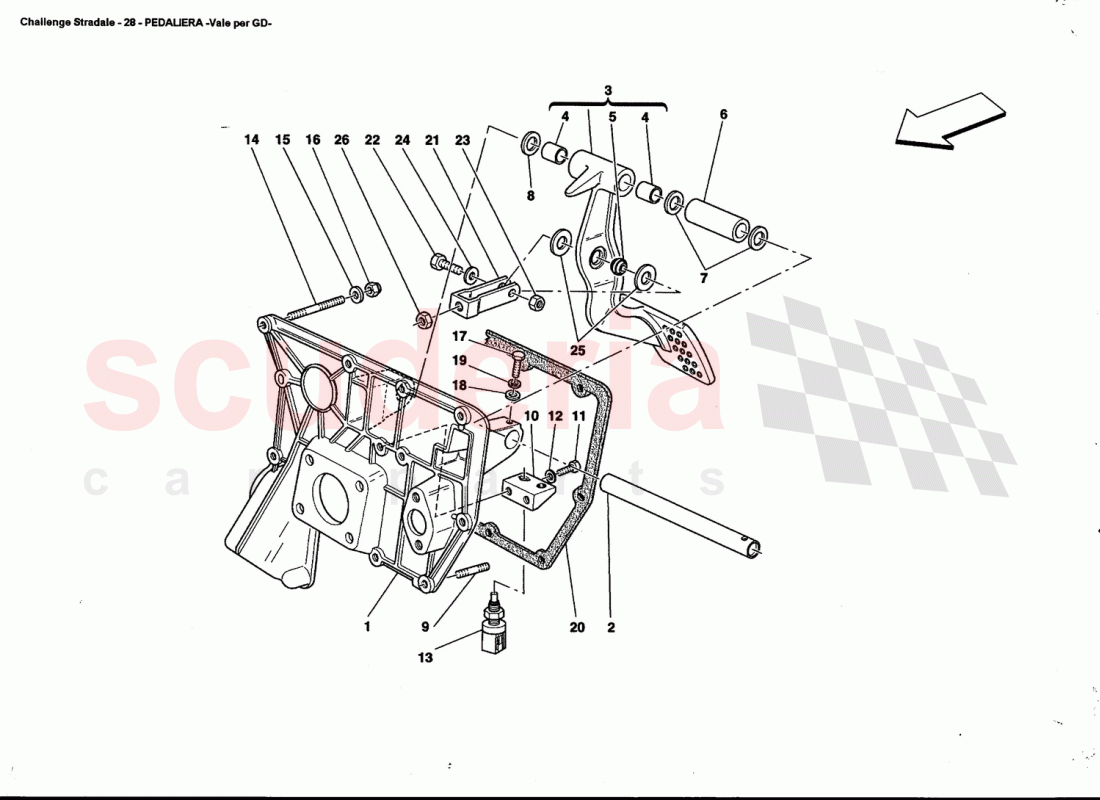

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	184388	PEDALS SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177120	PEDAL MOUNTING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201578	COMPLETE BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176475	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178496	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113836	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113836	WASHER	Enquire	To Order
	106083	WASHER	Enquire	To Order
	113833	WASHER	Enquire	IN STOCK

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13516924	STUD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186401	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133555	PUSHBUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	177131	PEDAL BOARD MOUNTING GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	199754	FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66535800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176522	PLASTIC WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	184388	PEDALS SUPPORT	184388 PEDALS SUPPORT	-	1	Enquire
2	177120	PEDAL MOUNTING PIN	177120 PEDAL MOUNTING PIN	-	1	Enquire
3	201578	COMPLETE BRAKE PEDAL	201578 COMPLETE BRAKE PEDAL	-	1	Enquire
4	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING	-	2	Enquire
5	176475	BALL-JOINT	176475 BALL-JOINT	-	1	Enquire
6	178496	SHIM	178496 SHIM	-	1	Enquire
7	113836	WASHER	113836 WASHER	-	2	Enquire
8	113836	WASHER	113836 WASHER Th. 1,4mm / Possible fitting	-	1	Enquire
8	106083	WASHER	106083 WASHER Th. 1mm	-	1	Enquire
8	113833	WASHER IN STOCK	113833 WASHER Th. 1,1mm / Possible fitting IN STOCK	-	1	Enquire
8	113834	WASHER	113834 WASHER Th. 1,2mm / Possible fitting	-	1	Enquire
8	113835	WASHER	113835 WASHER Th. 1,3mm / Possible fitting	-	1	Enquire
9	13516924	STUD BOLT IN STOCK	13516924 STUD BOLT IN STOCK	-	9	Enquire
10	186401	PLATE	186401 PLATE	-	1	Enquire
11	16043224	SCREW	16043224 SCREW	-	2	Enquire
12	127496	WASHER	127496 WASHER	-	2	Enquire
13	133555	PUSHBUTTON SWITCH	133555 PUSHBUTTON SWITCH	-	1	Enquire
14	13517524	STUD BOLT	13517524 STUD BOLT	-	2	Enquire
15	12638524	WASHER IN STOCK	12638524 WASHER IN STOCK	-	11	Enquire
16	104030	NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	104030 NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	-	11	Enquire
17	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	-	1	Enquire
18	10519424	WASHER IN STOCK	10519424 WASHER IN STOCK	-	1	Enquire
19	127494	WASHER IN STOCK	127494 WASHER IN STOCK	-	1	Enquire
20	177131	PEDAL BOARD MOUNTING GASKET IN STOCK	177131 PEDAL BOARD MOUNTING GASKET IN STOCK	-	1	Enquire
21	199754	FORK	199754 FORK	-	1	Enquire
22	66535800	SCREW	66535800 SCREW	-	1	Enquire
23	147985	NUT IN STOCK	147985 NUT IN STOCK	-	1	Enquire
24	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	2	Enquire
25	176522	PLASTIC WASHER IN STOCK	176522 PLASTIC WASHER IN STOCK	-	2	Enquire
26	16102314	NUT	16102314 NUT	-	1	Enquire
