Name: PEDALS -Not for GD-
Rating: 4.9 (1 reviews)

PEDALS -Not for GD- of Ferrari Ferrari 360 Challenge Stradale

View All

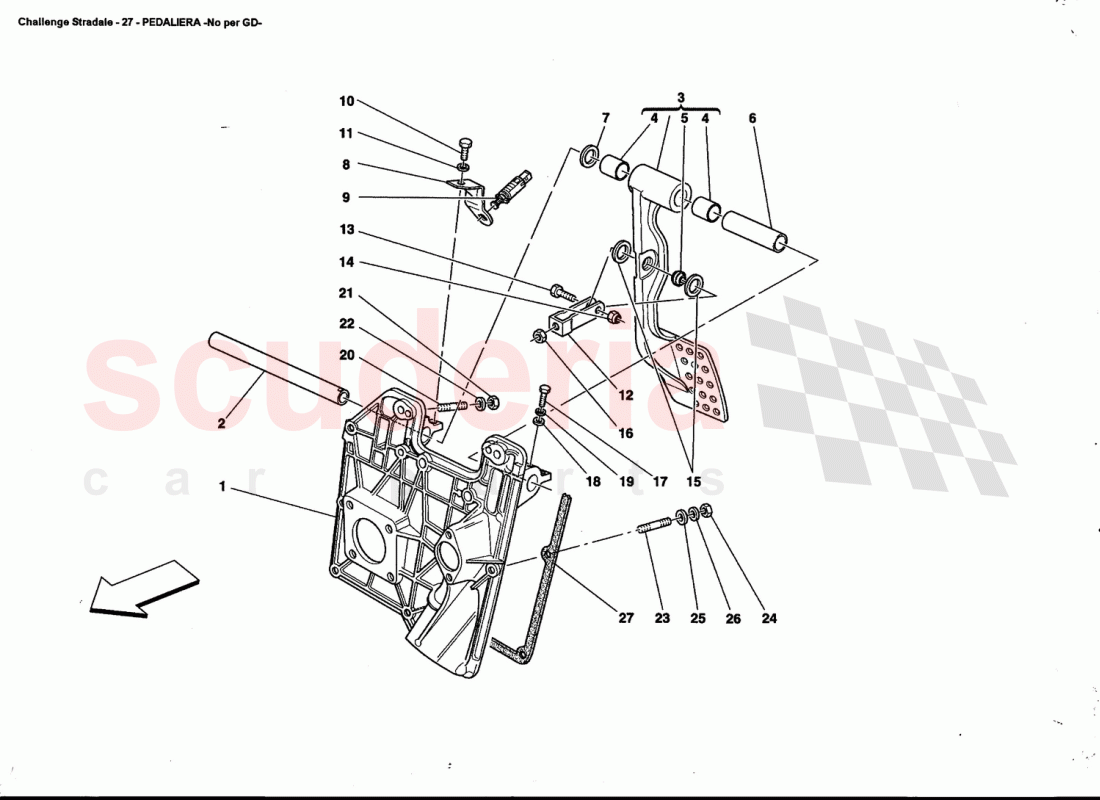

Ferrari 360 Challenge Stradale - PEDALS -Not for GD-

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	176464	PEDAL BOARD MOUNTING	$2,941.21	To Order

Photo	Part No	Description	Price (each)	Stock
	176466	PEDAL MOUNTING PIN	$157.23	To Order

Photo	Part No	Description	Price (each)	Stock
	196791	COMPLETE BRAKE PEDAL	$1,010.88	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	$2.12	To Order

Photo	Part No	Description	Price (each)	Stock
	176475	BALL-JOINT	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	176918	SHIM	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	178340	WASHER	$4.10	To Order
	113834	WASHER	$2.43	To Order
	113835	WASHER	$9.50	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	219558	SWITCH MOUNTING	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	334064	PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22-	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	199754	FORK	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	66535800	SCREW	$5.87	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	176522	PLASTIC WASHER	$16.48	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	13516924	STUD BOLT	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	13517024	STUD BOLT	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	16102377	NUT	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	13550321	WASHER	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	176524	PEDAL BOARD MOUNTING GASKET	$18.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	176464	PEDAL BOARD MOUNTING	176464 PEDAL BOARD MOUNTING	$2,941.21	1
2	176466	PEDAL MOUNTING PIN	176466 PEDAL MOUNTING PIN	$157.23	1
3	196791	COMPLETE BRAKE PEDAL	196791 COMPLETE BRAKE PEDAL	$1,010.88	1
4	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING	$2.12 MSRP: ~~12.00~~ (82.3% off)	2
5	176475	BALL-JOINT	176475 BALL-JOINT	$176.49	1
6	176918	SHIM	176918 SHIM	$141.19	1
7	178340	WASHER	178340 WASHER Th. 1,5mm	$4.10	1
7	113834	WASHER	113834 WASHER Th. 1,2mm / Possible fitting	$2.43	1
7	113835	WASHER	113835 WASHER Th. 1,3mm / Possible fitting	$9.50	1
7	113836	WASHER	113836 WASHER Th. 1,4mm / Possible fitting	$4.72	1
8	219558	SWITCH MOUNTING	219558 SWITCH MOUNTING	$224.63	1
9	334064	PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22-	334064 PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22-	$28.87	1
10	16043224	SCREW	16043224 SCREW	$0.16 MSRP: ~~0.50~~ (68% off)	1
11	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
12	199754	FORK	199754 FORK	$86.63 MSRP: ~~109.64~~ (21% off)	1
13	66535800	SCREW	66535800 SCREW	$5.87	1
14	147985	NUT	147985 NUT	$0.16 MSRP: ~~0.50~~ (68% off)	1
15	176522	PLASTIC WASHER	176522 PLASTIC WASHER	$16.48	2
16	16102314	NUT	16102314 NUT	$0.06 MSRP: ~~1.29~~ (95.3% off)	1
17	10902424	SCREW	10902424 SCREW	$0.15 MSRP: ~~0.70~~ (78.6% off)	1
18	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	1
19	127494	WASHER	127494 WASHER	$0.08 MSRP: ~~0.68~~ (88.2% off)	1
20	13516924	STUD BOLT	13516924 STUD BOLT	$2.43	6
21	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	6
22	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	6
23	13517024	STUD BOLT	13517024 STUD BOLT	$0.55	2
24	16102377	NUT	16102377 NUT	$1.78	2
25	13550321	WASHER	13550321 WASHER	$0.29 MSRP: ~~1.25~~ (76.8% off)	2
26	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
27	176524	PEDAL BOARD MOUNTING GASKET	176524 PEDAL BOARD MOUNTING GASKET	$18.83	1
