EXHAUST SYSTEM of Ferrari Ferrari 360 Challenge Stradale

View All

Ferrari 360 Challenge Stradale - EXHAUST SYSTEM

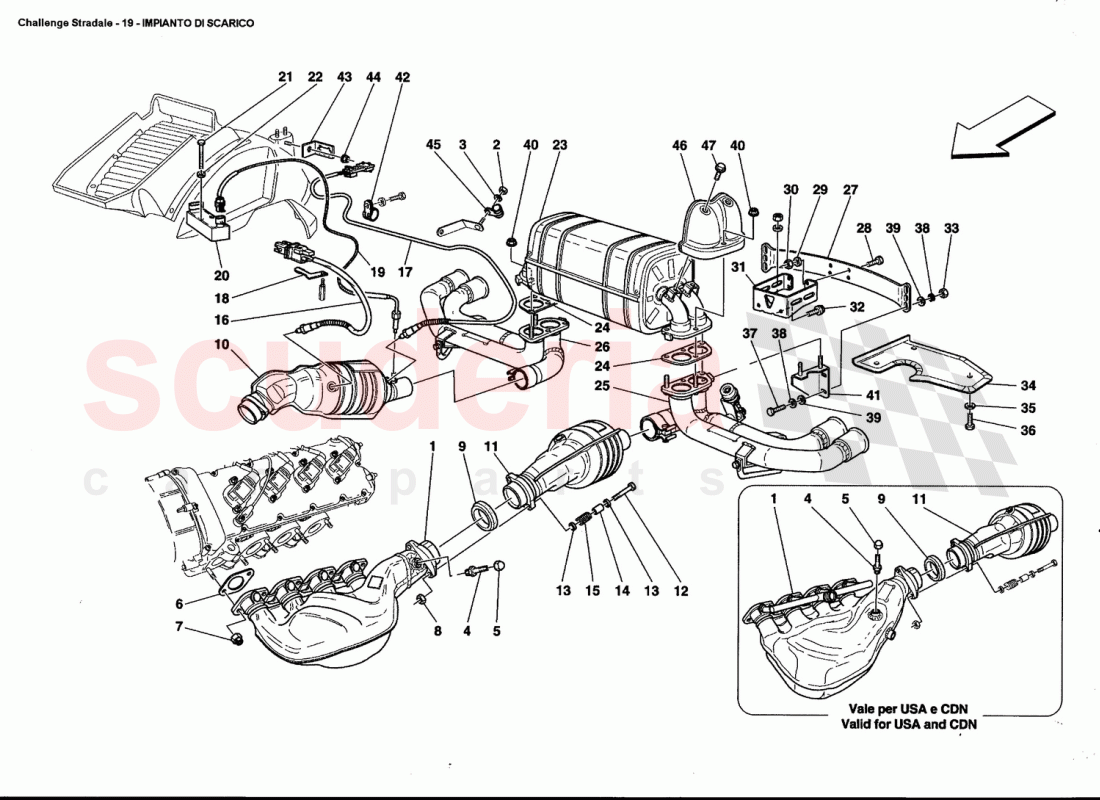

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	184393	R.H. EXHAUST MANIFOLD	Enquire	To Order
	189666	L.H. EXHAUST MANIFOLD	Enquire	To Order
	184394	L.H. EXHAUST MANIFOLD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	312592	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498824	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	144240	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150595	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151064	Exhaust Manifold Gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	138392	Exhaust Brass Locknut M8 x 1.25	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	114748	Nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	159914	EXHAUST RING GASKET D.60.5-71	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	199064	R.H. CATALYST	Enquire	To Order
	181966	R.H. CATALYST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199065	L.H. CATALYST	Enquire	To Order
	181967	L.H. CATALYST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044834	BOLT M8 X 80	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	114749	Spacer D8. 10 x 23	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	111743	EXHAUST BRACKET SPRING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	182837	Front Lambda Sensor	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	180915	Rear Lambda Sensor	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	199901	CONNECTOR FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193467	THERMOCOUPLE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	179278	CATALYTIC CONVERTER TEMPERATURE CONTROL ECU	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15210824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519224	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	195811	COMPLETE EXHAUST SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177612	Exhaust Gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	199061	COMPLETE L.H. OUTLET PIPE	Enquire	To Order
	212938	COMPLETE L.H. OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212937	COMPLETE R.H. OUTLET PIPE	Enquire	To Order
	199060	COMPLETE R.H. OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195803	EXHAUST SIDE SILENCER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	212691	GEARBOX SIDE SILENCER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	196340	L.H. SHIELD	Enquire	To Order
	196339	R.H. SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	IN STOCK
	16043324	SCREW M8 X 18	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16043534	SCREW M8 X 22	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	201156	L.H. BRACKET	Enquire	To Order
	201155	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	P clip Bracket With Sheath D.12	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185408	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	203904	PROTECTION FOR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206161	SCREW	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	184393	R.H. EXHAUST MANIFOLD	184393 R.H. EXHAUST MANIFOLD Valid for USA.CDN and J	-	1	Enquire
1	189666	L.H. EXHAUST MANIFOLD	189666 L.H. EXHAUST MANIFOLD Not for USA, CDN and J	-	1	Enquire
1	184394	L.H. EXHAUST MANIFOLD	184394 L.H. EXHAUST MANIFOLD Valid for USA, CDN and J	-	1	Enquire
1	189665	R.H. EXHAUST MANIFOLD	189665 R.H. EXHAUST MANIFOLD Not for USA, CDN and J	-	1	Enquire
2	312592	NUT	312592 NUT	-	1	Enquire
3	14498824	WASHER IN STOCK	14498824 WASHER IN STOCK	-	1	Enquire
4	144240	THREADED CONNECTOR	144240 THREADED CONNECTOR	-	2	Enquire
5	150595	CAP NUT	150595 CAP NUT	-	2	Enquire
6	151064	Exhaust Manifold Gasket IN STOCK	151064 Exhaust Manifold Gasket IN STOCK	-	8	Enquire
7	138392	Exhaust Brass Locknut M8 x 1.25 IN STOCK	138392 Exhaust Brass Locknut M8 x 1.25 IN STOCK	-	16	Enquire
8	114748	Nut IN STOCK	114748 Nut IN STOCK	-	4	Enquire
9	159914	EXHAUST RING GASKET D.60.5-71 IN STOCK	159914 EXHAUST RING GASKET D.60.5-71 IN STOCK	-	2	Enquire
10	199064	R.H. CATALYST	199064 R.H. CATALYST Not for USA, CDN and J	-	1	Enquire
10	181966	R.H. CATALYST	181966 R.H. CATALYST Valid for USA, CDN e J	-	1	Enquire
11	199065	L.H. CATALYST	199065 L.H. CATALYST Not for USA, CDN and J	-	1	Enquire
11	181967	L.H. CATALYST	181967 L.H. CATALYST Valid for USA, CDN and J	-	1	Enquire
12	16044834	BOLT M8 X 80 IN STOCK	16044834 BOLT M8 X 80 IN STOCK	-	4	Enquire
13	263276	WASHER IN STOCK	263276 WASHER IN STOCK	-	8	Enquire
14	114749	Spacer D8. 10 x 23 IN STOCK	114749 Spacer D8. 10 x 23 IN STOCK	-	4	Enquire
15	111743	EXHAUST BRACKET SPRING IN STOCK	111743 EXHAUST BRACKET SPRING IN STOCK	-	4	Enquire
16	182837	Front Lambda Sensor IN STOCK	182837 Front Lambda Sensor IN STOCK	-	2	Enquire
17	180915	Rear Lambda Sensor IN STOCK	180915 Rear Lambda Sensor IN STOCK	-	2	Enquire
18	199901	CONNECTOR FIXING BRACKET	199901 CONNECTOR FIXING BRACKET	-	2	Enquire

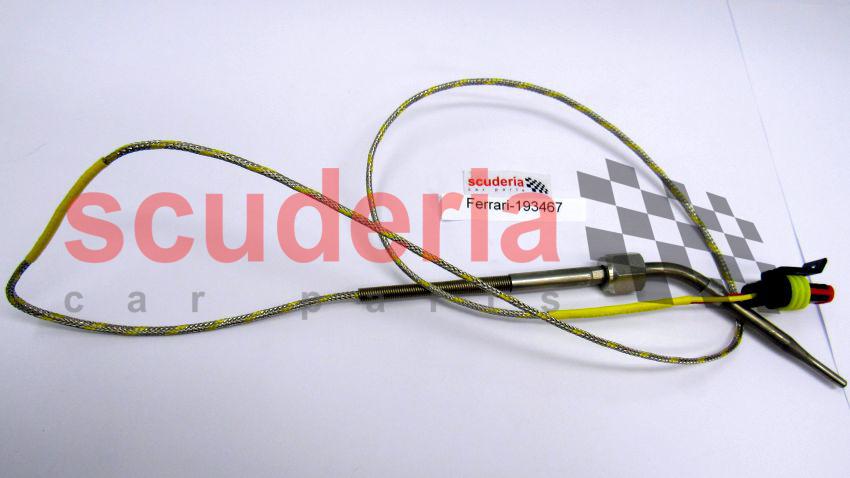

19	193467	THERMOCOUPLE IN STOCK	193467 THERMOCOUPLE IN STOCK	-	2	Enquire
20	179278	CATALYTIC CONVERTER TEMPERATURE CONTROL ECU IN STOCK	179278 CATALYTIC CONVERTER TEMPERATURE CONTROL ECU CONTROL STATION IN STOCK	-	2	Enquire
21	15210824	SCREW	15210824 SCREW	-	4	Enquire
22	10519224	WASHER IN STOCK	10519224 WASHER IN STOCK	-	4	Enquire
23	195811	COMPLETE EXHAUST SILENCER	195811 COMPLETE EXHAUST SILENCER	-	1	Enquire
24	177612	Exhaust Gasket IN STOCK	177612 Exhaust Gasket IN STOCK	-	2	Enquire
25	199061	COMPLETE L.H. OUTLET PIPE	199061 COMPLETE L.H. OUTLET PIPE Valid till Ass. Nr. 53910 for AUS	-	1	Enquire
25	212938	COMPLETE L.H. OUTLET PIPE	212938 COMPLETE L.H. OUTLET PIPE Valid from Ass. Nr. 53911 for AUS	-	1	Enquire
26	212937	COMPLETE R.H. OUTLET PIPE	212937 COMPLETE R.H. OUTLET PIPE Valid from Ass. Nr. 53911 for AUS	-	1	Enquire
26	199060	COMPLETE R.H. OUTLET PIPE	199060 COMPLETE R.H. OUTLET PIPE Valid till Ass. Nr. 53910 for AUS	-	1	Enquire
27	195803	EXHAUST SIDE SILENCER MOUNTING	195803 EXHAUST SIDE SILENCER MOUNTING EXHAUST SIDE	-	1	Enquire
28	16043324	SCREW M8 X 18 IN STOCK	16043324 SCREW M8 X 18 IN STOCK	-	4	Enquire
29	127496	WASHER	127496 WASHER	-	4	Enquire
30	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED IN STOCK	-	4	Enquire
31	212691	GEARBOX SIDE SILENCER MOUNTING	212691 GEARBOX SIDE SILENCER MOUNTING	-	1	Enquire
32	16043434	HEX HEAD SCREW M8 X 20 IN STOCK	16043434 HEX HEAD SCREW M8 X 20 IN STOCK	-	4	Enquire
33	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED IN STOCK	-	4	Enquire
34	196340	L.H. SHIELD	196340 L.H. SHIELD	-	1	Enquire
34	196339	R.H. SHIELD	196339 R.H. SHIELD	-	1	Enquire
35	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	2	Enquire
35	12625224	WASHER	12625224 WASHER	-	4	Enquire
36	10902424	SCREW IN STOCK	10902424 SCREW M6x18 IN STOCK	-	2	Enquire
36	16043324	SCREW M8 X 18 IN STOCK	16043324 SCREW M8 X 18 M8x18 IN STOCK	-	4	Enquire
37	16043534	SCREW M8 X 22 IN STOCK	16043534 SCREW M8 X 22 IN STOCK	-	4	Enquire
38	263276	WASHER IN STOCK	263276 WASHER IN STOCK	-	8	Enquire
39	127496	WASHER	127496 WASHER	-	8	Enquire
40	14059311	NUT IN STOCK	14059311 NUT IN STOCK	-	8	Enquire
41	201156	L.H. BRACKET	201156 L.H. BRACKET	-	1	Enquire
41	201155	R.H. BRACKET	201155 R.H. BRACKET	-	1	Enquire
42	10441390	P clip Bracket With Sheath D.12 IN STOCK	10441390 P clip Bracket With Sheath D.12 IN STOCK	-	1	Enquire
43	185408	BRACKET	185408 BRACKET	-	2	Enquire
44	14059211	NUT IN STOCK	14059211 NUT IN STOCK	-	1	Enquire
45	10440990	BRACKET WITH SHEATH IN STOCK	10440990 BRACKET WITH SHEATH IN STOCK	-	1	Enquire
46	203904	PROTECTION FOR MUFFLER	203904 PROTECTION FOR MUFFLER	-	2	Enquire
47	206161	SCREW IN STOCK	206161 SCREW IN STOCK	-	4	Enquire
