FUEL PUMPS AND PIPES of Ferrari Ferrari 360 Challenge Stradale

View All

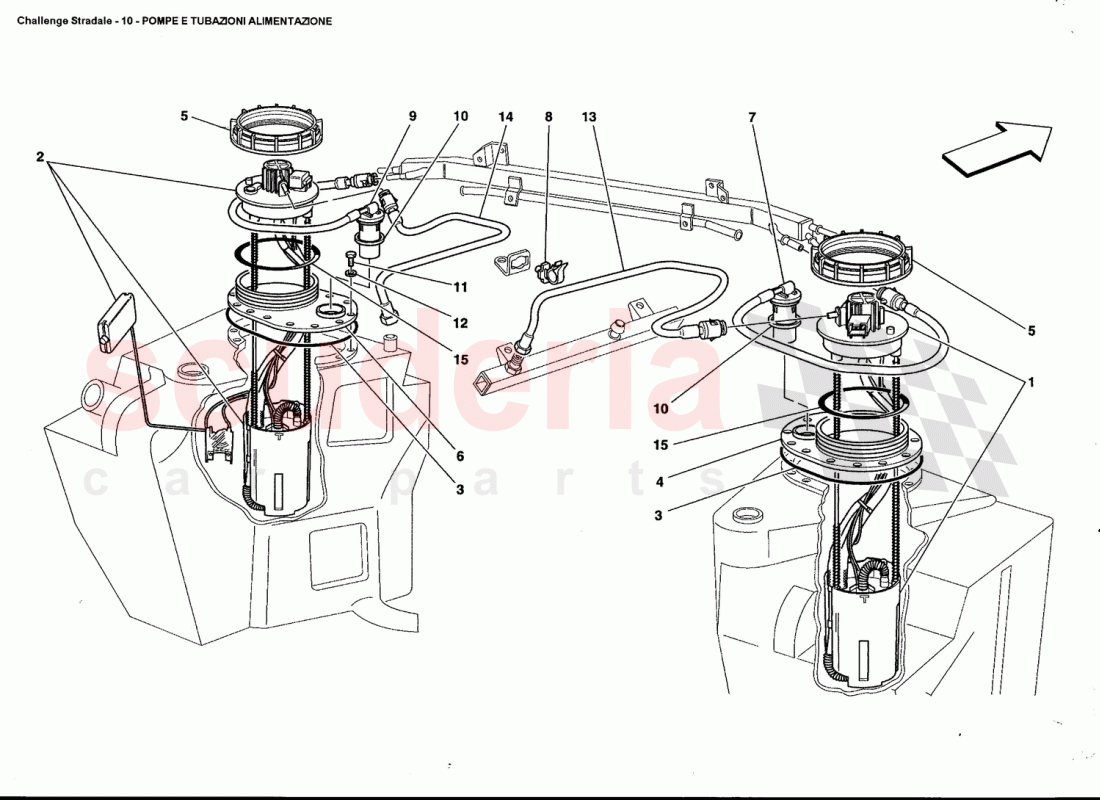

Ferrari 360 Challenge Stradale - FUEL PUMPS AND PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	239814	RH Fuel Pump	$587.98	To Order

Photo	Part No	Description	Price (each)	Stock
	239813	LH Fuel Pump and Fuel Level Indicator Control	$611.98	To Order

Photo	Part No	Description	Price (each)	Stock
	171795	O-Ring For Fuel Pump	$6.63	To Order

Photo	Part No	Description	Price (each)	Stock
	176579	R.H. PUMP SUPPORT COVER	$121.63	To Order

Photo	Part No	Description	Price (each)	Stock
	170945	RING NUT	$36.27	To Order

Photo	Part No	Description	Price (each)	Stock
	176580	L.H. PUMP SUPPORT COVER	$132.87	To Order

Photo	Part No	Description	Price (each)	Stock
	183256	COMPLETE R.H. FLOAT VALVE	$73.80	To Order
	196483	RH FLOAT VALVE	$369.04	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	180383	COMPLETE L.H. FLOAT VALVE	$304.86	To Order
	196480	LH FLOAT VALVE	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	195049	Gasket	$4.44	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178445	RH Fuel Delivery Pipe	$240.67	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	178753	LH Fuel Delivery Pipe	$176.49	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	170946	FUEL PUMP SEAL	$11.86	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	239814	RH Fuel Pump	239814 RH Fuel Pump	$587.98	1
2	239813	LH Fuel Pump and Fuel Level Indicator Control	239813 LH Fuel Pump and Fuel Level Indicator Control FUEL LEVEL INDICATOR / CONTROL	$611.98 MSRP: ~~654.71~~ (6.5% off)	1
3	171795	O-Ring For Fuel Pump	171795 O-Ring For Fuel Pump	$6.63	2
4	176579	R.H. PUMP SUPPORT COVER	176579 R.H. PUMP SUPPORT COVER	$121.63	1
5	170945	RING NUT	170945 RING NUT	$36.27	2
6	176580	L.H. PUMP SUPPORT COVER	176580 L.H. PUMP SUPPORT COVER	$132.87	1
7	183256	COMPLETE R.H. FLOAT VALVE	183256 COMPLETE R.H. FLOAT VALVE Not for USA and CDN /	$73.80 MSRP: ~~99.17~~ (25.6% off)	1
7	196483	RH FLOAT VALVE	196483 RH FLOAT VALVE Valid for USA and CDN /	$369.04 MSRP: ~~468.11~~ (21.2% off)	1
8	178430	FASTENER CLIP	178430 FASTENER CLIP	$0.41 MSRP: ~~0.75~~ (45.3% off)	4
9	180383	COMPLETE L.H. FLOAT VALVE	180383 COMPLETE L.H. FLOAT VALVE Not for USA and CDN /	$304.86	1
9	196480	LH FLOAT VALVE	196480 LH FLOAT VALVE Valid for USA and CDN /	$288.81 MSRP: ~~375.62~~ (23.1% off)	1
10	195049	Gasket	195049 Gasket	$4.44 MSRP: ~~5.50~~ (19.3% off)	2
11	10977624	SCREW	10977624 SCREW	$0.06	30
12	12604178	Washer	12604178 Washer	-	30	Enquire
13	178445	RH Fuel Delivery Pipe ARRIVING SOON	178445 RH Fuel Delivery Pipe ARRIVING SOON	$240.67 MSRP: ~~307.57~~ (21.8% off)	1
14	178753	LH Fuel Delivery Pipe ARRIVING SOON	178753 LH Fuel Delivery Pipe ARRIVING SOON	$176.49 MSRP: ~~226.81~~ (22.2% off)	1
15	170946	FUEL PUMP SEAL	170946 FUEL PUMP SEAL	$11.86 MSRP: ~~24.30~~ (51.2% off)	2
