PUMPS AND OILSUMP of Ferrari Ferrari 360 Challenge Stradale

View All

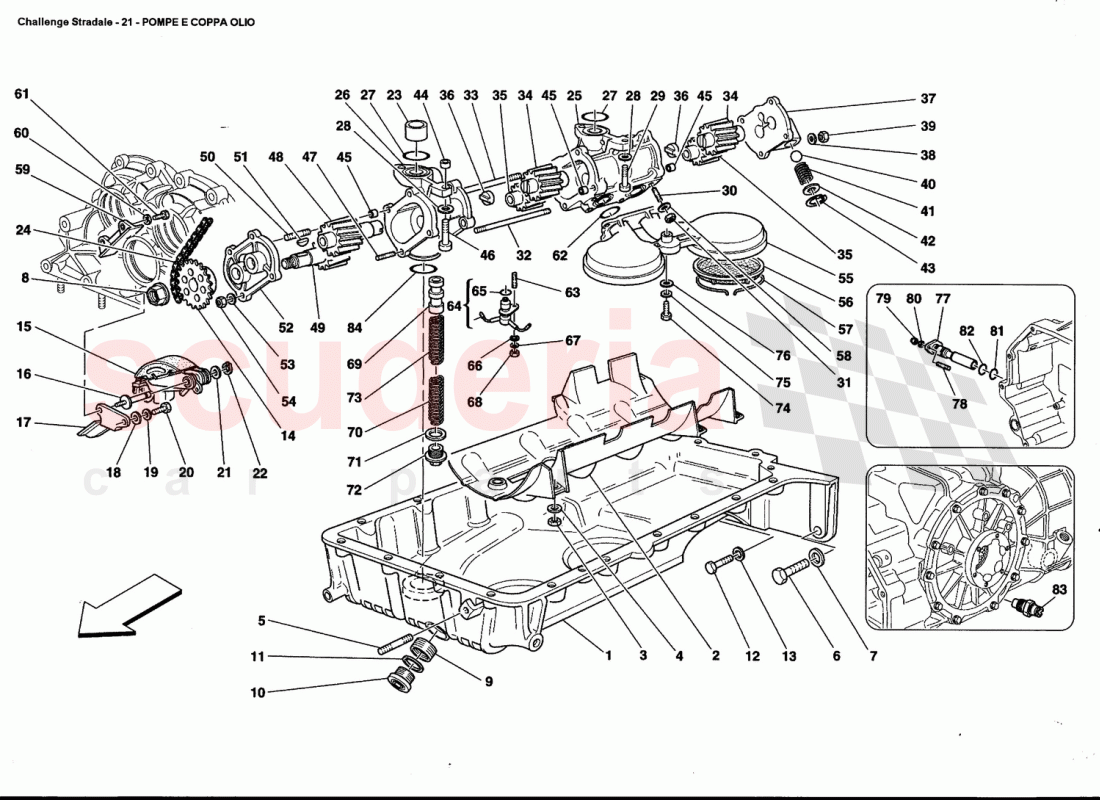

Ferrari 360 Challenge Stradale - PUMPS AND OILSUMP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	173623	ANTI-SHAKING OIL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11307021	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132876	NUT -As an alternative-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132462	DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185577	CHAIN TIGHTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169594	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179938	STOP PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171960	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11065474	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145326	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133089	OIL PUMP CONTROL CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133939	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133842	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133843	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132458	DRIVING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132460	DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109309	JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132436	RECOVERY PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604270	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121306	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109980	SPRING FOR BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196077	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11057876	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181862	DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132454	DRIVING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10205820	Feather key	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132434	FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604270	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176222	RECOVERY SUCTION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122429	Oil Pickup Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103944	Sealing ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136039	FIXED TENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133938	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11000824	Stud -Q.ty 4 for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191973	COMPLETE MULTIPLE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11199274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129324	REGISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177908	OUTER SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263360	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177423	OIL PRESSURE VALVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177909	INNER SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179222	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177130	GEARBOX OIL SUCTION FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177549	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177550	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104628	GEARBOX THERMISTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104535	O.R. GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	185130	DELIVERY PUMP BODY WITH STUD BOLTS	185130 DELIVERY PUMP BODY WITH STUD BOLTS STUD BOLTS	-	1	Enquire
-	185129	RECOVERY PUMP BODY WITH STUD BOLTS	185129 RECOVERY PUMP BODY WITH STUD BOLTS STUD BOLTS	-	1	Enquire
-	181819	COMPLETE OIL SUMP	181819 COMPLETE OIL SUMP	-	1	Enquire
2	173623	ANTI-SHAKING OIL PANEL	173623 ANTI-SHAKING OIL PANEL PANEL	-	1	Enquire
3	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	6	Enquire
4	84653800	WASHER	84653800 WASHER	-	6	Enquire
5	13516524	STUD BOLT	13516524 STUD BOLT	-	1	Enquire
6	11307021	Screw	11307021 Screw	-	2	Enquire
7	11190574	WASHER	11190574 WASHER	-	2	Enquire
8	132876	NUT -As an alternative-	132876 NUT -As an alternative-	-	1	Enquire
9	223577	THREADED INSERT M22 X 1.5 X 9MM	223577 THREADED INSERT M22 X 1.5 X 9MM	-	1	Enquire
10	307477	THREADED PLUG	307477 THREADED PLUG	-	1	Enquire
11	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	-	1	Enquire
12	14306424	SCREW	14306424 SCREW	-	2	Enquire
13	986899	WASHER	986899 WASHER	-	2	Enquire
14	132462	DRIVEN GEAR	132462 DRIVEN GEAR	-	1	Enquire
15	185577	CHAIN TIGHTENER	185577 CHAIN TIGHTENER	-	1	Enquire
16	169594	STUD	169594 STUD	-	1	Enquire
17	179938	STOP PLATE	179938 STOP PLATE	-	1	Enquire
18	12646604	WASHER	12646604 WASHER	-	1	Enquire
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
20	10902224	SCREW	10902224 SCREW	-	1	Enquire
21	171960	WASHER	171960 WASHER	-	1	Enquire
22	11065474	CIRCLIP	11065474 CIRCLIP	-	1	Enquire
23	145326	BUSHING	145326 BUSHING	-	1	Enquire
24	133089	OIL PUMP CONTROL CHAIN	133089 OIL PUMP CONTROL CHAIN	-	1	Enquire
27	133939	O.R. GASKET	133939 O.R. GASKET	-	2	Enquire
28	986899	WASHER	986899 WASHER	-	4	Enquire
29	14306424	SCREW	14306424 SCREW	-	3	Enquire
30	13540824	STUD BOLT	13540824 STUD BOLT	-	4	Enquire
31	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
32	133842	STUD	133842 STUD	-	2	Enquire
33	133843	STUD	133843 STUD	-	2	Enquire
34	132458	DRIVING GEAR	132458 DRIVING GEAR	-	2	Enquire
35	132460	DRIVEN GEAR	132460 DRIVEN GEAR	-	2	Enquire
36	109309	JOINT	109309 JOINT	-	2	Enquire
37	132436	RECOVERY PUMP COVER	132436 RECOVERY PUMP COVER	-	1	Enquire
38	12604270	WASHER	12604270 WASHER	-	4	Enquire
39	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
40	121306	BALL	121306 BALL	-	1	Enquire
41	109980	SPRING FOR BALL	109980 SPRING FOR BALL	-	1	Enquire
42	196077	SPACER	196077 SPACER	-	1	Enquire
43	11057876	SEEGER RING	11057876 SEEGER RING	-	1	Enquire
44	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	-	1	Enquire
45	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	-	Enquire
46	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	1	Enquire
47	13540824	STUD BOLT	13540824 STUD BOLT	-	2	Enquire
48	181862	DRIVEN GEAR	181862 DRIVEN GEAR	-	1	Enquire
49	132454	DRIVING GEAR	132454 DRIVING GEAR	-	1	Enquire
50	13541024	STUD BOLT	13541024 STUD BOLT	-	2	Enquire
51	10205820	Feather key	10205820 Feather key	-	1	Enquire
52	132434	FRONT COVER	132434 FRONT COVER	-	1	Enquire
53	12604270	WASHER	12604270 WASHER	-	4	Enquire
54	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
55	176222	RECOVERY SUCTION PIPE	176222 RECOVERY SUCTION PIPE	-	1	Enquire
56	122429	Oil Pickup Filter	122429 Oil Pickup Filter	-	2	Enquire
57	103944	Sealing ring	103944 Sealing ring	-	2	Enquire
58	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
59	136039	FIXED TENSION	136039 FIXED TENSION	-	1	Enquire
60	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
61	10902424	SCREW	10902424 SCREW	-	2	Enquire
62	133938	O-RING	133938 O-RING	-	2	Enquire
63	11000824	Stud -Q.ty 4 for USA-	11000824 Stud -Q.ty 4 for USA-	-	4	Enquire
64	191973	COMPLETE MULTIPLE UNION	191973 COMPLETE MULTIPLE UNION	-	4	Enquire
65	137192	O-RING	137192 O-RING	-	4	Enquire
66	11199274	WASHER	11199274 WASHER	-	4	Enquire
67	62769800	WASHER	62769800 WASHER	-	4	Enquire
68	15896470	NUT	15896470 NUT	-	4	Enquire
69	129324	REGISTER	129324 REGISTER	-	1	Enquire
70	177908	OUTER SPRING	177908 OUTER SPRING	-	1	Enquire
71	10263360	Gasket	10263360 Gasket	-	1	Enquire
72	177423	OIL PRESSURE VALVE CAP	177423 OIL PRESSURE VALVE CAP	-	1	Enquire
73	177909	INNER SPRING	177909 INNER SPRING	-	1	Enquire
74	179222	SCREW	179222 SCREW	-	1	Enquire
75	127494	WASHER	127494 WASHER	-	1	Enquire
76	13577724	WASHER	13577724 WASHER	-	1	Enquire
77	177130	GEARBOX OIL SUCTION FAN	177130 GEARBOX OIL SUCTION FAN SUCTION FAN	-	1	Enquire
78	11500224	STUD BOLT	11500224 STUD BOLT	-	2	Enquire
79	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
80	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
81	177549	O-Ring	177549 O-Ring	-	1	Enquire
82	177550	O-RING	177550 O-RING	-	1	Enquire
83	104628	GEARBOX THERMISTOR	104628 GEARBOX THERMISTOR	-	1	Enquire
84	104535	O.R. GASKET	104535 O.R. GASKET	-	1	Enquire
