LUBRICATION SYSTEM AND BLOW-BY SYSTEM of Ferrari Ferrari 360 Challenge Stradale

View All

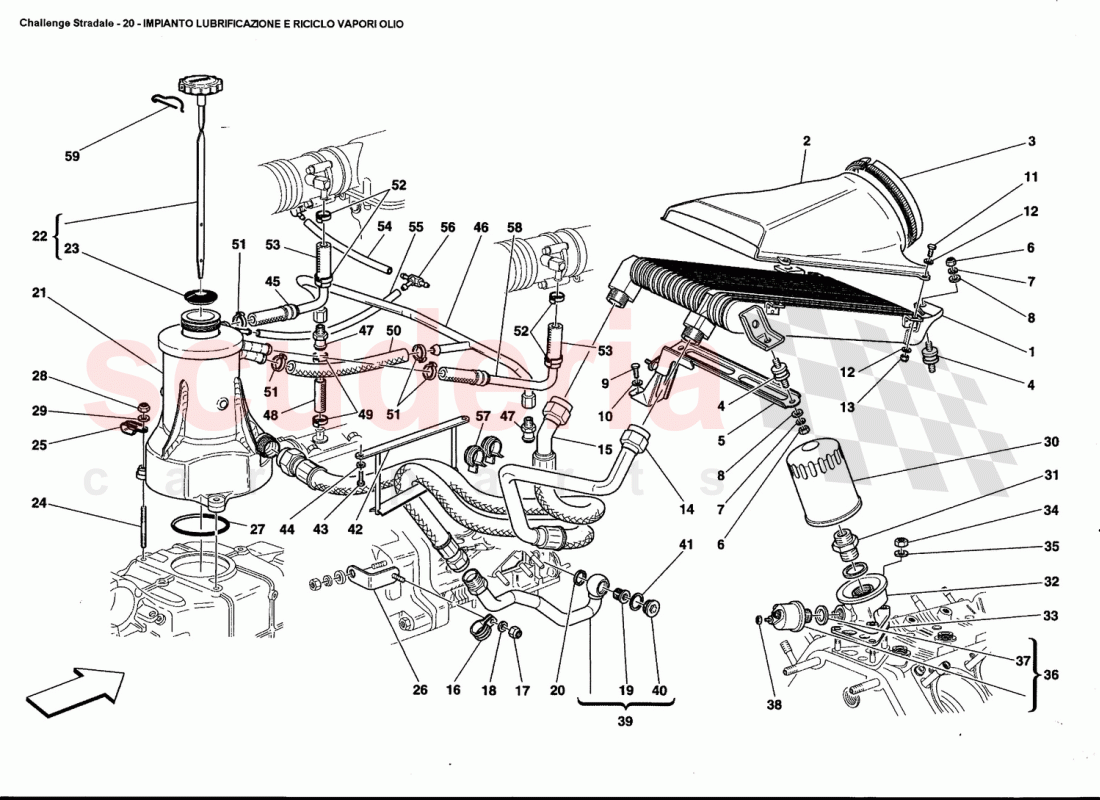

Ferrari 360 Challenge Stradale - LUBRICATION SYSTEM AND BLOW-BY SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	185412	OIL RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181001	AIR INLET CONVEYOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180555	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175724	RADIATOR SUPPORTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201655	HOSE FROM ENGINE HOSE TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201656	HOSE FROM RADIATOR TO DISAREATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134041	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122319	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144487	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201625	COMPLETE OIL DISAREATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202249	TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180585	Oil Tank Cap Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178314	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176388	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197654	Oil Filter	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	173929	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173633	OIL FILTER BASE-PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188052	Oil Filter Base Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135940	Transmitter Oil Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201654	HOSE FROM ENGINE TO RADIATOR HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122318	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183044	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183655	OIL HOSE RETAINING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202194	R.H. BUTTERFLY CONNECTION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201653	HEADS CONNECTION VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170448	VALVE	Enquire	To Order
	215820	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175746	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202182	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202183	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126342	RUBBER HOSE FROM UNION TO AIR CAPACITY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194910	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258855	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160013	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202196	L.H. BUTTERFLY CONNECTION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209265	NO SCREW ABLE SPLIT PIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	185412	OIL RADIATOR	185412 OIL RADIATOR	-	1	Enquire
2	181001	AIR INLET CONVEYOR	181001 AIR INLET CONVEYOR	-	1	Enquire
3	180555	GASKET	180555 GASKET	-	1	Enquire
4	102947	VIBRATION DAMPER	102947 VIBRATION DAMPER	-	4	Enquire
5	175724	RADIATOR SUPPORTING BRACKET	175724 RADIATOR SUPPORTING BRACKET	-	1	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
7	127494	WASHER	127494 WASHER	-	8	Enquire
8	13577724	WASHER	13577724 WASHER	-	8	Enquire
9	10902424	SCREW	10902424 SCREW	-	2	Enquire
10	10519424	WASHER	10519424 WASHER	-	2	Enquire
11	10977824	SCREW	10977824 SCREW	-	3	Enquire
12	12637824	WASHER	12637824 WASHER	-	6	Enquire
13	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	3	Enquire
14	201655	HOSE FROM ENGINE HOSE TO RADIATOR	201655 HOSE FROM ENGINE HOSE TO RADIATOR RADIATOR	-	1	Enquire
15	201656	HOSE FROM RADIATOR TO DISAREATOR	201656 HOSE FROM RADIATOR TO DISAREATOR DISAREATOR	-	1	Enquire
16	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	1	Enquire
17	134041	NUT	134041 NUT	-	1	Enquire
18	127494	WASHER	127494 WASHER	-	1	Enquire
19	122319	UNION	122319 UNION	-	1	Enquire
20	144487	GASKET	144487 GASKET	-	1	Enquire
21	201625	COMPLETE OIL DISAREATOR	201625 COMPLETE OIL DISAREATOR Till car Ass. Nr. 56313 to assemble with / tank plug 202249 ref. 22 with hole and / no screwable split pin 209265 ref. 59	-	1	Enquire
22	202249	TANK PLUG	202249 TANK PLUG	-	1	Enquire
23	180585	Oil Tank Cap Gasket	180585 Oil Tank Cap Gasket	-	1	Enquire
24	13517124	STUD BOLT	13517124 STUD BOLT	-	3	Enquire
25	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH	-	1	Enquire
26	178314	BRACKET	178314 BRACKET	-	1	Enquire
27	176388	O-RING	176388 O-RING	-	1	Enquire
28	147985	NUT	147985 NUT	-	3	Enquire
29	12601374	WASHER	12601374 WASHER	-	3	Enquire
30	197654	Oil Filter ARRIVING SOON	197654 Oil Filter ARRIVING SOON	-	1	Enquire
31	173929	THREADED UNION	173929 THREADED UNION	-	1	Enquire
32	173633	OIL FILTER BASE-PLATE	173633 OIL FILTER BASE-PLATE	-	1	Enquire
33	188052	Oil Filter Base Gasket	188052 Oil Filter Base Gasket	-	1	Enquire
34	147985	NUT	147985 NUT	-	3	Enquire
35	12601374	WASHER	12601374 WASHER	-	3	Enquire
36	135940	Transmitter Oil Pressure	135940 Transmitter Oil Pressure	-	1	Enquire
37	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5	-	1	Enquire
38	62790300	NUT	62790300 NUT	-	2	Enquire
39	201654	HOSE FROM ENGINE TO RADIATOR HOSE	201654 HOSE FROM ENGINE TO RADIATOR HOSE RADIATOR HOSE	-	1	Enquire
40	122318	THREADED PLUG	122318 THREADED PLUG	-	1	Enquire
41	183044	GASKET	183044 GASKET	-	1	Enquire
42	183655	OIL HOSE RETAINING BRACKET	183655 OIL HOSE RETAINING BRACKET	-	1	Enquire
43	81591700	SCREW	81591700 SCREW	-	2	Enquire
44	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
45	202194	R.H. BUTTERFLY CONNECTION PIPE	202194 R.H. BUTTERFLY CONNECTION PIPE	-	1	Enquire
46	201653	HEADS CONNECTION VENT PIPE	201653 HEADS CONNECTION VENT PIPE	-	1	Enquire
47	170448	VALVE	170448 VALVE For cars not USA and CDN from Ass. Nr. 57034 Q.ty 1	-	2	Enquire
47	215820	VALVE	215820 VALVE With hole 0 2 on the membrane / Not for USA and CDN / Valid from Ass. Nr. 57034	-	1	Enquire
48	175746	RUBBER HOSE	175746 RUBBER HOSE	-	2	Enquire
49	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
50	202182	RUBBER HOSE	202182 RUBBER HOSE	-	1	Enquire
51	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
52	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
53	202183	RUBBER HOSE	202183 RUBBER HOSE	-	2	Enquire
54	126342	RUBBER HOSE FROM UNION TO AIR CAPACITY UNION	126342 RUBBER HOSE FROM UNION TO AIR CAPACITY UNION	-	2	Enquire
55	194910	RUBBER HOSE	194910 RUBBER HOSE	-	1	Enquire
56	258855	3-WAY CONNECTOR	258855 3-WAY CONNECTOR	-	1	Enquire
57	160013	CLIP	160013 CLIP	-	2	Enquire
58	202196	L.H. BUTTERFLY CONNECTION PIPE	202196 L.H. BUTTERFLY CONNECTION PIPE	-	1	Enquire
59	209265	NO SCREW ABLE SPLIT PIN	209265 NO SCREW ABLE SPLIT PIN Valid form car Ass. Nr. 56314	-	1	Enquire
