Rear Suspension - Wishbones

Ferrari 355 (5.2 Motronic)

Find Your Part

Ferrari 355 (5.2 Motronic) - REAR SUSPENSION - WISHBONES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
159373 UPPER LEVER Enquire To Order
Photo Part No Description Price (each) Stock
159306 R.H. BALL TIE ROD Enquire To Order
Photo Part No Description Price (each) Stock
159303 REAR ANTI-ROLL BAR Enquire To Order
Photo Part No Description Price (each) Stock
118276 Pad for stabilizer bar Ø mm 17 Enquire IN STOCK
Photo Part No Description Price (each) Stock
239775 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire IN STOCK
Photo Part No Description Price (each) Stock
121681 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire IN STOCK
Photo Part No Description Price (each) Stock
128904 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
106419 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
161571 FLAMBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
159374 LOWER LEVER Enquire IN STOCK
Photo Part No Description Price (each) Stock
136218 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire IN STOCK
Photo Part No Description Price (each) Stock
105434 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
161572 FLAMBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
159399 LOWER FORK Enquire To Order
Photo Part No Description Price (each) Stock
106422 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire IN STOCK
Photo Part No Description Price (each) Stock
161573 FLAMBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire IN STOCK
Photo Part No Description Price (each) Stock
101041 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
159402 WASHER mm. 3 Enquire To Order
Photo Part No Description Price (each) Stock
101039 Ditto, thickness 1 mm. Enquire To Order
Photo Part No Description Price (each) Stock
160020 FLAMBLOCK PROTECTION Enquire To Order
View All

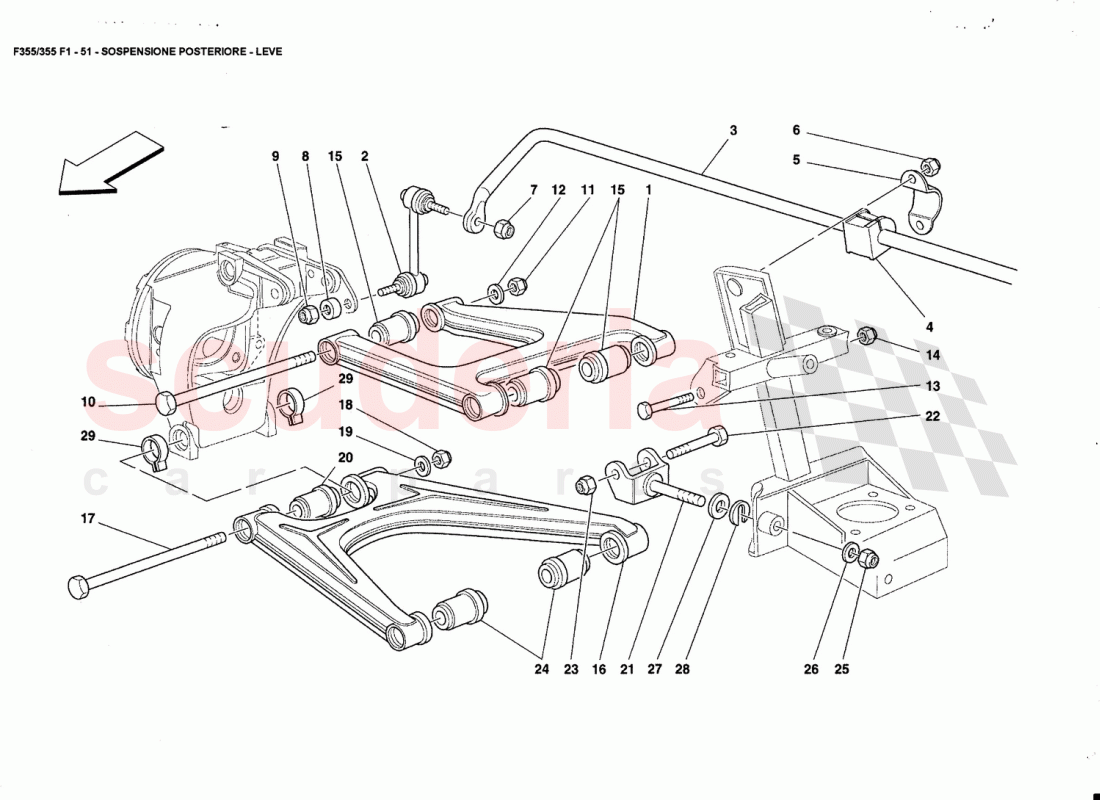

REAR SUSPENSION - WISHBONES of Ferrari Ferrari 355 (5.2 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 107342
Ditto, thickness 3,25 mm. 		- - Enquire
- 107338
SPACER WASHER mm. 1,5 		- - Enquire
- 107339
Ditto, thickness 2 mm.
IN STOCK 		- - Enquire
- 107340
Ditto, thickness 2,5 mm 		- - Enquire
- 107341
Ditto, thickness 3 mm. 		- - Enquire
- 159402
WASHER mm. 3
For L.h. front lower fork 		- 1 Enquire
- 165087
WASHER mm. 2
As an alternative 		- 1 Enquire
- 159402
WASHER mm. 3
For rear lower forks 		- 2 Enquire
- 159307
L.H. BALL TIE ROD 		- 1 Enquire
1 159373
UPPER LEVER 		- 2 Enquire
2 159306
R.H. BALL TIE ROD 		- 1 Enquire
3 159303
REAR ANTI-ROLL BAR 		- 1 Enquire
4 118276
Pad for stabilizer bar Ø mm 17
IN STOCK 		- 2 Enquire
5 239775
PLATE 		- 2 Enquire
6 147985
NUT
IN STOCK 		- 4 Enquire
7 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		- 2 Enquire
8 121681
SPACER 		- 2 Enquire
9 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		- 2 Enquire
10 128904
SCREW 		- 2 Enquire
11 148020
NUT
IN STOCK 		- 2 Enquire
12 84653800
WASHER
IN STOCK 		- 2 Enquire
13 106419
SCREW 		- 4 Enquire
14 148020
NUT
IN STOCK 		- 4 Enquire
15 161571
FLAMBLOCK 		- 8 Enquire
16 159374
LOWER LEVER
IN STOCK 		- 2 Enquire
17 136218
SCREW 		- 2 Enquire
18 150238
Nut -For car with lifting
IN STOCK 		- 2 Enquire
19 105434
WASHER 		- 2 Enquire
20 161572
FLAMBLOCK 		- 4 Enquire
21 159399
LOWER FORK 		- 4 Enquire
22 106422
SCREW
IN STOCK 		- 4 Enquire
23 150238
Nut -For car with lifting
IN STOCK 		- 4 Enquire
24 161573
FLAMBLOCK 		- 4 Enquire
25 150238
Nut -For car with lifting
IN STOCK 		- 4 Enquire
26 101041
WASHER 		- 4 Enquire
27 159402
WASHER mm. 3
For R.h. front lower fork 		- 1 Enquire
28 101039
Ditto, thickness 1 mm. 		- 4 Enquire
29 160020
FLAMBLOCK PROTECTION 		- 4 Enquire
