Front Suspension - Wishbones

Ferrari 355 (5.2 Motronic)

Find Your Part

Ferrari 355 (5.2 Motronic) - FRONT SUSPENSION - WISHBONES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
159372 UPPER LEVER Enquire To Order
Photo Part No Description Price (each) Stock
132776 UPPER BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
66535800 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
159305 LOWER LEVER Enquire To Order
Photo Part No Description Price (each) Stock
186493 RH FLANBLOC UPPER FORK 12-30X47 Enquire To Order
Photo Part No Description Price (each) Stock
159398 LOWER FORK Enquire To Order
Photo Part No Description Price (each) Stock
106419 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
133944 LOWER BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
155002 Washer Enquire To Order
Photo Part No Description Price (each) Stock
15971634 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
132667 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
101022 SETTING PLATE -mm. 1.50- Enquire To Order
Photo Part No Description Price (each) Stock
101022 SETTING PLATE -mm. 1.50- Enquire To Order
Photo Part No Description Price (each) Stock
101039 Ditto, thickness 1 mm. Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire To Order
Photo Part No Description Price (each) Stock
152617 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
159402 WASHER mm. 3 Enquire To Order
Photo Part No Description Price (each) Stock
161813 ARM FOR ANTI-ROLL BAR Enquire To Order
Photo Part No Description Price (each) Stock
13526170 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
16044234 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12604474 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
161109 RH Ball Tie Rod Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
159353 FRONT ANTI-ROLL BAR Enquire To Order
Photo Part No Description Price (each) Stock
118371 BAR BUFFER Enquire To Order
Photo Part No Description Price (each) Stock
239775 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
14672491 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
160019 Ball Joint Protection Enquire To Order
Photo Part No Description Price (each) Stock
149807 NUT Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
102901 SPACER WASHER Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059421 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12642424 WASHER Enquire To Order
View All

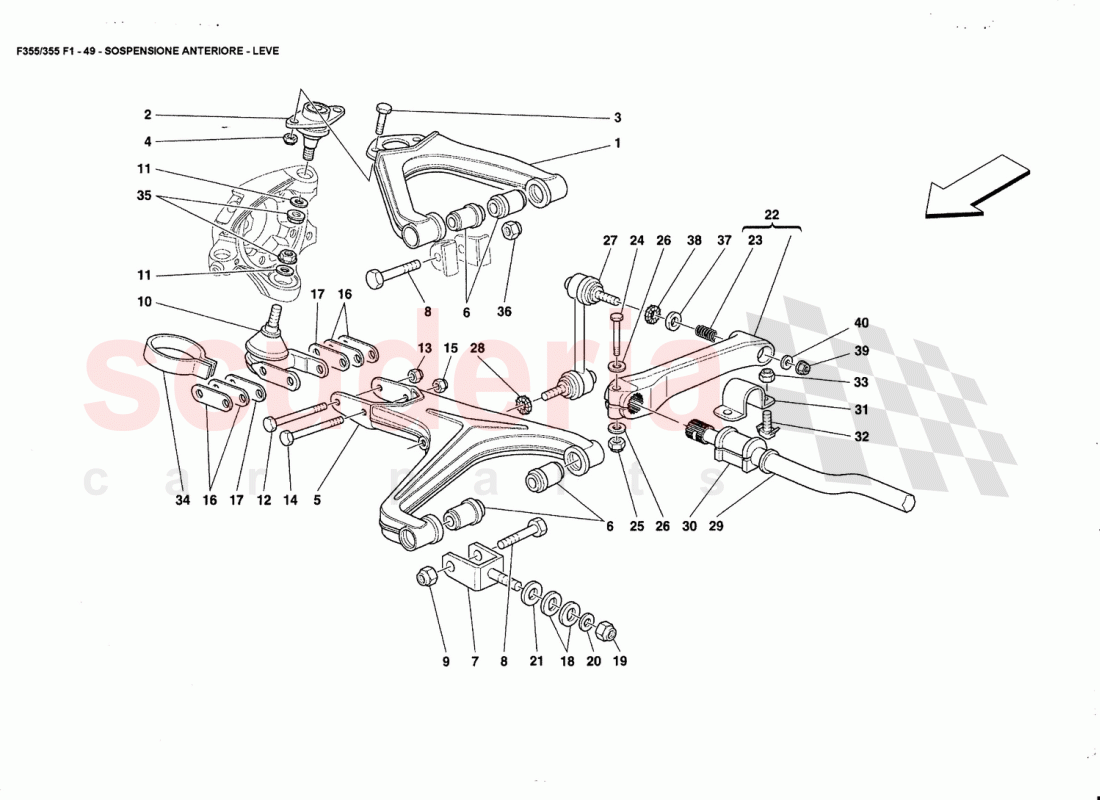

FRONT SUSPENSION - WISHBONES of Ferrari Ferrari 355 (5.2 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 161110
LH Spherical Tie-Rod 		- 1 Enquire
- 170075
ARM FOR ANTI-ROLL BAR
Valid from car Ass. Nr. 27957 		- 2 Enquire
- 107339
Ditto, thickness 2 mm. 		- - Enquire
- 107340
Ditto, thickness 2,5 mm 		- - Enquire
- 107341
Ditto, thickness 3 mm. 		- - Enquire
- 107342
Ditto, thickness 3,25 mm. 		- - Enquire
- 115073
SETTING PLATE -mm. 1.20-
mm. 1,2 		- 2 Enquire
- 164485
SETTING PLATE -mm. 2.00-
mm. 2,0 		- 2 Enquire
- 107338
SPACER WASHER mm. 1,5 		- - Enquire
- 164484
SETTING PLATE -mm. 1.00-
mm. 1,0 		- 2 Enquire
1 159372
UPPER LEVER 		- 2 Enquire
2 132776
UPPER BALL JOINT 		- 2 Enquire
3 66535800
SCREW 		- 4 Enquire
4 104030
NYLOC NUT M8 X 1.25 X 9.5 		- -4 Enquire
5 159305
LOWER LEVER 		- 2 Enquire
6 186493
RH FLANBLOC UPPER FORK 12-30X47 		- 8 Enquire
7 159398
LOWER FORK 		- 4 Enquire
8 106419
SCREW 		- 8 Enquire
9 148020
NUT 		- 4 Enquire
10 133944
LOWER BALL JOINT 		- 2 Enquire
11 155002
Washer 		- 4 Enquire
12 15971634
SCREW 		- 2 Enquire
13 102742
Nyloc Nut M10 x 1.25 x 10mm
ARRIVING SOON 		- 2 Enquire
14 132667
SCREW 		- 2 Enquire
15 148020
NUT 		- 2 Enquire
16 101022
SETTING PLATE -mm. 1.50-
PLATE 		- 10 Enquire
17 101022
SETTING PLATE -mm. 1.50-
mm. 1,5 / Possible fitting 		- 2 Enquire
18 101039
Ditto, thickness 1 mm. 		- 8 Enquire
19 150238
Nut -For car with lifting 		- 4 Enquire
20 152617
WASHER 		- 4 Enquire
21 159402
WASHER mm. 3 		- 4 Enquire
22 161813
ARM FOR ANTI-ROLL BAR
BAR / Valid till car Ass. Nr. 27956 		- 2 Enquire
23 13526170
THREADED INSERT 		- 2 Enquire
24 16044234
SCREW 		- 2 Enquire
25 147985
NUT 		- 2 Enquire
26 12604474
WASHER 		- 4 Enquire
27 161109
RH Ball Tie Rod 		- 1 Enquire
28 160092
WASHER 		- 2 Enquire
29 159353
FRONT ANTI-ROLL BAR 		- 1 Enquire
30 118371
BAR BUFFER 		- 2 Enquire
31 239775
PLATE 		- 2 Enquire
32 14672491
SCREW 		- 4 Enquire
33 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 4 Enquire
34 160019
Ball Joint Protection 		- 2 Enquire
35 149807
NUT 		- 4 Enquire
36 148020
NUT 		- 4 Enquire
37 102901
SPACER WASHER 		- 2 Enquire
38 160092
WASHER 		- 2 Enquire
39 14059421
NUT 		- 2 Enquire
40 12642424
WASHER 		- 2 Enquire
