AIR CONDITIONING SYSTEM of Ferrari Ferrari 355 (5.2 Motronic)

View All

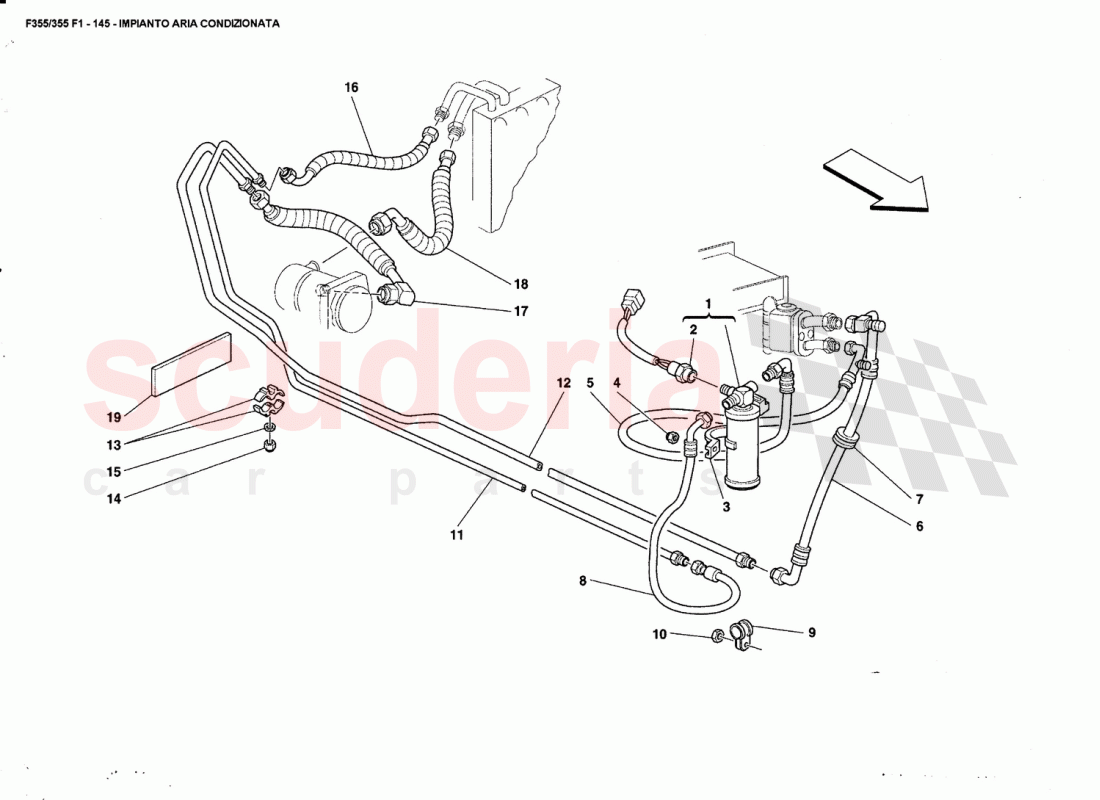

Ferrari 355 (5.2 Motronic) - AIR CONDITIONING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63934300	DEHYDRATOR FILTER WITH PRESSURE SWITCH	Enquire	To Order
	63934300	DEHYDRATOR FILTER WITH PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64278900	PRESSOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62165800	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62964800	PIPE FROM CLEANER TO EVAPORATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62964900	PIPE FROM EVAPORATOR TO UNDERFLOOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10398780	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62964700	PIPE FROM UNDERFLOOR PIPE TO CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63561500	DELIVERY UNDERFLOOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63561600	RETURN UNDERFLOOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64290100	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62964600	PIPE FROM CONDENSER TO UNDERFLOOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62965000	PIPE FROM UNDERFLOOR PIPE TO COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62964500	PIPE FROM COMPRESSOR TO CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64827200	RUBBER THICKNESS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	64543600	RETURN UNDERFLOOR PIPE	64543600 RETURN UNDERFLOOR PIPE	-	1	Enquire
-	64461200	PIPE FROM EVAPORATOR TO UNDERFLOOR PIPE	64461200 PIPE FROM EVAPORATOR TO UNDERFLOOR PIPE	-	1	Enquire
-	64461100	PIPE FROM CLEANER TO EVAPORATOR	64461100 PIPE FROM CLEANER TO EVAPORATOR Valid for GD	-	1	Enquire
1	63934300	DEHYDRATOR FILTER WITH PRESSURE SWITCH	63934300 DEHYDRATOR FILTER WITH PRESSURE SWITCH	-	1	Enquire
1	63934300	DEHYDRATOR FILTER WITH PRESSURE SWITCH	63934300 DEHYDRATOR FILTER WITH PRESSURE SWITCH PRESSURE SWITCH	-	1	Enquire
2	64278900	PRESSOSTAT	64278900 PRESSOSTAT	-	1	Enquire
3	62165800	BRACKET	62165800 BRACKET	-	1	Enquire
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
5	62964800	PIPE FROM CLEANER TO EVAPORATOR	62964800 PIPE FROM CLEANER TO EVAPORATOR EVAPORATOR / Not for GD	-	1	Enquire
6	62964900	PIPE FROM EVAPORATOR TO UNDERFLOOR PIPE	62964900 PIPE FROM EVAPORATOR TO UNDERFLOOR PIPE UNDERFLOOR PIPE	-	1	Enquire
7	10398780	CABLE GROMMET	10398780 CABLE GROMMET	-	1	Enquire
8	62964700	PIPE FROM UNDERFLOOR PIPE TO CLEANER	62964700 PIPE FROM UNDERFLOOR PIPE TO CLEANER TO CLEANER	-	1	Enquire
9	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	1	Enquire
10	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
11	63561500	DELIVERY UNDERFLOOR PIPE	63561500 DELIVERY UNDERFLOOR PIPE	-	1	Enquire
12	63561600	RETURN UNDERFLOOR PIPE	63561600 RETURN UNDERFLOOR PIPE	-	1	Enquire
13	64290100	CLIP	64290100 CLIP	-	12	Enquire
14	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
15	12639724	WASHER	12639724 WASHER	-	6	Enquire
16	62964600	PIPE FROM CONDENSER TO UNDERFLOOR PIPE	62964600 PIPE FROM CONDENSER TO UNDERFLOOR PIPE	-	1	Enquire
17	62965000	PIPE FROM UNDERFLOOR PIPE TO COMPRESSOR	62965000 PIPE FROM UNDERFLOOR PIPE TO COMPRESSOR TO COMPRESSOR	-	1	Enquire
18	62964500	PIPE FROM COMPRESSOR TO CONDENSER	62964500 PIPE FROM COMPRESSOR TO CONDENSER CONDENSER	-	1	Enquire
19	64827200	RUBBER THICKNESS	64827200 RUBBER THICKNESS	-	1	Enquire
