LIGHTS LIFTING DEVICE AND HEADLIGHTS

Find Your Part

Ferrari 355 (5.2 Motronic) - LIGHTS LIFTING DEVICE AND HEADLIGHTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14151095 Lamp -Valid for USA- $17.55 To Order
Photo Part No Description Price (each) Stock
148086 FIXED POINT PIN $24.05 To Order
Photo Part No Description Price (each) Stock
133080 R.H. HEADLIGHT LOW/HIGH BEAM $761.23 To Order
Photo Part No Description Price (each) Stock
62608300A COMPLETE CONNECTING ROD AND HANDLE Enquire To Order
Photo Part No Description Price (each) Stock
16160976 SNAP RING $0.08 To Order
Photo Part No Description Price (each) Stock
63346800 HEADLIGHT ADJUSTER SCREW $7.93 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
62131300 R.H. BRACKET FOR LIGHTS SUPPORT $215.00 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
172534 Lifting motor for R.H. headlamp $778.04 To Order
Photo Part No Description Price (each) Stock
63346400 LIGHT CONTAINER ARM SUPPORT PIN $83.42 To Order
Photo Part No Description Price (each) Stock
13832201 NUT $0.57 To Order
Photo Part No Description Price (each) Stock
12625224 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
13838911 SCREW $3.91 To Order
Photo Part No Description Price (each) Stock
62227500 OUTER SPACER FOR LIGHT ADJUSTMENT $8.09 To Order
Photo Part No Description Price (each) Stock
62071210 R.H. LIGHT FRAME $98.53 To Order
62071310 L.H. LIGHT FRAME $98.53 To Order
Photo Part No Description Price (each) Stock
63344900 INNER GASKET $60.73 To Order
Photo Part No Description Price (each) Stock
62998000 BUSHING $3.36 To Order
Photo Part No Description Price (each) Stock
60331204 LOWER GUARD FOR RH LIGHT LIFTING MOTOR $16.27 To Order
Photo Part No Description Price (each) Stock
60331402 UPPER GUARD FOR LIGHT LIFTING MOTOR $93.07 To Order
Photo Part No Description Price (each) Stock
63346800 HEADLIGHT ADJUSTER SCREW $7.93 To Order
Photo Part No Description Price (each) Stock
13297377 SCREW M4 X 10 $0.21 To Order
Photo Part No Description Price (each) Stock
143165 HB4 12V 55W BULB $73.18 To Order
Photo Part No Description Price (each) Stock
143166 HB3 12V 65W BULB $55.61 To Order
View All

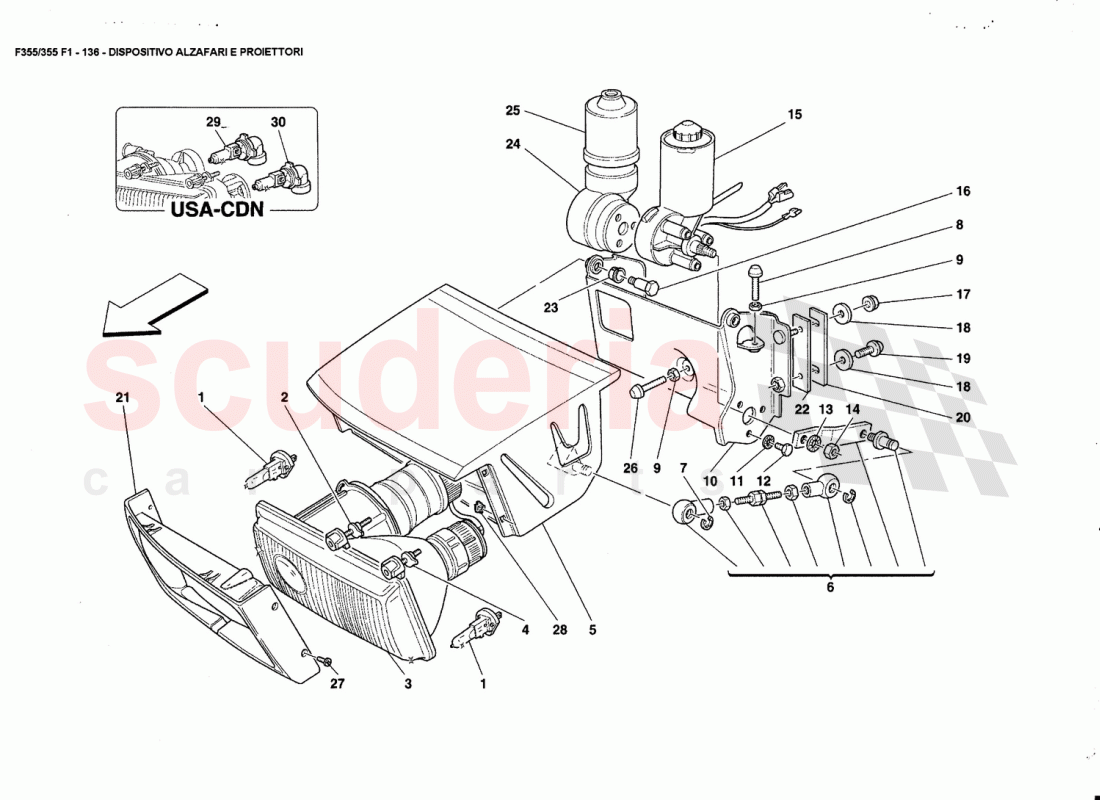

LIGHTS LIFTING DEVICE AND HEADLIGHTS of Ferrari Ferrari 355 (5.2 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 60331303
LOWER GUARD FOR LH LIGHT LIFTING MOTOR 		$16.27 (54.3% off) 1
- 63344800
OUTER GASKET 		$1.80 2
- 62227600
INNER SPACER FOR LIGHT ADJUSTMENT 		$0.84 4
- 172535
Lifting motor for L.H. headlamp 		$778.04 1
- 62131400
L.H. BRACKET FOR LIGHTS SUPPORT 		$215.00 1
- 146158
L.H. HEADLIGHT LOW/HIGH BEAM 		$899.61 1
- 146157
R.H. HEADLIGHT LOW/HIGH BEAM
Valid for J 		$899.61 1
- 133081
L.H. HEADLIGHT LOW/HIGH BEAM 		$694.29 1
- 133083
L.H. HEADLIGHT LOW/HIGH BEAM 		$790.52 1
- 133082
R.H. HEADLIGHT LOW/HIGH BEAM
Valid for USA and CDN 		$790.52 1
- 133084
R.H. HEADLIGHT LOW/HIGH BEAM
Valid for GD 		$761.23 1
1 14151095
Lamp -Valid for USA- 		$17.55 4
2 148086
FIXED POINT PIN 		$24.05 2
3 133080
R.H. HEADLIGHT LOW/HIGH BEAM
BEAM / Not for USA, CDN, GD and J 		$761.23 1
4 148088
HEADLIGHT ADJUSTING SCREW 		$21.44 (28.9% off) 4
5 63501700
R.H. LIGHT CONTAINER 		$1,203.43 1
5 63501800
L.H. LIGHT CONTAINER 		$1,203.43 1
6 62608300A
COMPLETE CONNECTING ROD AND HANDLE
AND HANDLE 		- 2 Enquire
7 16160976
SNAP RING 		$0.08 (77.1% off) 2
8 63346800
HEADLIGHT ADJUSTER SCREW
PIN 		$7.93 (19.9% off) 4
9 14059290
FLANGED NUT M6 		$1.51 6
10 62131300
R.H. BRACKET FOR LIGHTS SUPPORT
SUPPORT 		$215.00 1
11 12601374
WASHER 		$0.02 (92% off) 6
12 81591700
SCREW 		$2.22 6
13 12601374
WASHER 		$0.02 (92% off) 2
14 14059290
FLANGED NUT M6 		$1.51 2
15 172534
Lifting motor for R.H. headlamp 		$778.04 1
16 63346400
LIGHT CONTAINER ARM SUPPORT PIN
SUPPORT PIN 		$83.42 4
17 13832201
NUT 		$0.57 4
18 12625224
WASHER
Possible fitting 		$0.06 (76% off) 8
19 13838911
SCREW 		$3.91 4
20 62227500
OUTER SPACER FOR LIGHT ADJUSTMENT
ADJUSTMENT 		$8.09 4
21 62071210
R.H. LIGHT FRAME 		$98.53 1
21 62071310
L.H. LIGHT FRAME 		$98.53 1
22 63344900
INNER GASKET 		$60.73 2
23 62998000
BUSHING 		$3.36 (27.9% off) 4
24 60331204
LOWER GUARD FOR RH LIGHT LIFTING MOTOR
LIFTING MOTOR 		$16.27 (48.7% off) 1
25 60331402
UPPER GUARD FOR LIGHT LIFTING MOTOR 		$93.07 2
26 63346800
HEADLIGHT ADJUSTER SCREW 		$7.93 (19.9% off) 2
27 13297377
SCREW M4 X 10 		$0.21 (76.4% off) 8
28 63595100
NUT 		$1.10 (26.7% off) 8
29 143165
HB4 12V 55W BULB 		$73.18 2
30 143166
HB3 12V 65W BULB 		$55.61 2
