Ferrari 355 (2.7 Motronic) - BRAKE HYDRAULIC SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
157267 BRAKE PEDAL $134.77 To Order
Photo Part No Description Price (each) Stock
162535 BRAKE PEDAL DRILLED PLATE $43.31 IN STOCK
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $1.02 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
129609 TRANSMISSION LEVER $446.82 To Order
Photo Part No Description Price (each) Stock
109407 BALL-JOINT $65.77 To Order
Photo Part No Description Price (each) Stock
101305 SPRING $91.45 IN STOCK
Photo Part No Description Price (each) Stock
129612 SPRING ANCHOR PIN $2.50 To Order
Photo Part No Description Price (each) Stock
112125 SPACER WASHER $2.01 To Order
Photo Part No Description Price (each) Stock
112127 DITTO THICKNESS mm. 0.9 $0.28 To Order
Photo Part No Description Price (each) Stock
133555 PUSHBUTTON SWITCH $35.28 To Order
Photo Part No Description Price (each) Stock
13543424 STUD BOLT $1.88 To Order
Photo Part No Description Price (each) Stock
10007871 FORK FOR BRAKE LEVER $19.24 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.15 IN STOCK
Photo Part No Description Price (each) Stock
13517124 STUD BOLT $18.82 To Order
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
70000768 ANTISKID HYDRAULIC CONTROL $7,384.75 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
70000535 UNION Enquire To Order
Photo Part No Description Price (each) Stock
131873 UNION $5.71 To Order
Photo Part No Description Price (each) Stock
70000510 O.R. GASKET $176.49 To Order
Photo Part No Description Price (each) Stock
143676 BRAKE PIPE $13.36 To Order
Photo Part No Description Price (each) Stock
70000533 HOSE KIT $460.15 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.55 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
151845 PIPE FROM CLUTCH PUMP TO $60.96 To Order
Photo Part No Description Price (each) Stock
157934 SCREW COLLAR $0.94 To Order
Photo Part No Description Price (each) Stock
136376 RUBBER HOSE -Valid for GD- $27.75 To Order
Photo Part No Description Price (each) Stock
157934 SCREW COLLAR $0.94 To Order
Photo Part No Description Price (each) Stock
70000772 BRAKES CONTROL PUMP KIT $3,252.46 To Order
Photo Part No Description Price (each) Stock
129636 SCREW $4.64 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
130861 WASHER $3.68 To Order
Photo Part No Description Price (each) Stock
140498 BRACKET $56.14 To Order
Photo Part No Description Price (each) Stock
144824 GASKET $1.65 To Order
Photo Part No Description Price (each) Stock
16043124 SCREW $0.16 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING $2.16 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 IN STOCK
View All

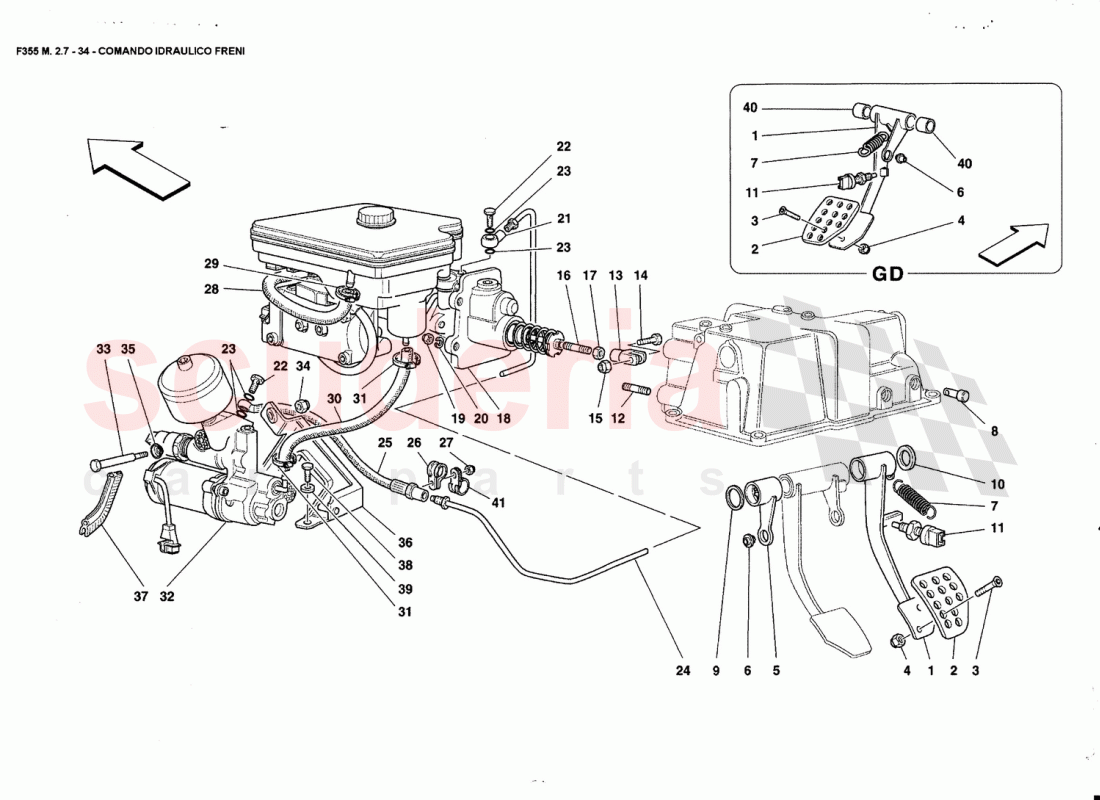

BRAKE HYDRAULIC SYSTEM of Ferrari Ferrari 355 (2.7 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 143069
RUBBER HOSE
Valid for GD 		$19.42 1
- 134903
RUBBER PIPE
TANK / Valid for GD 		$3.45 1
- 143677
BRAKE PIPE
Valid for GD 		$17.63 1
- 112129
DITTO THICKNESS mm. 1.1
Possible fitting / Not for GD 		$0.28 1
- 112130
DITTO THICKNESS mm. 1.2
Possible fitting / Not for GD 		$0.75 1
- 112131
DITTO THICKNESS mm. 1.3
Possible fitting / Not for GD 		$0.28 1
- 112128
DITTO THICKNESS mm. 1.0
Possible fitting / Not for GD 		$0.11 1
- 161947
BRAKE PEDAL
Valid for GD 		$304.86 1
1 157267
BRAKE PEDAL
Not for GD 		$134.77 1
2 162535
BRAKE PEDAL DRILLED PLATE
IN STOCK 		$43.31 (2.6% off) 1
3 62797600
Allen Bolt Countersunk M6 x 20
IN STOCK 		$1.02 (29.7% off) 2
4 14059290
FLANGED NUT M6
IN STOCK 		$1.43 2
5 129609
TRANSMISSION LEVER
Not for GD 		$446.82 1
6 109407
BALL-JOINT 		$65.77 1
7 101305
SPRING
IN STOCK 		$91.45 1
8 129612
SPRING ANCHOR PIN 		$2.50 1
9 112125
SPACER WASHER
Not for GD 		$2.01 1
10 112127
DITTO THICKNESS mm. 0.9
Possible fitting / Not for GD 		$0.28 1
11 133555
PUSHBUTTON SWITCH 		$35.28 (18.6% off) 1
12 13543424
STUD BOLT 		$1.88 4
13 10007871
FORK FOR BRAKE LEVER 		$19.24 1
14 16043634
SCREW 		$0.21 1
15 147985
NUT
IN STOCK 		$0.15 (70% off) 1
16 13517124
STUD BOLT 		$18.82 1
17 16102314
NUT 		$0.06 (95.3% off) 1
18 70000768
ANTISKID HYDRAULIC CONTROL
STATION / Not as spare part / With the kit 70000768 / See Table 34 		$7,384.75 1
19 104030
NUT
IN STOCK 		$0.26 (74% off) 4
20 12601374
WASHER
IN STOCK 		$0.02 (92% off) 4
21 70000535
UNION 		- 1 Enquire
22 131873
UNION 		$5.71 2
23 70000510
O.R. GASKET 		$176.49 4
24 143676
BRAKE PIPE
Not for GD 		$13.36 1
25 70000533
HOSE KIT 		$460.15 1
26 10441590
BRACKET WITH SHEATH
IN STOCK 		$0.55 1
27 14059290
FLANGED NUT M6
IN STOCK 		$1.43 1
28 151845
PIPE FROM CLUTCH PUMP TO
TANK / Not for GD 		$60.96 1
29 157934
SCREW COLLAR 		$0.94 (84.7% off) 1
30 136376
RUBBER HOSE -Valid for GD-
Not for GD 		$27.75 1
31 157934
SCREW COLLAR 		$0.94 (84.7% off) 2
32 70000772
BRAKES CONTROL PUMP KIT
Not as spare part / With the kit 70000772 / See Table 34 		$3,252.46 1
33 129636
SCREW 		$4.64 1
34 14059290
FLANGED NUT M6
IN STOCK 		$1.43 1
35 130861
WASHER 		$3.68 1
36 140498
BRACKET 		$56.14 1
37 144824
GASKET 		$1.65 1
38 16043124
SCREW
IN STOCK 		$0.16 2
39 127496
WASHER 		$0.06 (80% off) 2
40 103163
SELF-LUBRICATING BUSHING
Valid for GD 		$2.16 (82% off) 2
41 10441290
BRACKET WITH SHEATH
Valid for GD
IN STOCK 		$0.57 (66.1% off) 1
