MAIN SHAFT GEARS of Ferrari Ferrari 355 (2.7 Motronic)

View All

Ferrari 355 (2.7 Motronic) - MAIN SHAFT GEARS

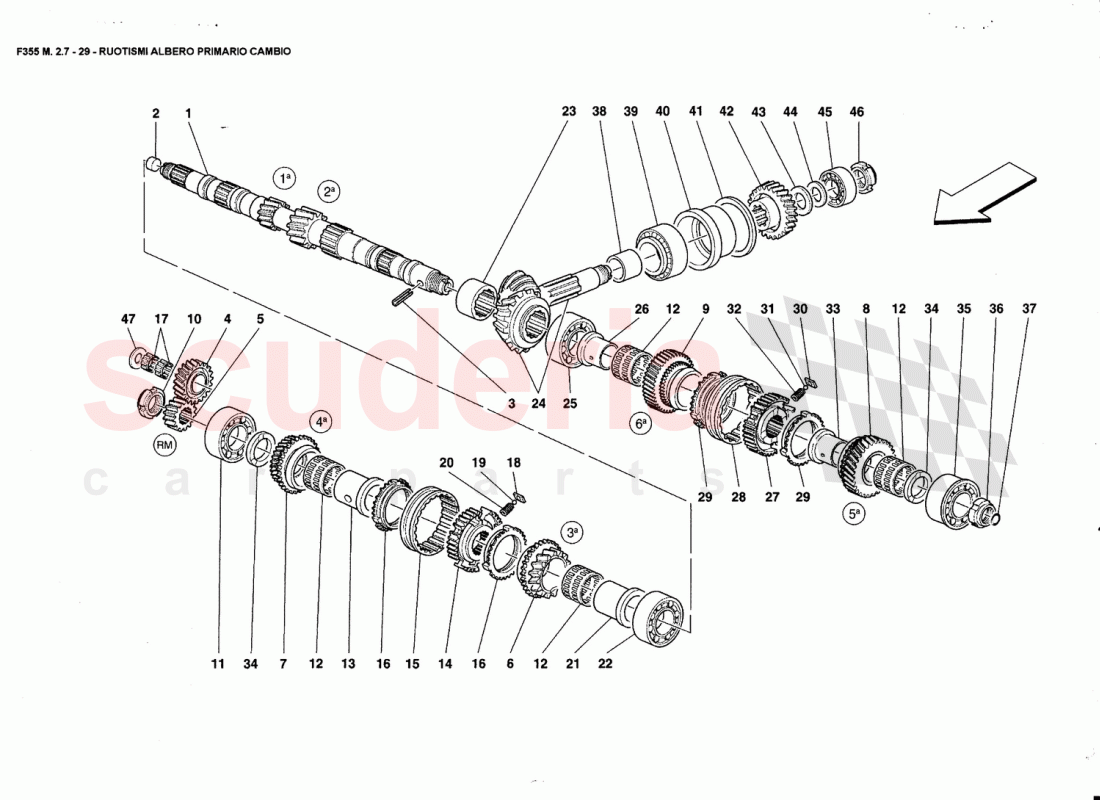

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	70000828	PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14328401	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14601470	FLEXIBLE PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155653	IDLE GEAR FOR NEUTRAL/REVERSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155644	RM DRIVING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000830	PINION COMPLETE KIT FOR 3rd GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000831	PINION COMPLETE KIT FOR 4th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000832	PINION COMPLETE KIT FOR 5th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000833	PINION COMPLETE KIT FOR 6th GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125480	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157179	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	107525	ROLLER CAGE -Valid till	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151576	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161015	SYNCHRONIZER BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152198	SLEEVE FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155155	SYNCHRONIZER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104734	REVERSE IDLE GEAR ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152195	PAD FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152197	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161016	SPRING FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152914	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157177	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138694	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168047	COMPLETE BEVEL SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157178	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152386	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152207	SYNCHRONIZER BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152206	SLEEVE FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152209	SYNCHRONIZER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152195	PAD FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152197	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152196	SPRING FOR SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151576	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149365	SPACER mm. 3,4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155694	Front bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153000	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109724	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131335	BAG FOR BEARINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131015	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139828	BAG FOR BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131388	SPACER mm. 1,8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160060	DRIVEN GEAR ON PINION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157319	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131374	SPACER mm. 1,8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131016	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105137	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131425	SPACER mm. 2,5	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	160940	SPACER mm. 3,6	160940 SPACER mm. 3,6 Valid from gearbox Nr. 1739 and / 199 CH / Valid for R.H. lateral cover 163819 / See Table 27	-	1	Enquire
-	160929	SPACER mm. 3,5	160929 SPACER mm. 3,5 Valid from gearbox Nr. 1739 and / 199 CH / Valid for R.H. lateral cover 163819 / See Table 27	-	1	Enquire
-	165485	SPACER mm. 2,6	165485 SPACER mm. 2,6 Valid till gearbox Nr. 1738 and / 198 CH / Valid for R.H. lateral cover 154638 / See Table 27	-	1	Enquire
-	160939	SPACER mm. 3,4	160939 SPACER mm. 3,4 Valid from gearbox Nr. 1739 and / 199 CH / Valid for R.H. lateral cover 163819 / See Table 27	-	1	Enquire
-	165484	SPACER mm. 2,4	165484 SPACER mm. 2,4 Valid till gearbox Nr. 1738 and / 198 CH / Valid for R.H. lateral cover 154638 / See Table 27	-	1	Enquire
-	131377	SPACER mm. 2,1	131377 SPACER mm. 2,1	-	1	Enquire
-	141048	SPACER mm. 2,15	141048 SPACER mm. 2,15	-	1	Enquire
-	131378	SPACER mm. 2,2	131378 SPACER mm. 2,2	-	1	Enquire
-	131379	SPACER mm. 2,3	131379 SPACER mm. 2,3	-	1	Enquire
-	157993	SPACER mm. 2,4	157993 SPACER mm. 2,4	-	1	Enquire
-	157994	SPACER mm. 2,5	157994 SPACER mm. 2,5	-	1	Enquire
-	131375	SPACER mm. 1,9	131375 SPACER mm. 1,9	-	1	Enquire
-	141044	SPACER mm. 1,95	141044 SPACER mm. 1,95	-	1	Enquire
-	131376	SPACER mm. 2,0	131376 SPACER mm. 2,0	-	1	Enquire
-	141046	SPACER mm. 2,05	141046 SPACER mm. 2,05	-	1	Enquire
-	70000839	GEAR TRANSMISSION TORQUE WITH SHAFT (RATIO 25/27)	70000839 GEAR TRANSMISSION TORQUE WITH SHAFT (RATIO 25/27) Not as spare part / With the gear transmission torque / See Table 23 / Valid for CH	-	1	Enquire
-	131393	SPACER mm. 2,3	131393 SPACER mm. 2,3	-	1	Enquire
-	131389	SPACER mm. 1,9	131389 SPACER mm. 1,9	-	1	Enquire
-	131390	SPACER mm. 2,0	131390 SPACER mm. 2,0	-	1	Enquire
-	131391	SPACER mm. 2,1	131391 SPACER mm. 2,1	-	1	Enquire
-	131392	SPACER mm. 2,2	131392 SPACER mm. 2,2	-	1	Enquire
-	164932	SPACER mm. 4,4	164932 SPACER mm. 4,4	-	2	Enquire
-	164933	SPACER mm. 4,5	164933 SPACER mm. 4,5	-	2	Enquire
-	168073	SPACER mm. 4,6	168073 SPACER mm. 4,6	-	2	Enquire
-	149371	SPACER mm. 4,0	149371 SPACER mm. 4,0	-	2	Enquire
-	149372	SPACER mm. 4,1	149372 SPACER mm. 4,1	-	2	Enquire
-	153457	SPACER mm. 4,2	153457 SPACER mm. 4,2	-	2	Enquire
-	153459	SPACER mm. 4,3	153459 SPACER mm. 4,3	-	2	Enquire
-	149366	SPACER mm. 3,5	149366 SPACER mm. 3,5	-	2	Enquire
-	149367	SPACER mm. 3,6	149367 SPACER mm. 3,6	-	2	Enquire
-	149368	SPACER mm. 3,7	149368 SPACER mm. 3,7	-	2	Enquire
-	149369	SPACER mm. 3,8	149369 SPACER mm. 3,8	-	2	Enquire
-	149370	SPACER mm. 3,9	149370 SPACER mm. 3,9	-	2	Enquire
-	168047	COMPLETE BEVEL SET	168047 COMPLETE BEVEL SET Valid after stock exhaustion of 163866	-	1	Enquire
-	70000838	PINION COMPLETE KIT FOR 6th GEAR	70000838 PINION COMPLETE KIT FOR 6th GEAR 6th GEAR / Valid for CH	-	1	Enquire
-	70000830	PINION COMPLETE KIT FOR 3rd GEAR	70000830 PINION COMPLETE KIT FOR 3rd GEAR 3rd GEAR	-	1	Enquire
-	70000831	PINION COMPLETE KIT FOR 4th GEAR	70000831 PINION COMPLETE KIT FOR 4th GEAR 4th GEAR	-	1	Enquire
-	70000832	PINION COMPLETE KIT FOR 5th GEAR	70000832 PINION COMPLETE KIT FOR 5th GEAR 5th GEAR	-	1	Enquire
-	70000833	PINION COMPLETE KIT FOR 6th GEAR	70000833 PINION COMPLETE KIT FOR 6th GEAR 6th GEAR / Not for CH	-	1	Enquire
-	70000846	PINION COMPLETE KIT FOR NEUTRAL/REVERSE	70000846 PINION COMPLETE KIT FOR NEUTRAL/REVERSE NEUTRAL/REVERSE / Valid from gearbox Nr. 349 / Valid for pin 160937 - See Table 27 Pos. 2	-	1	Enquire
-	70000828	PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR	70000828 PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR SHAFT/1 st GEAR AND 2nd GEAR	-	1	Enquire
1	70000828	PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR	70000828 PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR LEVER / Not as spare part / With the pinion complete kit for / main shaft/1 st gear and 2nd gear only	-	1	Enquire
2	14328401	PLUG	14328401 PLUG	-	1	Enquire
3	14601470	FLEXIBLE PIN	14601470 FLEXIBLE PIN	-	1	Enquire
4	155653	IDLE GEAR FOR NEUTRAL/REVERSE	155653 IDLE GEAR FOR NEUTRAL/REVERSE Not as spare part / With the pinion kit for Neutral/Reverse only / Valid for pinion complete kit for / Neutral/Reverse 70000829	-	1	Enquire
5	155644	RM DRIVING GEAR	155644 RM DRIVING GEAR Not as spare part / With the pinion kit for Neutral/Reverse / only	-	1	Enquire
6	70000830	PINION COMPLETE KIT FOR 3rd GEAR	70000830 PINION COMPLETE KIT FOR 3rd GEAR Not as spare part / With the pinion complete kit for 3rd gear only	-	1	Enquire
7	70000831	PINION COMPLETE KIT FOR 4th GEAR	70000831 PINION COMPLETE KIT FOR 4th GEAR Not as spare part / With the pinion complete kit for 4th gear only	-	1	Enquire
8	70000832	PINION COMPLETE KIT FOR 5th GEAR	70000832 PINION COMPLETE KIT FOR 5th GEAR Not as spare part / With the pinion complete kit for 5th gear only	-	1	Enquire
9	70000833	PINION COMPLETE KIT FOR 6th GEAR	70000833 PINION COMPLETE KIT FOR 6th GEAR Not as spare part / With the pinion complete kit for 6th gear only / Not for CH	-	1	Enquire
10	125480	RING NUT	125480 RING NUT	-	1	Enquire
11	157179	BEARING	157179 BEARING	-	1	Enquire
12	107525	ROLLER CAGE -Valid till	107525 ROLLER CAGE -Valid till	-	4	Enquire
13	151576	BUSHING	151576 BUSHING	-	1	Enquire
14	161015	SYNCHRONIZER BODY	161015 SYNCHRONIZER BODY	-	1	Enquire
15	152198	SLEEVE FOR SYNCHRONIZER	152198 SLEEVE FOR SYNCHRONIZER SYNCHRONIZER	-	1	Enquire
16	155155	SYNCHRONIZER RING	155155 SYNCHRONIZER RING	-	2	Enquire
17	104734	REVERSE IDLE GEAR ROLLER CAGE	104734 REVERSE IDLE GEAR ROLLER CAGE	-	2	Enquire
18	152195	PAD FOR SYNCHRONIZER	152195 PAD FOR SYNCHRONIZER SYNCHRONIZER	-	3	Enquire
19	152197	BALL	152197 BALL	-	1	Enquire
20	161016	SPRING FOR SYNCHRONIZER	161016 SPRING FOR SYNCHRONIZER	-	3	Enquire
21	152914	BUSHING	152914 BUSHING	-	1	Enquire
22	157177	BEARING	157177 BEARING	-	1	Enquire
23	138694	SPACER	138694 SPACER	-	1	Enquire
24	168047	COMPLETE BEVEL SET	168047 COMPLETE BEVEL SET	-	1	Enquire
25	157178	BEARING	157178 BEARING	-	1	Enquire
26	152386	BUSHING	152386 BUSHING	-	1	Enquire
27	152207	SYNCHRONIZER BODY	152207 SYNCHRONIZER BODY	-	1	Enquire
28	152206	SLEEVE FOR SYNCHRONIZER	152206 SLEEVE FOR SYNCHRONIZER SYNCHRONIZER	-	1	Enquire
29	152209	SYNCHRONIZER RING	152209 SYNCHRONIZER RING	-	2	Enquire
30	152195	PAD FOR SYNCHRONIZER	152195 PAD FOR SYNCHRONIZER SYNCHRONIZER	-	3	Enquire
31	152197	BALL	152197 BALL	-	3	Enquire
32	152196	SPRING FOR SYNCHRONIZER	152196 SPRING FOR SYNCHRONIZER	-	3	Enquire
33	151576	BUSHING	151576 BUSHING	-	1	Enquire
34	149365	SPACER mm. 3,4	149365 SPACER mm. 3,4	-	2	Enquire
35	155694	Front bearing	155694 Front bearing	-	1	Enquire
36	153000	RING NUT	153000 RING NUT	-	1	Enquire
37	109724	O-RING	109724 O-RING	-	1	Enquire
38	131335	BAG FOR BEARINGS	131335 BAG FOR BEARINGS	-	1	Enquire
39	131015	BEARING	131015 BEARING	-	1	Enquire
40	139828	BAG FOR BEARING	139828 BAG FOR BEARING	-	1	Enquire
41	131388	SPACER mm. 1,8	131388 SPACER mm. 1,8	-	1	Enquire
42	160060	DRIVEN GEAR ON PINION	160060 DRIVEN GEAR ON PINION Not as spare part / With the gear transmission torque / See Table 23 / Not for CH	-	1	Enquire
43	157319	SPACER	157319 SPACER	-	1	Enquire
44	131374	SPACER mm. 1,8	131374 SPACER mm. 1,8	-	1	Enquire
45	131016	BEARING	131016 BEARING	-	1	Enquire
46	105137	RING NUT	105137 RING NUT	-	1	Enquire
47	131425	SPACER mm. 2,5	131425 SPACER mm. 2,5 Valid till gearbox Nr. 1738 and / 198 CH / Valid for R.H. lateral cover 154638 / See Table 27	-	1	Enquire
