Find Your Part

TOP -Valid for Spider- of Ferrari Ferrari 348 (2.7 Motronic)

View All

Ferrari 348 (2.7 Motronic) - TOP -Valid for Spider-

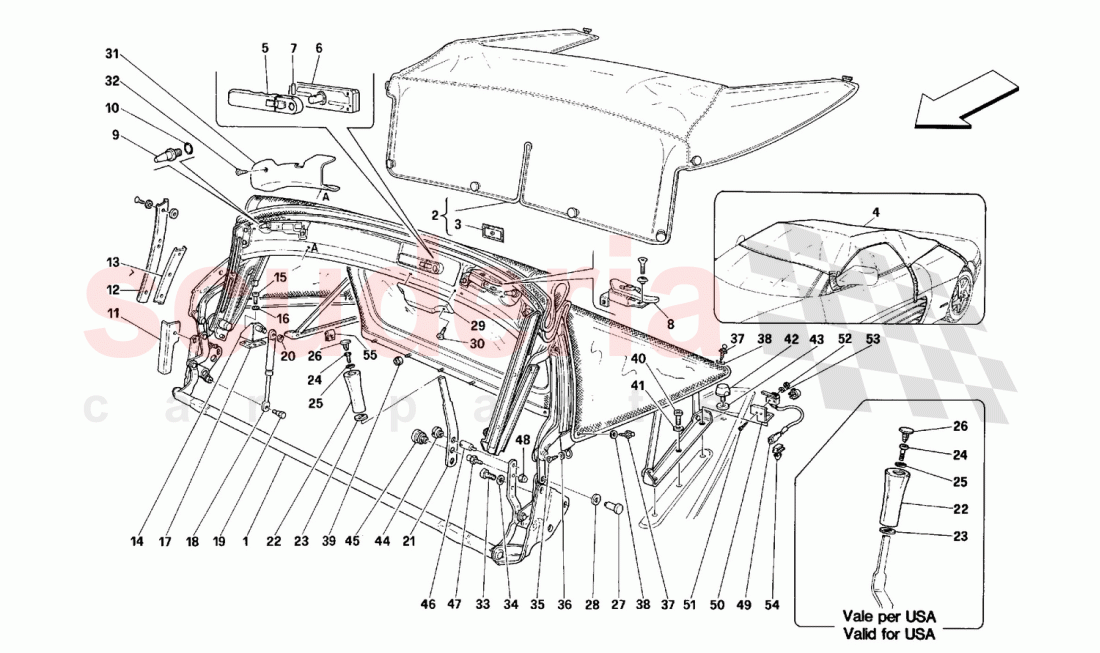

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64248900	COMPLETE TOP -Black-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64289700	TOP COVER COMPLETE OF TOP COVER BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63239500	BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63685100	TONNEAU COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63689000	HANDLE FOR TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63966100	COMPLETE CONTROL BLOCK BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63990900	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63614100	L.H. TOP CLOSING HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64220200	CENTERING CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123622	O-Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	63920500	R.H. PLATE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63613200	R.H. FRONT RUBBER HOLDER PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63612700	R.H. REAR RUBBER HOLDER PROFILE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63606300	R.H. GAS SPRING CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60801600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63940900	THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

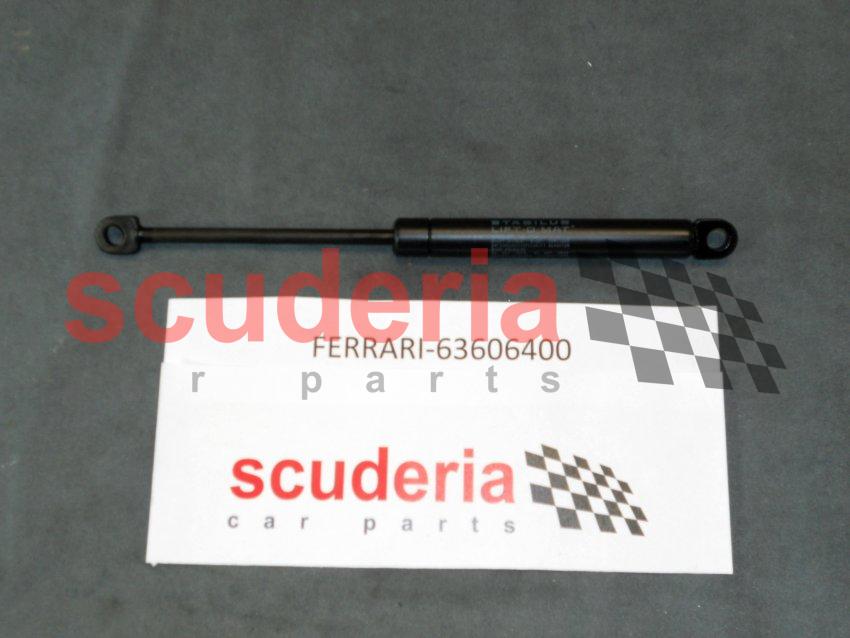

	63606400	GAS SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63614600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087876	FLEXIBLE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64249300	HANDLE LEVER -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63989900	TOP LIFTING HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63990100	HANDLE END PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272011	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63929300	PLUG FOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63639600	PIN mm. 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63639900	WASHER, THICKNESS mm. 1,3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64243400	TOP LIFTING HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60702800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64252900	R.H. LATERAL MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15690678	SCREW mm. 13	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63936600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642078	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15902678	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61632100	SCREW TAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61195300	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63936600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63238800	LOWER RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62167200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64372200	BUSHING -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60727200	FEMALE BUTTON -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64372100	PIN -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60084407	Pin button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64372300	NUT -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154763	MICRO SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63943900	MICRO SWITCH FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63992900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63693800	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63693700	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144036	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14189876	CLIP FOR SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	64254100	L.H. LATERAL MOULDING	64254100 L.H. LATERAL MOULDING	-	1	Enquire
-	15909478	SCREW -For dark inner trims-	15909478 SCREW -For dark inner trims-	-	2	Enquire
-	63678400	PIN mm. 25	63678400 PIN mm. 25	-	4	Enquire
-	63639700	PIN mm. 27	63639700 PIN mm. 27	-	8	Enquire
-	63678500	PIN mm. 33	63678500 PIN mm. 33	-	2	Enquire
-	63640000	WASHER, THICKNESS mm.1,8	63640000 WASHER, THICKNESS mm.1,8	-	34	Enquire
-	63639800	PIN mm. 21	63639800 PIN mm. 21	-	10	Enquire
-	63639500	PIN mm. 23	63639500 PIN mm. 23	-	2	Enquire
-	63612800	L.H. REAR RUBBER HOLDER PROFILE	63612800 L.H. REAR RUBBER HOLDER PROFILE	-	1	Enquire
-	63634200	L.H. GAS SPRING CONNECTION	63634200 L.H. GAS SPRING CONNECTION	-	1	Enquire
-	63920600	L.H. PLATE SHIELD	63920600 L.H. PLATE SHIELD	-	1	Enquire
-	63613400	L.H. FRONT RUBBER HOLDER PROFILE	63613400 L.H. FRONT RUBBER HOLDER PROFILE	-	1	Enquire
-	63614200	R.H. TOP CLOSING HOOK	63614200 R.H. TOP CLOSING HOOK	-	1	Enquire
-	64274900	COMPLETE TOP -Black-	64274900 COMPLETE TOP -Black- Valid for GD	-	1	Enquire
-	64274950	COMPLETE TOP -Blue-	64274950 COMPLETE TOP -Blue- Valid for GD	-	1	Enquire
-	63961200	TOP COVER COMPLETE OF TOP COVER BAG	63961200 TOP COVER COMPLETE OF TOP COVER BAG TOP COVER BAG -Valid for USA	-	1	Enquire
-	64248950	COMPLETE TOP -Blue-	64248950 COMPLETE TOP -Blue- Not for USA and GD	-	1	Enquire
-	63639400	COMPLETE TOP -Black-	63639400 COMPLETE TOP -Black- Valid for USA	-	1	Enquire
-	63639450	COMPLETE TOP -Blue-	63639450 COMPLETE TOP -Blue- Valid for USA	-	1	Enquire
1	64248900	COMPLETE TOP -Black-	64248900 COMPLETE TOP -Black- Not for USA and GD	-	1	Enquire
2	64289700	TOP COVER COMPLETE OF TOP COVER BAG	64289700 TOP COVER COMPLETE OF TOP COVER BAG TOP COVER BAG -Not for USA	-	1	Enquire
3	63239500	BUTTON	63239500 BUTTON	-	1	Enquire
4	63685100	TONNEAU COVER	63685100 TONNEAU COVER	-	1	Enquire
5	63689000	HANDLE FOR TOP	63689000 HANDLE FOR TOP	-	1	Enquire
6	63966100	COMPLETE CONTROL BLOCK BOX	63966100 COMPLETE CONTROL BLOCK BOX BLOCK BOX	-	1	Enquire
7	63990900	PIN	63990900 PIN	-	1	Enquire
8	63614100	L.H. TOP CLOSING HOOK	63614100 L.H. TOP CLOSING HOOK	-	1	Enquire
9	64220200	CENTERING CONE	64220200 CENTERING CONE	-	2	Enquire
10	123622	O-Ring ARRIVING SOON	123622 O-Ring ARRIVING SOON	-	2	Enquire
11	63920500	R.H. PLATE SHIELD	63920500 R.H. PLATE SHIELD	-	1	Enquire
12	63613200	R.H. FRONT RUBBER HOLDER PROFILE	63613200 R.H. FRONT RUBBER HOLDER PROFILE	-	1	Enquire
13	63612700	R.H. REAR RUBBER HOLDER PROFILE	63612700 R.H. REAR RUBBER HOLDER PROFILE	-	1	Enquire
14	63606300	R.H. GAS SPRING CONNECTION	63606300 R.H. GAS SPRING CONNECTION	-	1	Enquire
15	60801600	SCREW	60801600 SCREW	-	8	Enquire
16	238108	WASHER	238108 WASHER	-	8	Enquire
17	63940900	THICKNESS	63940900 THICKNESS	-	2	Enquire
18	63606400	GAS SPRING	63606400 GAS SPRING	-	2	Enquire
19	63614600	SCREW	63614600 SCREW	-	2	Enquire
20	11087876	FLEXIBLE RING	11087876 FLEXIBLE RING	-	2	Enquire
21	64249300	HANDLE LEVER -Not for USA-	64249300 HANDLE LEVER -Not for USA-	-	1	Enquire
22	63989900	TOP LIFTING HANDLE	63989900 TOP LIFTING HANDLE	-	1	Enquire
23	63990100	HANDLE END PLATE	63990100 HANDLE END PLATE	-	1	Enquire
24	13272011	SCREW	13272011 SCREW	-	1	Enquire
25	10615274	WASHER	10615274 WASHER	-	1	Enquire
26	63929300	PLUG FOR HANDLE	63929300 PLUG FOR HANDLE	-	1	Enquire
27	63639600	PIN mm. 18	63639600 PIN mm. 18	-	4	Enquire
28	63639900	WASHER, THICKNESS mm. 1,3	63639900 WASHER, THICKNESS mm. 1,3	-	28	Enquire
29	64243400	TOP LIFTING HANDLE	64243400 TOP LIFTING HANDLE	-	1	Enquire
30	60702800	SCREW	60702800 SCREW	-	2	Enquire
31	64252900	R.H. LATERAL MOULDING	64252900 R.H. LATERAL MOULDING	-	1	Enquire
32	15690678	SCREW mm. 13	15690678 SCREW mm. 13	-	2	Enquire
33	63936600	SCREW	63936600 SCREW	-	6	Enquire
34	12642078	WASHER	12642078 WASHER	-	6	Enquire
35	15902678	SCREW	15902678 SCREW	-	2	Enquire
36	12638124	WASHER	12638124 WASHER	-	2	Enquire
37	61632100	SCREW TAP	61632100 SCREW TAP	-	6	Enquire
38	61195300	WASHER	61195300 WASHER	-	6	Enquire
39	14084111	NUT	14084111 NUT	-	5	Enquire
40	63936600	SCREW	63936600 SCREW	-	6	Enquire
41	263276	WASHER	263276 WASHER	-	6	Enquire
42	63238800	LOWER RUBBER PAD	63238800 LOWER RUBBER PAD	-	2	Enquire
43	62167200	WASHER	62167200 WASHER	-	2	Enquire
44	64372200	BUSHING -Not for USA-	64372200 BUSHING -Not for USA-	-	2	Enquire
45	60727200	FEMALE BUTTON -Not for USA-	60727200 FEMALE BUTTON -Not for USA-	-	1	Enquire
46	64372100	PIN -Not for USA-	64372100 PIN -Not for USA-	-	2	Enquire
47	60084407	Pin button	60084407 Pin button Not for USA	-	1	Enquire
48	64372300	NUT -Not for USA-	64372300 NUT -Not for USA-	-	1	Enquire
49	154763	MICRO SWITCH	154763 MICRO SWITCH	-	1	Enquire
50	63943900	MICRO SWITCH FIXING BRACKET	63943900 MICRO SWITCH FIXING BRACKET	-	1	Enquire
51	63992900	SCREW	63992900 SCREW	-	2	Enquire
52	63693800	NUT	63693800 NUT	-	2	Enquire
53	63693700	WASHER	63693700 WASHER	-	2	Enquire
54	144036	CLIP	144036 CLIP	-	1	Enquire
55	14189876	CLIP FOR SCREW	14189876 CLIP FOR SCREW	-	2	Enquire
