FRONT PART STRUCTURES of Ferrari Ferrari 348 (2.7 Motronic)

View All

Ferrari 348 (2.7 Motronic) - FRONT PART STRUCTURES

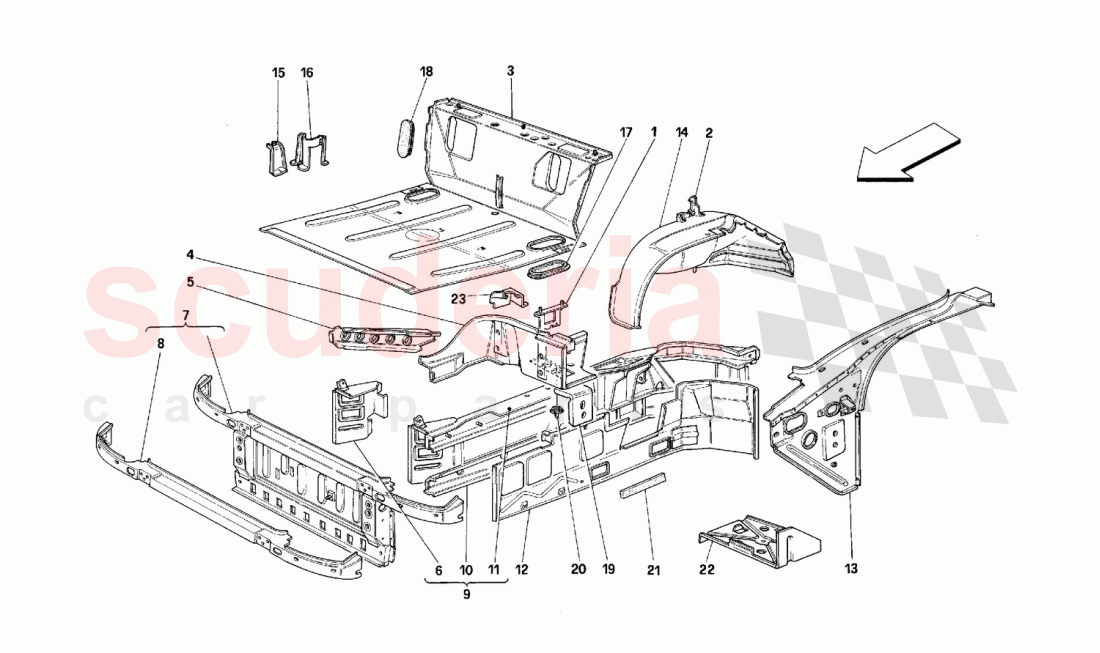

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62166000	BRACKET FOR CONTROL UNIT FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62068300	LH BRACKET FOR FRONT HOOD LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63589300	TRUNK BOTTOM -Not for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63537200	L.H. LIGHT AROUND FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63597700	REINFORCEMENT FOR FRONT LH SIDE STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62096300	FRONT REINFORCEMENT FOR LH SIDE STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64312800	COMPLETE FRONT FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000611	UPPER CROSS MEMBER FOR FRONT FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64042500	LH FRONT LATERAL STRUCTURE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62083100	L.H. LOWER SPRAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63510300	L.H. UPPER SPRAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63510100	SPRAGS L.H. LATERAL WALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64899400	R.H. FENDER SUPPORT WALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65335000	L.H. FRONT WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62165400	WINDSHIELD WASHER BAG FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62165600	DEHYDRATOR FILTER FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62678500	PLUG FOR HOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62921200	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62121200	BUMPER FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63013000	R.H. PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63512800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63381800	PLATE FOR BATTERY SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63512300	BRACKET FOR BATTERY CUT OUT SWITCH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	63589700	R.H. FRONT WHEELHOUSE	63589700 R.H. FRONT WHEELHOUSE Not for GD	-	1	Enquire
-	63590100	R.H. FRONT WHEELHOUSE	63590100 R.H. FRONT WHEELHOUSE Valid for GD	-	1	Enquire
-	62182100	SPRAGS R.H. LATERAL WALL	62182100 SPRAGS R.H. LATERAL WALL	-	1	Enquire
-	65290900	RH FENDER SUPPORT WALL	65290900 RH FENDER SUPPORT WALL WALL	-	1	Enquire
-	65354800	L.H. FRONT WHEELHOUSE	65354800 L.H. FRONT WHEELHOUSE Valid for GD	-	1	Enquire
-	63541100	L.H. UPPER SPRAG	63541100 L.H. UPPER SPRAG Valid for CDN	-	1	Enquire
-	62175200	R.H. UPPER SPRAG	62175200 R.H. UPPER SPRAG Not for CDN	-	1	Enquire
-	63347600	R.H. UPPER SPRAG	63347600 R.H. UPPER SPRAG Valid for CDN	-	1	Enquire
-	63640100	R.H FRONT LATERAL STRUCTURE ASSEMBLY	63640100 R.H FRONT LATERAL STRUCTURE ASSEMBLY ASSEMBLY -Valid for GD	-	1	Enquire
-	62083000	R.H. LOWER SPRAG	62083000 R.H. LOWER SPRAG Without reinforcements	-	1	Enquire
-	63640200	LH FRONT LATERAL STRUCTURE ASSEMBLY	63640200 LH FRONT LATERAL STRUCTURE ASSEMBLY ASSEMBLY -Valid for GD	-	1	Enquire
-	63618300	RH FRONT LATERAL STRUCTURE ASSEMBLY	63618300 RH FRONT LATERAL STRUCTURE ASSEMBLY ASSEMBLY / Not for CDN and GD	-	1	Enquire
-	63640300	R.H FRONT LATERAL STRUCTURE ASSEMBLY	63640300 R.H FRONT LATERAL STRUCTURE ASSEMBLY ASSEMBLY -Valid for CDN	-	1	Enquire
-	63932400	LH FRONT LATERAL STRUCTURE ASSEMBLY	63932400 LH FRONT LATERAL STRUCTURE ASSEMBLY ASSEMBLY -Valid for USA	-	1	Enquire
-	64042600	LH FRONT LATERAL STRUCTURE ASSEMBLY	64042600 LH FRONT LATERAL STRUCTURE ASSEMBLY ASSEMBLY -Valid for CDN	-	1	Enquire
-	63343700	FRONT REINFORCEMENT FOR RH SIDE STRUCTURE	63343700 FRONT REINFORCEMENT FOR RH SIDE STRUCTURE STRUCTURE -Valid for CDN	-	1	Enquire
-	63315600	COMPLETE FRONT FRAMEWORK	63315600 COMPLETE FRONT FRAMEWORK Valid for CDN	-	1	Enquire
-	63597600	REINFORCEMENT FOR FRONT RH SIDE STRUCTURE	63597600 REINFORCEMENT FOR FRONT RH SIDE STRUCTURE R.H. SIDE STRUCTURE	-	1	Enquire
-	63343800	FRONT REINFORCEMENT FOR LH SIDE STRUCTURE	63343800 FRONT REINFORCEMENT FOR LH SIDE STRUCTURE L.H. SIDE STRUCTURE -Valid for CDN	-	1	Enquire
-	62096200	FRONT REINFORCEMENT FOR RH SIDE STRUCTURE	62096200 FRONT REINFORCEMENT FOR RH SIDE STRUCTURE STRUCTURE -Not for CDN	-	1	Enquire
-	63589900	TRUNK BOTTOM -Valid for GD-	63589900 TRUNK BOTTOM -Valid for GD-	-	1	Enquire
-	64299200	R.H. LIGHT AROUND FRAMEWORK	64299200 R.H. LIGHT AROUND FRAMEWORK Completed with brackets 15 and 16	-	1	Enquire
-	62068200	RH BRACKET FOR FRONT HOOD LOCK	62068200 RH BRACKET FOR FRONT HOOD LOCK LOCK	-	1	Enquire
1	62166000	BRACKET FOR CONTROL UNIT FIXING	62166000 BRACKET FOR CONTROL UNIT FIXING	-	1	Enquire
2	62068300	LH BRACKET FOR FRONT HOOD LOCK	62068300 LH BRACKET FOR FRONT HOOD LOCK HOOD LOCK	-	1	Enquire
3	63589300	TRUNK BOTTOM -Not for GD-	63589300 TRUNK BOTTOM -Not for GD-	-	1	Enquire
4	63537200	L.H. LIGHT AROUND FRAMEWORK	63537200 L.H. LIGHT AROUND FRAMEWORK Completed with bracket 1	-	1	Enquire
5	63597700	REINFORCEMENT FOR FRONT LH SIDE STRUCTURE	63597700 REINFORCEMENT FOR FRONT LH SIDE STRUCTURE L.H. SIDE STRUCTURE	-	1	Enquire
6	62096300	FRONT REINFORCEMENT FOR LH SIDE STRUCTURE	62096300 FRONT REINFORCEMENT FOR LH SIDE STRUCTURE L.H. SIDE STRUCTURE -Not for CDN	-	1	Enquire
7	64312800	COMPLETE FRONT FRAMEWORK	64312800 COMPLETE FRONT FRAMEWORK Not for CDN	-	1	Enquire
8	70000611	UPPER CROSS MEMBER FOR FRONT FRAMEWORK	70000611 UPPER CROSS MEMBER FOR FRONT FRAMEWORK FRONT FRAMEWORK	-	1	Enquire
9	64042500	LH FRONT LATERAL STRUCTURE ASSEMBLY	64042500 LH FRONT LATERAL STRUCTURE ASSEMBLY ASSEMBLY / Not for USA, CDN and GD	-	1	Enquire
10	62083100	L.H. LOWER SPRAG	62083100 L.H. LOWER SPRAG Without reinforcements	-	1	Enquire
11	63510300	L.H. UPPER SPRAG	63510300 L.H. UPPER SPRAG Not for CDN	-	1	Enquire
12	63510100	SPRAGS L.H. LATERAL WALL	63510100 SPRAGS L.H. LATERAL WALL	-	1	Enquire
13	64899400	R.H. FENDER SUPPORT WALL	64899400 R.H. FENDER SUPPORT WALL WALL	-	1	Enquire
14	65335000	L.H. FRONT WHEELHOUSE	65335000 L.H. FRONT WHEELHOUSE Not for GD	-	1	Enquire
15	62165400	WINDSHIELD WASHER BAG FIXING BRACKET	62165400 WINDSHIELD WASHER BAG FIXING BRACKET FIXING BRACKET	-	1	Enquire
16	62165600	DEHYDRATOR FILTER FIXING BRACKET	62165600 DEHYDRATOR FILTER FIXING BRACKET BRACKET	-	1	Enquire
17	62678500	PLUG FOR HOLE	62678500 PLUG FOR HOLE	-	2	Enquire
18	62921200	PLUG	62921200 PLUG	-	2	Enquire
19	62121200	BUMPER FIXING BRACKET	62121200 BUMPER FIXING BRACKET	-	2	Enquire
20	63013000	R.H. PLUG	63013000 R.H. PLUG	-	2	Enquire
21	63512800	GASKET	63512800 GASKET	-	1	Enquire
22	63381800	PLATE FOR BATTERY SUPPORT	63381800 PLATE FOR BATTERY SUPPORT	-	1	Enquire
23	63512300	BRACKET FOR BATTERY CUT OUT SWITCH	63512300 BRACKET FOR BATTERY CUT OUT SWITCH CUT-OUT SWITCH	-	1	Enquire
