Exhaust System -Valid For Ch And Aus-

Ferrari 348 (2.7 Motronic)

Find Your Part

Ferrari 348 (2.7 Motronic) - EXHAUST SYSTEM -Valid for CH AND AUS-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
136278 REAR SILENCER $1,465.86 To Order
Photo Part No Description Price (each) Stock
136894 TERMINAL COVER $55.48 To Order
Photo Part No Description Price (each) Stock
136277 FRONT MUFFLER $1,211.36 To Order
Photo Part No Description Price (each) Stock
154984 Exhaust Ring Gasket $21.59 IN STOCK
Photo Part No Description Price (each) Stock
137431 SCREW $17.39 IN STOCK
Photo Part No Description Price (each) Stock
128010 Washer $2.50 To Order
Photo Part No Description Price (each) Stock
114749 Spacer D8. 10 x 23 $3.89 IN STOCK
Photo Part No Description Price (each) Stock
111743 EXHAUST BRACKET SPRING $41.93 IN STOCK
Photo Part No Description Price (each) Stock
62663300 EXHAUST PROTECTION PANEL $1,052.03 To Order
Photo Part No Description Price (each) Stock
114748 Nut $15.35 IN STOCK
Photo Part No Description Price (each) Stock
14306924 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
128010 Washer $2.50 To Order
Photo Part No Description Price (each) Stock
114748 Nut $15.35 IN STOCK
Photo Part No Description Price (each) Stock
136877 BRACKET $307.52 To Order
Photo Part No Description Price (each) Stock
139180 PAD $57.54 To Order
Photo Part No Description Price (each) Stock
10977624 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
15896470 NUT $0.05 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
137534 SCREW $22.79 To Order
Photo Part No Description Price (each) Stock
114748 Nut $15.35 IN STOCK
Photo Part No Description Price (each) Stock
128010 Washer $2.50 To Order
Photo Part No Description Price (each) Stock
10007871 FORK FOR BRAKE LEVER $19.24 To Order
Photo Part No Description Price (each) Stock
10050814 PIN $2.50 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
10734301 SPLIT PIN $0.06 To Order
Photo Part No Description Price (each) Stock
145741 SMALL PLATE $56.87 To Order
Photo Part No Description Price (each) Stock
16043221 SCREW $0.10 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
136275 R.H. EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
136276 L.H. EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
138076 GASKET $15.20 To Order
Photo Part No Description Price (each) Stock
154984 Exhaust Ring Gasket $21.59 IN STOCK
Photo Part No Description Price (each) Stock
110860 THREADED PLUG $15.48 IN STOCK
Photo Part No Description Price (each) Stock
10298460 GASKET $0.15 IN STOCK
Photo Part No Description Price (each) Stock
160506 RH/LH Catalyst $2,019.40 To Order
Photo Part No Description Price (each) Stock
137431 SCREW $17.39 IN STOCK
Photo Part No Description Price (each) Stock
128010 Washer $2.50 To Order
Photo Part No Description Price (each) Stock
114749 Spacer D8. 10 x 23 $3.89 IN STOCK
Photo Part No Description Price (each) Stock
111743 EXHAUST BRACKET SPRING $41.93 IN STOCK
Photo Part No Description Price (each) Stock
141874 STUB PIPE COMPLETE OF FLANGE $395.25 To Order
Photo Part No Description Price (each) Stock
63006500 UPPER REAR SHIELD $841.96 To Order
Photo Part No Description Price (each) Stock
146650 OXYGEN SENSOR $348.46 To Order
Photo Part No Description Price (each) Stock
63547900 BUMPER PROTECTION SHIELD $805.41 To Order
Photo Part No Description Price (each) Stock
142581 Catalyst electric board $590.67 To Order
Photo Part No Description Price (each) Stock
145487 BRACKET $10.89 To Order
Photo Part No Description Price (each) Stock
145473 CLIP $0.53 To Order
Photo Part No Description Price (each) Stock
62790300 NUT $0.28 IN STOCK
Photo Part No Description Price (each) Stock
14496204 WASHER $0.16 IN STOCK
Photo Part No Description Price (each) Stock
62844200 BRACKET FOR CONTROL UNIT FIXING $13.10 To Order
Photo Part No Description Price (each) Stock
10444621 SCREW $0.19 IN STOCK
Photo Part No Description Price (each) Stock
143851 SUPPORT $2.27 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
14499370 Washer $0.28 To Order
Photo Part No Description Price (each) Stock
144270 THERMOCOUPLE -Not for Spider- $185.99 To Order
Photo Part No Description Price (each) Stock
144036 CLIP $0.15 To Order
Photo Part No Description Price (each) Stock
114748 Nut $15.35 IN STOCK
View All

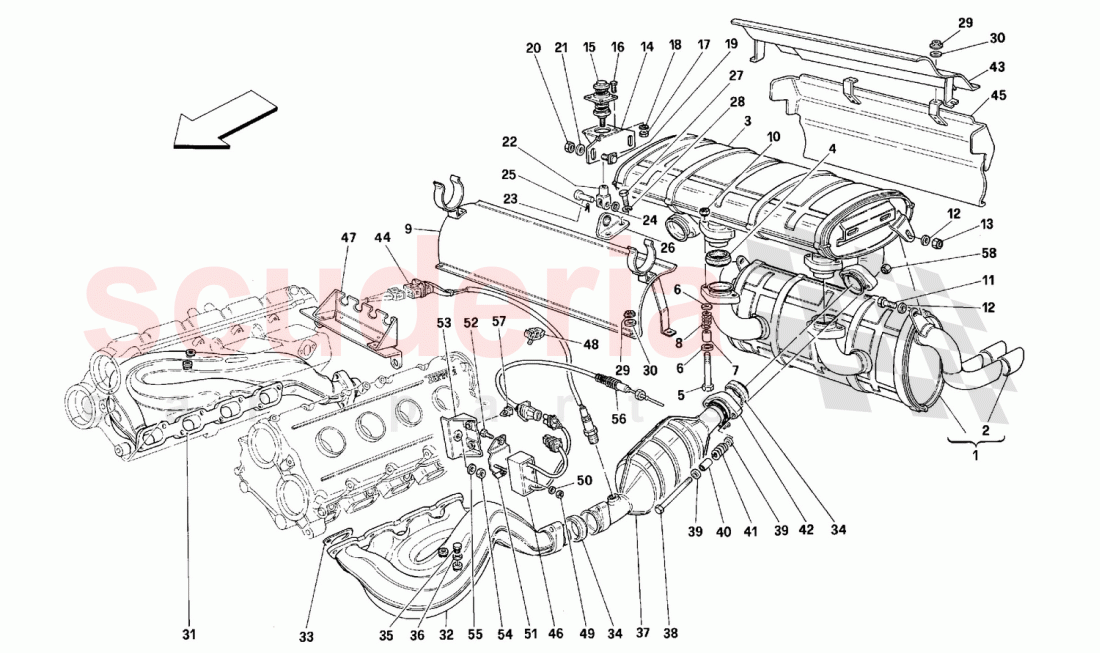

EXHAUST SYSTEM -Valid for CH AND AUS- of Ferrari Ferrari 348 (2.7 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 156547
THERMOCOUPLE
IN STOCK 		$113.62 2
- 160506
RH/LH Catalyst
Without anti-heat shield 		$2,019.40 2
- 160506
RH/LH Catalyst
With anti-heat shield 		$2,019.40 1
- 136276
L.H. EXHAUST MANIFOLD
Without plugs for CO suction / Valid for CH 		- 1 Enquire
- 136275
R.H. EXHAUST MANIFOLD
Without plugs for CO suction / Valid for CH 		- 1 Enquire
1 136278
REAR SILENCER 		$1,465.86 1
2 136894
TERMINAL COVER 		$55.48 (1.6% off) 4
3 136277
FRONT MUFFLER 		$1,211.36 1
4 154984
Exhaust Ring Gasket
IN STOCK 		$21.59 (11.5% off) 2
5 137431
SCREW
IN STOCK 		$17.39 4
6 128010
Washer 		$2.50 (72.7% off) 8
7 114749
Spacer D8. 10 x 23
IN STOCK 		$3.89 (19.8% off) 4
8 111743
EXHAUST BRACKET SPRING
IN STOCK 		$41.93 4
9 62663300
EXHAUST PROTECTION PANEL 		$1,052.03 1
10 114748
Nut
IN STOCK 		$15.35 4
11 14306924
SCREW
IN STOCK 		$0.70 2
12 128010
Washer 		$2.50 (72.7% off) 4
13 114748
Nut
IN STOCK 		$15.35 2
14 136877
BRACKET 		$307.52 2
15 139180
PAD 		$57.54 (74.7% off) 2
16 10977624
SCREW
IN STOCK 		$0.06 8
17 15896470
NUT 		$0.05 (95.7% off) 8
18 127493
WASHER 		$0.08 (73.3% off) 8
19 137534
SCREW 		$22.79 4
20 114748
Nut
IN STOCK 		$15.35 4
21 128010
Washer 		$2.50 (72.7% off) 4
22 10007871
FORK FOR BRAKE LEVER 		$19.24 2
23 10050814
PIN 		$2.50 (60% off) 2
24 84653800
WASHER
IN STOCK 		$5.53 2
25 10734301
SPLIT PIN 		$0.06 2
26 145741
SMALL PLATE 		$56.87 2
27 16043221
SCREW 		$0.10 (80% off) 4
28 127496
WASHER 		$0.06 (80% off) 4
29 14059290
FLANGED NUT M6
IN STOCK 		$1.43 9
30 12644424
WASHER
IN STOCK 		$0.06 (85% off) 9
31 136275
R.H. EXHAUST MANIFOLD
With plugs for CO suction / Valid for AUS 		- 1 Enquire
32 136276
L.H. EXHAUST MANIFOLD
With plugs for CO suction / Valid for AUS 		- 1 Enquire
33 138076
GASKET 		$15.20 8
34 154984
Exhaust Ring Gasket
IN STOCK 		$21.59 (11.5% off) 4
35 110860
THREADED PLUG
IN STOCK 		$15.48 (14% off) 8
36 10298460
GASKET
IN STOCK 		$0.15 (88% off) 8
37 160506
RH/LH Catalyst
With anti-heat shield 		$2,019.40 1
38 137431
SCREW
IN STOCK 		$17.39 8
39 128010
Washer 		$2.50 (72.7% off) 16
40 114749
Spacer D8. 10 x 23
IN STOCK 		$3.89 (19.8% off) 8
41 111743
EXHAUST BRACKET SPRING
IN STOCK 		$41.93 8
42 141874
STUB PIPE COMPLETE OF FLANGE 		$395.25 2
43 63006500
UPPER REAR SHIELD 		$841.96 1
44 146650
OXYGEN SENSOR 		$348.46 2
45 63547900
BUMPER PROTECTION SHIELD 		$805.41 1
46 142581
Catalyst electric board 		$590.67 (25.2% off) 2
47 145487
BRACKET 		$10.89 1
48 145473
CLIP 		$0.53 2
49 62790300
NUT
IN STOCK 		$0.28 (62.7% off) 4
50 14496204
WASHER
IN STOCK 		$0.16 4
51 62844200
BRACKET FOR CONTROL UNIT FIXING 		$13.10 2
52 10444621
SCREW
IN STOCK 		$0.19 4
53 143851
SUPPORT 		$2.27 2
54 14059290
FLANGED NUT M6
IN STOCK 		$1.43 2
55 14499370
Washer 		$0.28 2
56 144270
THERMOCOUPLE -Not for Spider- 		$185.99 (39.5% off) 2
57 144036
CLIP 		$0.15 4
58 114748
Nut
IN STOCK 		$15.35 8
