EXHAUST SYSTEM -Valid for USA AND CDN-

Find Your Part

Ferrari 348 (2.7 Motronic) - EXHAUST SYSTEM -Valid for USA AND CDN-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
156072 EXHAUST SILENCER $2,445.63 To Order
Photo Part No Description Price (each) Stock
157096 TERMINAL COVER $118.24 To Order
Photo Part No Description Price (each) Stock
156442 CROSSRAIL ASSEMBLY $135.26 To Order
Photo Part No Description Price (each) Stock
16043221 SCREW $0.10 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
139180 PAD $56.87 To Order
Photo Part No Description Price (each) Stock
136877 BRACKET $328.23 To Order
Photo Part No Description Price (each) Stock
14306924 SCREW $0.75 To Order
Photo Part No Description Price (each) Stock
114748 Nut $16.18 To Order
Photo Part No Description Price (each) Stock
12647021 WASHER $0.32 To Order
Photo Part No Description Price (each) Stock
10007871 FORK FOR BRAKE LEVER $20.84 To Order
Photo Part No Description Price (each) Stock
10050814 PIN $2.61 To Order
Photo Part No Description Price (each) Stock
10734301 SPLIT PIN $0.06 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
10977624 SCREW $0.06 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
145741 SMALL PLATE $56.21 To Order
Photo Part No Description Price (each) Stock
137534 SCREW $24.47 To Order
Photo Part No Description Price (each) Stock
114748 Nut $16.18 To Order
Photo Part No Description Price (each) Stock
128010 Washer $2.46 To Order
Photo Part No Description Price (each) Stock
136275 R.H. EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
136276 L.H. EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
138076 GASKET $15.02 To Order
Photo Part No Description Price (each) Stock
154984 Exhaust Ring Gasket $22.59 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
160506 RH/LH Catalyst $1,995.76 To Order
Photo Part No Description Price (each) Stock
137431 SCREW $18.20 To Order
Photo Part No Description Price (each) Stock
128010 Washer $2.46 To Order
Photo Part No Description Price (each) Stock
114749 Spacer D8. 10 x 23 $3.84 To Order
Photo Part No Description Price (each) Stock
111743 EXHAUST BRACKET SPRING $43.96 To Order
Photo Part No Description Price (each) Stock
141874 STUB PIPE COMPLETE OF FLANGE $424.52 To Order
Photo Part No Description Price (each) Stock
144036 CLIP $0.15 To Order
Photo Part No Description Price (each) Stock
146650 OXYGEN SENSOR $344.37 To Order
Photo Part No Description Price (each) Stock
114748 Nut $16.18 To Order
Photo Part No Description Price (each) Stock
142581 Catalyst electric board $583.77 To Order
Photo Part No Description Price (each) Stock
145487 BRACKET $10.76 To Order
Photo Part No Description Price (each) Stock
145473 CLIP $0.52 To Order
Photo Part No Description Price (each) Stock
62790300 NUT $0.31 To Order
Photo Part No Description Price (each) Stock
14496204 WASHER $0.18 To Order
Photo Part No Description Price (each) Stock
62844200 BRACKET FOR CONTROL UNIT FIXING $12.93 To Order
Photo Part No Description Price (each) Stock
10444621 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
143851 SUPPORT $2.25 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
14499370 Washer $0.28 To Order
Photo Part No Description Price (each) Stock
156547 THERMOCOUPLE $112.29 To Order
Photo Part No Description Price (each) Stock
62663300 EXHAUST PROTECTION PANEL $1,039.73 To Order
Photo Part No Description Price (each) Stock
63006500 UPPER REAR SHIELD $832.11 To Order
Photo Part No Description Price (each) Stock
63547900 BUMPER PROTECTION SHIELD $795.98 To Order
View All

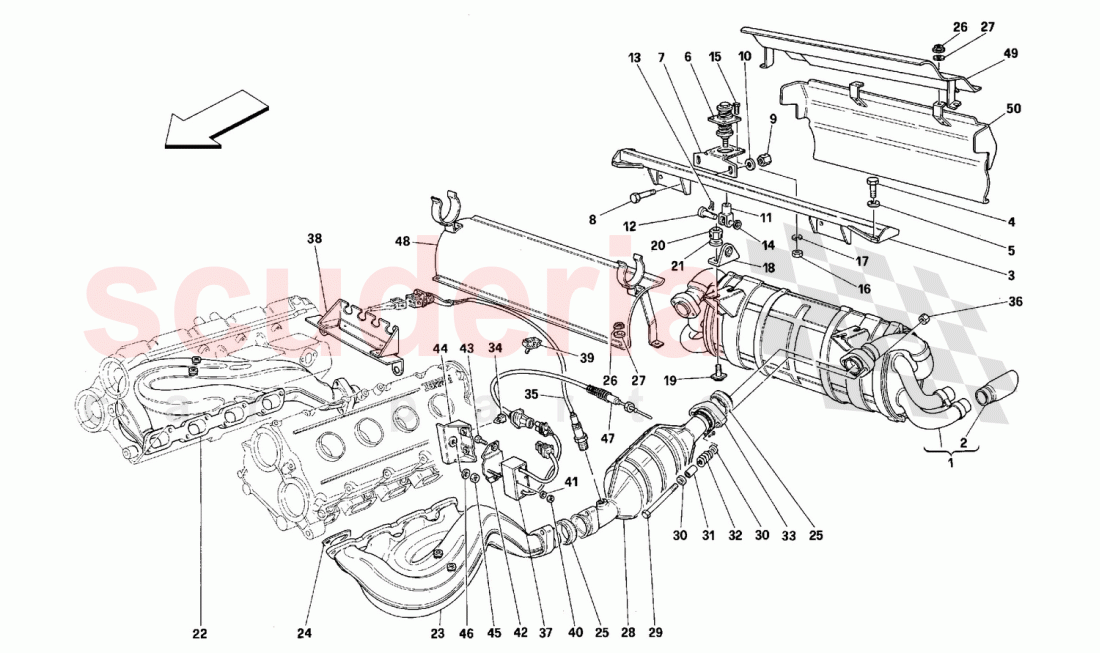

EXHAUST SYSTEM -Valid for USA AND CDN- of Ferrari Ferrari 348 (2.7 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 160506
RH/LH Catalyst
With anti-heat shield 		$1,995.76 1
- 160506
RH/LH Catalyst
Without anti-heat shield 		$1,995.76 2
1 156072
EXHAUST SILENCER 		$2,445.63 1
2 157096
TERMINAL COVER 		$118.24 4
3 156442
CROSSRAIL ASSEMBLY 		$135.26 1
4 16043221
SCREW 		$0.10 (80% off) 2
5 127496
WASHER 		$0.06 (80% off) 2
6 139180
PAD 		$56.87 (75% off) 2
7 136877
BRACKET 		$328.23 2
8 14306924
SCREW 		$0.75 4
9 114748
Nut 		$16.18 4
10 12647021
WASHER 		$0.32 4
11 10007871
FORK FOR BRAKE LEVER 		$20.84 2
12 10050814
PIN 		$2.61 (58.2% off) 2
13 10734301
SPLIT PIN 		$0.06 2
14 84653800
WASHER 		$5.75 2
15 10977624
SCREW 		$0.06 8
16 15896470
NUT 		$7.33 8
17 127493
WASHER 		$0.06 (80% off) 8
18 145741
SMALL PLATE 		$56.21 2
19 137534
SCREW 		$24.47 4
20 114748
Nut 		$16.18 4
21 128010
Washer 		$2.46 (73.2% off) 4
22 136275
R.H. EXHAUST MANIFOLD 		- 1 Enquire
23 136276
L.H. EXHAUST MANIFOLD 		- 1 Enquire
24 138076
GASKET 		$15.02 8
25 154984
Exhaust Ring Gasket 		$22.59 (7.4% off) 4
26 14059290
FLANGED NUT M6 		$1.51 9
27 12644424
WASHER 		$0.06 (85% off) 9
28 160506
RH/LH Catalyst
With anti-heat shield 		$1,995.76 1
29 137431
SCREW 		$18.20 8
30 128010
Washer 		$2.46 (73.2% off) 16
31 114749
Spacer D8. 10 x 23 		$3.84 (20.8% off) 8
32 111743
EXHAUST BRACKET SPRING 		$43.96 8
33 141874
STUB PIPE COMPLETE OF FLANGE 		$424.52 2
34 144036
CLIP 		$0.15 4
35 146650
OXYGEN SENSOR 		$344.37 2
36 114748
Nut 		$16.18 8
37 142581
Catalyst electric board 		$583.77 (26.1% off) 2
38 145487
BRACKET 		$10.76 1
39 145473
CLIP 		$0.52 2
40 62790300
NUT 		$0.31 (58.7% off) 4
41 14496204
WASHER 		$0.18 4
42 62844200
BRACKET FOR CONTROL UNIT FIXING 		$12.93 2
43 10444621
SCREW 		$0.21 4
44 143851
SUPPORT 		$2.25 2
45 14059290
FLANGED NUT M6 		$1.51 2
46 14499370
Washer 		$0.28 2
47 156547
THERMOCOUPLE 		$112.29 2
48 62663300
EXHAUST PROTECTION PANEL 		$1,039.73 1
49 63006500
UPPER REAR SHIELD 		$832.11 1
50 63547900
BUMPER PROTECTION SHIELD 		$795.98 1
