Current Generator - Starting Motor

Ferrari 348 (2.7 Motronic)

Find Your Part

Ferrari 348 (2.7 Motronic) - CURRENT GENERATOR - STARTING MOTOR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
70000809 GENERATOR 105 A. Enquire To Order
Photo Part No Description Price (each) Stock
155684 ALTERNATOR SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
145358 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
277720 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
13578324 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
16102321 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
154803 PROTECTIVE CAP Enquire IN STOCK
Photo Part No Description Price (each) Stock
139359 BELT TIGHTENING HUB Enquire To Order
Photo Part No Description Price (each) Stock
139309 ADJUSTMENT SCREW Enquire To Order
Photo Part No Description Price (each) Stock
139321 BELT TIGHTENING PULLEY Enquire To Order
Photo Part No Description Price (each) Stock
177436 BEARING Enquire To Order
Photo Part No Description Price (each) Stock
11061076 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
142473 BEARING SPACER Enquire To Order
Photo Part No Description Price (each) Stock
11190579 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
138194 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
15888721 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
199830 Alternator Belt Enquire IN STOCK
Photo Part No Description Price (each) Stock
145357 LOWER SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
114818 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire IN STOCK
Photo Part No Description Price (each) Stock
12641024 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
125717 CENTRING DOWEL Enquire IN STOCK
Photo Part No Description Price (each) Stock
13526070 Heli-coil securing cover Enquire To Order
Photo Part No Description Price (each) Stock
16043634 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16104411 Selflocking nut Enquire IN STOCK
Photo Part No Description Price (each) Stock
12604474 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
149627 UPPER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
137768 ESTENDBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm Enquire IN STOCK
Photo Part No Description Price (each) Stock
12626224 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
12638601 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
156330 ALTERNATOR AND BELTS PROTECTION SHEET Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
153952 ALTERNATOR TERMINAL BOX CONNECTING CABLE Enquire To Order
Photo Part No Description Price (each) Stock
153953 STARTING MOTOR TERMINAL BOX CONNECTING CABLE Enquire To Order
Photo Part No Description Price (each) Stock
139966 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
152245 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
14574287 CLIP Enquire IN STOCK
Photo Part No Description Price (each) Stock
151852 STARTER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
16044234 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
16044721 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
124683 PROTECTIVE CAP Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
12625224 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
170114 TERMINAL BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
62790300 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
10519224 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
224539 CLIP Enquire IN STOCK
Photo Part No Description Price (each) Stock
13449724 STUD Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
180055 BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
62573400 BRACKET FOR BATTERY FIXING Enquire To Order
Photo Part No Description Price (each) Stock
13836424 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
61682500 MASS CABLE CONNECTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
155067 BATTERY CUT OUT SWITCH CONNECTING PLAIT Enquire To Order
Photo Part No Description Price (each) Stock
383000322 Battery disconnecting switch Enquire To Order
Photo Part No Description Price (each) Stock
15688275 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
61067800 FIXING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
155068 CUT OUT SWITCH MASS CONNECTING PLAIT Enquire To Order
Photo Part No Description Price (each) Stock
63510500 CABLE PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
144727 CABLES PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
151337 BATTERY TO TERMINAL BOX CONNECTING CABLE Enquire To Order
View All

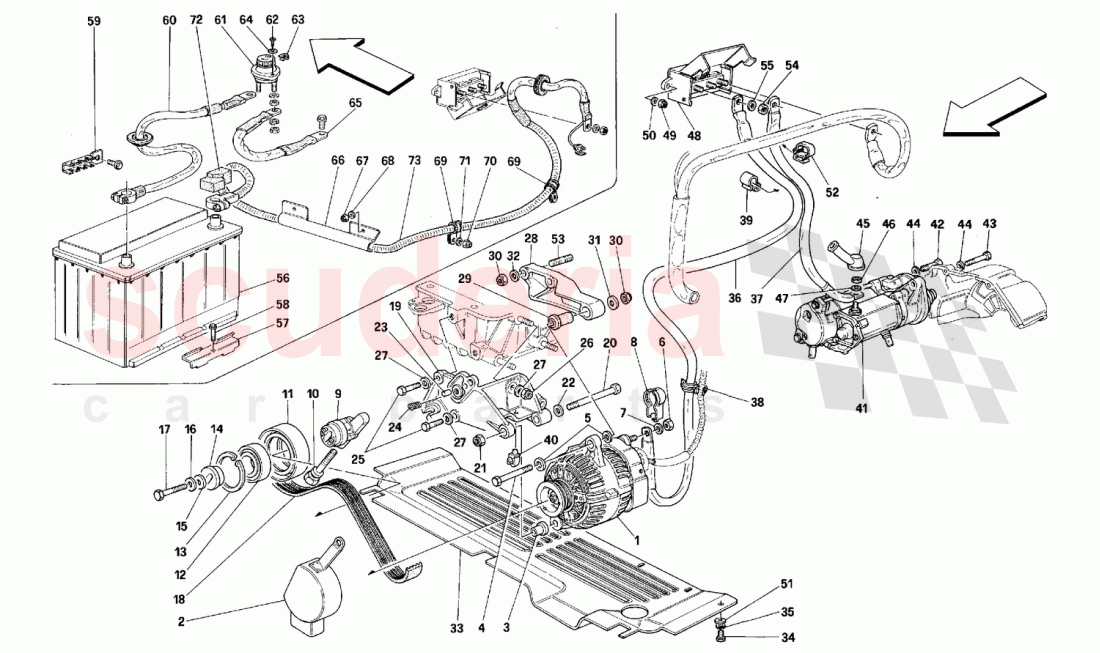

CURRENT GENERATOR - STARTING MOTOR of Ferrari Ferrari 348 (2.7 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 180055
BATTERY
As an alternative 		- 1 Enquire
1 70000809
GENERATOR 105 A.
NIPPONDENSO 		- 1 Enquire
2 155684
ALTERNATOR SHIELD 		- 1 Enquire
3 145358
BUSHING 		- 1 Enquire
4 277720
SCREW
IN STOCK 		- 1 Enquire
5 13578324
WASHER
IN STOCK 		- 2 Enquire
6 16102321
NUT 		- 1 Enquire
7 12601374
WASHER
IN STOCK 		- 1 Enquire
8 154803
PROTECTIVE CAP
IN STOCK 		- 1 Enquire
9 139359
BELT TIGHTENING HUB 		- 1 Enquire
10 139309
ADJUSTMENT SCREW 		- 1 Enquire
11 139321
BELT TIGHTENING PULLEY 		- 1 Enquire
12 177436
BEARING 		- 1 Enquire
13 11061076
SEEGER RING 		- 1 Enquire
14 142473
BEARING SPACER 		- 1 Enquire
15 11190579
WASHER 		- 1 Enquire
16 138194
WASHER 		- 1 Enquire
17 15888721
SCREW 		- 1 Enquire
18 199830
Alternator Belt
IN STOCK 		- 1 Enquire
19 145357
LOWER SUPPORT 		- 1 Enquire
20 114818
SCREW 		- 1 Enquire
21 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		- 1 Enquire
22 12641024
WASHER 		- 1 Enquire
23 125717
CENTRING DOWEL
IN STOCK 		- 1 Enquire
24 13526070
Heli-coil securing cover 		- 1 Enquire
25 16043634
SCREW 		- 2 Enquire
26 16104411
Selflocking nut
IN STOCK 		- 3 Enquire
27 12604474
WASHER
IN STOCK 		- 5 Enquire
28 149627
UPPER BRACKET 		- 1 Enquire
29 137768
ESTENDBLOCK 		- 1 Enquire
30 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		- 3 Enquire
31 12626224
WASHER
IN STOCK 		- 1 Enquire
32 12638601
WASHER 		- 2 Enquire
33 156330
ALTERNATOR AND BELTS PROTECTION SHEET
PROTECTION SHEET 		- 1 Enquire
34 10977524
SCREW 		- 2 Enquire
35 127494
WASHER
IN STOCK 		- 2 Enquire
36 153952
ALTERNATOR TERMINAL BOX CONNECTING CABLE
CONNECTING CABLE 		- 1 Enquire
37 153953
STARTING MOTOR TERMINAL BOX CONNECTING CABLE
BOX CONNECTING CABLE 		- 1 Enquire
38 139966
CLIP 		- 2 Enquire
39 152245
CLIP 		- 1 Enquire
40 14574287
CLIP
IN STOCK 		- 1 Enquire
41 151852
STARTER MOTOR 		- 1 Enquire
42 16044234
SCREW
IN STOCK 		- 2 Enquire
43 16044721
SCREW 		- 1 Enquire
44 12601374
WASHER
IN STOCK 		- 3 Enquire
45 124683
PROTECTIVE CAP 		- 1 Enquire
46 147985
NUT
IN STOCK 		- 1 Enquire
47 12625224
WASHER 		- 1 Enquire
48 170114
TERMINAL BLOCK 		- 1 Enquire
49 62790300
NUT
IN STOCK 		- 2 Enquire
50 10519224
WASHER
IN STOCK 		- 2 Enquire
51 12643724
WASHER
IN STOCK 		- 2 Enquire
52 224539
CLIP
IN STOCK 		- 1 Enquire
53 13449724
STUD 		- 2 Enquire
54 147985
NUT
IN STOCK 		- 3 Enquire
55 84653800
WASHER
IN STOCK 		- 3 Enquire
56 180055
BATTERY 		- 1 Enquire
57 62573400
BRACKET FOR BATTERY FIXING 		- 1 Enquire
58 13836424
SCREW
IN STOCK 		- 1 Enquire
59 61682500
MASS CABLE CONNECTING BRACKET
BRACKET 		- 4 Enquire
60 155067
BATTERY CUT OUT SWITCH CONNECTING PLAIT
CONNECTING PLAIT 		- 1 Enquire
61 383000322
Battery disconnecting switch 		- 1 Enquire
62 15688275
SCREW 		- 2 Enquire
63 61067800
FIXING BRACKET 		- 2 Enquire
64 62769800
WASHER
IN STOCK 		- 2 Enquire
65 155068
CUT OUT SWITCH MASS CONNECTING PLAIT
CONNECTING PLAIT 		- 1 Enquire
66 63510500
CABLE PROTECTION 		- 1 Enquire
67 14059290
FLANGED NUT M6
IN STOCK 		- 2 Enquire
68 10519424
WASHER
IN STOCK 		- 2 Enquire
69 10441790
BRACKET WITH SHEATH 		- 2 Enquire
70 14059290
FLANGED NUT M6
IN STOCK 		- 2 Enquire
71 10519424
WASHER
IN STOCK 		- 2 Enquire
72 144727
CABLES PROTECTION 		- 1 Enquire
73 151337
BATTERY TO TERMINAL BOX CONNECTING CABLE
CONNECTING CABLE 		- 1 Enquire
