TIMING - CONTROLS of Ferrari Ferrari 348 (2.7 Motronic)

View All

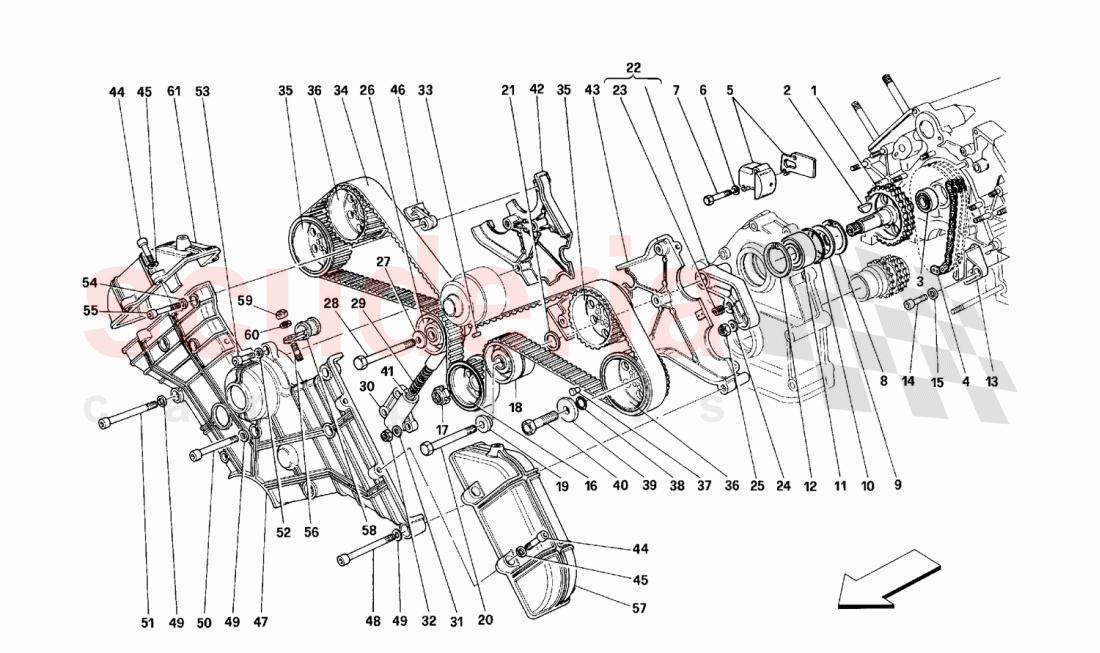

Ferrari 348 (2.7 Motronic) - TIMING - CONTROLS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	144489	DRIVEN GEAR	$115.76	To Order

Photo	Part No	Description	Price (each)	Stock
	10206320	DISC TAB	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	171177	BALL RACE BEARING	$20.37	To Order

Photo	Part No	Description	Price (each)	Stock
	132968	TIMING CONTROL CHAIN	$331.86	To Order

Photo	Part No	Description	Price (each)	Stock
	147338	CHAIN TIGHTENER	$125.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10903024	SCREW	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	11060576	SNAP RING	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	133377	Conic Washer 45-51.5 x 0.35	$17.20	To Order

Photo	Part No	Description	Price (each)	Stock
	136140	O-RING D.50.52 X 1	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	170787	ROLER BEARING	$131.98	To Order

Photo	Part No	Description	Price (each)	Stock
	11060576	SNAP RING	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	143782	GUIDE SHOE	$87.25	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	144488	DRIVING GEAR	$506.28	To Order

Photo	Part No	Description	Price (each)	Stock
	104919	RING LOCK NUT	$5.66	To Order

Photo	Part No	Description	Price (each)	Stock
	145807	L.H. PULLEY	$593.60	To Order

Photo	Part No	Description	Price (each)	Stock
	133385	BUSHING	$31.59	To Order

Photo	Part No	Description	Price (each)	Stock
	134663	SCREW	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	137481	WASHER	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	147132	BRACKET	$273.74	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	149791	R.H. PULLEY	$696.90	To Order

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	134665	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	148356	SPRING	$152.02	To Order

Photo	Part No	Description	Price (each)	Stock
	137632	BRACKET	$188.40	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	10486110	PIN	$9.13	To Order

Photo	Part No	Description	Price (each)	Stock
	132843	TIMING BELT	$65.46	To Order

Photo	Part No	Description	Price (each)	Stock
	136229	DRIVEN GEAR	$427.84	To Order

Photo	Part No	Description	Price (each)	Stock
	136230	DRIVEN GEAR	$375.77	To Order

Photo	Part No	Description	Price (each)	Stock
	106203	CENTERING DOWEL	$7.13	To Order

Photo	Part No	Description	Price (each)	Stock
	114808	O-Ring	$4.75	To Order

Photo	Part No	Description	Price (each)	Stock
	117274	WASHER	$3.55	To Order

Photo	Part No	Description	Price (each)	Stock
	146540	SCREW	$5.33	To Order

Photo	Part No	Description	Price (each)	Stock
	12638601	WASHER	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	134217	R.H. REAR SHIELD	$238.42	To Order

Photo	Part No	Description	Price (each)	Stock
	134218	L.H. REAR SHIELD	$238.42	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	133824	GUIDE SHOE	$212.83	To Order

Photo	Part No	Description	Price (each)	Stock
	134216	FRONT SHIELD	$378.80	To Order

Photo	Part No	Description	Price (each)	Stock
	14359521	SCREW	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14308921	L.H. SEAT REAR FIXING SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14309024	SCREW	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14305821	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	134220	L.H. SHIELD CAP	$170.27	To Order

Photo	Part No	Description	Price (each)	Stock
	10442190	BRACKET WITH SHEATH	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	134219	R.H. SHIELD CAP	$127.07	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	144489	DRIVEN GEAR	144489 DRIVEN GEAR	$115.76	1
2	10206320	DISC TAB	10206320 DISC TAB	$1.65	1
3	171177	BALL RACE BEARING	171177 BALL RACE BEARING	$20.37	1
4	132968	TIMING CONTROL CHAIN	132968 TIMING CONTROL CHAIN	$331.86 MSRP: ~~357.00~~ (7% off)	1
5	147338	CHAIN TIGHTENER	147338 CHAIN TIGHTENER	$125.40	1
6	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
7	10903024	SCREW	10903024 SCREW	$0.19	2
8	11060576	SNAP RING	11060576 SNAP RING	$1.15 MSRP: ~~2.50~~ (54% off)	1
9	133377	Conic Washer 45-51.5 x 0.35	133377 Conic Washer 45-51.5 x 0.35	$17.20	1
10	136140	O-RING D.50.52 X 1	136140 O-RING D.50.52 X 1	$1.41 MSRP: ~~1.50~~ (6% off)	1
11	170787	ROLER BEARING	170787 ROLER BEARING	$131.98	1
12	11060576	SNAP RING	11060576 SNAP RING	$1.15 MSRP: ~~2.50~~ (54% off)	1
13	143782	GUIDE SHOE	143782 GUIDE SHOE	$87.25 MSRP: ~~131.32~~ (33.6% off)	1
14	248334	SCREW	248334 SCREW	$0.68	2
15	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
16	144488	DRIVING GEAR	144488 DRIVING GEAR	$506.28	1
17	104919	RING LOCK NUT	104919 RING LOCK NUT	$5.66	1
18	145807	L.H. PULLEY	145807 L.H. PULLEY	$593.60	1
19	133385	BUSHING	133385 BUSHING	$31.59	1
20	134663	SCREW	134663 SCREW	$1.02	1
21	137481	WASHER	137481 WASHER	$1.17 MSRP: ~~4.60~~ (74.6% off)	1
22	147132	BRACKET	147132 BRACKET	$273.74	1
23	13525770	THREADED INSERT	13525770 THREADED INSERT	$3.03 MSRP: ~~3.67~~ (17.4% off)	1
24	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
25	16104411	Selflocking nut	16104411 Selflocking nut	$0.21 MSRP: ~~0.92~~ (77.2% off)	2
26	149791	R.H. PULLEY	149791 R.H. PULLEY	$696.90	1
27	12626224	WASHER	12626224 WASHER	$0.21	1
28	134665	SCREW	134665 SCREW	$0.65	1
29	148356	SPRING	148356 SPRING	$152.02 MSRP: ~~417.48~~ (63.6% off)	1
30	137632	BRACKET	137632 BRACKET	$188.40	1
31	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	3
32	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	3
33	10486110	PIN	10486110 PIN	$9.13 MSRP: ~~24.80~~ (63.2% off)	1
34	132843	TIMING BELT	132843 TIMING BELT	$65.46 MSRP: ~~99.50~~ (34.2% off)	1
35	136229	DRIVEN GEAR	136229 DRIVEN GEAR	$427.84	2
36	136230	DRIVEN GEAR	136230 DRIVEN GEAR	$375.77 MSRP: ~~700.83~~ (46.4% off)	2
37	106203	CENTERING DOWEL	106203 CENTERING DOWEL	$7.13 MSRP: ~~10.50~~ (32.1% off)	4
38	114808	O-Ring	114808 O-Ring	$4.75	4
39	117274	WASHER	117274 WASHER	$3.55	4
40	146540	SCREW	146540 SCREW	$5.33 MSRP: ~~11.50~~ (53.7% off)	4
41	12638601	WASHER	12638601 WASHER	$0.58 MSRP: ~~1.00~~ (42% off)	1
42	134217	R.H. REAR SHIELD	134217 R.H. REAR SHIELD	$238.42 MSRP: ~~685.91~~ (65.2% off)	1
43	134218	L.H. REAR SHIELD	134218 L.H. REAR SHIELD	$238.42 MSRP: ~~696.47~~ (65.8% off)	1
44	14305324	SCREW	14305324 SCREW	$0.08	8
45	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	8
46	133824	GUIDE SHOE	133824 GUIDE SHOE	$212.83 MSRP: ~~282.24~~ (24.6% off)	2
47	134216	FRONT SHIELD	134216 FRONT SHIELD	$378.80 MSRP: ~~595.00~~ (36.3% off)	1
48	14359521	SCREW	14359521 SCREW	$0.89 MSRP: ~~3.90~~ (77.2% off)	3
49	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	8
50	14308921	L.H. SEAT REAR FIXING SCREW	14308921 L.H. SEAT REAR FIXING SCREW	$0.52	2
51	14309024	SCREW	14309024 SCREW	$1.46	3
52	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
53	14305324	SCREW	14305324 SCREW	$0.08	1
54	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
55	14305821	SCREW	14305821 SCREW	$0.16 MSRP: ~~1.25~~ (87.2% off)	2
56	11500524	STUD BOLT	11500524 STUD BOLT	$0.39 MSRP: ~~1.00~~ (61% off)	2
57	134220	L.H. SHIELD CAP	134220 L.H. SHIELD CAP	$170.27 MSRP: ~~395.55~~ (57% off)	1
58	10442190	BRACKET WITH SHEATH	10442190 BRACKET WITH SHEATH	$0.78 MSRP: ~~2.25~~ (65.3% off)	2
59	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
60	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
61	134219	R.H. SHIELD CAP	134219 R.H. SHIELD CAP	$127.07 MSRP: ~~314.55~~ (59.6% off)	1
