Name: ROOF
Rating: 5.0 (1 reviews)

View All

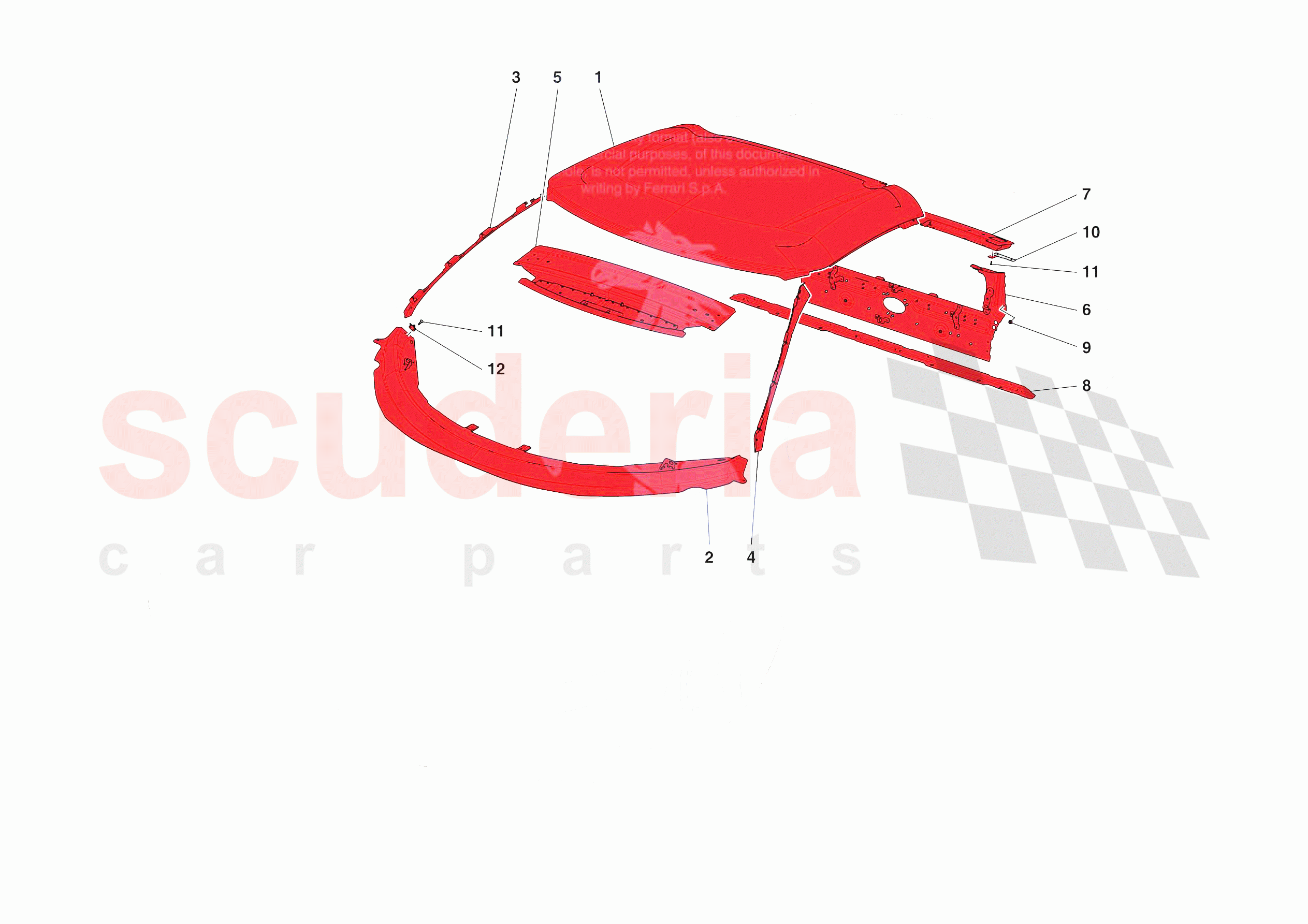

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985952429	COMPL. OUTER ROOF SKIN	$12,575.22	To Order

Photo	Part No	Description	Price (each)	Stock
	985952425	WINDSCREEN CROSS-MEMBER UPPER COVER	$1,444.12	To Order

Photo	Part No	Description	Price (each)	Stock
	805722	COMPL. RH CHANNEL BRACKET	$157.66	To Order

Photo	Part No	Description	Price (each)	Stock
	805715	COMPL. LH CHANNEL BRACKET	$157.66	To Order

Photo	Part No	Description	Price (each)	Stock
	985952420	COMPL. FRONT ROOF CROSS MEMBER	$888.72	To Order

Photo	Part No	Description	Price (each)	Stock
	985952430	COMPL. REAR SCREEN WALL	$960.39	To Order

Photo	Part No	Description	Price (each)	Stock
	985952432	COMPL. REAR ROOF CROSS MEMBER	$688.05	To Order

Photo	Part No	Description	Price (each)	Stock
	985952431	LOWER REAR SCREEN WALL CLOSURE PANEL	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14639591	RIVET	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	808658	RH WINDSCREEN CROSS MEMBER PARTITION	$24.34	To Order
	808657	LH WINDSCREEN CROSS MEMBER PARTITION	$24.34	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	985952429	COMPL. OUTER ROOF SKIN	985952429 COMPL. OUTER ROOF SKIN Request ASM authorisation	$12,575.22	1
2	985952425	WINDSCREEN CROSS-MEMBER UPPER COVER	985952425 WINDSCREEN CROSS-MEMBER UPPER COVER Request ASM authorisation	$1,444.12	1
3	805722	COMPL. RH CHANNEL BRACKET	805722 COMPL. RH CHANNEL BRACKET	$157.66	1
4	805715	COMPL. LH CHANNEL BRACKET	805715 COMPL. LH CHANNEL BRACKET	$157.66	1
5	985952420	COMPL. FRONT ROOF CROSS MEMBER	985952420 COMPL. FRONT ROOF CROSS MEMBER Request ASM authorisation	$888.72	1
6	985952430	COMPL. REAR SCREEN WALL	985952430 COMPL. REAR SCREEN WALL Request ASM authorisation	$960.39	1
7	985952432	COMPL. REAR ROOF CROSS MEMBER	985952432 COMPL. REAR ROOF CROSS MEMBER Request ASM authorisation - For vehicles up to Ass.ly No. 213225, also included bracket 903392 ref. 39 tab 159	$688.05	1
8	985952431	LOWER REAR SCREEN WALL CLOSURE PANEL	985952431 LOWER REAR SCREEN WALL CLOSURE PANEL Request ASM authorisation	$286.67	1
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M6	$1.51	2
10	871220	RH B-PILLAR PARTITION	871220 RH B-PILLAR PARTITION	$28.66	1
10	871225	LH B-PILLAR PARTITION	871225 LH B-PILLAR PARTITION	$28.66	1
11	14639591	RIVET	14639591 RIVET	$1.56	8
12	808658	RH WINDSCREEN CROSS MEMBER PARTITION	808658 RH WINDSCREEN CROSS MEMBER PARTITION	$24.34	1
12	808657	LH WINDSCREEN CROSS MEMBER PARTITION	808657 LH WINDSCREEN CROSS MEMBER PARTITION	$24.34	1
