REAR ACTIVE AERO of Ferrari Ferrari 296 GTB Europe

View All

Ferrari 296 GTB Europe - REAR ACTIVE AERO

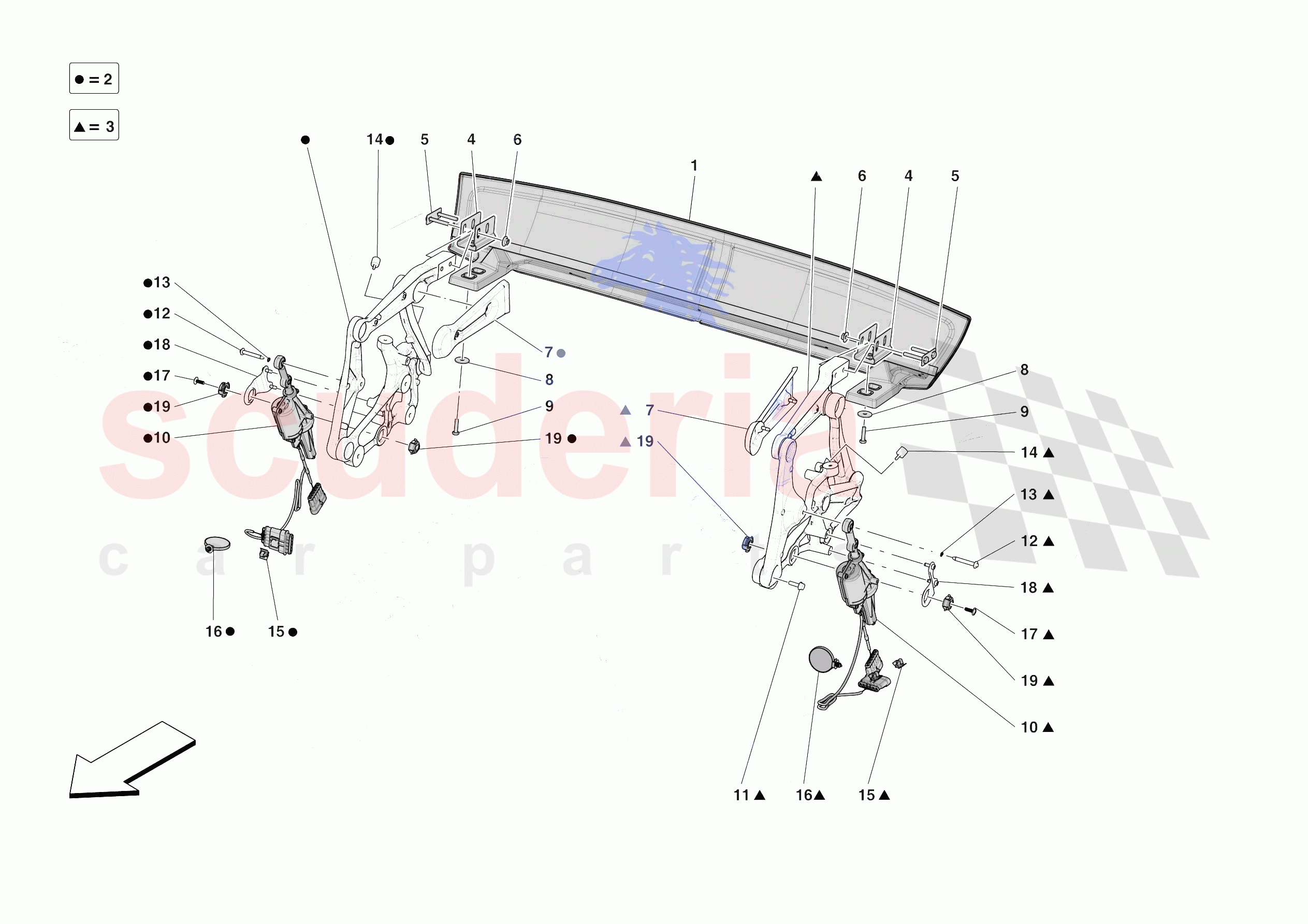

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	830464	COMPL. VARIABLE GEOMETRY WING	Enquire	To Order
	749675	COMPL. VARIABLE GEOMETRY WING	Enquire	To Order
	784346	COMPL. VARIABLE GEOMETRY WING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	793804	RH WING KINEMATICS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	793805	LH WING KINEMATICS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	788731	VARIABLE GEOMETRY WING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	788746	VARIABLE GEOMETRY WING MOUNTING BRACKET	Enquire	To Order
	942479	VARIABLE GEOMETRY WING MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	954427	VARIABLE GEOMETRY WING HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12640604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11612826	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	335169	LINEAR ELECTRIC ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772365	VARIABLE GEOM. WING ACTUATOR PIVOT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11065474	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	789739	ENDSTOP BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291283	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	857463	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772193	MOBILE WING ACTUATOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	814978	CLIP BEARING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	830464	COMPL. VARIABLE GEOMETRY WING	830464 COMPL. VARIABLE GEOMETRY WING Gloss black - Not for Assetto Fiorano FIO2	-	1	Enquire
1	749675	COMPL. VARIABLE GEOMETRY WING	749675 COMPL. VARIABLE GEOMETRY WING Applicable for Assetto Fiorano FIO2 - Gloss finish carbon version	-	1	Enquire
1	784346	COMPL. VARIABLE GEOMETRY WING	784346 COMPL. VARIABLE GEOMETRY WING Applicable for Assetto Fiorano FIO2 - Matte finish carbon version	-	1	Enquire
1	70007699	COMPL. VARIABLE GEOMETRY WING	70007699 COMPL. VARIABLE GEOMETRY WING Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - Applicable for Assetto Fiorano FIO2 - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
2	793804	RH WING KINEMATICS	793804 RH WING KINEMATICS	-	1	Enquire
3	793805	LH WING KINEMATICS	793805 LH WING KINEMATICS	-	1	Enquire
4	788731	VARIABLE GEOMETRY WING BRACKET	788731 VARIABLE GEOMETRY WING BRACKET	-	2	Enquire
5	788746	VARIABLE GEOMETRY WING MOUNTING BRACKET	788746 VARIABLE GEOMETRY WING MOUNTING BRACKET Applies until depletion	-	2	Enquire
5	942479	VARIABLE GEOMETRY WING MOUNTING BRACKET	942479 VARIABLE GEOMETRY WING MOUNTING BRACKET Applicable after depletion of 788746	-	2	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
7	954427	VARIABLE GEOMETRY WING HEAT SHIELD	954427 VARIABLE GEOMETRY WING HEAT SHIELD	-	2	Enquire
8	12640604	WASHER	12640604 WASHER	-	4	Enquire
9	11612826	SCREW	11612826 SCREW M6 X 25	-	4	Enquire
10	335169	LINEAR ELECTRIC ACTUATOR	335169 LINEAR ELECTRIC ACTUATOR	-	2	Enquire
11	81591700	SCREW	81591700 SCREW M6 X 20	-	6	Enquire
12	772365	VARIABLE GEOM. WING ACTUATOR PIVOT PIN	772365 VARIABLE GEOM. WING ACTUATOR PIVOT PIN	-	2	Enquire
13	11065474	CIRCLIP	11065474 CIRCLIP No longer supplied	-	2	Enquire
14	789739	ENDSTOP BUSH	789739 ENDSTOP BUSH	-	2	Enquire
15	291283	CLIP	291283 CLIP	-	2	Enquire
16	303385	CLIP	303385 CLIP 170 mm	-	2	Enquire
17	857463	SCREW	857463 SCREW 5 X 14	-	4	Enquire
18	772193	MOBILE WING ACTUATOR BRACKET	772193 MOBILE WING ACTUATOR BRACKET	-	2	Enquire
19	814978	CLIP BEARING	814978 CLIP BEARING	-	4	Enquire
