Name: LIGHTING SYSTEMS
Rating: 5.0 (1 reviews)

LIGHTING SYSTEMS of Ferrari Ferrari 296 GTS USA

View All

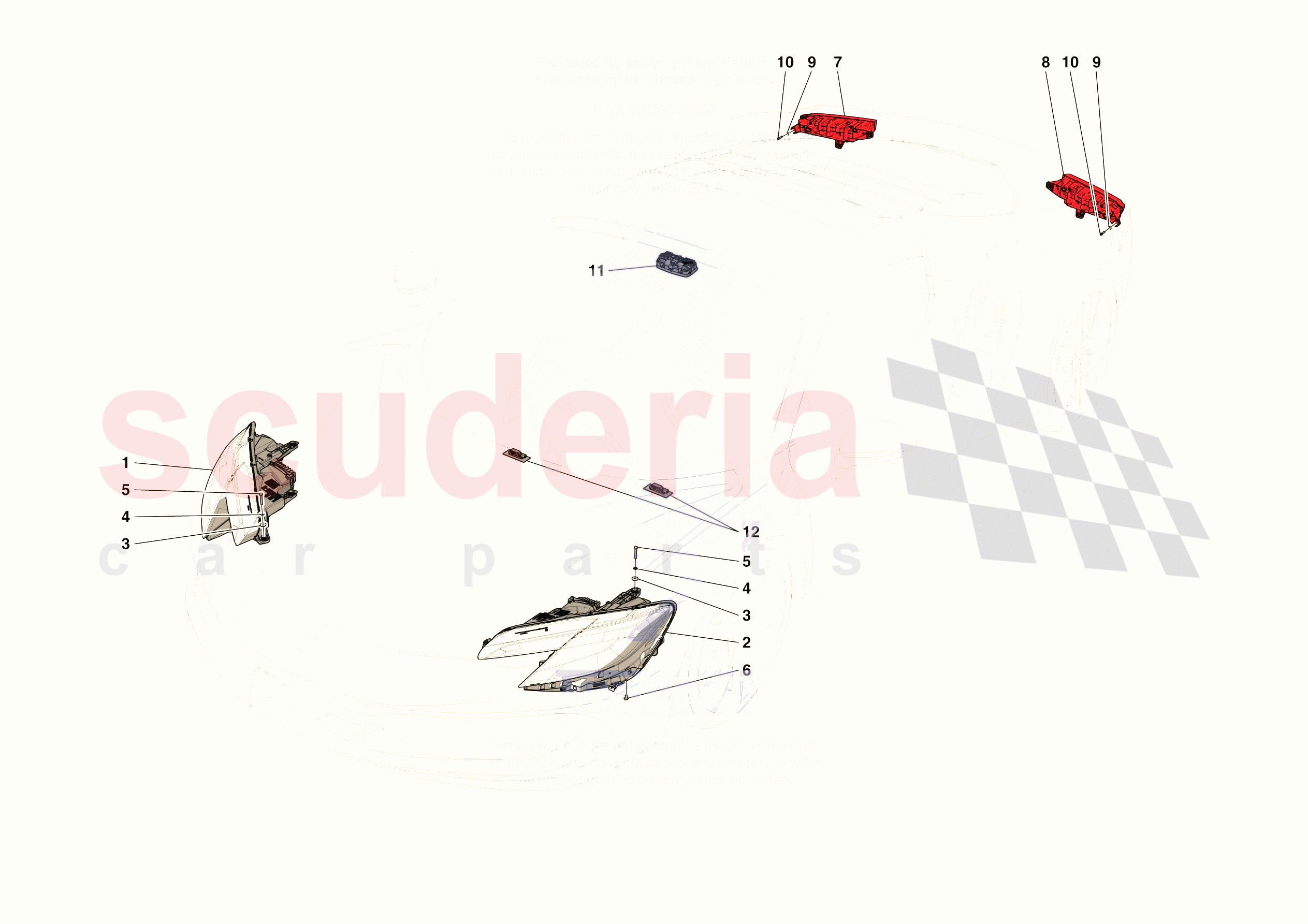

Ferrari 296 GTS USA - LIGHTING SYSTEMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	981633	RH HEADLIGHT	$3,994.83	To Order
	812845	RH HEADLAMP	$4,410.60	To Order
	814354	RH HEADLAMP	$3,983.89	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	981614	LH HEADLIGHT	$3,994.83	To Order
	812842	LH 296 HEADLIGHT	$4,410.60	To Order
	814346	LH HEADLAMP	$3,983.89	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	12601274	WASHER	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	10903224	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	960504	RH TAILLIGHT	$984.70	To Order
	814951	RH TAIL LIGHT	$1,021.19	To Order

Photo	Part No	Description	Price (each)	Stock
	960506	LH TAIL LIGHT	$984.70	To Order
	814953	LH TAIL LIGHT	$1,021.19	To Order

Photo	Part No	Description	Price (each)	Stock
	10523478	WASHER	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	14305534	SCREW	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	744262	CEILING LIGHT UNIT	$1,155.29	To Order

Photo	Part No	Description	Price (each)	Stock
	974896	LUGGAGE COMPARTMENT LIGHT	$64.17	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	981633	RH HEADLIGHT	981633 RH HEADLIGHT	$3,994.83	1
0001	812845	RH HEADLAMP	812845 RH HEADLAMP Adaptive headlamps	$4,410.60	1
0001	814354	RH HEADLAMP	814354 RH HEADLAMP	$3,983.89	1
0001	814634	RH HEADLAMP	814634 RH HEADLAMP Adaptive headlamps	$4,188.13	1
0001	815661	RH HEADLAMP	815661 RH HEADLAMP	$3,983.89	1
0001	814904	RH HEADLAMP	814904 RH HEADLAMP Adaptive headlamps	$4,188.13	1
0002	981614	LH HEADLIGHT	981614 LH HEADLIGHT	$3,994.83	1
0002	812842	LH 296 HEADLIGHT	812842 LH 296 HEADLIGHT Adaptive headlamps	$4,410.60	1
0002	814346	LH HEADLAMP	814346 LH HEADLAMP	$3,983.89	1
0002	814650	LH HEADLAMP	814650 LH HEADLAMP Adaptive headlamps	$4,188.13	1
0002	815604	LH HEADLAMP	815604 LH HEADLAMP	$3,983.89	1
0002	814903	LH HEADLAMP	814903 LH HEADLAMP Adaptive headlamps	$4,410.60	1
0003	68040000	WASHER	68040000 WASHER	$0.15	8
0004	12601274	WASHER	12601274 WASHER D. 6.40-12 X 0.5	$0.58 MSRP: ~~0.80~~ (27.5% off)	6
0005	10903224	SCREW	10903224 SCREW M6 X 40	$0.28 MSRP: ~~0.40~~ (30% off)	6
0006	915271	SCREW	915271 SCREW M6 X 15	$1.31	6
0007	960504	RH TAILLIGHT	960504 RH TAILLIGHT	$984.70	1
0007	814951	RH TAIL LIGHT	814951 RH TAIL LIGHT	$1,021.19	1
0008	960506	LH TAIL LIGHT	960506 LH TAIL LIGHT	$984.70	1
0008	814953	LH TAIL LIGHT	814953 LH TAIL LIGHT	$1,021.19	1
0009	10523478	WASHER	10523478 WASHER	$0.45	6
0010	14305534	SCREW	14305534 SCREW M6 X 30	$2.33	8
0011	744262	CEILING LIGHT UNIT	744262 CEILING LIGHT UNIT	$1,155.29	1
0012	974896	LUGGAGE COMPARTMENT LIGHT	974896 LUGGAGE COMPARTMENT LIGHT	$64.17	5
