Name: PISTONS AND CONNECTING RODS
Rating: 4.2 (1 reviews)

View All

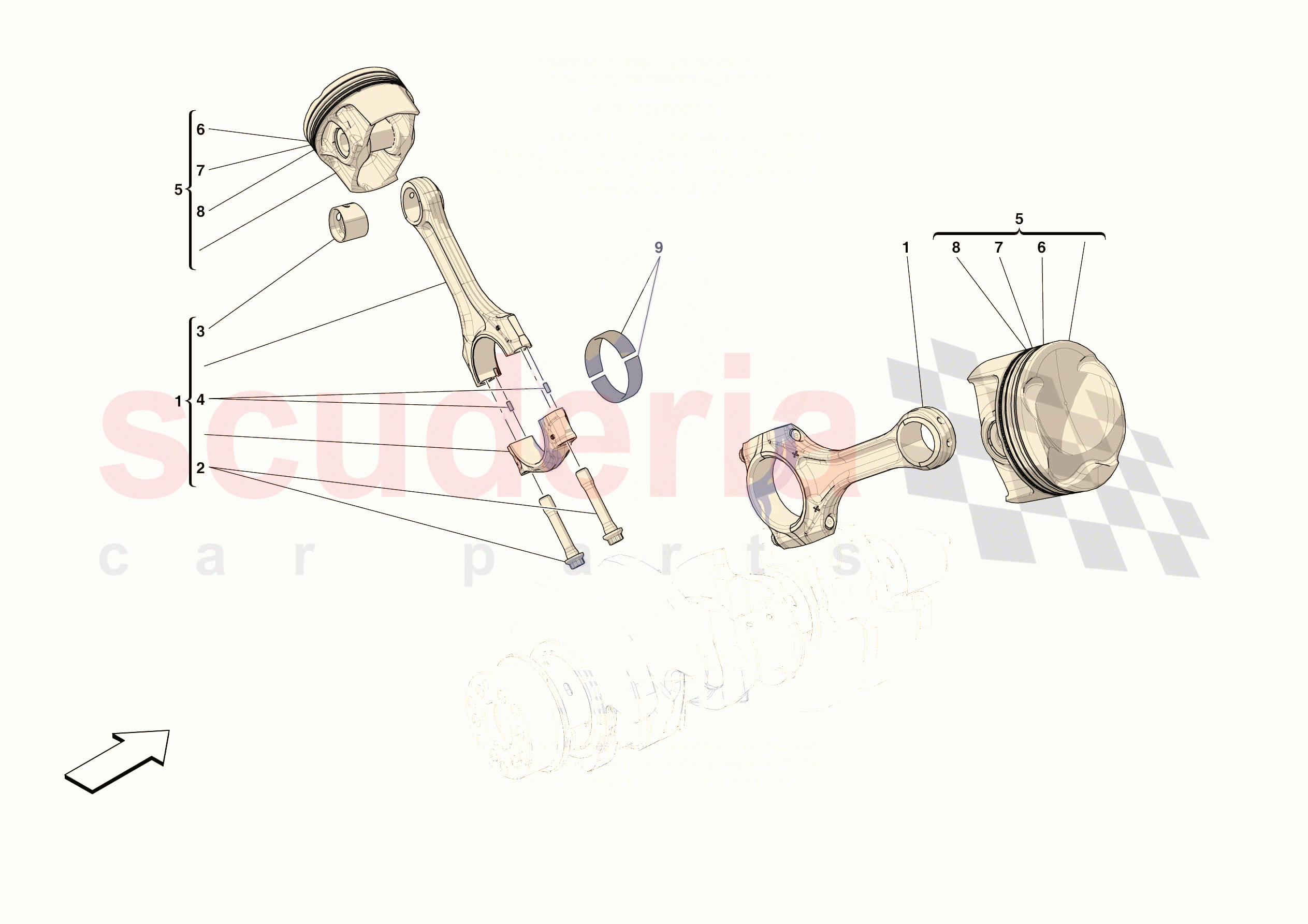

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	968186	COMPL. CONNECTING ROD AND CAP	$213.07	To Order

Photo	Part No	Description	Price (each)	Stock
	281320	SCREW	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	955507	BUSH	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	292751	ALIGNMENT PIN	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	771340	SEAL RING	$80.21	To Order

Photo	Part No	Description	Price (each)	Stock
	771341	SEAL RING	$46.52	To Order

Photo	Part No	Description	Price (each)	Stock
	771342	OIL SCRAPER RING	$65.77	To Order

...and 3 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	968186	COMPL. CONNECTING ROD AND CAP	968186 COMPL. CONNECTING ROD AND CAP	$213.07	6
0002	281320	SCREW	281320 SCREW	$186.33	12
0003	955507	BUSH	955507 BUSH	$50.15	6
0004	292751	ALIGNMENT PIN	292751 ALIGNMENT PIN	$28.66	12
0005	741195	COMPL. RH PISTON	741195 COMPL. RH PISTON	$645.03	3
0005	741196	COMPL. LH PISTON	741196 COMPL. LH PISTON	$645.03	3
0006	771340	SEAL RING	771340 SEAL RING 1st groove	$80.21	6
0007	771341	SEAL RING	771341 SEAL RING 2nd groove	$46.52	6
0008	771342	OIL SCRAPER RING	771342 OIL SCRAPER RING 3rd groove	$65.77	6
0009	799086	CONNECTING ROD HALF-BEARING	799086 CONNECTING ROD HALF-BEARING Black	$28.87	12
0009	799087	CONNECTING ROD HALF-BEARING	799087 CONNECTING ROD HALF-BEARING Blue	$28.87	12
0009	799088	CONNECTING ROD HALF-BEARING	799088 CONNECTING ROD HALF-BEARING Red	$28.87	12
0009	954173	CONNECTING ROD HALF-BEARING	954173 CONNECTING ROD HALF-BEARING Orange	$28.87	12
0009	954172	CONNECTING ROD HALF-BEARING	954172 CONNECTING ROD HALF-BEARING White	$28.87	12
0009	954171	CONNECTING ROD HALF-BEARING	954171 CONNECTING ROD HALF-BEARING Brown	$28.87	12
