Ferrari 296 GTB USA - ELECTRIC MACHINE COOLING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
979089 THREE-COMPARTMENT TANK $850.42 To Order
748152 THREE-COMPARTMENT TANK $834.37 To Order
Photo Part No Description Price (each) Stock
762914 RUBBER PIPE $18.62 To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR $1.56 To Order
Photo Part No Description Price (each) Stock
981124 MTA OIL PLUG $60.18 To Order
Photo Part No Description Price (each) Stock
900410 CAP WITH BATTERY COOLING SYSTEM HEADER TANK BREATHER $47.28 To Order
Photo Part No Description Price (each) Stock
917997 RUBBER PIPE $51.59 To Order
941445 RUBBER PIPE $272.34 To Order
Photo Part No Description Price (each) Stock
768950 HOSE $31.52 To Order
Photo Part No Description Price (each) Stock
784940 THREE-COMPARTMENT HEADER TANK BRACKET $140.46 To Order
Photo Part No Description Price (each) Stock
874304 RIGID P2 CIRCUIT/BATTERY COOLING SYSTEM BREATHER PIPE $258.00 To Order
55003858 RIGID P2 CIRCUIT/BATTERY COOLING SYSTEM BREATHER PIPE $256.72 To Order
Photo Part No Description Price (each) Stock
922718 O-RING $34.43 To Order
Photo Part No Description Price (each) Stock
867659 CAP WITH P2 HEADER TANK BREATHER $34.38 To Order
Photo Part No Description Price (each) Stock
918008 RUBBER PIPE $258.00 To Order
941443 RUBBER PIPE $258.00 To Order
Photo Part No Description Price (each) Stock
741090 P2 CIRCUIT FILLER MOULDED PIPE $80.26 To Order
Photo Part No Description Price (each) Stock
248061 CLIP $2.22 To Order
Photo Part No Description Price (each) Stock
813354 PUMP INLET AND FILLER PIPE $545.55 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $30.23 To Order
Photo Part No Description Price (each) Stock
909762 RADIATOR OUTLET PIPE $336.95 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
817117 P2 INLET PIPE $417.18 To Order
Photo Part No Description Price (each) Stock
771663 P2 OUTLET PIPE $481.36 To Order
Photo Part No Description Price (each) Stock
286421 O-RING $0.97 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
938685 THREADED BRACKET FOR FASTENING P2 CIRCUIT PIPE RETAINER BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
243399 BUSH $0.79 To Order
Photo Part No Description Price (each) Stock
243396 RETAINER BLOCK $27.21 To Order
Photo Part No Description Price (each) Stock
243398 PLATE $14.10 To Order
Photo Part No Description Price (each) Stock
231624 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
934069 OIL RADIATOR COMPLETE WITH FAN $1,419.10 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.33 To Order
Photo Part No Description Price (each) Stock
12647778 WASHER $0.42 To Order
Photo Part No Description Price (each) Stock
797730 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
908793 RADIATOR INLET PIPE $286.67 To Order
Photo Part No Description Price (each) Stock
216851 O-RING $3.70 To Order
Photo Part No Description Price (each) Stock
894449 COMPL. PUMP WITH PLATE $1,310.03 To Order
55004826 COMPL. PUMP WITH PLATE $1,299.71 To Order
Photo Part No Description Price (each) Stock
986012 OIL PUMP MOUNTING BRACKET $94.59 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.36 To Order
Photo Part No Description Price (each) Stock
14303834 SCREW $1.65 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
301064 DOUBLE CLIP $1.94 To Order
248061 CLIP $2.22 To Order
Photo Part No Description Price (each) Stock
797724 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
248153 RIVET $1.46 To Order
Photo Part No Description Price (each) Stock
262108 SCREW COLLAR $1.77 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
875436 O-RING $1.83 To Order
View All

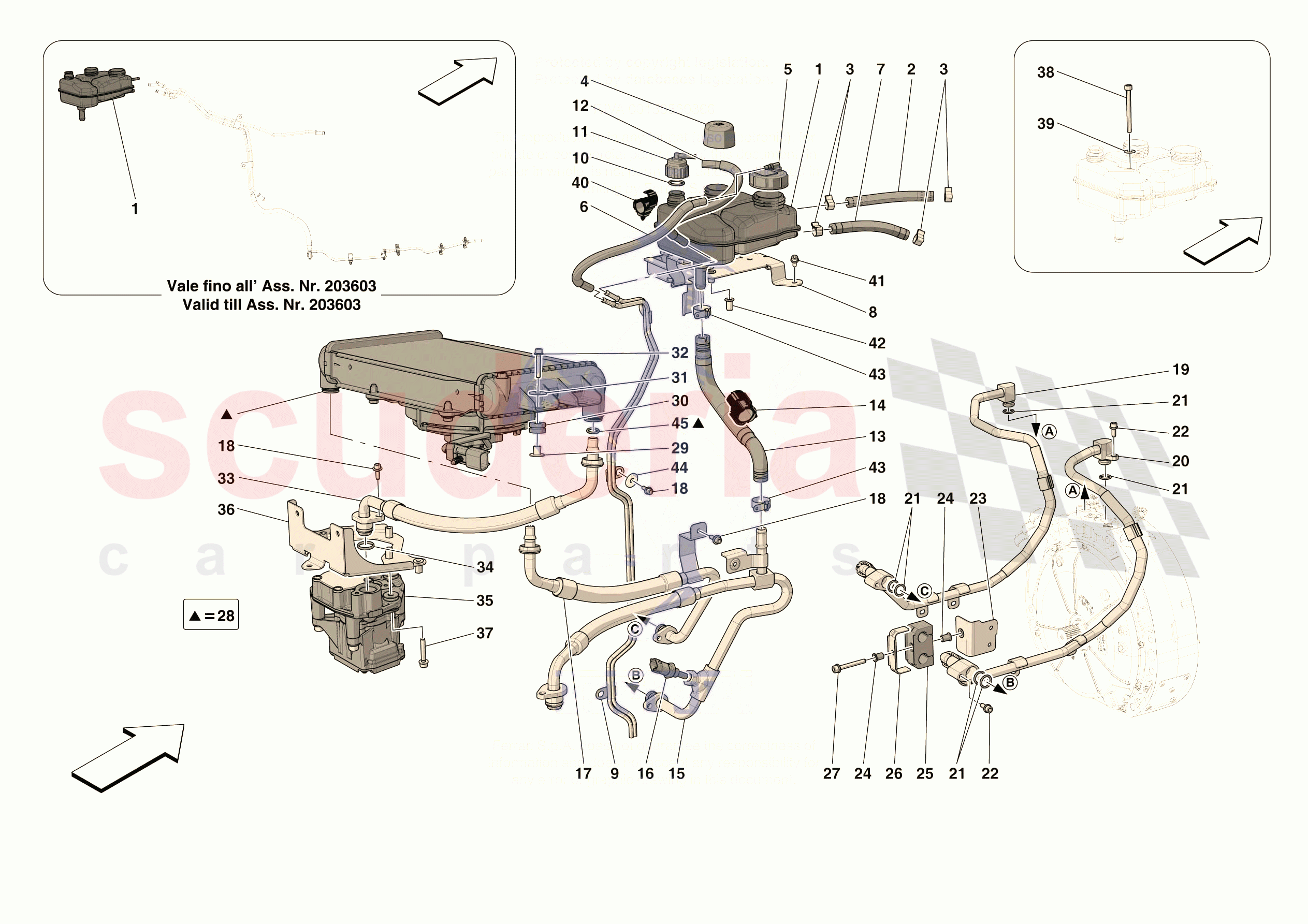

ELECTRIC MACHINE COOLING of Ferrari Ferrari 296 GTB USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 979089
THREE-COMPARTMENT TANK
Version with HVB battery breather - Identify part number installed in vehicle before ordering, see TI 2932 		$850.42 1
0001 748152
THREE-COMPARTMENT TANK
Version without HVB battery breather - Identify part number installed in vehicle before ordering, see TI 2932 		$834.37 1
0002 762914
RUBBER PIPE 		$18.62 1
0003 13126970
COLLAR 		$1.56 4
0004 981124
MTA OIL PLUG 		$60.18 1
0005 900410
CAP WITH BATTERY COOLING SYSTEM HEADER TANK BREATHER 		$47.28 1
0006 917997
RUBBER PIPE
Applies until depletion 		$51.59 1
0006 941445
RUBBER PIPE
For vehicles up to Ass.ly No. 204002 also order rubber pipe 941443 ref. 12 and clip 248061 ref. 40; Applicable after depletion of 917997 		$272.34 1
0007 768950
HOSE 		$31.52 1
0008 784940
THREE-COMPARTMENT HEADER TANK BRACKET 		$140.46 1
0009 874304
RIGID P2 CIRCUIT/BATTERY COOLING SYSTEM BREATHER PIPE 		$258.00 1
0009 55003858
RIGID P2 CIRCUIT/BATTERY COOLING SYSTEM BREATHER PIPE 		$256.72 1
0010 922718
O-RING 		$34.43 1
0011 867659
CAP WITH P2 HEADER TANK BREATHER 		$34.38 1
0012 918008
RUBBER PIPE
Applies until depletion 		$258.00 1
0012 941443
RUBBER PIPE
For vehicles up to Ass.ly No. 204002 also order rubber pipe 941445 ref. 6 and clip 248061 ref. 40; Applicable after depletion of 918008 		$258.00 1
0013 741090
P2 CIRCUIT FILLER MOULDED PIPE 		$80.26 1
0014 248061
CLIP 		$2.22 1
0015 813354
PUMP INLET AND FILLER PIPE 		$545.55 1
0016 180137
TEMPERATURE SENSOR 		$30.23 (8.4% off) 1
0017 909762
RADIATOR OUTLET PIPE 		$336.95 1
0018 85833900
SCREW
M5 X 16
ARRIVING SOON 		$0.36 16
0019 817117
P2 INLET PIPE 		$417.18 1
0020 771663
P2 OUTLET PIPE 		$481.36 1
0021 286421
O-RING 		$0.97 6
0022 248334
SCREW
M6 X 16 		$0.68 4
0023 938685
THREADED BRACKET FOR FASTENING P2 CIRCUIT PIPE RETAINER BLOCK 		- 1 Enquire
0024 243399
BUSH 		$0.79 2
0025 243396
RETAINER BLOCK 		$27.21 1
0026 243398
PLATE 		$14.10 1
0027 231624
SCREW
M6 X 45 		$0.44 1
0028 934069
OIL RADIATOR COMPLETE WITH FAN 		$1,419.10 1
0029 149707
SPACER 		$1.17 (33.1% off) 3
0030 177576
CABLE GROMMET 		$2.33 3
0031 12647778
WASHER 		$0.42 (35.4% off) 3
0032 797730
SCREW
M5 X 30 		$0.58 3
0033 908793
RADIATOR INLET PIPE 		$286.67 1
0034 216851
O-RING 		$3.70 2
0035 894449
COMPL. PUMP WITH PLATE
Applies until depletion 		$1,310.03 1
0035 55004826
COMPL. PUMP WITH PLATE 		$1,299.71 1
0036 986012
OIL PUMP MOUNTING BRACKET 		$94.59 1
0037 231622
SCREW
M6 X 35 		$0.36 (28% off) 3
0038 14303834
SCREW
M6 X 60 		$1.65 1
0039 12644424
WASHER 		$0.06 (85% off) 1
0040 301064
DOUBLE CLIP 		$1.94 1
0040 248061
CLIP 		$2.22 1
0041 797724
SCREW
M5 X 14 		$0.47 3
0042 248153
RIVET 		$1.46 1
0043 262108
SCREW COLLAR 		$1.77 2
0044 12638124
WASHER 		$0.05 (92.9% off) 3
0045 875436
O-RING 		$1.83 1
