Name: CYLINDER HEADS - RH HEAD
Rating: 4.6 (1 reviews)

CYLINDER HEADS - RH HEAD of Ferrari Ferrari 296 GTB USA

View All

Ferrari 296 GTB USA - CYLINDER HEADS - RH HEAD

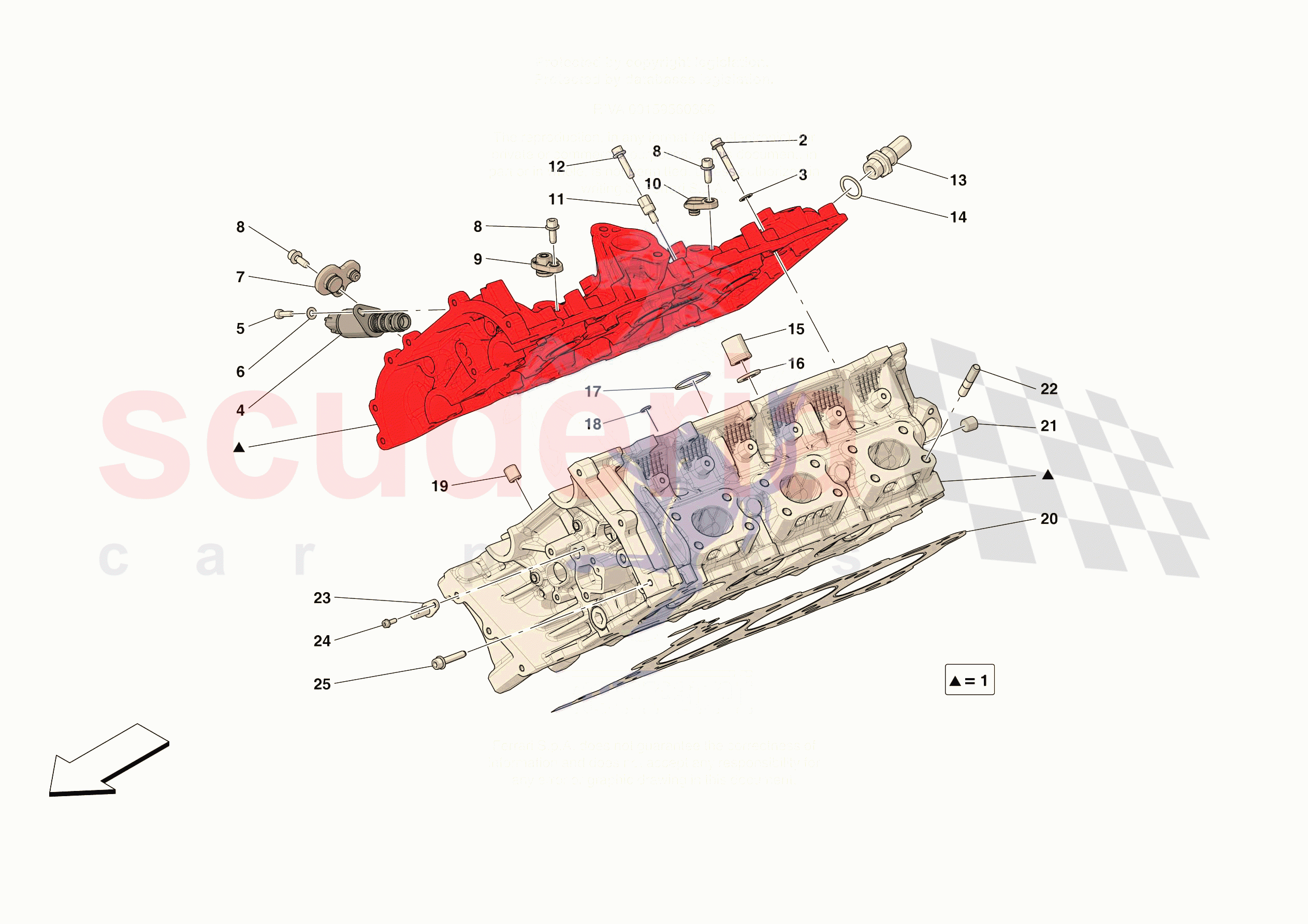

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	750245	RH CYLINDER/RH HEAD COVER ASSEMBLY	$3,239.85	To Order
	915890	RH CYLINDER/RH HEAD COVER ASSEMBLY	$3,592.78	To Order
	950361	RH CYLINDER/RH HEAD COVER ASSEMBLY	$2,983.95	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	868188	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	296075	WASHER 13 X 5.8	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	899222	PLUG	$9.29	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	899147	PLUG	$7.73	To Order

Photo	Part No	Description	Price (each)	Stock
	899148	PLUG	$7.15	To Order

Photo	Part No	Description	Price (each)	Stock
	814799	STUD BOLT	$11.15	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	927180	THREADED CONNECTOR	$35.82	To Order

Photo	Part No	Description	Price (each)	Stock
	10263160	GASKET	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	271125	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	271129	WASHER	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	14454381	O-RING	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	14450581	GASKET	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	342272	CHECK VALVE	$13.31	To Order

Photo	Part No	Description	Price (each)	Stock
	962416	GASKET	$229.33	To Order

Photo	Part No	Description	Price (each)	Stock
	291078	THREADED PLUG	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	935821	STUD BOLT	$3.68	To Order

Photo	Part No	Description	Price (each)	Stock
	829568	CHAIN COOLING NOZZLE ASSEMBLY	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	750245	RH CYLINDER/RH HEAD COVER ASSEMBLY	750245 RH CYLINDER/RH HEAD COVER ASSEMBLY No longer supplied - Replaced by 915890	$3,239.85	1
0001	915890	RH CYLINDER/RH HEAD COVER ASSEMBLY	915890 RH CYLINDER/RH HEAD COVER ASSEMBLY No longer supplied - Replaced by 950361	$3,592.78	1
0001	950361	RH CYLINDER/RH HEAD COVER ASSEMBLY	950361 RH CYLINDER/RH HEAD COVER ASSEMBLY Applies until depletion	$2,983.95	1
0001	867261	RH CYLINDER/RH HEAD COVER ASSEMBLY	867261 RH CYLINDER/RH HEAD COVER ASSEMBLY Applicable after depletion of 950361	$3,506.78	1
0002	868188	SCREW	868188 SCREW	$0.52	26
0003	296075	WASHER 13 X 5.8	296075 WASHER 13 X 5.8	$1.31	26
0004	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	$240.67	2
0005	14304124	SCREW	14304124 SCREW M5 X 16	$0.16 MSRP: ~~0.75~~ (78.7% off)	2
0006	11181574	WASHER	11181574 WASHER	$0.02	2
0007	899222	PLUG	899222 PLUG	$9.29	1
0008	248334	SCREW	248334 SCREW M6 X 16	$0.68	3
0009	899147	PLUG	899147 PLUG	$7.73	1
0010	899148	PLUG	899148 PLUG	$7.15	1
0011	814799	STUD BOLT	814799 STUD BOLT	$11.15	3
0012	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
0013	927180	THREADED CONNECTOR	927180 THREADED CONNECTOR	$35.82	1
0014	10263160	GASKET	10263160 GASKET Also included in engine gasket set	$0.28 MSRP: ~~1.00~~ (72% off)	1
0015	271125	NUT	271125 NUT	$7.33	8
0016	271129	WASHER	271129 WASHER	$1.26	8
0017	14454381	O-RING	14454381 O-RING Also included in engine gasket set	$1.36	3
0018	14450581	GASKET	14450581 GASKET Also included in engine gasket set	$4.88	1
0019	342272	CHECK VALVE	342272 CHECK VALVE	$13.31	2
0020	962416	GASKET	962416 GASKET Also included in engine gasket set	$229.33	1
0021	291078	THREADED PLUG	291078 THREADED PLUG M12 X 11	$2.43	1
0022	935821	STUD BOLT	935821 STUD BOLT	$3.68	6
0023	829568	CHAIN COOLING NOZZLE ASSEMBLY	829568 CHAIN COOLING NOZZLE ASSEMBLY	$60.96	1
0024	315493	SCREW	315493 SCREW M4 X 10	$1.17	1
0025	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	2
