Ferrari 296 GTB USA - CRANKCASE

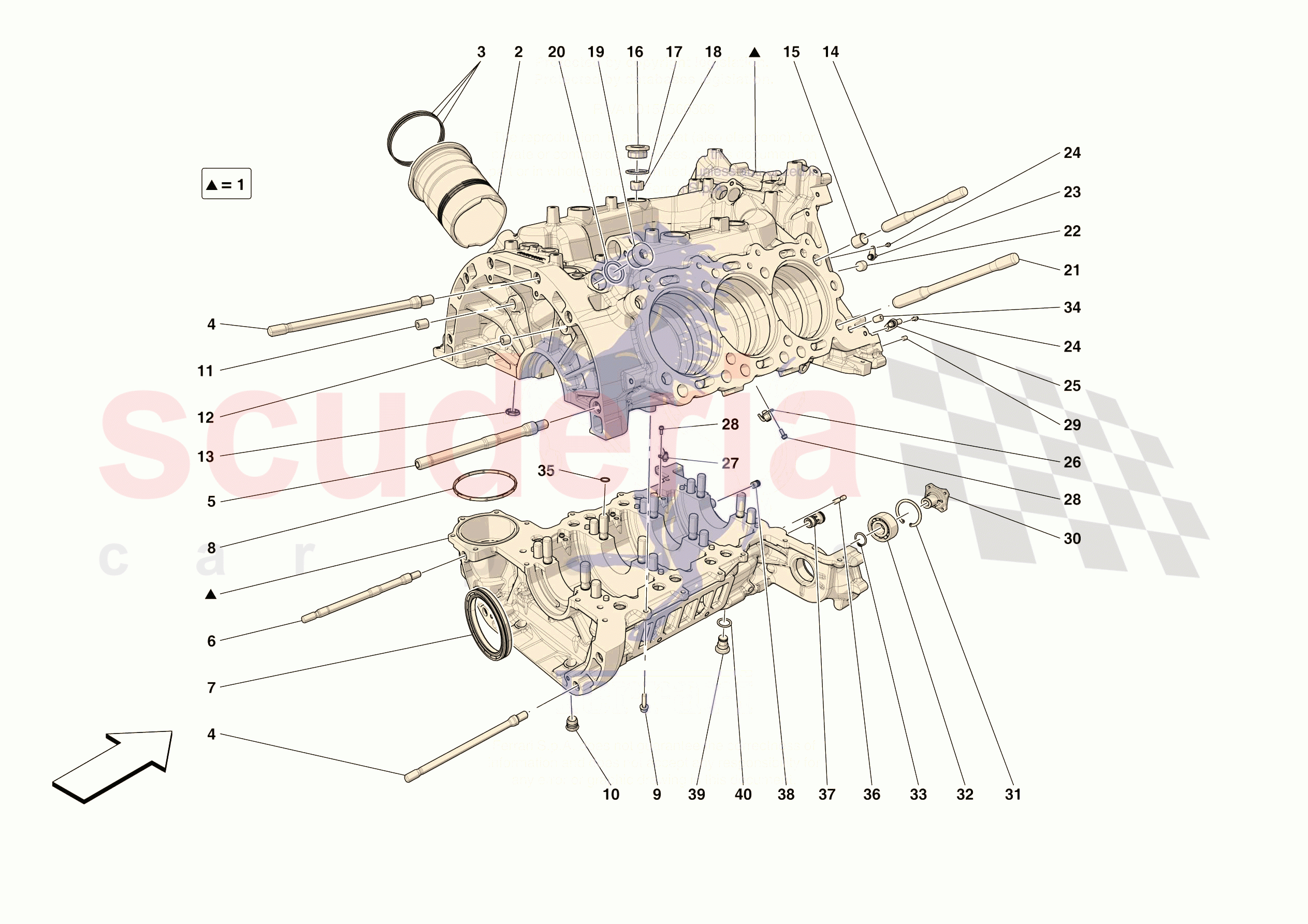

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	782012	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order
	940974	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$7,404.78	To Order
	987153	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$7,500.64	To Order

Photo	Part No	Description	Price (each)	Stock
	984574	CYLINDER SLEEVE	$700.12	To Order
	907486	CYLINDER SLEEVE	$669.68	To Order

Photo	Part No	Description	Price (each)	Stock
	985326	O-RING	$9.13	To Order

Photo	Part No	Description	Price (each)	Stock
	935824	SPECIAL STUD BOLT	$99.47	To Order

Photo	Part No	Description	Price (each)	Stock
	868638	SPECIAL GRUB SCREW	$111.79	To Order

Photo	Part No	Description	Price (each)	Stock
	868636	SPECIAL STUD BOLT	$109.10	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	939107	OIL FILTER GASKET	$17.20	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	845568	PLUG	$0.52	To Order
	164400	THREADED PLUG	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	14324811	THREADED PLUG	$5.83	To Order

Photo	Part No	Description	Price (each)	Stock
	10266901	THREADED PLUG	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	809198	GASKET	$5.45	To Order

Photo	Part No	Description	Price (each)	Stock
	935819	STUD BOLT	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	10278311	THREADED PLUG	$9.45	To Order

Photo	Part No	Description	Price (each)	Stock
	10262160	GASKET	$1.98	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	935820	STUD BOLT	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	843929	CHAIN COOLING NOZZLE ASSEMBLY	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	829568	CHAIN COOLING NOZZLE ASSEMBLY	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	803816	PISTON COOLING NOZZLE ASSEMBLY	$44.43	To Order
	875813	PISTON COOLING NOZZLE ASSEMBLY	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	803815	PISTON COOLING NOZZLE ASSEMBLY	$45.85	To Order
	875812	PISTON COOLING NOZZLE ASSEMBLY	$46.52	To Order

Photo	Part No	Description	Price (each)	Stock
	850527	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	796215	DRIVE JOINT	$401.34	To Order

Photo	Part No	Description	Price (each)	Stock
	11060276	SEEGER RING	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	247049	BEARING	$53.41	To Order

Photo	Part No	Description	Price (each)	Stock
	11066876	SEEGER RING	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	803790	O-RING	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	911391	PIN	$6.66	To Order

Photo	Part No	Description	Price (each)	Stock
	835895	PLUG	$30.08	To Order

Photo	Part No	Description	Price (each)	Stock
	816230	PLUG	$13.47	To Order

Photo	Part No	Description	Price (each)	Stock
	957918	PLUG	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.32	To Order

View All

CRANKCASE of Ferrari Ferrari 296 GTB USA

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	0001	782012	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	782012 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY No longer supplied - Replaced by 940974; Applicable up to engine No. 533515	-	1		Enquire
	0001	940974	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	940974 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY No longer supplied - Replaced by 987153; Applicable from engine No. 533516	$7,404.78	1
	0001	987153	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	987153 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$7,500.64	1
	0002	984574	CYLINDER SLEEVE	984574 CYLINDER SLEEVE Applies until depletion	$700.12	6
	0002	907486	CYLINDER SLEEVE	907486 CYLINDER SLEEVE Applicable after depletion of 984574	$669.68	6
	0003	985326	O-RING	985326 O-RING Also included in engine gasket set	$9.13	18
	0004	935824	SPECIAL STUD BOLT	935824 SPECIAL STUD BOLT	$99.47	7
	0005	868638	SPECIAL GRUB SCREW	868638 SPECIAL GRUB SCREW	$111.79	1
	0006	868636	SPECIAL STUD BOLT	868636 SPECIAL STUD BOLT	$109.10	1
	0007	240214	GASKET	240214 GASKET Also included in engine gasket set	$62.56 MSRP: ~~77.65~~ (19.4% off)	1
	0008	939107	OIL FILTER GASKET	939107 OIL FILTER GASKET Also included in engine gasket set	$17.20	1
	0009	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	18
	0010	845568	PLUG	845568 PLUG Applicable up to engine No. 533515	$0.52	2
	0010	164400	THREADED PLUG	164400 THREADED PLUG	$3.81	1
	0011	14324811	THREADED PLUG	14324811 THREADED PLUG	$5.83	3
	0012	10266901	THREADED PLUG	10266901 THREADED PLUG	$0.73	1
	0013	809198	GASKET	809198 GASKET Also included in engine gasket set	$5.45	4
	0014	935819	STUD BOLT	935819 STUD BOLT	$28.66	8
	0015	185360	CENTERING DOWEL	185360 CENTERING DOWEL	$2.97	4
	0016	10278311	THREADED PLUG	10278311 THREADED PLUG	$9.45	5
	0017	10262160	GASKET	10262160 GASKET Also included in engine gasket set	$1.98	5
	0018	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$3.32 MSRP: ~~4.17~~ (20.4% off)	4
	0019	307477	THREADED PLUG	307477 THREADED PLUG	$3.84	2
	0020	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5 Also included in engine gasket set	$0.37 MSRP: ~~1.00~~ (63% off)	2
	0021	935820	STUD BOLT	935820 STUD BOLT	$32.08	8
	0022	164400	THREADED PLUG	164400 THREADED PLUG	$3.81	1
	0023	843929	CHAIN COOLING NOZZLE ASSEMBLY	843929 CHAIN COOLING NOZZLE ASSEMBLY	$86.63	1
	0024	315493	SCREW	315493 SCREW M4 X 10	$1.17	2
	0025	829568	CHAIN COOLING NOZZLE ASSEMBLY	829568 CHAIN COOLING NOZZLE ASSEMBLY	$60.96	1
	0026	803816	PISTON COOLING NOZZLE ASSEMBLY	803816 PISTON COOLING NOZZLE ASSEMBLY Applies until depletion	$44.43	6
	0026	875813	PISTON COOLING NOZZLE ASSEMBLY	875813 PISTON COOLING NOZZLE ASSEMBLY Applicable after depletion of 803816; Exhaust side	$44.91	6
	0027	803815	PISTON COOLING NOZZLE ASSEMBLY	803815 PISTON COOLING NOZZLE ASSEMBLY Applicable up to engine No. 533515	$45.85	6
	0027	875812	PISTON COOLING NOZZLE ASSEMBLY	875812 PISTON COOLING NOZZLE ASSEMBLY Applicable from engine No. 533516; Intake side	$46.52	6
	0028	850527	SCREW	850527 SCREW M4 X 10	$0.47	12
	0029	175611	CENTERING DOWEL	175611 CENTERING DOWEL	$1.78	2
	0030	796215	DRIVE JOINT	796215 DRIVE JOINT	$401.34	1
	0031	11060276	SEEGER RING	11060276 SEEGER RING	$0.45 MSRP: ~~1.75~~ (74.3% off)	1
	0032	247049	BEARING	247049 BEARING	$53.41	1
	0033	11066876	SEEGER RING	11066876 SEEGER RING	$0.06 MSRP: ~~0.35~~ (82.9% off)	1
	0034	14326101	THREADED PLUG	14326101 THREADED PLUG	$1.26 MSRP: ~~1.65~~ (23.6% off)	1
	0035	803790	O-RING	803790 O-RING Also included in engine gasket set	$0.65	16
	0036	911391	PIN	911391 PIN	$6.66	1
	0037	835895	PLUG	835895 PLUG	$30.08	1
	0038	816230	PLUG	816230 PLUG	$13.47	1
	0039	957918	PLUG	957918 PLUG	$20.84	2
	0040	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5 Also included in engine gasket set	$0.32 MSRP: ~~1.25~~ (74.4% off)	2
