Ferrari 296 GTB Europe RH - HIGH VOLTAGE WIRING HARNESSES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
832663 Y NODE $1,283.66 To Order
Photo Part No Description Price (each) Stock
16281824 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
985085 HVC6 HVB-P2 INVERTER CABLE $1,219.48 To Order
Photo Part No Description Price (each) Stock
961295 CLIP $5.35 To Order
Photo Part No Description Price (each) Stock
791886 HVC6 CABLE ON HVB $25.66 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
798500 HVC6-HVC7 BRACKET ON TRANSMISSION $152.42 To Order
Photo Part No Description Price (each) Stock
323665 SCREW $0.36 To Order
Photo Part No Description Price (each) Stock
82140000 SCREW $3.06 To Order
Photo Part No Description Price (each) Stock
961316 CLIP $7.23 To Order
Photo Part No Description Price (each) Stock
323668 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
742156 HVC9 P2 INVERTER - HV COMPRESSOR CABLE $420.60 To Order
Photo Part No Description Price (each) Stock
791897 BRACKET FASTENING HVC7 ONTO INVERTER $27.26 To Order
Photo Part No Description Price (each) Stock
791896 BRACKET FASTENING HVC6 ONTO INVERTER $24.05 To Order
Photo Part No Description Price (each) Stock
832666 HVC10 OBC-CHARGE SOCKET CABLE $1,091.11 To Order
833307 HVC10 OBC-CHARGE SOCKET CABLE $1,042.97 To Order
833307 HVC10 OBC-CHARGE SOCKET CABLE $1,042.97 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
742150 HVC8 OBC-P2 INVERTER CABLE $513.46 To Order
Photo Part No Description Price (each) Stock
879949 HVB BATTERY CHARGER $610.17 To Order
879950 HVB BATTERY CHARGER $703.06 To Order
811457 HVB BATTERY CHARGER $652.83 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
887230 CHARGING SOCKET ADAPTER $51.33 To Order
985251 CHARGING SOCKET ADAPTER $41.70 To Order
985251 CHARGING SOCKET ADAPTER $41.70 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
890449 CHARGING SOCKET CAP $67.38 IN STOCK
Photo Part No Description Price (each) Stock
905181 CHARGE SOCKET CORD $24.05 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
956839 EMERGENCY CHARGE SOCKET ACTUATOR CABLE $1.88 To Order
Photo Part No Description Price (each) Stock
870754 COMPL. FRONT MOUNT OF CHARGE SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
870729 COMPL. REAR MOUNT OF CHARGE SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
14440834 SCREW $0.28 To Order
85833900 SCREW $0.36 IN STOCK
81911600 SCREW $0.47 To Order
...and 3 more part variants. See table on right for more details.
View All

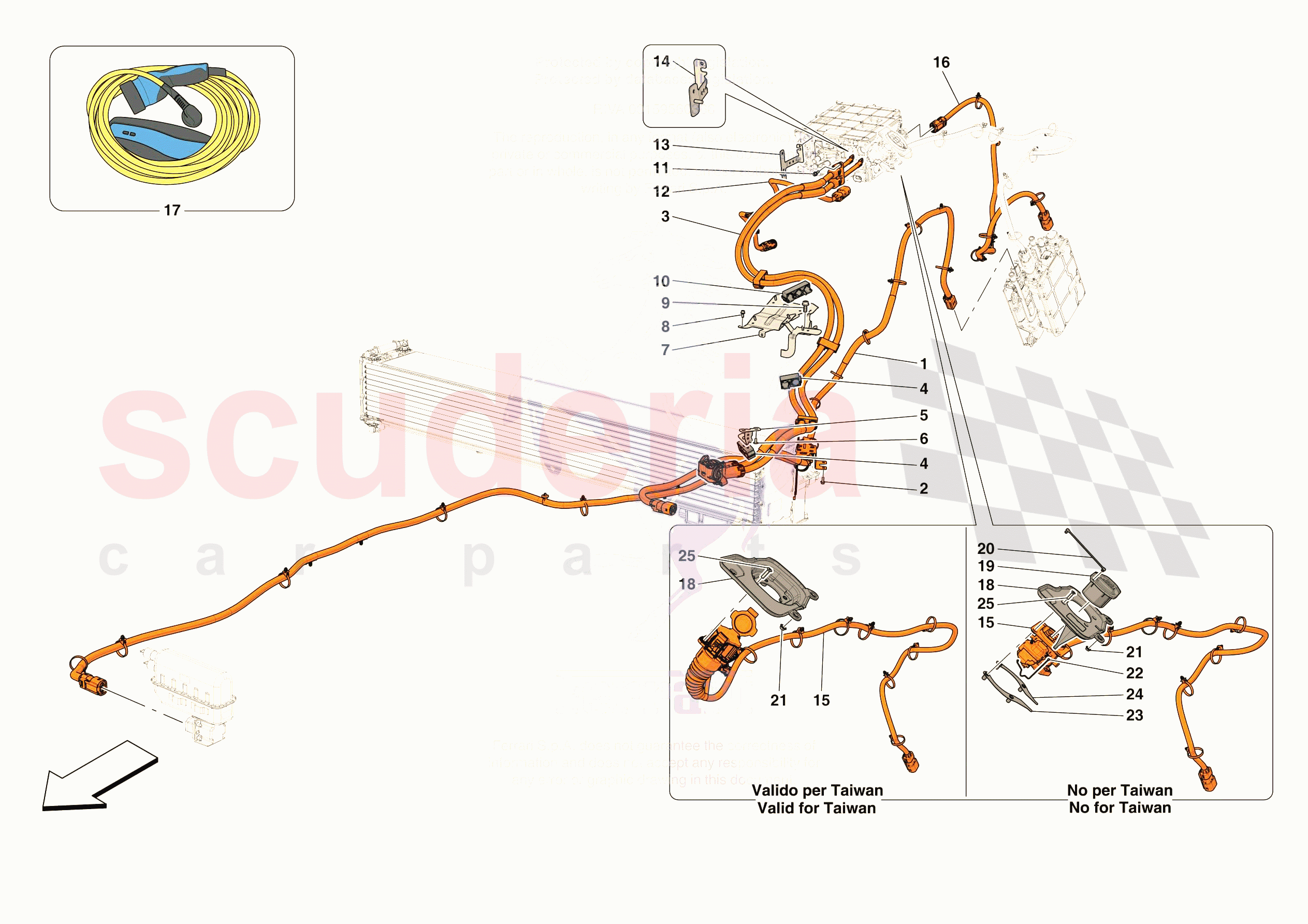

HIGH VOLTAGE WIRING HARNESSES of Ferrari Ferrari 296 GTB Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 832663
Y NODE 		$1,283.66 1
0002 16281824
SCREW
M5 X 14 		$0.42 (58% off) 2
0003 985085
HVC6 HVB-P2 INVERTER CABLE 		$1,219.48 1
0004 961295
CLIP 		$5.35 5
0005 791886
HVC6 CABLE ON HVB 		$25.66 1
0006 85833900
SCREW
M5 X 12
IN STOCK 		$0.36 2
0007 798500
HVC6-HVC7 BRACKET ON TRANSMISSION 		$152.42 1
0008 323665
SCREW
M6 X 14 		$0.36 2
0009 82140000
SCREW
M10 X 1.25 X 25 		$3.06 (27.1% off) 1
0010 961316
CLIP 		$7.23 5
0011 323668
SCREW
M6 X 20 		$0.32 5
0012 742156
HVC9 P2 INVERTER - HV COMPRESSOR CABLE 		$420.60 1
0013 791897
BRACKET FASTENING HVC7 ONTO INVERTER 		$27.26 1
0014 791896
BRACKET FASTENING HVC6 ONTO INVERTER 		$24.05 1
0015 832666
HVC10 OBC-CHARGE SOCKET CABLE
Applicable for Argentina, Brazil, Chile, Colombia and Venezuela - Not for South Korea - Not for Taiwan 		$1,091.11 1
0015 833307
HVC10 OBC-CHARGE SOCKET CABLE
Applicable for Taiwan only 		$1,042.97 1
0015 833307
HVC10 OBC-CHARGE SOCKET CABLE 		$1,042.97 1
0015 833308
HVC10 OBC-CHARGE SOCKET CABLE 		$1,235.52 1
0016 742150
HVC8 OBC-P2 INVERTER CABLE 		$513.46 1
0017 879949
HVB BATTERY CHARGER
Applicable for Austria, Argentina, Azerbaijan, Belgium, Brazil, Chile, Colombia, Philippines, Finland, France, Germany, Greece, India, Indonesia, Italy, Luxembourg, Monaco, Morocco and Norway - Netherlands, Poland, Portugal, Czech Republic, Romania, Russia, San Marino, Spain, South Africa, Sweden, Thailand, Turkey, Hungary, Venezuela and Vietnam 		$610.17 1
0017 879950
HVB BATTERY CHARGER
Applicable for USA, CDN, WA, Puerto Rico, Mexico, Panama and Taiwan 		$703.06 1
0017 811457
HVB BATTERY CHARGER
Applicable for Saudi Arabia, Bahrain, Kuwait, Lebanon, Oman, Qatar and UAE 		$652.83 1
0017 924665
HVB BATTERY CHARGER
Applicable for Switzerland 		$602.62 1
0017 905975
HVB BATTERY CHARGER
Applicable for Denmark - Type K socket 		$934.33 1
0017 830475
HVB BATTERY CHARGER
Applicable for J-LHD and J-RHD market 		$1,144.08 1
0017 879951
HVB BATTERY CHARGER
Applicable for China 		$667.37 1
0017 966430
HVB BATTERY CHARGER
Applicable for Australia and New Zealand 		$703.06 1
0017 924664
HVB BATTERY CHARGER
Applicable for UK, Hong Kong and Malaysia 		$610.17 1
0017 966429
HVB BATTERY CHARGER
Applicable for Israel and Singapore - Industrial plug 		$602.62 1
0018 887230
CHARGING SOCKET ADAPTER
Applicable for Argentina, Brazil, Chile, Colombia and Venezuela - Not for Taiwan 		$51.33 1
0018 985251
CHARGING SOCKET ADAPTER
Applicable for Taiwan only 		$41.70 1
0018 985251
CHARGING SOCKET ADAPTER 		$41.70 1
0018 985249
CHARGING SOCKET ADAPTER 		$41.70 1
0019 890449
CHARGING SOCKET CAP
Not for Taiwan
IN STOCK 		$67.38 1
0020 905181
CHARGE SOCKET CORD
Not for Taiwan 		$24.05 1
0021 14059290
FLANGED NUT M6
M 5 X 5
IN STOCK 		$1.43 3
0022 956839
EMERGENCY CHARGE SOCKET ACTUATOR CABLE
Not for South Korea - Not for Taiwan 		$1.88 1
0023 870754
COMPL. FRONT MOUNT OF CHARGE SOCKET
Not for South Korea - Not for Taiwan 		- 1 Enquire
0024 870729
COMPL. REAR MOUNT OF CHARGE SOCKET
Not for South Korea - Not for Taiwan 		- 1 Enquire
0025 14440834
SCREW
M5 X 20 		$0.28 (37.8% off) 4
0025 85833900
SCREW
M5 X 16
IN STOCK 		$0.36 4
0025 81911600
SCREW
M6 X 1 X 18 		$0.47 4
0025 81911600
SCREW
M6 X 1 X 18 		$0.47 4
0025 85833900
SCREW
M5 X 16
IN STOCK 		$0.36 4
0025 85833900
SCREW
M5 X 16
IN STOCK 		$0.36 4
