Ferrari 296 GTB Europe RH - TIMING SYSTEM DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
903941 VALVE TIMING AND PUMP DRIVE SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
876147 VALVE TIMING CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
803163 CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
803168 PUMP DRIVE CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
778322 TIMING SYSTEM COMPARTMENT FILLER Enquire To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
11181579 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
905013 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
282396 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
803165 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
806402 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
14302821 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
163759 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
876149 MOBILE SHOE Enquire To Order
Photo Part No Description Price (each) Stock
175303 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
14306421 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
284900 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
288341 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
903948 HYDRAULIC TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
903967 HYDRAULIC TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
958150 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
282398 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
803167 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
904999 MOBILE SHOE Enquire To Order
Photo Part No Description Price (each) Stock
905015 FIXED SHOE Enquire To Order
Photo Part No Description Price (each) Stock
181336 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12649624 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
954458 HYDRAULIC CHAIN TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
958152 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
806470 DRIVE GEAR Enquire To Order
Photo Part No Description Price (each) Stock
267808 ROLLER BEARING CAGE Enquire To Order
Photo Part No Description Price (each) Stock
304699 SHOULDER Enquire To Order
Photo Part No Description Price (each) Stock
284898 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
806533 MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
154191 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
839197 SHAFT GEAR Enquire To Order
Photo Part No Description Price (each) Stock
807703 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
245915 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
806536 PUMP DRIVE GEAR Enquire To Order
Photo Part No Description Price (each) Stock
255780 SCREW Enquire To Order
View All

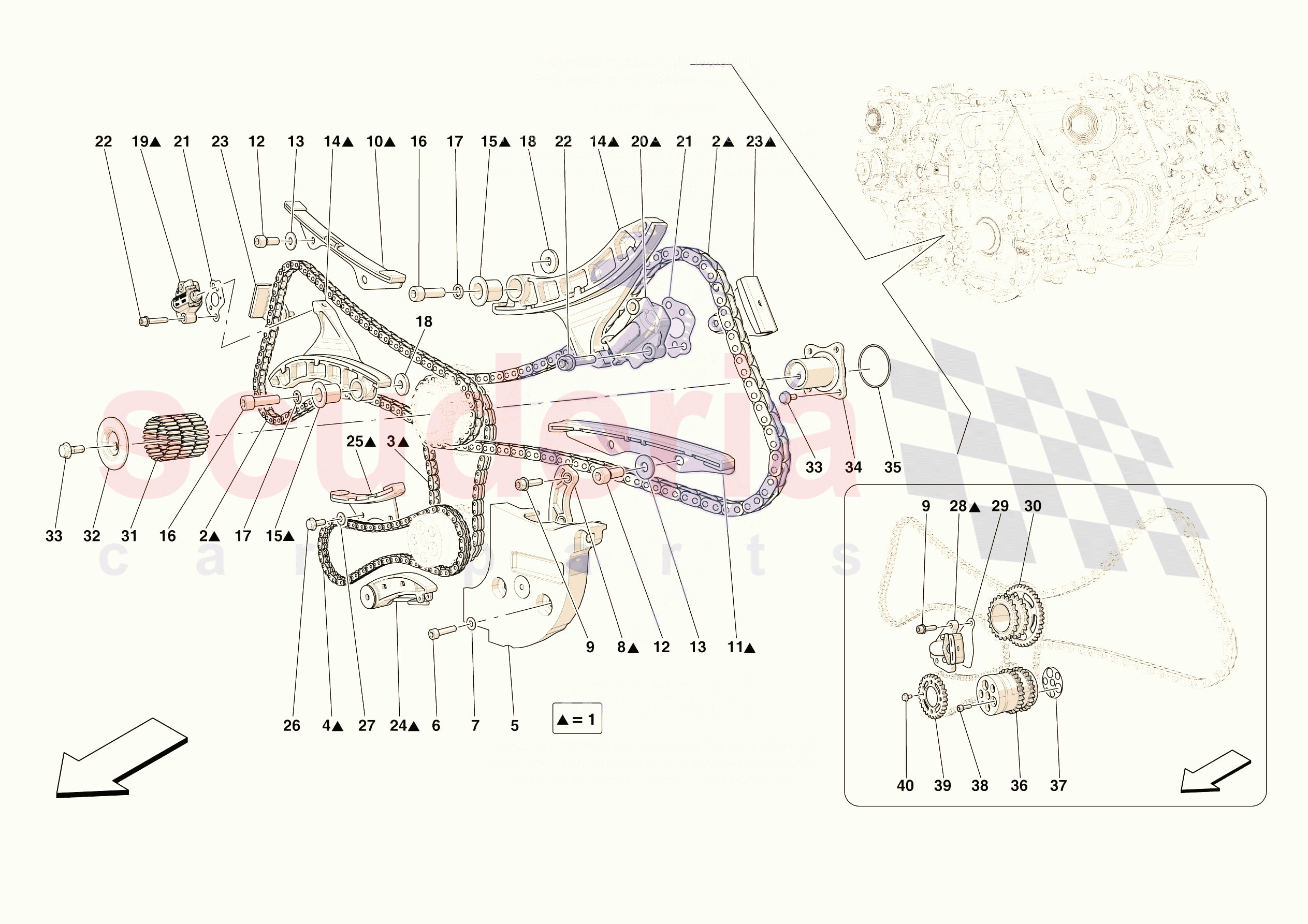

TIMING SYSTEM DRIVE of Ferrari Ferrari 296 GTB Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 903941
VALVE TIMING AND PUMP DRIVE SYSTEM 		- 1 Enquire
0002 876147
VALVE TIMING CHAIN 		- 2 Enquire
0003 803163
CHAIN 		- 1 Enquire
0004 803168
PUMP DRIVE CHAIN 		- 1 Enquire
0005 778322
TIMING SYSTEM COMPARTMENT FILLER 		- 1 Enquire
0006 319201
FUEL FILLER PIPE ASSEMBLY
M5 X 20 		- 3 Enquire
0007 11181579
WASHER 		- 3 Enquire
0008 905013
FIXED SHOE 		- 1 Enquire
0009 282396
SCREW
M6 X 22 		- 4 Enquire
0010 803165
FIXED SHOE 		- 1 Enquire
0011 806402
FIXED SHOE 		- 1 Enquire
0012 14302821
SCREW
M8 X 18 		- 4 Enquire
0013 163759
WASHER 		- 4 Enquire
0014 876149
MOBILE SHOE 		- 2 Enquire
0015 175303
BUSH 		- 2 Enquire
0016 14306421
SCREW
M8 X 20 		- 2 Enquire
0017 284900
WASHER 		- 2 Enquire
0018 288341
WASHER 		- 2 Enquire
0019 903948
HYDRAULIC TENSIONER 		- 1 Enquire
0020 903967
HYDRAULIC TENSIONER 		- 1 Enquire
0021 958150
GASKET
Also included in engine gasket set 		- 2 Enquire
0022 282398
SCREW
M6 X 30 		- 4 Enquire
0023 803167
FIXED SHOE 		- 2 Enquire
0024 904999
MOBILE SHOE 		- 1 Enquire
0025 905015
FIXED SHOE 		- 1 Enquire
0026 181336
SCREW
M6 X 16 		- 2 Enquire
0027 12649624
WASHER 		- 2 Enquire
0028 954458
HYDRAULIC CHAIN TENSIONER 		- 1 Enquire
0029 958152
GASKET
Also included in engine gasket set 		- 1 Enquire
0030 806470
DRIVE GEAR 		- 1 Enquire
0031 267808
ROLLER BEARING CAGE 		- 3 Enquire
0032 304699
SHOULDER 		- 1 Enquire
0033 284898
SCREW
M6 X 16 		- 5 Enquire
0034 806533
MOUNTING 		- 1 Enquire
0035 154191
GASKET
Also included in engine gasket set 		- 1 Enquire
0036 839197
SHAFT GEAR 		- 1 Enquire
0037 807703
WASHER 		- 1 Enquire
0038 245915
SCREW
M5 X 14 		- 1 Enquire
0039 806536
PUMP DRIVE GEAR 		- 1 Enquire
0040 255780
SCREW 		- 4 Enquire
