Name: CYLINDER HEADS - LH HEAD
Rating: 4.4 (1 reviews)

CYLINDER HEADS - LH HEAD of Ferrari Ferrari 296 GTB Europe RH

View All

Ferrari 296 GTB Europe RH - CYLINDER HEADS - LH HEAD

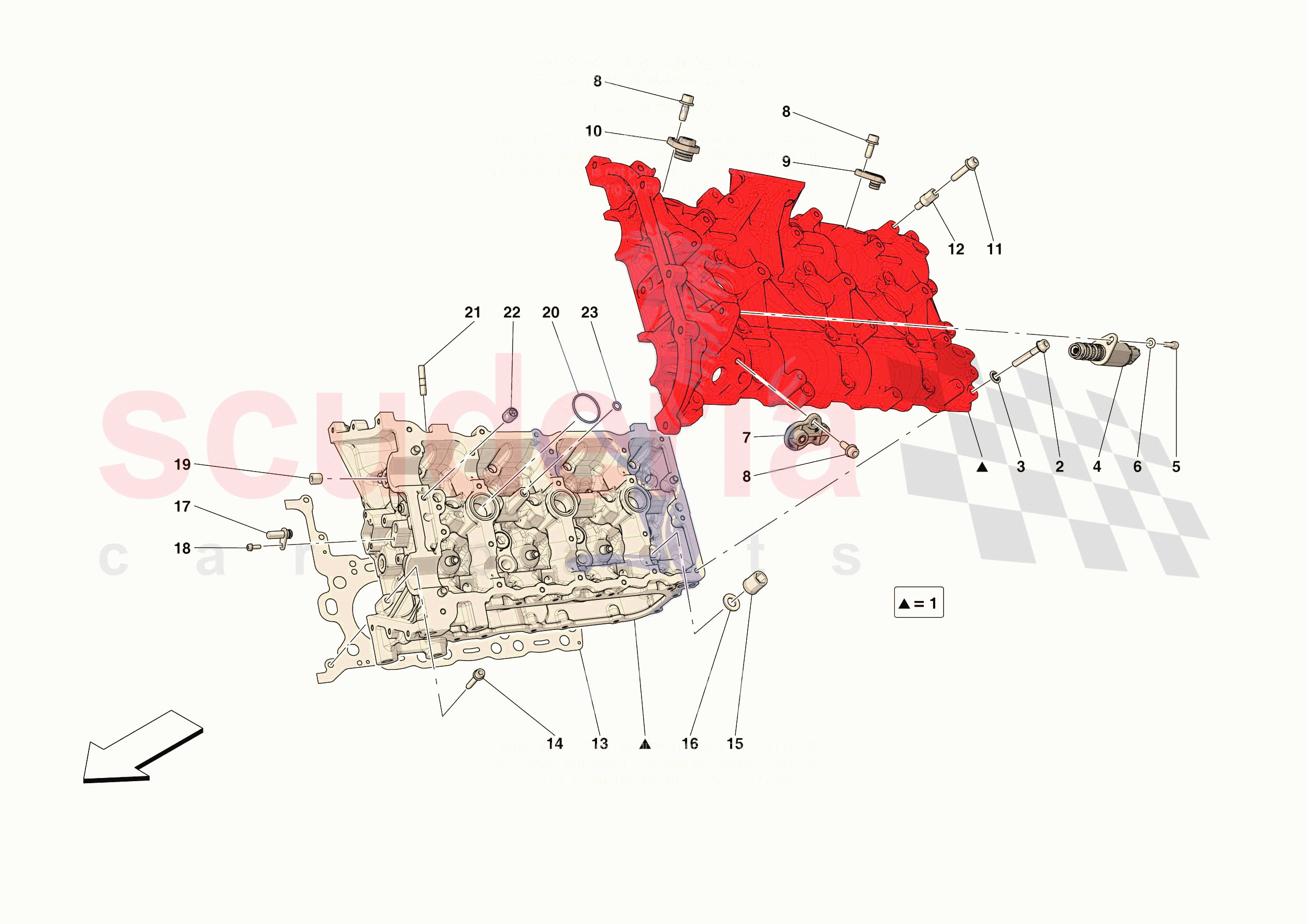

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	750252	LH CYLINDER/LH HEAD COVER ASSEMBLY	$3,248.71	To Order
	915891	LH CYLINDER/LH HEAD COVER ASSEMBLY	$3,701.21	To Order
	950362	LH CYLINDER/LH HEAD COVER ASSEMBLY	$3,097.51	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	868188	SCREW	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	296075	WASHER 13 X 5.8	$1.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	$240.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	899222	PLUG	$9.40	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	899148	PLUG	$7.23	To Order

Photo	Part No	Description	Price (each)	Stock
	899147	PLUG	$7.83	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	814799	STUD BOLT	$11.05	To Order

Photo	Part No	Description	Price (each)	Stock
	962415	GASKET	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271125	NUT	$7.42	To Order

Photo	Part No	Description	Price (each)	Stock
	271129	WASHER	$1.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	829568	CHAIN COOLING NOZZLE ASSEMBLY	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	291078	THREADED PLUG	$2.46	To Order

Photo	Part No	Description	Price (each)	Stock
	14454381	O-RING	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	935821	STUD BOLT	$3.68	To Order

Photo	Part No	Description	Price (each)	Stock
	342272	CHECK VALVE	$13.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14450581	GASKET	$4.94	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	750252	LH CYLINDER/LH HEAD COVER ASSEMBLY	750252 LH CYLINDER/LH HEAD COVER ASSEMBLY No longer supplied - Replaced by 915891	$3,248.71	1
0001	915891	LH CYLINDER/LH HEAD COVER ASSEMBLY	915891 LH CYLINDER/LH HEAD COVER ASSEMBLY No longer supplied - Replaced by 950362	$3,701.21	1
0001	950362	LH CYLINDER/LH HEAD COVER ASSEMBLY	950362 LH CYLINDER/LH HEAD COVER ASSEMBLY Applies until depletion	$3,097.51	1
0001	867211	LH CYLINDER/LH HEAD COVER ASSEMBLY	867211 LH CYLINDER/LH HEAD COVER ASSEMBLY Applicable after depletion of 950362	$3,460.50	1
0002	868188	SCREW	868188 SCREW	$0.53	26
0003	296075	WASHER 13 X 5.8 IN STOCK	296075 WASHER 13 X 5.8 IN STOCK	$1.33	26
0004	801187	OIL PRESSURE REGULATOR VALVE IN STOCK	801187 OIL PRESSURE REGULATOR VALVE IN STOCK	$240.67	2
0005	14304124	SCREW	14304124 SCREW M5 X 16	$0.16 MSRP: ~~0.75~~ (78.7% off)	2
0006	11181574	WASHER IN STOCK	11181574 WASHER IN STOCK	$0.02	2
0007	899222	PLUG	899222 PLUG	$9.40	1
0008	248334	SCREW	248334 SCREW M6 X 16	$0.68	3
0009	899148	PLUG	899148 PLUG	$7.23	1
0010	899147	PLUG	899147 PLUG	$7.83	1
0011	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.32 MSRP: ~~0.35~~ (8.6% off)	2
0012	814799	STUD BOLT	814799 STUD BOLT	$11.05	3
0013	962415	GASKET	962415 GASKET Also included in engine gasket set	$224.63	1
0014	231622	SCREW IN STOCK	231622 SCREW M6 X 35 IN STOCK	$0.36 MSRP: ~~0.50~~ (28% off)	1
0015	271125	NUT	271125 NUT	$7.42	8
0016	271129	WASHER IN STOCK	271129 WASHER IN STOCK	$1.28	8
0017	829568	CHAIN COOLING NOZZLE ASSEMBLY	829568 CHAIN COOLING NOZZLE ASSEMBLY	$60.96	1
0018	315493	SCREW	315493 SCREW M4 X 10	$1.17	1
0019	291078	THREADED PLUG	291078 THREADED PLUG M12 X 11	$2.46	1
0020	14454381	O-RING	14454381 O-RING Also included in engine gasket set	$1.38	3
0021	935821	STUD BOLT	935821 STUD BOLT	$3.68	6
0022	342272	CHECK VALVE IN STOCK	342272 CHECK VALVE IN STOCK	$13.31	2
0023	14450581	GASKET	14450581 GASKET Also included in engine gasket set	$4.94	1
