Windshield Wiper - Washer and Horn of Ferrari Ferrari 288 GTO

View All

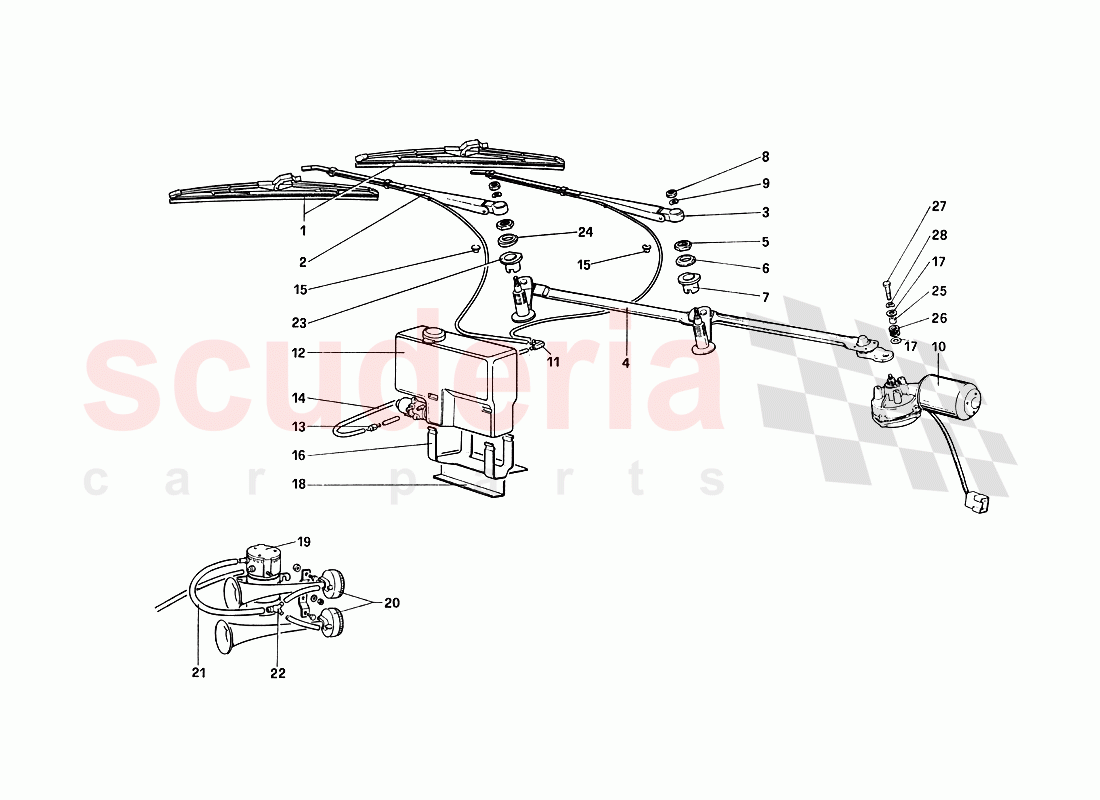

Ferrari 288 GTO - Windshield Wiper - Washer and Horn

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64026000	Wiper Blade	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61411400	Right wiper arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61411500	Left wiper arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61411600	Levers, windshield wiper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60133907	Ring nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	108324	Left spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61460100	Left bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642777	WASHER -Valid for GTS-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61667300	Motor, windshield wiper	Enquire	To Order
	61762200	Motor, windshield wiper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209006	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60860200	Water reservoir with electric pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	50332402	NON-RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60736800	Water pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61444900	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60630000	Water reservoir retainer spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40222705	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61687800	Bracket for support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225757	COMPLETE HORN COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189428	ELECTRO PNEUMATIC HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60884300	Air duct compressor- horns	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60741100	3 WAYS UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61761100	Right bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61761200	Right spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61762300	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902521	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60411600	Levers, windshield wiper complete	Enquire	To Order
	127494	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	64026000	Wiper Blade	64026000 Wiper Blade	-	2	Enquire
2	61411400	Right wiper arm	61411400 Right wiper arm	-	1	Enquire
3	61411500	Left wiper arm	61411500 Left wiper arm	-	1	Enquire
4	61411600	Levers, windshield wiper	61411600 Levers, windshield wiper	-	1	Enquire
5	60133907	Ring nut	60133907 Ring nut	-	2	Enquire
6	108324	Left spacer	108324 Left spacer	-	1	Enquire
7	61460100	Left bush	61460100 Left bush	-	1	Enquire
8	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
9	12642777	WASHER -Valid for GTS-	12642777 WASHER -Valid for GTS-	-	2	Enquire
10	61667300	Motor, windshield wiper	61667300 Motor, windshield wiper To car no. 54233	-	1	Enquire
10	61762200	Motor, windshield wiper	61762200 Motor, windshield wiper From car no. 54235	-	1	Enquire
11	209006	UNION	209006 UNION	-	1	Enquire
12	60860200	Water reservoir with electric pump	60860200 Water reservoir with electric pump	-	1	Enquire
13	50332402	NON-RETURN VALVE	50332402 NON-RETURN VALVE	-	1	Enquire
14	60736800	Water pipe	60736800 Water pipe	-	1	Enquire
15	61444900	BUSHING	61444900 BUSHING	-	2	Enquire
16	60630000	Water reservoir retainer spring	60630000 Water reservoir retainer spring	-	1	Enquire
17	40222705	Washer	40222705 Washer From car No. 54235	-	6	Enquire
18	61687800	Bracket for support	61687800 Bracket for support	-	1	Enquire
19	225757	COMPLETE HORN COMPRESSOR	225757 COMPLETE HORN COMPRESSOR	-	1	Enquire
20	189428	ELECTRO PNEUMATIC HORN	189428 ELECTRO PNEUMATIC HORN	-	1	Enquire
21	60884300	Air duct compressor- horns	60884300 Air duct compressor- horns	-	1	Enquire
22	60741100	3 WAYS UNION	60741100 3 WAYS UNION	-	1	Enquire
23	61761100	Right bush	61761100 Right bush	-	1	Enquire
24	61761200	Right spacer	61761200 Right spacer	-	1	Enquire
25	61762300	Spacer	61762300 Spacer From car No. 54235	-	3	Enquire
26	812273	CABLE GROMMET	812273 CABLE GROMMET From car No. 54236	-	3	Enquire
27	10902521	SCREW	10902521 SCREW From car No. 54237	-	3	Enquire
28	60411600	Levers, windshield wiper complete	60411600 Levers, windshield wiper complete Levers + ring nut + spacer + bush	-	1	Enquire
28	127494	WASHER	127494 WASHER From car No. 54238	-	3	Enquire
