Body Shell - Inner Elements of Ferrari Ferrari 288 GTO

View All

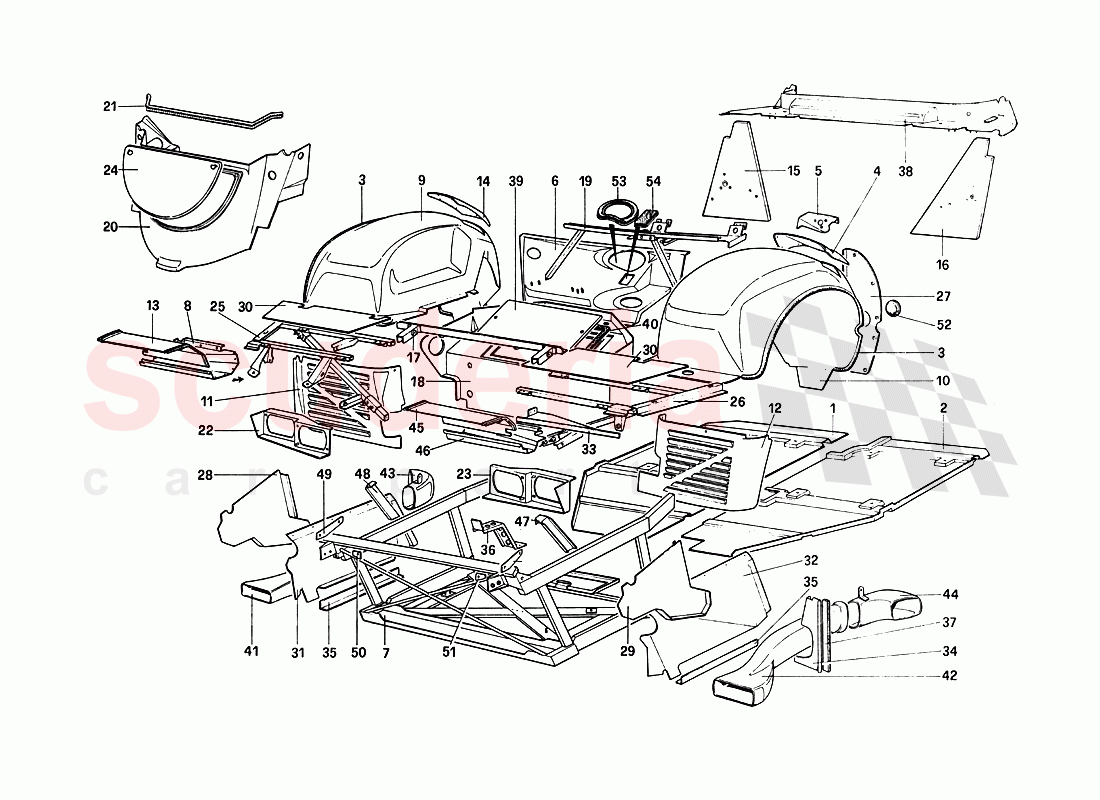

Ferrari 288 GTO - Body Shell - Inner Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	61372700	Resin flat bed (R.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61372800	Resin flat bed (L.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61445700	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61383000	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61377900	Bracket	Enquire	To Order
	61762100	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61596300	Upper additional panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125920	Front frame	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61693800	Front shield panel (R.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61632600	Front wheelhouse (R.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61632700	Front wheelhouse (L.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61445800	Front gravel guard (R.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61445900	Front gravel guard (L.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61693900	Central shield panel (R.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61719200	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61402900	R.H. panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61402800	L.H. panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61373100	Front stiffening	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61670200	Battery protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61373400	Stiffening under wind shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61282100	Protection wheel compartment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60428901	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61374000	Bracket for auxiliary beams (R.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61374100	Bracket for auxiliary beams (L.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61722900	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61372900	Front frame (R.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61373000	Front frame (L.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61375100	L.H. door hinge post	Enquire	To Order
	61375000	R.H. door hinge post	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61456300	R.H. shield panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61456400	L.H. shield panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61710500	Shield panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61456500	R.H. shield panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61456600	L.H. shield panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61457200	Shield panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61457300	Shiedl panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61706900	Angle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61697900	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61450000	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61473200	Plane rear window	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61279800	Cover for battery	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61392500	Gasket for cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61386200	Front air duct (R.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61386300	Front air duct (L.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61461200	Rear air duct (R.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61461800	Rear air duct (L.H.)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61473700	Shield panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61457100	Shield panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61378800	L.H. support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61378700	R.H. support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61377400	Support for front covering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61706500	Right bracket fixing grill	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61706600	Left bracket fixing grill	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60284304	Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60055001	Ring -Valid for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60054905	Gasket	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	61372700	Resin flat bed (R.H.)	61372700 Resin flat bed (R.H.)	-	1	Enquire
2	61372800	Resin flat bed (L.H.)	61372800 Resin flat bed (L.H.)	-	1	Enquire
3	61445700	Gasket	61445700 Gasket	-	2	Enquire
4	61383000	Cover	61383000 Cover	-	1	Enquire
5	61377900	Bracket	61377900 Bracket To chassis No. 54233	-	1	Enquire
5	61762100	Bracket	61762100 Bracket To chassis No. 54235	-	1	Enquire
6	61596300	Upper additional panel	61596300 Upper additional panel	-	1	Enquire
7	125920	Front frame	125920 Front frame	-	1	Enquire
8	61693800	Front shield panel (R.H.)	61693800 Front shield panel (R.H.)	-	1	Enquire
9	61632600	Front wheelhouse (R.H.)	61632600 Front wheelhouse (R.H.)	-	1	Enquire
10	61632700	Front wheelhouse (L.H.)	61632700 Front wheelhouse (L.H.)	-	1	Enquire
11	61445800	Front gravel guard (R.H.)	61445800 Front gravel guard (R.H.)	-	1	Enquire
12	61445900	Front gravel guard (L.H.)	61445900 Front gravel guard (L.H.)	-	1	Enquire
13	61693900	Central shield panel (R.H.)	61693900 Central shield panel (R.H.)	-	1	Enquire
14	61719200	Cover	61719200 Cover	-	1	Enquire
15	61402900	R.H. panel	61402900 R.H. panel	-	1	Enquire
16	61402800	L.H. panel	61402800 L.H. panel	-	1	Enquire
17	61373100	Front stiffening	61373100 Front stiffening	-	1	Enquire
18	61670200	Battery protection	61670200 Battery protection	-	1	Enquire
19	61373400	Stiffening under wind shield	61373400 Stiffening under wind shield	-	1	Enquire
20	61282100	Protection wheel compartment	61282100 Protection wheel compartment	-	1	Enquire
21	60428901	Gasket	60428901 Gasket	-	1	Enquire
22	61374000	Bracket for auxiliary beams (R.H.)	61374000 Bracket for auxiliary beams (R.H.)	-	1	Enquire
23	61374100	Bracket for auxiliary beams (L.H.)	61374100 Bracket for auxiliary beams (L.H.)	-	1	Enquire
24	61722900	Cover	61722900 Cover	-	1	Enquire
25	61372900	Front frame (R.H.)	61372900 Front frame (R.H.)	-	1	Enquire
26	61373000	Front frame (L.H.)	61373000 Front frame (L.H.)	-	1	Enquire
27	61375100	L.H. door hinge post	61375100 L.H. door hinge post	-	1	Enquire
27	61375000	R.H. door hinge post	61375000 R.H. door hinge post	-	1	Enquire
28	61456300	R.H. shield panel	61456300 R.H. shield panel	-	1	Enquire
29	61456400	L.H. shield panel	61456400 L.H. shield panel	-	1	Enquire
30	61710500	Shield panel	61710500 Shield panel	-	2	Enquire
31	61456500	R.H. shield panel	61456500 R.H. shield panel	-	1	Enquire
32	61456600	L.H. shield panel	61456600 L.H. shield panel	-	1	Enquire
33	61457200	Shield panel	61457200 Shield panel	-	1	Enquire
34	61457300	Shiedl panel	61457300 Shiedl panel	-	1	Enquire
35	61706900	Angle	61706900 Angle	-	2	Enquire
36	61697900	Bracket	61697900 Bracket	-	1	Enquire
37	61450000	Gasket	61450000 Gasket	-	1	Enquire
38	61473200	Plane rear window	61473200 Plane rear window	-	1	Enquire
39	61279800	Cover for battery	61279800 Cover for battery	-	1	Enquire
40	61392500	Gasket for cover	61392500 Gasket for cover	-	1	Enquire
41	61386200	Front air duct (R.H.)	61386200 Front air duct (R.H.)	-	1	Enquire
42	61386300	Front air duct (L.H.)	61386300 Front air duct (L.H.)	-	1	Enquire
43	61461200	Rear air duct (R.H.)	61461200 Rear air duct (R.H.)	-	1	Enquire
44	61461800	Rear air duct (L.H.)	61461800 Rear air duct (L.H.)	-	1	Enquire
45	61473700	Shield panel	61473700 Shield panel	-	1	Enquire
46	61457100	Shield panel	61457100 Shield panel	-	1	Enquire
47	61378800	L.H. support	61378800 L.H. support	-	1	Enquire
48	61378700	R.H. support	61378700 R.H. support	-	1	Enquire
49	61377400	Support for front covering	61377400 Support for front covering	-	2	Enquire
50	61706500	Right bracket fixing grill	61706500 Right bracket fixing grill	-	1	Enquire
51	61706600	Left bracket fixing grill	61706600 Left bracket fixing grill	-	1	Enquire
52	60284304	Plug	60284304 Plug	-	2	Enquire
53	60055001	Ring -Valid for GD-	60055001 Ring -Valid for GD- Only for A.C.	-	1	Enquire
54	60054905	Gasket	60054905 Gasket Only for A.C.	-	1	Enquire
