Cooling unit for high-voltage battery of Bentley Bentley New Flying Spur (2020-2024)

View All

Bentley New Flying Spur (2020-2024) - Cooling unit for high-voltage battery (260090)

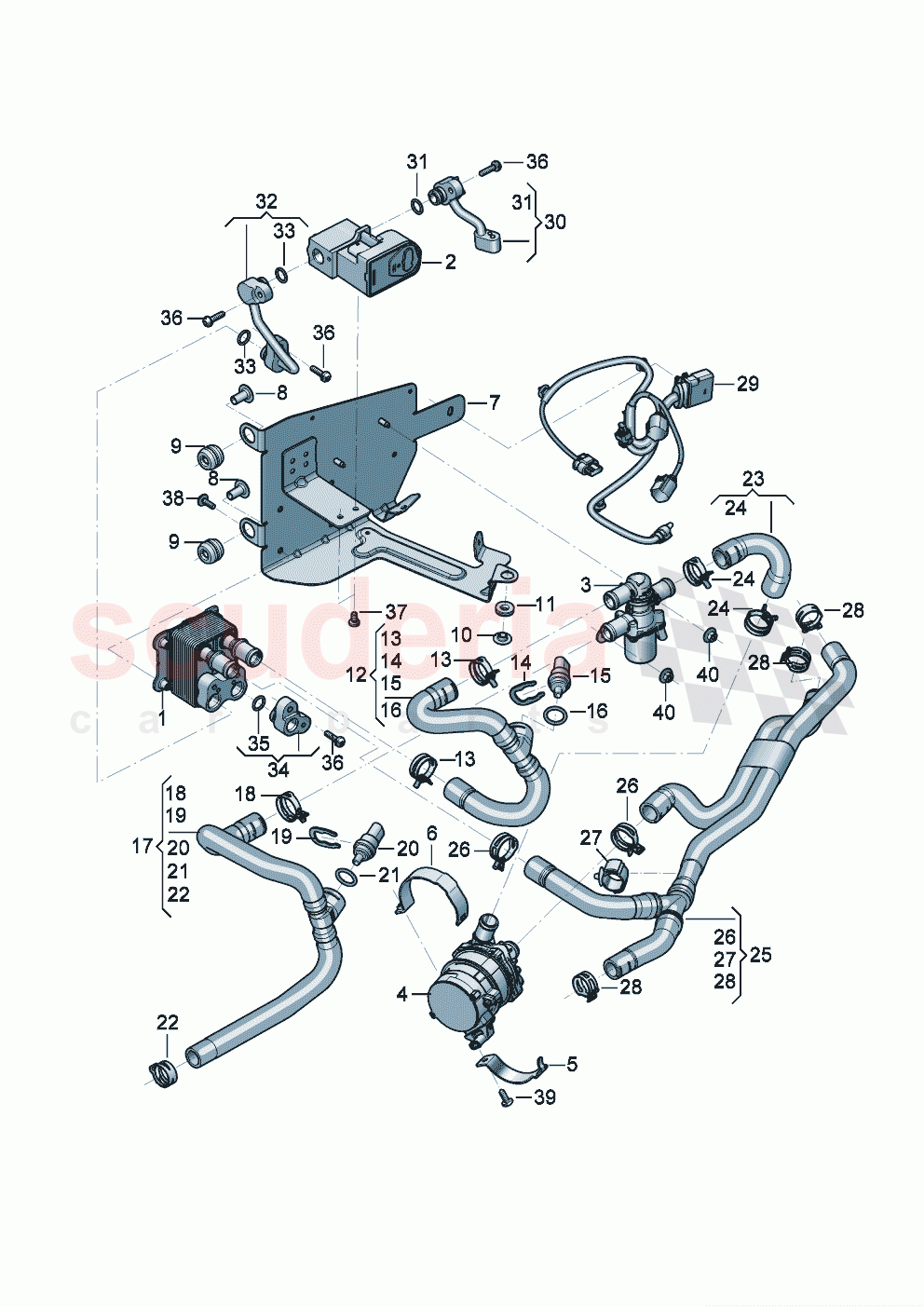

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0816115A	heat exchanger	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0816682E	Expansion valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	5Q0906457C	control valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	8K0965567B	Coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	971260420	Retaining bar	Enquire

Photo	Part No	Description	Price (each)	Stock
	971260419	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	975260089	bracket for heat exchanger	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0614173B	Bearing bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0614177A	Stop buffer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0422121	bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0422095	Grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	975820928A	Coolant hose with temperature sender	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	32121142	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	6A919501A	Coolant temperature sender Coolant pump dark grey	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90316801	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	975820452A	Coolant hose with temperature sender	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	32121142	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	6A919501A	Coolant temperature sender Coolant pump dark grey	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90316801	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	99951265609	Hose clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	975820930	Coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	975820450	Coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	1C0422705A	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	99951265609	Hose clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	975971600	Wire set	Enquire

Photo	Part No	Description	Price (each)	Stock
	975260714	Refrigerant line D >> - 16.09.2024	Enquire
	975260714A	Refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	975260335	Refrigerant line D >> - 16.09.2024	Enquire
	975260335A	Refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	971260752	Refrigerant line D >> - 16.09.2024	Enquire
	971260752A	Refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10347204	Hexagon socket head bolt, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10714801	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91096701	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91189302	Hexagon nut	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0816115A	heat exchanger	4M0816115A heat exchanger	-	1	Enquire
2	4M0816682E	Expansion valve	4M0816682E Expansion valve	-	1	Enquire
3	5Q0906457C	control valve	5Q0906457C control valve	-	1	Enquire
4	8K0965567B	Coolant pump	8K0965567B Coolant pump	-	1	Enquire
5	971260420	Retaining bar	971260420 Retaining bar lower	-	1	Enquire
6	971260419	Bracket	971260419 Bracket upper	-	1	Enquire
7	975260089	bracket for heat exchanger	975260089 bracket for heat exchanger	-	1	Enquire
8	4D0614173B	Bearing bush	4D0614173B Bearing bush	-	2	Enquire
9	4D0614177A	Stop buffer	4D0614177A Stop buffer	-	2	Enquire
10	3D0422121	bush	3D0422121 bush	-	1	Enquire
11	3D0422095	Grommet	3D0422095 Grommet	-	1	Enquire
12	975820928A	Coolant hose with temperature sender	975820928A Coolant hose with temperature sender	-	1	Enquire
13	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	2	Enquire
14	32121142	retaining spring	32121142 retaining spring	-	1	Enquire
15	6A919501A	Coolant temperature sender Coolant pump dark grey	6A919501A Coolant temperature sender Coolant pump dark grey	-	1	Enquire
16	N90316801	O-ring	N90316801 O-ring 19.6X3.65	-	1	Enquire
17	975820452A	Coolant hose with temperature sender	975820452A Coolant hose with temperature sender	-	1	Enquire
18	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	1	Enquire
19	32121142	retaining spring	32121142 retaining spring	-	1	Enquire
20	6A919501A	Coolant temperature sender Coolant pump dark grey	6A919501A Coolant temperature sender Coolant pump dark grey	-	1	Enquire
21	N90316801	O-ring	N90316801 O-ring 19.6X3.65	-	1	Enquire
22	99951265609	Hose clamp	99951265609 Hose clamp 25X12	-	1	Enquire
23	975820930	Coolant hose	975820930 Coolant hose	-	1	Enquire
24	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	2	Enquire
25	975820450	Coolant hose	975820450 Coolant hose	-	1	Enquire
26	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	2	Enquire
27	1C0422705A	Clip	1C0422705A Clip 23MM	-	1	Enquire
28	99951265609	Hose clamp	99951265609 Hose clamp 25X12	-	3	Enquire
29	975971600	Wire set	975971600 Wire set	-	1	Enquire
30	975260714	Refrigerant line D >> - 16.09.2024	975260714 Refrigerant line D >> - 16.09.2024	-	1	Enquire
30	975260714A	Refrigerant line	975260714A Refrigerant line	-	1	Enquire
31	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5	-	1	Enquire
32	975260335	Refrigerant line D >> - 16.09.2024	975260335 Refrigerant line D >> - 16.09.2024	-	1	Enquire
32	975260335A	Refrigerant line	975260335A Refrigerant line	-	1	Enquire
33	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5	-	2	Enquire
34	971260752	Refrigerant line D >> - 16.09.2024	971260752 Refrigerant line D >> - 16.09.2024	-	1	Enquire
34	971260752A	Refrigerant line	971260752A Refrigerant line	-	1	Enquire
35	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5	-	1	Enquire
36	N10347204	Hexagon socket head bolt, self-locking	N10347204 Hexagon socket head bolt, self-locking M6X25	-	4	Enquire
37	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	2	Enquire
38	N10714801	Oval hexagon socket head bolt	N10714801 Oval hexagon socket head bolt M6X16	-	4	Enquire
39	N91096701	Oval hexagon socket head bolt	N91096701 Oval hexagon socket head bolt M6X16	-	1	Enquire
40	N91189302	Hexagon nut	N91189302 Hexagon nut M6	-	2	Enquire
