refrigerant circuit for vehicles with 2nd evaporator of Bentley Bentley New Flying Spur (2020-2024)

View All

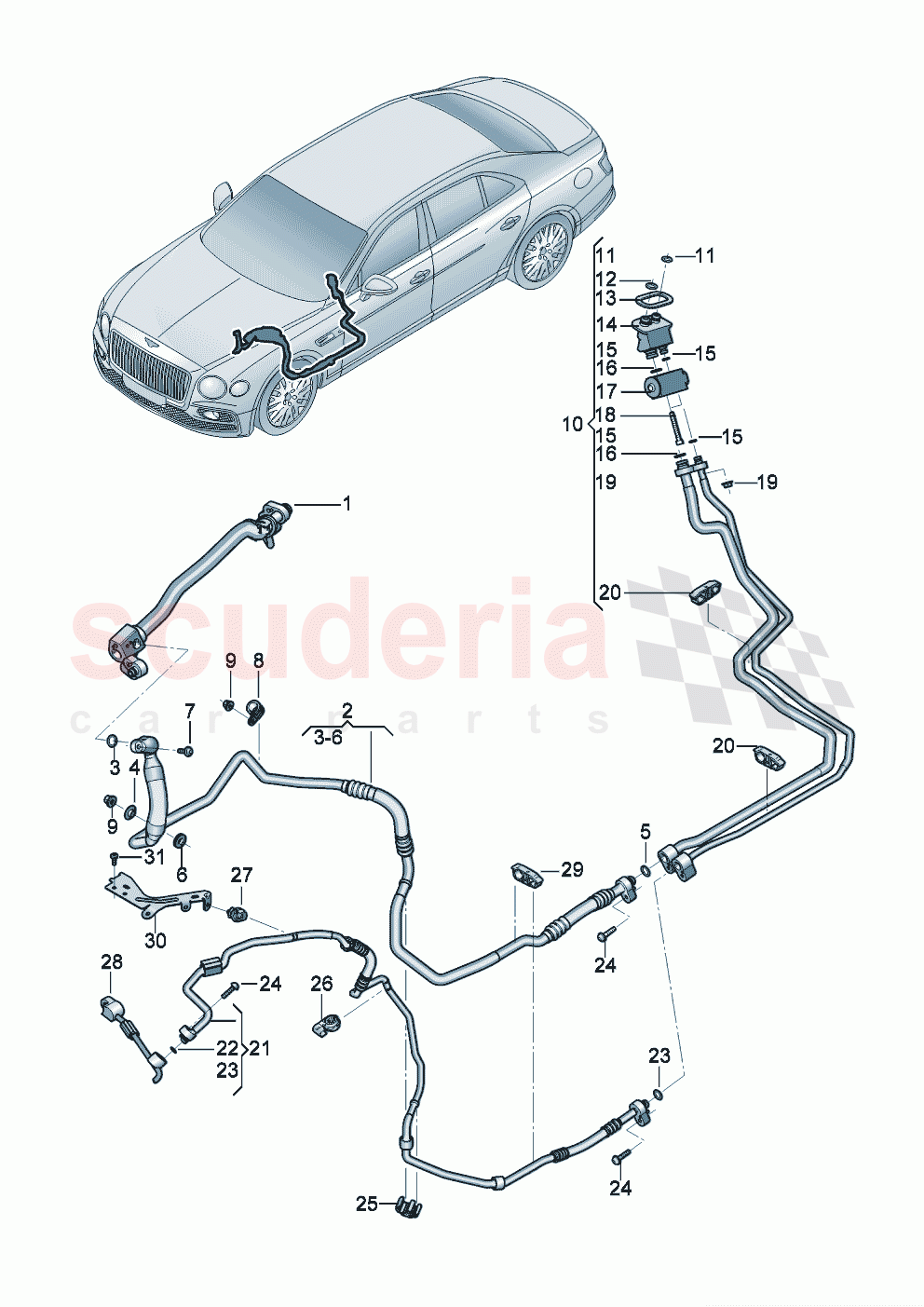

Bentley New Flying Spur (2020-2024) - refrigerant circuit for vehicles with 2nd evaporator (260060)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	971260349E	Refrigerant line suction line use only in conjunction with: D >> - 08.11.2021	Enquire
	3SE260349A	Refrigerant line suction line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0422121	bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0422095	Grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91054001	Semi round bolt (combi) with hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0206267	Clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90495301	Hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	975260705C	Refrigerant line Underbody for refrigerant: F >> 3S-P-010 265 F >> ZG-P-010 265	Enquire
	3SE260705B	Refrigerant line Underbody for refrigerant: F 3S-P-010 266>> F ZG-P-010 266>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0816181A	Expansion valve for refrigerant:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10723801	Socket head bolt with inner hex round head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0260759E	bracket for refrigerant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA260336A	Refrigerant line D >> - 27.09.2023	Enquire
	3SA260336B	Refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	99970753141	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91193003	Hex socket head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	971260761	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	971260197	bracket for refrigerant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	8K0260759H	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0260759E	bracket for refrigerant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA971280C	bracket for refrigerant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451408	Oval hexagon socket head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	971260349E	Refrigerant line suction line use only in conjunction with: D >> - 08.11.2021	971260349E Refrigerant line suction line use only in conjunction with: D >> - 08.11.2021 left front 3SA 260 701 A	-	11	Enquire
2	3SE260349A	Refrigerant line suction line	3SE260349A Refrigerant line suction line left front 3SA 260 701 B	-	11	Enquire
3	4E0260749A	seal ring	4E0260749A seal ring 11X2,5	-	1	Enquire
4	3D0422121	bush	3D0422121 bush	-	1	Enquire
5	4E0260749A	seal ring	4E0260749A seal ring 11X2,5	-	1	Enquire
6	3D0422095	Grommet	3D0422095 Grommet	-	1	Enquire
7	N91054001	Semi round bolt (combi) with hexagon socket head	N91054001 Semi round bolt (combi) with hexagon socket head M6X22	-	1	Enquire
8	N0206267	Clamp	N0206267 Clamp 16X15	-	1	Enquire
9	N90495301	Hexagon nut	N90495301 Hexagon nut 4.1	-	2	Enquire
10	975260705C	Refrigerant line Underbody for refrigerant: F >> 3S-P-010 265 F >> ZG-P-010 265	975260705C Refrigerant line Underbody for refrigerant: F >> 3S-P-010 265 F >> ZG-P-010 265 rear R1234YF	-	1	Enquire
10	3SE260705B	Refrigerant line Underbody for refrigerant: F 3S-P-010 266>> F ZG-P-010 266>>	3SE260705B Refrigerant line Underbody for refrigerant: F 3S-P-010 266>> F ZG-P-010 266>> rear R1234YF	-	1	Enquire
11	3D0260749C	seal ring	3D0260749C seal ring 9,5X2,5	-	1	Enquire
12	4E0260749A	seal ring	4E0260749A seal ring 11X2,5	-	1	Enquire
15	4D0260749B	seal ring	4D0260749B seal ring 7,6X2,5	-	2	Enquire
16	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5	-	2	Enquire
17	4M0816181A	Expansion valve for refrigerant:	4M0816181A Expansion valve for refrigerant: R1234YF	-	1	Enquire
18	N10723801	Socket head bolt with inner hex round head	N10723801 Socket head bolt with inner hex round head M5X40	-	2	Enquire
19	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6	-	1	Enquire
20	4H0260759E	bracket for refrigerant pipe	4H0260759E bracket for refrigerant pipe	-	2	Enquire
21	3SA260336A	Refrigerant line D >> - 27.09.2023	3SA260336A Refrigerant line D >> - 27.09.2023 left front	-	1	Enquire
21	3SA260336B	Refrigerant line	3SA260336B Refrigerant line left front	-	1	Enquire
22	99970753141	O-ring	99970753141 O-ring 7,5X2,0	-	1	Enquire
23	3D0260749C	seal ring	3D0260749C seal ring 9,5X2,5	-	1	Enquire
24	N91193003	Hex socket head bolt (combi)	N91193003 Hex socket head bolt (combi) M6X28	-	3	Enquire
25	971260761	Bracket	971260761 Bracket	-	1	Enquire
26	971260197	bracket for refrigerant pipe	971260197 bracket for refrigerant pipe	-	1	Enquire
27	8K0260759H	Bracket	8K0260759H Bracket D=10-12MM	-	1	Enquire
29	4H0260759E	bracket for refrigerant pipe	4H0260759E bracket for refrigerant pipe	-	1	Enquire
30	3SA971280C	bracket for refrigerant pipe	3SA971280C bracket for refrigerant pipe	-	1	Enquire
31	N10451408	Oval hexagon socket head bolt	N10451408 Oval hexagon socket head bolt M6X16	-	2	Enquire
