Backrest of Bentley Bentley New Continental Convertible (2019-2024)

View All

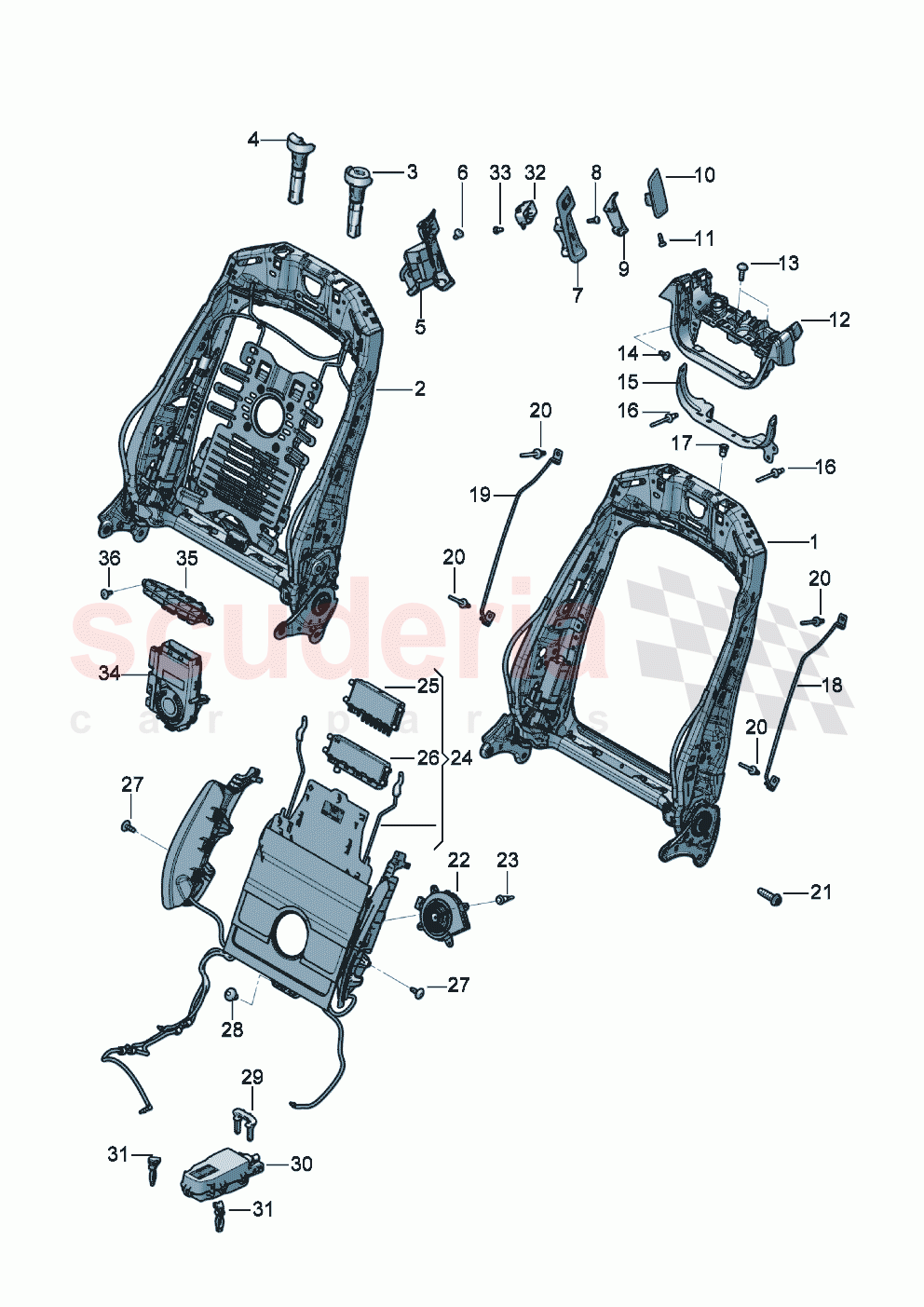

Bentley New Continental Convertible (2019-2024) - Backrest (881040)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8W6881045AR	backrest frame D - 01.06.2019>>	Enquire
	8W6881045AR	backrest frame D - 01.06.2019>>	Enquire
	8W6881046AR	backrest frame D - 01.06.2019>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3SD881045	backrest frame D >> - 19.05.2019	Enquire
	3SD881045A	backrest frame D - 20.05.2019>>	Enquire
	3SD881046A	backrest frame D - 20.05.2019>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8W0881920D	guide with push button for adjustable head restraint D - 11.05.2020>>	Enquire
	8W0881920D	guide with push button for adjustable head restraint D - 11.05.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8W0881920E	Guide for head restraint D - 11.05.2020>>	Enquire
	8W0881920E	Guide for head restraint D - 11.05.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD881183B	bracket for seat with release mechanism Contains: Cable for backrest release	Enquire
	3SD881184B	bracket for seat with release mechanism Contains: Cable for backrest release	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10586402	socket head hexagon bolt with cone	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD881607B	Trim for backrest release mechanism	Enquire
	3SD881608B	Trim for backrest release mechanism	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD881927A	Cover trim	Enquire
	3SD881928A	Cover trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD881633	Handle for backrest release	Enquire
	3SD881634	Handle for backrest release	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10487803	oval head panel screw (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD881521A	Supporting bracket D >> - 28.05.2023	Enquire
	3SD881521B	Supporting bracket D - 29.05.2023>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91032703	Round-head screw with inner hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90944603	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD881269	Support bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT009478	Pop rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10618501	rivetted cap nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881881	upholstery wire	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881882	upholstery wire	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90511302	Pop rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002796B	Socket head bolt with multi- point inner drive, self-lock.	Enquire

Photo	Part No	Description	Price (each)	Stock
	4N0963575A	ventliation motor D - 01.04.2019>>	Enquire
	4N0963575A	ventliation motor D - 01.04.2019>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0941117	Securing element	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD881879	Module support with air cushions for low. back support	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90918701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737107	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0882829A	Damper for pneumatic pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0881073A	Pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0882829	Damper for pneumatic pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD881571A	Guide piece	Enquire
	3SD881572A	Guide piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10587402	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	8S0963579	Module for head space heater	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD858031	Air guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90986802	Hexagon socket head panel bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8W6881045AR	backrest frame D - 01.06.2019>>	8W6881045AR backrest frame D - 01.06.2019>> left comfort ,PR:Q2J+4D5	-	1	Enquire
1	8W6881045AR	backrest frame D - 01.06.2019>>	8W6881045AR backrest frame D - 01.06.2019>> left comfort ,PR:Q2J+4D5	-	1	Enquire
1	8W6881046AR	backrest frame D - 01.06.2019>>	8W6881046AR backrest frame D - 01.06.2019>> right comfort ,PR:Q2J+4D5	-	1	Enquire
1	8W6881046AR	backrest frame D - 01.06.2019>>	8W6881046AR backrest frame D - 01.06.2019>> right comfort ,PR:Q2J+4D5	-	1	Enquire
2	3SD881045	backrest frame D >> - 19.05.2019	3SD881045 backrest frame D >> - 19.05.2019 left standard ,PR:Q1A+4D0	-	1	Enquire
2	3SD881045A	backrest frame D - 20.05.2019>>	3SD881045A backrest frame D - 20.05.2019>> left standard ,PR:Q1A+4D0	-	1	Enquire
2	3SD881046A	backrest frame D - 20.05.2019>>	3SD881046A backrest frame D - 20.05.2019>> right standard ,PR:Q1A+4D0	-	1	Enquire
2	3SD881046A	backrest frame D - 20.05.2019>>	3SD881046A backrest frame D - 20.05.2019>> right standard ,PR:Q1A+4D0	-	1	Enquire
3	8W0881920D	guide with push button for adjustable head restraint D - 11.05.2020>>	8W0881920D guide with push button for adjustable head restraint D - 11.05.2020>> left	-	1	Enquire
3	8W0881920D	guide with push button for adjustable head restraint D - 11.05.2020>>	8W0881920D guide with push button for adjustable head restraint D - 11.05.2020>> left	-	1	Enquire
4	8W0881920E	Guide for head restraint D - 11.05.2020>>	8W0881920E Guide for head restraint D - 11.05.2020>> right	-	1	Enquire
4	8W0881920E	Guide for head restraint D - 11.05.2020>>	8W0881920E Guide for head restraint D - 11.05.2020>> right	-	1	Enquire
5	3SD881183B	bracket for seat with release mechanism Contains: Cable for backrest release	3SD881183B bracket for seat with release mechanism Contains: Cable for backrest release left	-	1	Enquire
5	3SD881184B	bracket for seat with release mechanism Contains: Cable for backrest release	3SD881184B bracket for seat with release mechanism Contains: Cable for backrest release right	-	1	Enquire
6	N10586402	socket head hexagon bolt with cone	N10586402 socket head hexagon bolt with cone M5 X 10	-	1	Enquire
7	3SD881607B	Trim for backrest release mechanism	3SD881607B Trim for backrest release mechanism left	-	1	Enquire
7	3SD881608B	Trim for backrest release mechanism	3SD881608B Trim for backrest release mechanism right	-	1	Enquire
8	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt TP4X12	-	3	Enquire
9	3SD881927A	Cover trim	3SD881927A Cover trim left	-	1	Enquire
9	3SD881928A	Cover trim	3SD881928A Cover trim right	-	1	Enquire
10	3SD881633	Handle for backrest release	3SD881633 Handle for backrest release left	-	1	Enquire
10	3SD881634	Handle for backrest release	3SD881634 Handle for backrest release right	-	1	Enquire
11	N10487803	oval head panel screw (combi)	N10487803 oval head panel screw (combi) M4 X 12	-	1	Enquire
12	3SD881521A	Supporting bracket D >> - 28.05.2023	3SD881521A Supporting bracket D >> - 28.05.2023 left a. right ,PR:Q2J	-	2	Enquire
12	3SD881521B	Supporting bracket D - 29.05.2023>>	3SD881521B Supporting bracket D - 29.05.2023>> left a. right ,PR:Q2J	-	1	Enquire
13	N91032703	Round-head screw with inner hexagon socket head	N91032703 Round-head screw with inner hexagon socket head PR:Q2J	-	2	Enquire
14	N90944603	Oval hexagon socket head bolt	N90944603 Oval hexagon socket head bolt M5X12 ,PR:Q2J	-	2	Enquire
15	3SD881269	Support bracket	3SD881269 Support bracket left a. right ,PR:Q2J	-	2	Enquire
16	WHT009478	Pop rivet	WHT009478 Pop rivet	-	2	Enquire
17	N10618501	rivetted cap nut	N10618501 rivetted cap nut M6/0,5-3 ,PR:Q2J	-	2	Enquire
18	4M0881881	upholstery wire	4M0881881 upholstery wire left ,PR:Q2J	-	1	Enquire
19	4M0881882	upholstery wire	4M0881882 upholstery wire right ,PR:Q2J	-	1	Enquire
20	N90511302	Pop rivet	N90511302 Pop rivet PR:Q2J	-	4	Enquire
21	WHT002796B	Socket head bolt with multi- point inner drive, self-lock.	WHT002796B Socket head bolt with multi- point inner drive, self-lock. M10X16	-	4	Enquire
22	4N0963575A	ventliation motor D - 01.04.2019>>	4N0963575A ventliation motor D - 01.04.2019>> PR:4D5	-	1	Enquire
22	4N0963575A	ventliation motor D - 01.04.2019>>	4N0963575A ventliation motor D - 01.04.2019>> PR:4D5	-	1	Enquire
23	4H0941117	Securing element	4H0941117 Securing element PR:4D5	-	4	Enquire
24	3SD881879	Module support with air cushions for low. back support	3SD881879 Module support with air cushions for low. back support left a. right ,PR:Q2J	-	2	Enquire
27	N90918701	Hexagon socket head panel bolt	N90918701 Hexagon socket head panel bolt TP4X12 ,PR:Q2J	-	2	Enquire
28	N90737107	Oval hexagon socket head bolt	N90737107 Oval hexagon socket head bolt M6X12 ,PR:Q2J	-	1	Enquire
29	4M0882829A	Damper for pneumatic pump	4M0882829A Damper for pneumatic pump rear ,PR:Q2J	-	1	Enquire
30	4M0881073A	Pump	4M0881073A Pump left a. right ,PR:Q2J	-	1	Enquire
31	4M0882829	Damper for pneumatic pump	4M0882829 Damper for pneumatic pump side ,PR:Q2J	-	1	Enquire
32	3SD881571A	Guide piece	3SD881571A Guide piece side, left	-	1	Enquire
32	3SD881572A	Guide piece	3SD881572A Guide piece side, right	-	1	Enquire
33	N10587402	round hd. screw	N10587402 round hd. screw M4X8	-	2	Enquire
34	8S0963579	Module for head space heater	8S0963579 Module for head space heater left a. right ,PR:9K1	-	2	Enquire
35	3SD858031	Air guide	3SD858031 Air guide left a. right ,PR:9K1	-	2	Enquire
36	N90986802	Hexagon socket head panel bolt	N90986802 Hexagon socket head panel bolt	-	2	Enquire
