Seat frame (electrically adjustable) of Bentley Bentley New Continental Convertible (2019-2024)

View All

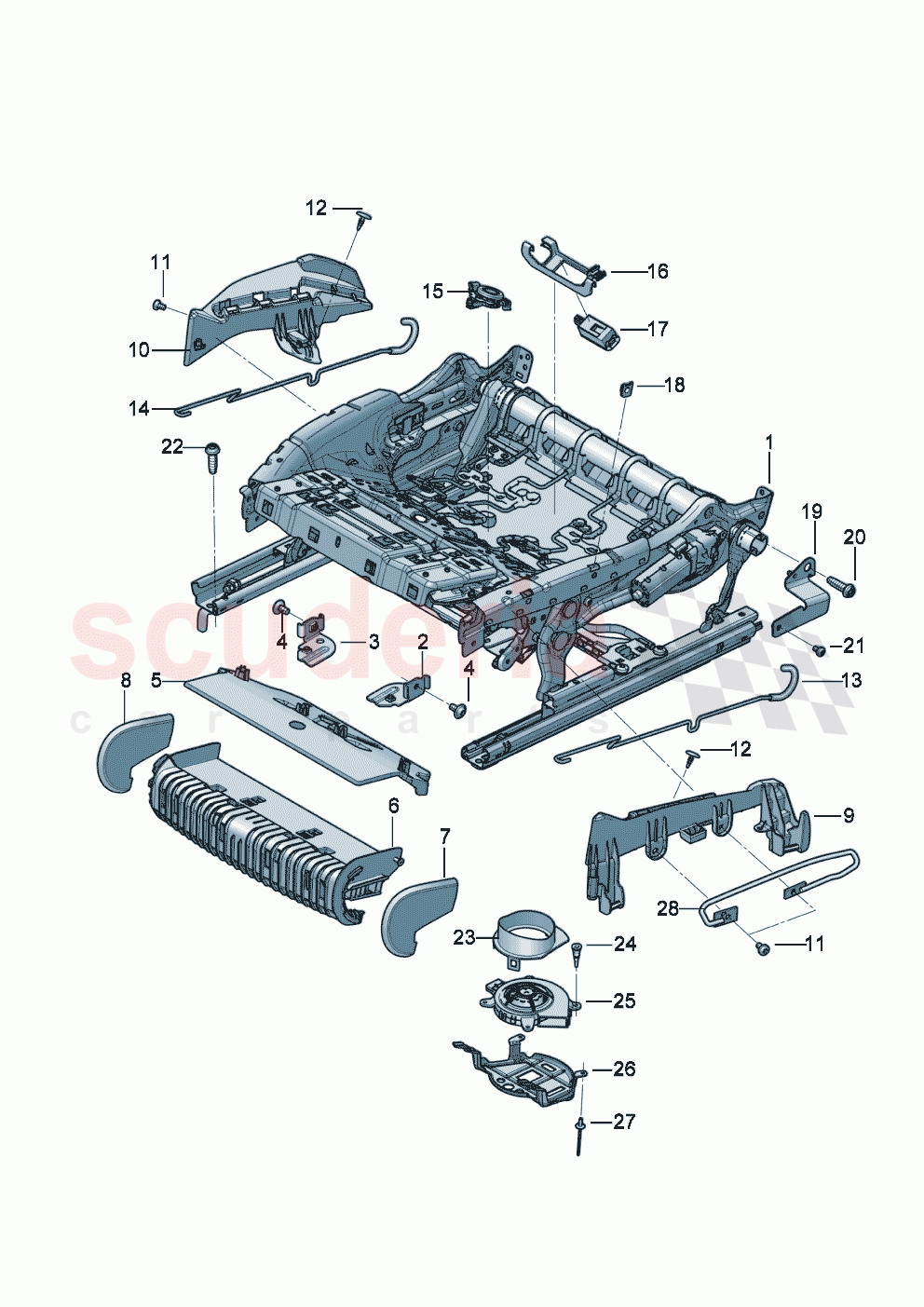

Bentley New Continental Convertible (2019-2024) - Seat frame (electrically adjustable) (881020)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3SD881105A	seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>>	Enquire
	3SD881105A	seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>>	Enquire
	3SD881106A	seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4H0881297	Retaining bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0881286	Retaining bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737107	Oval hexagon socket head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0881152	Cover for seat adjustment	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0881959	Carrier for seat adjustment	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	36A881791	trim for seat cushion depth extension	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	36A881792	trim for seat cushion depth extension	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SD882349B	Seat side support adjustment for seat:	Enquire	IN STOCK
	4M0881617	Seat side support adjustment for seat:	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0881618	Seat side support adjustment for seat:	Enquire	IN STOCK
	3SD882350B	Seat side support adjustment for seat:	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10732001	Hexagon socket flat head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0881635	Clip Retainer for trim	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0881481A	upholstery wire	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0881482A	upholstery wire	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8S0963553D	Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>>	Enquire	IN STOCK
	8S0963553D	Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>>	Enquire	IN STOCK
	4N0963553	Pressure sensor F 3S-K-078 496>> 3S-L-080 512 F ZG-K-078 496>> ZG-L-080 512	Enquire	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4M0881547	Holder for light	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90088003	Speed nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SD881125	bracket for seat mounting	Enquire	IN STOCK
	3SD881126	bracket for seat mounting	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT002796B	Socket head bolt with multi- point inner drive, self-lock.	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10170303	round hd. screw	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91205201	Socket head bolt with inner multipoint head (Kombi)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	36A885521	Air guide	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4H0941117	Securing element	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4N0963575A	ventliation motor D - 01.04.2019>>	Enquire	IN STOCK
	4N0963575A	ventliation motor D - 01.04.2019>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8W0881367	Protective cap	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90931101	Pop rivet	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SD885147	Tension wire D >> - 18.10.2023	Enquire	IN STOCK
	3SD885147A	Tension wire D - 19.10.2023>>	Enquire	IN STOCK
	3SD885148	Tension wire D >> - 18.10.2023	Enquire	IN STOCK

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3SD881105A	seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>>	3SD881105A seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>> left	-	1	Enquire
1	3SD881105A	seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>>	3SD881105A seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>> left	-	1	Enquire
1	3SD881106A	seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>>	3SD881106A seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>> right	-	1	Enquire
1	3SD881106A	seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>>	3SD881106A seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>> right	-	1	Enquire
2	4H0881297	Retaining bracket	4H0881297 Retaining bracket left	-	1	Enquire
3	4H0881286	Retaining bracket	4H0881286 Retaining bracket right	-	1	Enquire
4	N90737107	Oval hexagon socket head bolt IN STOCK	N90737107 Oval hexagon socket head bolt M6X12 IN STOCK	-	2	Enquire
5	4M0881152	Cover for seat adjustment	4M0881152 Cover for seat adjustment	-	1	Enquire
6	4M0881959	Carrier for seat adjustment	4M0881959 Carrier for seat adjustment	-	1	Enquire
7	36A881791	trim for seat cushion depth extension	36A881791 trim for seat cushion depth extension left	-	1	Enquire
8	36A881792	trim for seat cushion depth extension	36A881792 trim for seat cushion depth extension right	-	1	Enquire
9	3SD882349B	Seat side support adjustment for seat:	3SD882349B Seat side support adjustment for seat: left outer left	-	1	Enquire
9	4M0881617	Seat side support adjustment for seat:	4M0881617 Seat side support adjustment for seat: left inner right	-	1	Enquire
10	4M0881618	Seat side support adjustment for seat:	4M0881618 Seat side support adjustment for seat: right inner left	-	1	Enquire
10	3SD882350B	Seat side support adjustment for seat:	3SD882350B Seat side support adjustment for seat: right outer right	-	1	Enquire
11	N10732001	Hexagon socket flat head bolt IN STOCK	N10732001 Hexagon socket flat head bolt M6X14 IN STOCK	-	4	Enquire
12	3W0881635	Clip Retainer for trim IN STOCK	3W0881635 Clip Retainer for trim IN STOCK	-	2	Enquire
13	4M0881481A	upholstery wire	4M0881481A upholstery wire left	-	1	Enquire
14	4M0881482A	upholstery wire	4M0881482A upholstery wire right	-	1	Enquire
15	8S0963553D	Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>>	8S0963553D Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>> passenger side ,PR:L0L+4UE, 4UF	-	1	Enquire
15	8S0963553D	Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>>	8S0963553D Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>> passenger side ,PR:L0R	-	1	Enquire
15	4N0963553	Pressure sensor F 3S-K-078 496>> 3S-L-080 512 F ZG-K-078 496>> ZG-L-080 512	4N0963553 Pressure sensor F 3S-K-078 496>> 3S-L-080 512 F ZG-K-078 496>> ZG-L-080 512 passenger side ,PR:L0L+4UE, 4UF	-	1	Enquire
15	4N0963553	Pressure sensor F 3S-K-078 496>> 3S-L-080 512 F ZG-K-078 496>> ZG-L-080 512	4N0963553 Pressure sensor F 3S-K-078 496>> 3S-L-080 512 F ZG-K-078 496>> ZG-L-080 512 passenger side ,PR:L0R	-	1	Enquire
16	4M0881547	Holder for light	4M0881547 Holder for light left a. right	-	1	Enquire
18	N90088003	Speed nut	N90088003 Speed nut M6X17X14	-	4	Enquire
19	3SD881125	bracket for seat mounting	3SD881125 bracket for seat mounting left	-	1	Enquire
19	3SD881126	bracket for seat mounting	3SD881126 bracket for seat mounting right	-	1	Enquire
20	WHT002796B	Socket head bolt with multi- point inner drive, self-lock. IN STOCK	WHT002796B Socket head bolt with multi- point inner drive, self-lock. M10X16 IN STOCK	-	4	Enquire
21	N10170303	round hd. screw IN STOCK	N10170303 round hd. screw IN STOCK	-	1	Enquire
22	N91205201	Socket head bolt with inner multipoint head (Kombi)	N91205201 Socket head bolt with inner multipoint head (Kombi) M10X35	-	4	Enquire
23	36A885521	Air guide	36A885521 Air guide left a. right	-	1	Enquire
24	4H0941117	Securing element	4H0941117 Securing element	-	4	Enquire
25	4N0963575A	ventliation motor D - 01.04.2019>>	4N0963575A ventliation motor D - 01.04.2019>>	-	1	Enquire
25	4N0963575A	ventliation motor D - 01.04.2019>>	4N0963575A ventliation motor D - 01.04.2019>>	-	1	Enquire
26	8W0881367	Protective cap	8W0881367 Protective cap left a. right	-	1	Enquire
27	N90931101	Pop rivet	N90931101 Pop rivet	-	2	Enquire
28	3SD885147	Tension wire D >> - 18.10.2023	3SD885147 Tension wire D >> - 18.10.2023 left	-	1	Enquire
28	3SD885147A	Tension wire D - 19.10.2023>>	3SD885147A Tension wire D - 19.10.2023>> left	-	1	Enquire
28	3SD885148	Tension wire D >> - 18.10.2023	3SD885148 Tension wire D >> - 18.10.2023 right	-	1	Enquire
28	3SD885148A	Tension wire D - 19.10.2023>>	3SD885148A Tension wire D - 19.10.2023>> right	-	1	Enquire
