air spring, buffer of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - air spring, buffer

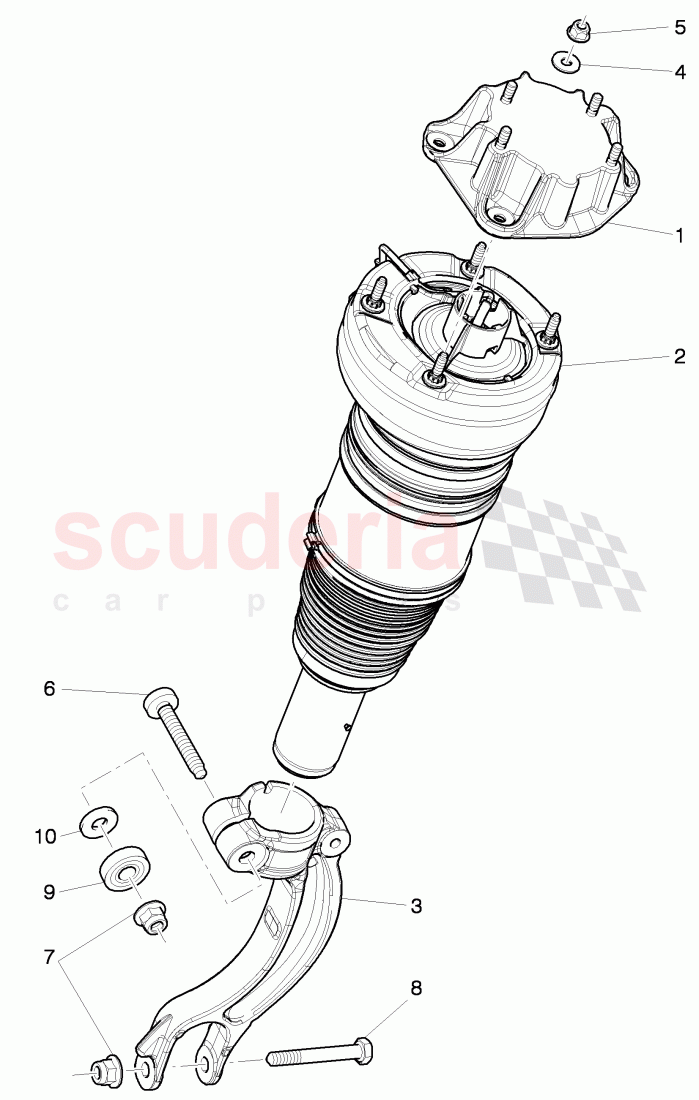

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0413335A	suspension strut mount	Enquire
	3Y0413336A	suspension strut mount	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5616119C	AIR SPRING	Enquire
	3Y5616039M	air spring, assembly, D - MJ 2017>> - 29.08.2016	Enquire
	3Y5616120C	AIR SPRING	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8R0413037B	suspension forks D - 04.04.2011>>	Enquire
	8R0413038B	suspension forks D - 04.04.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90840802	Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10435508	Collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10211202	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10241202	screw, hex. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7810654A	damper, F 3W-9-057 480>>, F ZA-A-062 464>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0129381	spacer bushing, D >> - MJ 2016	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0413335A	suspension strut mount	3Y0413335A suspension strut mount left,	-	1	Enquire
1	3Y0413336A	suspension strut mount	3Y0413336A suspension strut mount right,	-	1	Enquire
2	3Y5616119C	AIR SPRING	3Y5616119C AIR SPRING left front,	-	1	Enquire
2	3Y5616039M	air spring, assembly, D - MJ 2017>> - 29.08.2016	3Y5616039M air spring, assembly, D - MJ 2017>> - 29.08.2016 left front,	-	1	Enquire
2	3Y5616120C	AIR SPRING	3Y5616120C AIR SPRING right front,	-	1	Enquire
2	3Y5616040M	air spring, assembly, D - MJ 2017>> - 29.08.2016	3Y5616040M air spring, assembly, D - MJ 2017>> - 29.08.2016 right front,	-	1	Enquire
3	8R0413037B	suspension forks D - 04.04.2011>>	8R0413037B suspension forks D - 04.04.2011>> left front,	-	1	Enquire
3	8R0413038B	suspension forks D - 04.04.2011>>	8R0413038B suspension forks D - 04.04.2011>> right front,	-	1	Enquire
4	N90840802	Washer	N90840802 Washer	-	8	Enquire
5	N10435508	Collar nut	N10435508 Collar nut M8,	-	16	Enquire
6	N10211202	bolt, hex. hd. with shoulder	N10211202 bolt, hex. hd. with shoulder M12X1.5X80,	-	2	Enquire
7	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	N10106402 shouldered hex. nut,, self-locking, D >> - 12.06.2017 M12X1,5,	-	4	Enquire
8	N10241202	screw, hex. hd.	N10241202 screw, hex. hd. M12X1,5X85,	-	2	Enquire
9	3W7810654A	damper, F 3W-9-057 480>>, F ZA-A-062 464>>	3W7810654A damper, F 3W-9-057 480>>, F ZA-A-062 464>>	-	2	Enquire
10	3Y0129381	spacer bushing, D >> - MJ 2016	3Y0129381 spacer bushing, D >> - MJ 2016	-	2	Enquire
