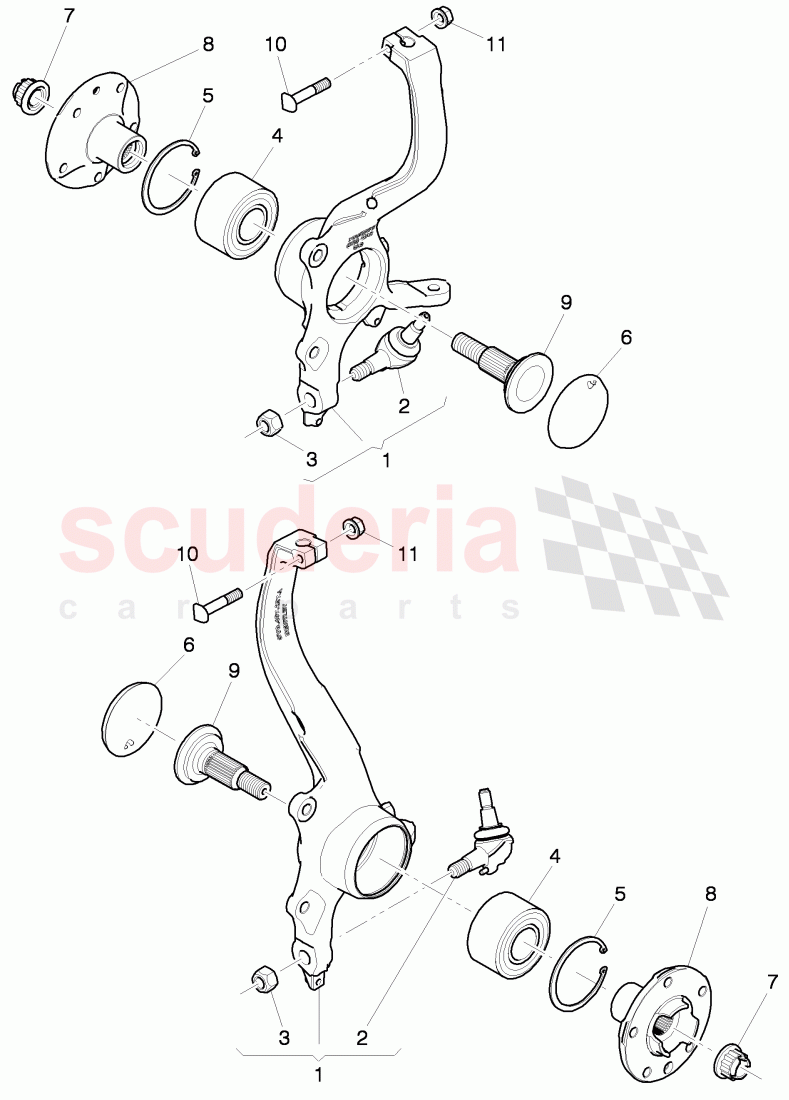

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

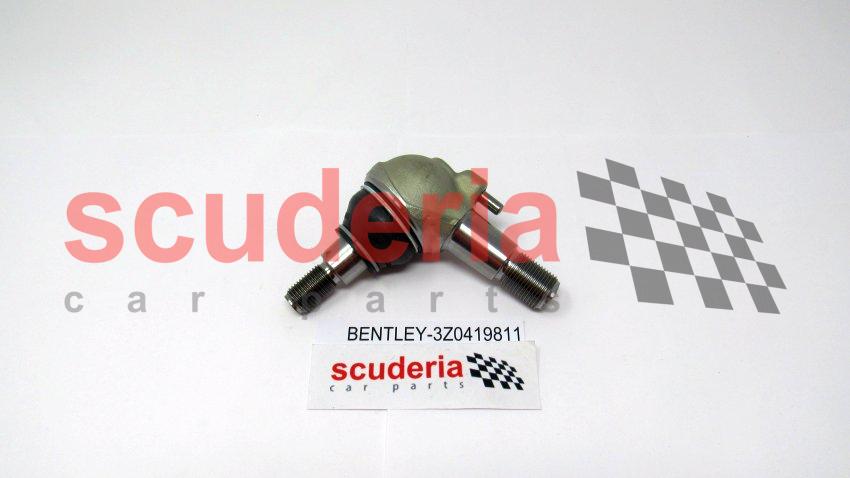

	3Z0419811	ball joint	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0221514	lock nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	7L0501287B	angular ball bearing	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10532001	securing ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0012286A	dust cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT006779	12 point socket shouldered nut, self-locking, D - 17.06.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7L0501655B	wheel hub	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0409353A	stub axle, shaft	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001480	lock screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90892302	hex. nut, self-locking, D - 30.10.2006>>	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0412017B	steering knuckle	3Y0412017B steering knuckle left,	-	1	Enquire
1	3Y0412018B	steering knuckle	3Y0412018B steering knuckle right,	-	1	Enquire
2	3Z0419811	ball joint	3Z0419811 ball joint lower,	-	2	Enquire
3	N0221514	lock nut	N0221514 lock nut M18,	-	2	Enquire
4	7L0501287B	angular ball bearing	7L0501287B angular ball bearing	-	2	Enquire
5	N10532001	securing ring	N10532001 securing ring 95X3,	-	1	Enquire
6	3Y0012286A	dust cover	3Y0012286A dust cover	-	2	Enquire
7	WHT006779	12 point socket shouldered nut, self-locking, D - 17.06.2013>>	WHT006779 12 point socket shouldered nut, self-locking, D - 17.06.2013>>	-	2	Enquire
8	7L0501655B	wheel hub	7L0501655B wheel hub	-	2	Enquire
9	3Y0409353A	stub axle, shaft	3Y0409353A stub axle, shaft	-	2	Enquire
10	WHT001480	lock screw	WHT001480 lock screw M10X55,	-	2	Enquire
11	N90892302	hex. nut, self-locking, D - 30.10.2006>>	N90892302 hex. nut, self-locking, D - 30.10.2006>> M10,	-	1	Enquire
