Gear oil cooler, oil pressure line, for front axle differential, for 8-speed automatic gearbox of Bentley Bentley Continental Supersports (2017+)

View All

Bentley Continental Supersports (2017+) - Gear oil cooler, oil pressure line, for front axle differential, for 8-speed automatic gearbox

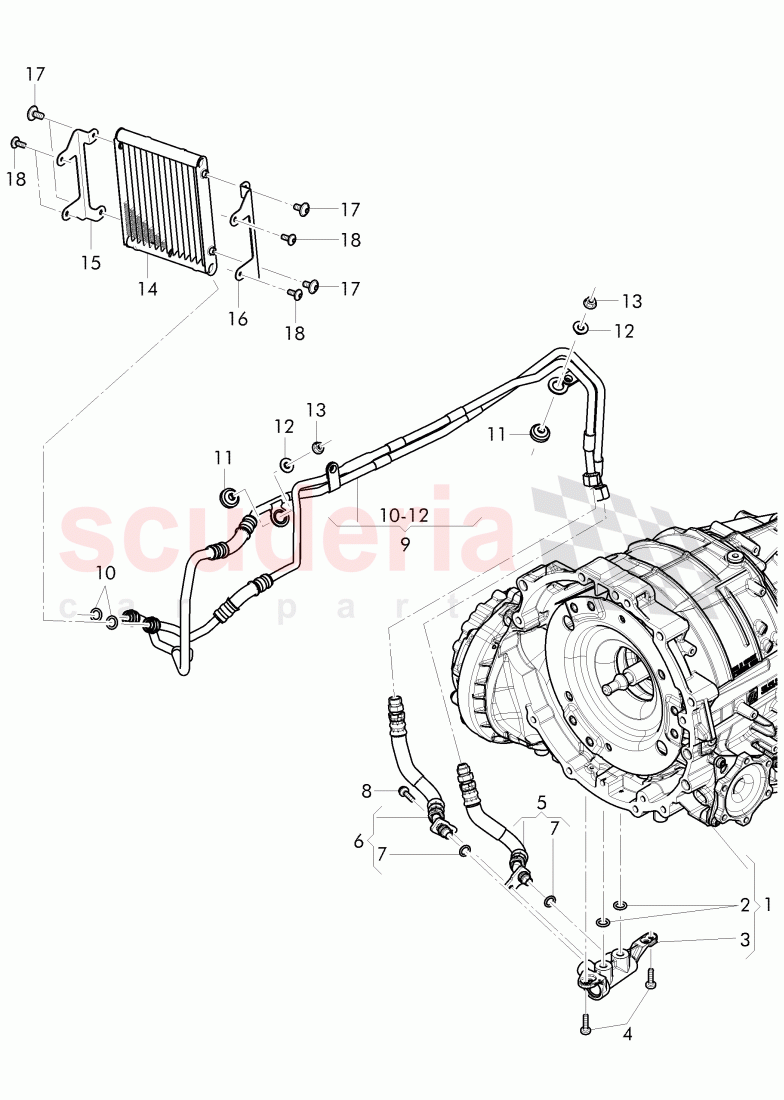

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9E409069	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317027A	oil temperatur valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	1V919838	bolt, with polygon socket hd., (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317801AJ	oil hose, for front axle differential, D - 07.09.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317802A	oil hose, for front axle differential, D - 07.09.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317801AL	oil pipe, for front axle differential	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0301323	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	867129669	Grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	1K0129734B	bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0317021D	Front Differential Oil Cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317830C	bracket, for oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317830C	bracket, for oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737101	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90944603	Oval hexagon socket head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

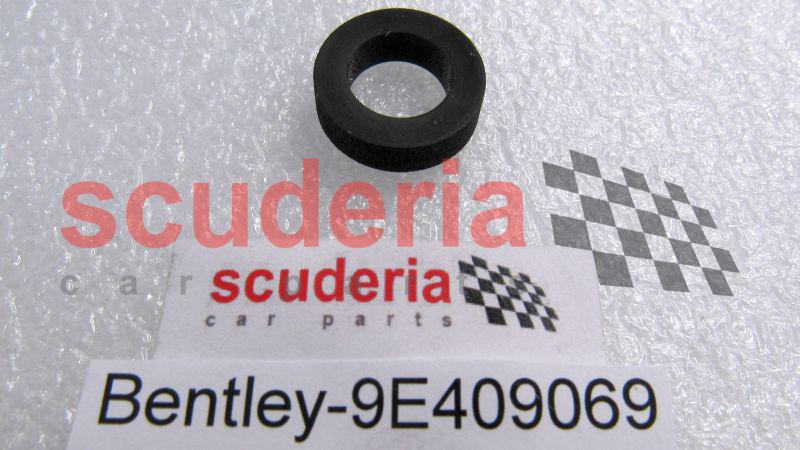

2	9E409069	o-ring	9E409069 o-ring	-	2	Enquire
3	3W0317027A	oil temperatur valve	3W0317027A oil temperatur valve	-	1	Enquire
4	1V919838	bolt, with polygon socket hd., (combi.)	1V919838 bolt, with polygon socket hd., (combi.)	-	2	Enquire
5	3W0317801AJ	oil hose, for front axle differential, D - 07.09.2015>>	3W0317801AJ oil hose, for front axle differential, D - 07.09.2015>> right rear, supply,	-	1	Enquire
6	3W0317802A	oil hose, for front axle differential, D - 07.09.2015>>	3W0317802A oil hose, for front axle differential, D - 07.09.2015>> right rear, return,	-	1	Enquire

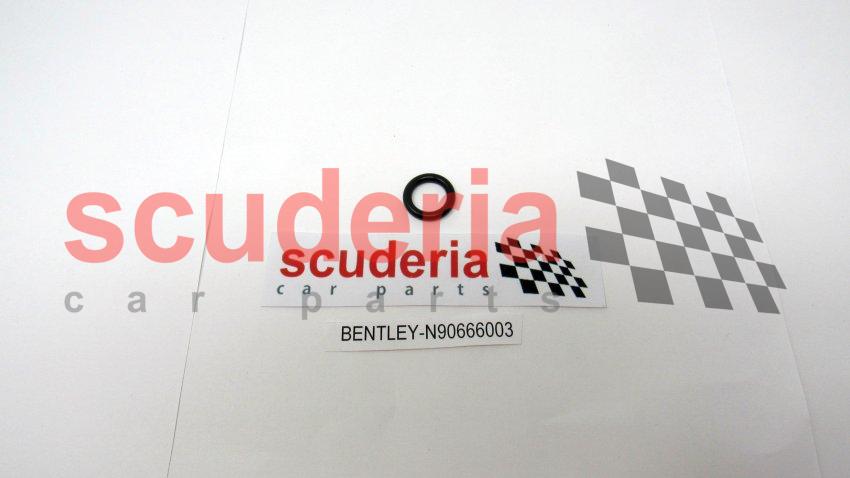

7	N90666003	O-ring	N90666003 O-ring 11,5X3,	-	2	Enquire
8	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	N90500604 socket head bolt with inner, hex round head, D - 06.11.2006>> M6X22,	-	1	Enquire
9	3W0317801AL	oil pipe, for front axle differential	3W0317801AL oil pipe, for front axle differential right front,	-	1	Enquire
10	3W0301323	O-ring	3W0301323 O-ring 11,1X1,78,	-	2	Enquire

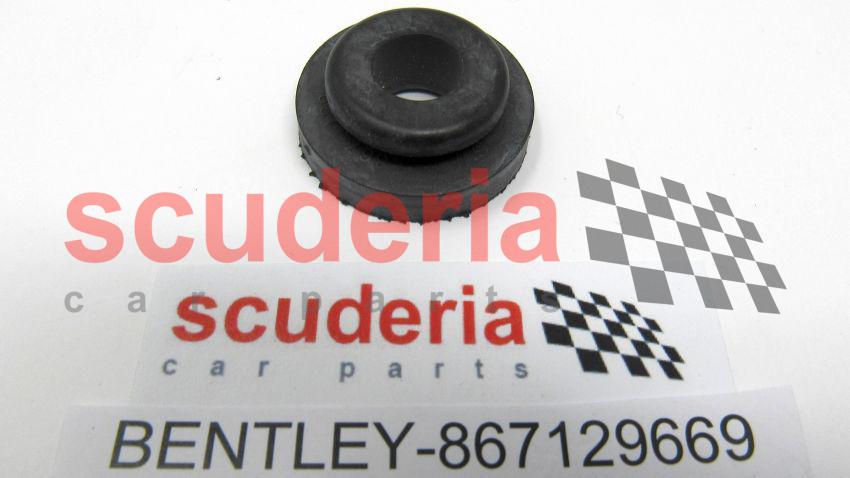

11	867129669	Grommet	867129669 Grommet	-	2	Enquire
12	1K0129734B	bush	1K0129734B bush	-	2	Enquire

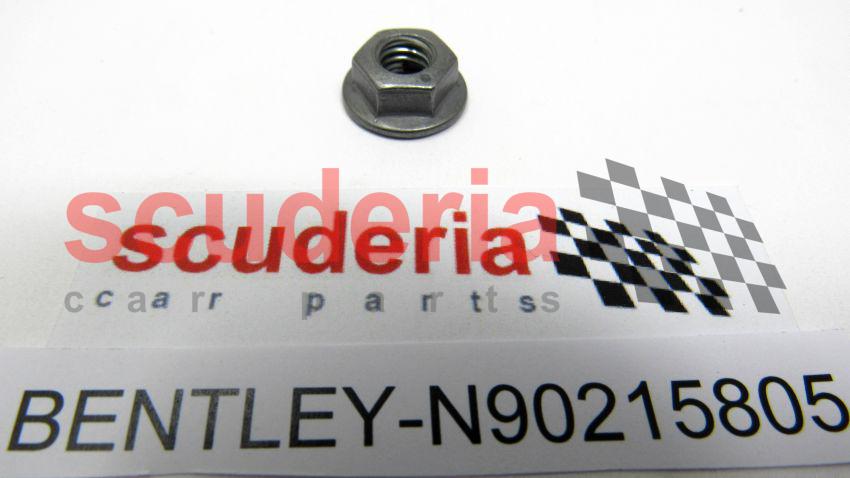

13	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	2	Enquire

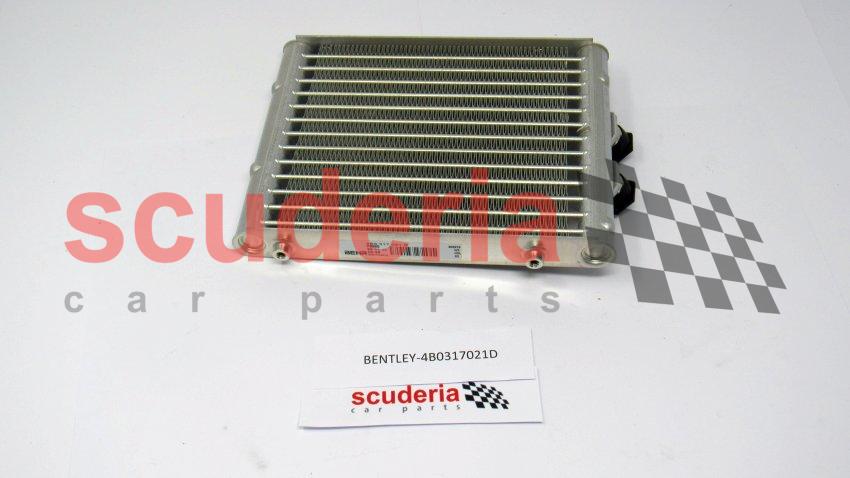

14	4B0317021D	Front Differential Oil Cooler	4B0317021D Front Differential Oil Cooler	-	1	Enquire

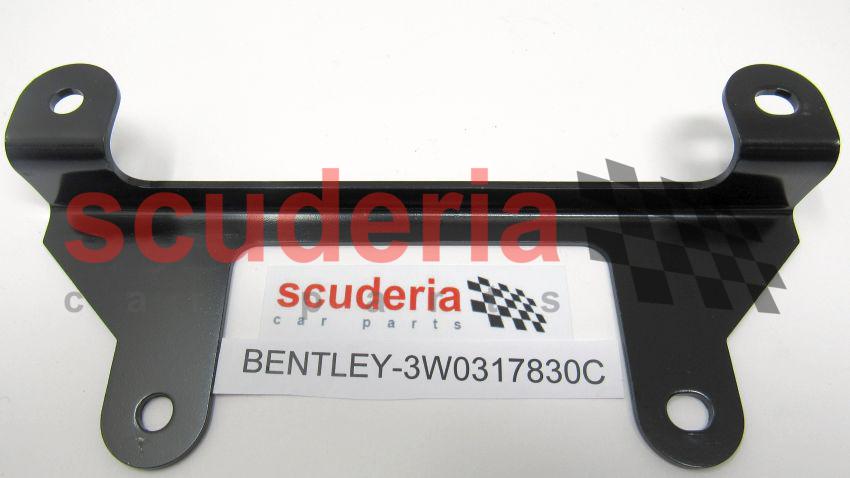

15	3W0317830C	bracket, for oil cooler	3W0317830C bracket, for oil cooler side right,	-	1	Enquire
16	3W0317830C	bracket, for oil cooler	3W0317830C bracket, for oil cooler side left,	-	1	Enquire
17	N90737101	Oval hexagon socket head bolt	N90737101 Oval hexagon socket head bolt M6X12,	-	4	Enquire
18	N90944603	Oval hexagon socket head bolt	N90944603 Oval hexagon socket head bolt M5X12,	-	4	Enquire
