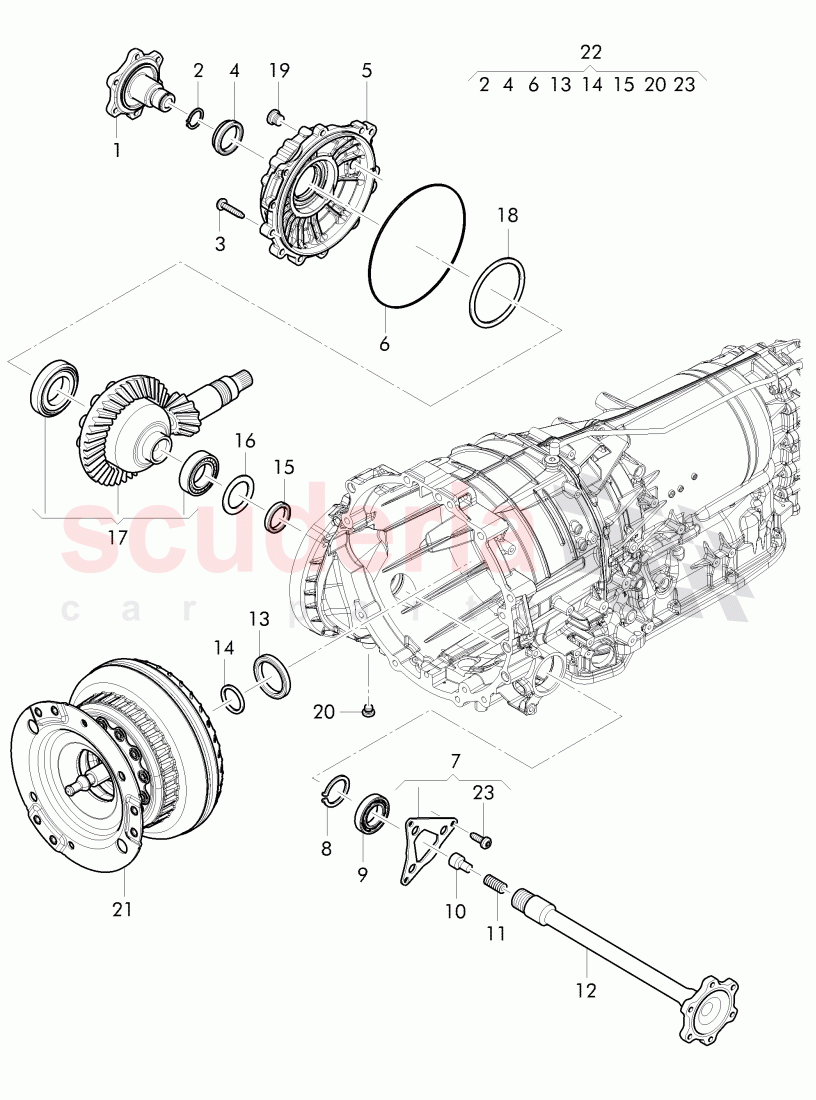

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	B6409356B	flange shaft, D - 03.03.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	9L409297	securing ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	B6398747B	1 set hexagon socket flat, head bolts	Enquire

Photo	Part No	Description	Price (each)	Stock
	B6409399B	seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	CU409131	cover for, differential case	Enquire

Photo	Part No	Description	Price (each)	Stock
	1V409133A	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	B6409131A	cover for final drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	9E409297	lock ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	B6409144A	roller bearing	Enquire

Photo	Part No	Description	Price (each)	Stock
	1V409380	thrust piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	1V409379	pressure spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	CU409355	flange shaft	Enquire

Photo	Part No	Description	Price (each)	Stock
	BK498111B	set of gaskets for final drive	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	B6409356B	flange shaft, D - 03.03.2014>>	B6409356B flange shaft, D - 03.03.2014>> side right,	-	1	Enquire
2	9L409297	securing ring	9L409297 securing ring	-	1	Enquire
3	B6398747B	1 set hexagon socket flat, head bolts	B6398747B 1 set hexagon socket flat, head bolts M8X40,	-	1	Enquire
4	B6409399B	seal	B6409399B seal right outer,	-	1	Enquire
5	CU409131	cover for, differential case	CU409131 cover for, differential case right front,	-	1	Enquire
6	1V409133A	o-ring	1V409133A o-ring	-	1	Enquire
7	B6409131A	cover for final drive	B6409131A cover for final drive left front,	-	1	Enquire
8	9E409297	lock ring	9E409297 lock ring	-	1	Enquire
9	B6409144A	roller bearing	B6409144A roller bearing 35X62X14,	-	1	Enquire
10	1V409380	thrust piece	1V409380 thrust piece	-	1	Enquire
11	1V409379	pressure spring	1V409379 pressure spring	-	1	Enquire
12	CU409355	flange shaft	CU409355 flange shaft side left,	-	1	Enquire
22	BK498111B	set of gaskets for final drive	BK498111B set of gaskets for final drive	-	1	Enquire
