wiring harnesses, F >> 3W-D-082 508, F >> ZA-D-082 508 of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - wiring harnesses, F >> 3W-D-082 508, F >> ZA-D-082 508

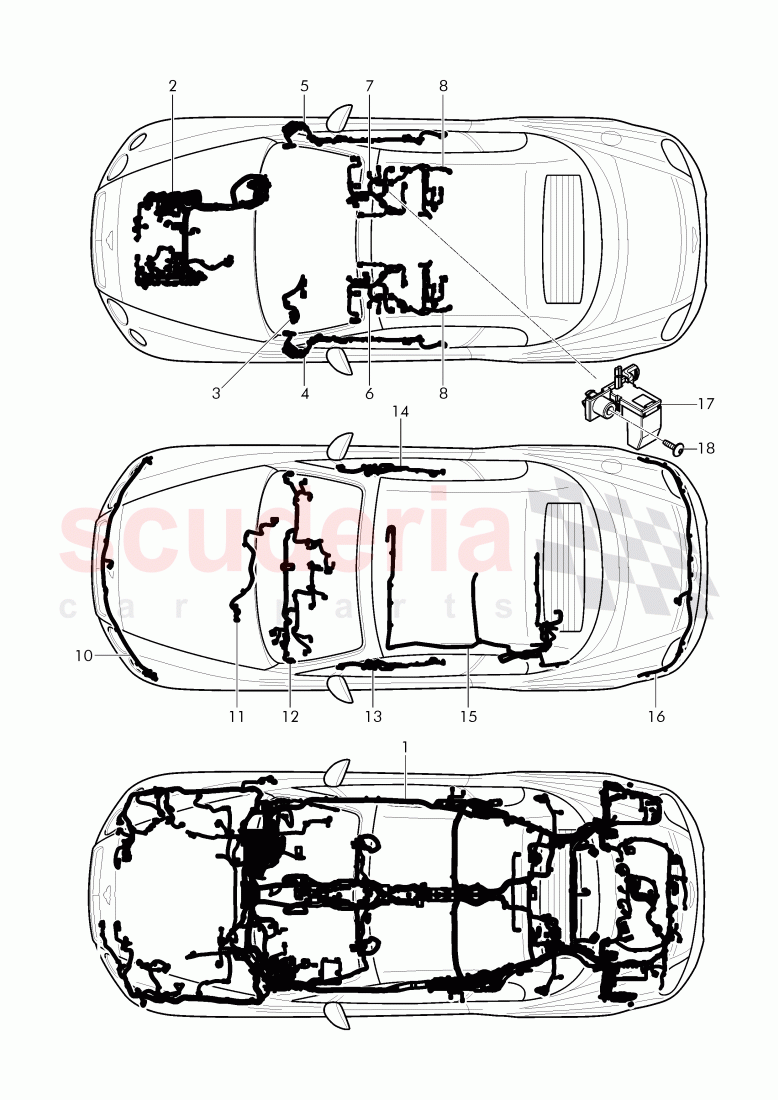

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W7971012BL	central wiring harness, D >> - 09.01.2012	Enquire
	3W7971012BN	central wiring harness, D - 09.01.2012>>	Enquire
	3W7971019AL	central wiring harness, For vehicles with parking aid, and reversing camera system, D >> - 09.01.2012	Enquire

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7C971610DA	wiring set for engine	Enquire
	7C971610DB	wiring set for engine	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971064M	wiring harness for instrument, housing, D - 14.07.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7971120A	harness for door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7971121	wiring set for door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1971385H	seat frame wiring harness, padding	Enquire
	3W2971385H	seat frame wiring harness, padding	Enquire
	3W1971385N	seat frame wiring harness, padding	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W1971386H	seat frame wiring harness, padding	Enquire
	3W2971386H	seat frame wiring harness, padding	Enquire
	3W1971386J	seat frame wiring harness, padding	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W3971365B	Wiring set for backrest,, lumbar support adjustment,, seat ventilation and massage	Enquire
	3W3971384F	harmess for backrest- and, lumbar adjustment	Enquire
	3W7971365B	Wiring set for backrest,, lumbar support adjustment,, seat ventilation and massage, Neck scarf	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971095AC	wiring set for bumper	Enquire
	3W0971095AD	wiring set for bumper	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1971805C	Wiring harness for, distance regulation, D - 17.08.2009>>	Enquire
	3W2971805A	Wiring harness for, distance regulation, D - 17.08.2009>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1971051AD	wiring set for dash panel D - 12.09.2011>>	Enquire
	3W2971051AD	wiring set for dash panel D - 12.09.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1971160A	wiring set for door trim	Enquire
	3W2971161A	wiring set for door trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1971161A	wiring set for door trim	Enquire
	3W2971160A	wiring set for door trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7971047A	roof wiring harness, boot cover, D - 25.05.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971104N	harness for bumper, D >> - 06.01.2014	Enquire
	3W0971104P	harness for bumper, D >> - 06.01.2014	Enquire

Photo	Part No	Description	Price (each)	Stock
	8K0980341B	Seat position sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90732103	Hexagon socket oval head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W7971012BL	central wiring harness, D >> - 09.01.2012	3W7971012BL central wiring harness, D >> - 09.01.2012 lhd, PR-L0L+7X2	-	1	Enquire
1	3W7971012BN	central wiring harness, D - 09.01.2012>>	3W7971012BN central wiring harness, D - 09.01.2012>> lhd, PR-L0L+7X2	-	1	Enquire
1	3W7971019AL	central wiring harness, For vehicles with parking aid, and reversing camera system, D >> - 09.01.2012	3W7971019AL central wiring harness, For vehicles with parking aid, and reversing camera system, D >> - 09.01.2012 lhd, PR-L0L+7X8	-	1	Enquire
1	3W7971019AN	central wiring harness, For vehicles with parking aid, and reversing camera system, D - 09.01.2012>>	3W7971019AN central wiring harness, For vehicles with parking aid, and reversing camera system, D - 09.01.2012>> lhd, PR-L0L+7X8	-	1	Enquire
1	3W7971012BM	central wiring harness, D >> - 09.01.2012	3W7971012BM central wiring harness, D >> - 09.01.2012 rhd, PR-L0R+7X2	-	1	Enquire
1	3W7971012BP	central wiring harness, D - 09.01.2012>>	3W7971012BP central wiring harness, D - 09.01.2012>> rhd, PR-L0R+7X2	-	1	Enquire
1	3W7971019AM	central wiring harness, For vehicles with parking aid, and reversing camera system, D >> - 09.01.2012	3W7971019AM central wiring harness, For vehicles with parking aid, and reversing camera system, D >> - 09.01.2012 rhd, PR-L0R+7X8	-	1	Enquire
1	3W7971019AP	central wiring harness, For vehicles with parking aid, and reversing camera system, D - 09.01.2012>>	3W7971019AP central wiring harness, For vehicles with parking aid, and reversing camera system, D - 09.01.2012>> rhd, PR-L0R+7X8	-	1	Enquire
2	7C971610DA	wiring set for engine	7C971610DA wiring set for engine lhd, PR-L0L	-	1	Enquire
2	7C971610DB	wiring set for engine	7C971610DB wiring set for engine rhd, PR-L0R	-	1	Enquire
3	3W0971064M	wiring harness for instrument, housing, D - 14.07.2014>>	3W0971064M wiring harness for instrument, housing, D - 14.07.2014>>	-	1	Enquire
4	3W7971120A	harness for door	3W7971120A harness for door left a. right, drivers side,	-	1	Enquire
5	3W7971121	wiring set for door	3W7971121 wiring set for door left a. right, passenger side,	-	1	Enquire
6	3W1971385H	seat frame wiring harness, padding	3W1971385H seat frame wiring harness, padding left lhd, PR-L0L+4D5+, 9K0	-	1	Enquire
6	3W2971385H	seat frame wiring harness, padding	3W2971385H seat frame wiring harness, padding left rhd, PR-L0R+4D5+, 9K0	-	1	Enquire
6	3W1971385N	seat frame wiring harness, padding	3W1971385N seat frame wiring harness, padding left lhd, PR-L0L+4D0+, 9K0	-	1	Enquire
6	3W2971385N	seat frame wiring harness, padding	3W2971385N seat frame wiring harness, padding left rhd, PR-L0R+4D0+, 9K0	-	1	Enquire
6	3W1971381E	seat frame wiring harness, padding, Neck scarf	3W1971381E seat frame wiring harness, padding, Neck scarf left lhd, PR-4D5+9K1	-	1	Enquire
6	3W2971381E	seat frame wiring harness, padding, Neck scarf	3W2971381E seat frame wiring harness, padding, Neck scarf left rhd, PR-4D5+9K1	-	1	Enquire
7	3W1971386H	seat frame wiring harness, padding	3W1971386H seat frame wiring harness, padding right lhd, PR-4D5+9K0	-	1	Enquire
7	3W2971386H	seat frame wiring harness, padding	3W2971386H seat frame wiring harness, padding right rhd, PR-4D5+9K0	-	1	Enquire
7	3W1971386J	seat frame wiring harness, padding	3W1971386J seat frame wiring harness, padding right lhd, PR-4D0+9K0	-	1	Enquire
7	3W2971386J	seat frame wiring harness, padding	3W2971386J seat frame wiring harness, padding right rhd, PR-4D0+9K0	-	1	Enquire
7	3W1971381D	seat frame wiring harness, padding, Neck scarf	3W1971381D seat frame wiring harness, padding, Neck scarf right lhd, PR-4D5+9K1	-	1	Enquire
7	3W2971381D	seat frame wiring harness, padding, Neck scarf	3W2971381D seat frame wiring harness, padding, Neck scarf right rhd, PR-4D5+9K1	-	1	Enquire
8	3W3971365B	Wiring set for backrest,, lumbar support adjustment,, seat ventilation and massage	3W3971365B Wiring set for backrest,, lumbar support adjustment,, seat ventilation and massage left a. right, PR-4D5+9K0	-	1	Enquire
8	3W3971384F	harmess for backrest- and, lumbar adjustment	3W3971384F harmess for backrest- and, lumbar adjustment left a. right, PR-4D0+9K0	-	1	Enquire
8	3W7971365B	Wiring set for backrest,, lumbar support adjustment,, seat ventilation and massage, Neck scarf	3W7971365B Wiring set for backrest,, lumbar support adjustment,, seat ventilation and massage, Neck scarf left a. right, PR-4D5+9K1	-	1	Enquire
10	3W0971095AC	wiring set for bumper	3W0971095AC wiring set for bumper front, all countries,, except:, north american, area, PR-8F2	-	1	Enquire
10	3W0971095AD	wiring set for bumper	3W0971095AD wiring set for bumper front, north american, area, PR-7R7	-	1	Enquire
11	3W1971805C	Wiring harness for, distance regulation, D - 17.08.2009>>	3W1971805C Wiring harness for, distance regulation, D - 17.08.2009>> lhd, PR-8T3	-	1	Enquire
11	3W2971805A	Wiring harness for, distance regulation, D - 17.08.2009>>	3W2971805A Wiring harness for, distance regulation, D - 17.08.2009>> rhd, PR-8T3	-	1	Enquire
12	3W1971051AD	wiring set for dash panel D - 12.09.2011>>	3W1971051AD wiring set for dash panel D - 12.09.2011>> lhd, PR-L0L	-	1	Enquire
12	3W2971051AD	wiring set for dash panel D - 12.09.2011>>	3W2971051AD wiring set for dash panel D - 12.09.2011>> rhd, PR-L0R	-	1	Enquire
13	3W1971160A	wiring set for door trim	3W1971160A wiring set for door trim lhd, drivers side, PR-L0L, PR-L0R	-	1	Enquire
13	3W2971161A	wiring set for door trim	3W2971161A wiring set for door trim rhd, passenger side,	-	1	Enquire
14	3W1971161A	wiring set for door trim	3W1971161A wiring set for door trim lhd, passenger side, PR-L0L	-	1	Enquire
14	3W2971160A	wiring set for door trim	3W2971160A wiring set for door trim rhd, drivers side, PR-L0R	-	1	Enquire
15	3W7971047A	roof wiring harness, boot cover, D - 25.05.2015>>	3W7971047A roof wiring harness, boot cover, D - 25.05.2015>>	-	1	Enquire
16	3W0971104N	harness for bumper, D >> - 06.01.2014	3W0971104N harness for bumper, D >> - 06.01.2014 rear, all countries,, except:, north american, area, PR-8F2	-	1	Enquire
16	3W0971104P	harness for bumper, D >> - 06.01.2014	3W0971104P harness for bumper, D >> - 06.01.2014 rear, north american, area, PR-7R7	-	1	Enquire
17	8K0980341B	Seat position sensor	8K0980341B Seat position sensor	-	2	Enquire
18	N90732103	Hexagon socket oval head bolt	N90732103 Hexagon socket oval head bolt	-	2	Enquire
