windshield washer unit, D >> - MJ 2015 of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - windshield washer unit, D >> - MJ 2015

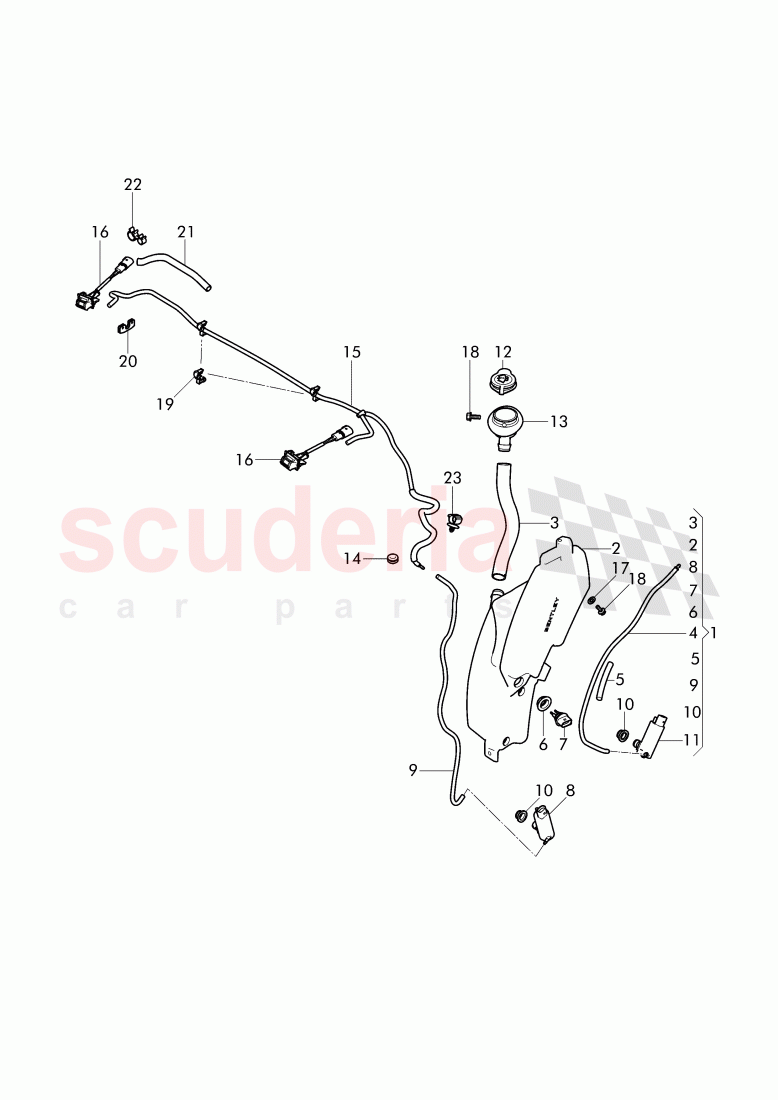

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0955449G	fluid container, assembly	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955453D	fluid reservoir	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955487	Hose, water filler neck	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955970L	Hose, reservoir, headlamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955853	adapter	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M0919382	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M0919376	Water level switch	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955651	windscreen washer system pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955964K	windscreen washer fluid line, reservoir, windshield glass, F 3W-8-054 195>>, F 3W-A-062 566>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955465	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955681A	headlight washer system, pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955455B	sealing cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955463B	water filler neck, D - 03.10.2005>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955192	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955964N	windscreen washer fluid line, windshield glass	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0955986A	heated spraying jet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0115171	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10338903	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0955747	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955125	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955845B	Hose, support, F 3W-8-054 139>>, F 3W-A-062 566>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955631	hose clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90681601	Corrugated tube clip	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0955449G	fluid container, assembly	3W0955449G fluid container, assembly	-	1	Enquire
2	3W0955453D	fluid reservoir	3W0955453D fluid reservoir	-	1	Enquire
3	3W0955487	Hose, water filler neck	3W0955487 Hose, water filler neck	-	1	Enquire
4	3W0955970L	Hose, reservoir, headlamp	3W0955970L Hose, reservoir, headlamp	-	1	Enquire
5	3W0955853	adapter	3W0955853 adapter	-	1	Enquire
6	7M0919382	seal ring	7M0919382 seal ring	-	1	Enquire
7	7M0919376	Water level switch	7M0919376 Water level switch	-	1	Enquire
8	3W0955651	windscreen washer system pump	3W0955651 windscreen washer system pump	-	1	Enquire
9	3W0955964K	windscreen washer fluid line, reservoir, windshield glass, F 3W-8-054 195>>, F 3W-A-062 566>>	3W0955964K windscreen washer fluid line, reservoir, windshield glass, F 3W-8-054 195>>, F 3W-A-062 566>>	-	1	Enquire
10	3W0955465	o-ring	3W0955465 o-ring	-	2	Enquire
11	3W0955681A	headlight washer system, pump	3W0955681A headlight washer system, pump	-	1	Enquire
12	3W0955455B	sealing cap	3W0955455B sealing cap	-	1	Enquire
13	3W0955463B	water filler neck, D - 03.10.2005>>	3W0955463B water filler neck, D - 03.10.2005>>	-	1	Enquire
14	3W0955192	grommet	3W0955192 grommet	-	1	Enquire
15	3W0955964N	windscreen washer fluid line, windshield glass	3W0955964N windscreen washer fluid line, windshield glass	-	1	Enquire
16	3D0955986A	heated spraying jet	3D0955986A heated spraying jet LHD and RHD, PR-L0L+L0R	-	2	Enquire
17	N0115171	washer	N0115171 washer	-	1	Enquire
18	N10338903	Hex collared bolt	N10338903 Hex collared bolt	-	2	Enquire
19	3D0955747	bracket	3D0955747 bracket	-	3	Enquire
20	3W0955125	Clip	3W0955125 Clip	-	1	Enquire
21	3W0955845B	Hose, support, F 3W-8-054 139>>, F 3W-A-062 566>>	3W0955845B Hose, support, F 3W-8-054 139>>, F 3W-A-062 566>>	-	1	Enquire
22	3W0955631	hose clip	3W0955631 hose clip	-	5	Enquire
23	N90681601	Corrugated tube clip	N90681601 Corrugated tube clip 13,	-	2	Enquire
