Gear oil cooler, oil pressure line, differential, for 6 speed automatic transm. of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - Gear oil cooler, oil pressure line, differential, for 6 speed automatic transm.

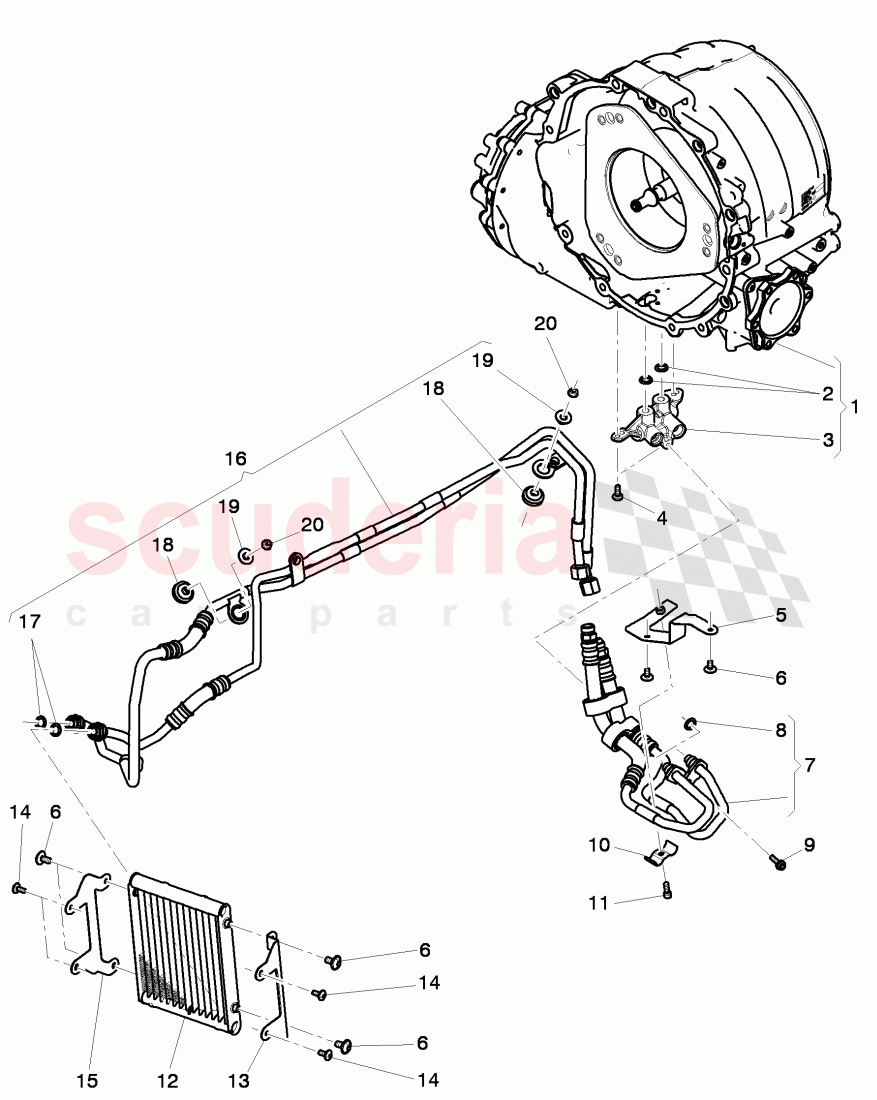

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9E409069	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317027	oil temperature controller	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10029206	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317837F	bracket oil temperature controller	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737101	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317801T	oil pipe, for front axle differential, contains:, O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317837D	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10559902	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0317021D	Front Differential Oil Cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317830C	bracket, for oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90944603	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317830C	bracket, for oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317801AK	oil pipe, for front axle differential, D - 07.09.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0301323	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	867129669	Grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	1K0129734B	bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	9E409069	o-ring	9E409069 o-ring	-	2	Enquire
3	3W0317027	oil temperature controller	3W0317027 oil temperature controller	-	1	Enquire
4	N10029206	oval hexagon socket head bolt	N10029206 oval hexagon socket head bolt M6X15,	-	2	Enquire
5	3W0317837F	bracket oil temperature controller	3W0317837F bracket oil temperature controller	-	1	Enquire
6	N90737101	Oval hexagon socket head bolt	N90737101 Oval hexagon socket head bolt M6X12,	-	6	Enquire
7	3W0317801T	oil pipe, for front axle differential, contains:, O-Ring	3W0317801T oil pipe, for front axle differential, contains:, O-Ring right rear,	-	1	Enquire
8	N90666003	O-ring	N90666003 O-ring 11,5X3,	-	2	Enquire
9	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	N90500604 socket head bolt with inner, hex round head, D - 06.11.2006>> M6X22,	-	1	Enquire
10	3W0317837D	bracket	3W0317837D bracket	-	1	Enquire
11	N10559902	socket head bolt with inner multipoint head	N10559902 socket head bolt with inner multipoint head M6X20,	-	1	Enquire
12	4B0317021D	Front Differential Oil Cooler	4B0317021D Front Differential Oil Cooler	-	1	Enquire
13	3W0317830C	bracket, for oil cooler	3W0317830C bracket, for oil cooler left a. right,	-	1	Enquire
14	N90944603	Oval hexagon socket head bolt	N90944603 Oval hexagon socket head bolt M5X12,	-	4	Enquire
15	3W0317830C	bracket, for oil cooler	3W0317830C bracket, for oil cooler left a. right,	-	1	Enquire
16	3W0317801AK	oil pipe, for front axle differential, D - 07.09.2015>>	3W0317801AK oil pipe, for front axle differential, D - 07.09.2015>> right front,	-	1	Enquire
17	3W0301323	O-ring	3W0301323 O-ring 11,1X1,78,	-	2	Enquire
18	867129669	Grommet	867129669 Grommet	-	2	Enquire
19	1K0129734B	bush	1K0129734B bush	-	2	Enquire
20	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc.	-	2	Enquire
