Small Parts Kit, For Front Axle Differential, For 8-Speed Automatic Gearbox

Bentley Continental GTC (2011+)

Find Your Part

Bentley Continental GTC (2011+) - small parts kit, for front axle differential, for 8-speed automatic gearbox

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
B6409356B flange shaft, D - 03.03.2014>> Enquire
Photo Part No Description Price (each) Stock
9L409297 securing ring Enquire IN STOCK
Photo Part No Description Price (each) Stock
B6398747B 1 set hexagon socket flat, head bolts Enquire IN STOCK
Photo Part No Description Price (each) Stock
B6409399B seal Enquire IN STOCK
Photo Part No Description Price (each) Stock
CU409131 cover for, differential case Enquire IN STOCK
Photo Part No Description Price (each) Stock
1V409133A o-ring Enquire IN STOCK
Photo Part No Description Price (each) Stock
B6409131A cover for final drive Enquire IN STOCK
Photo Part No Description Price (each) Stock
9E409297 lock ring Enquire IN STOCK
Photo Part No Description Price (each) Stock
B6409144A roller bearing Enquire IN STOCK
Photo Part No Description Price (each) Stock
1V409380 thrust piece Enquire IN STOCK
Photo Part No Description Price (each) Stock
1V409379 pressure spring Enquire IN STOCK
Photo Part No Description Price (each) Stock
CU409355 flange shaft Enquire IN STOCK
Photo Part No Description Price (each) Stock
BK498111B set of gaskets for final drive Enquire IN STOCK
View All

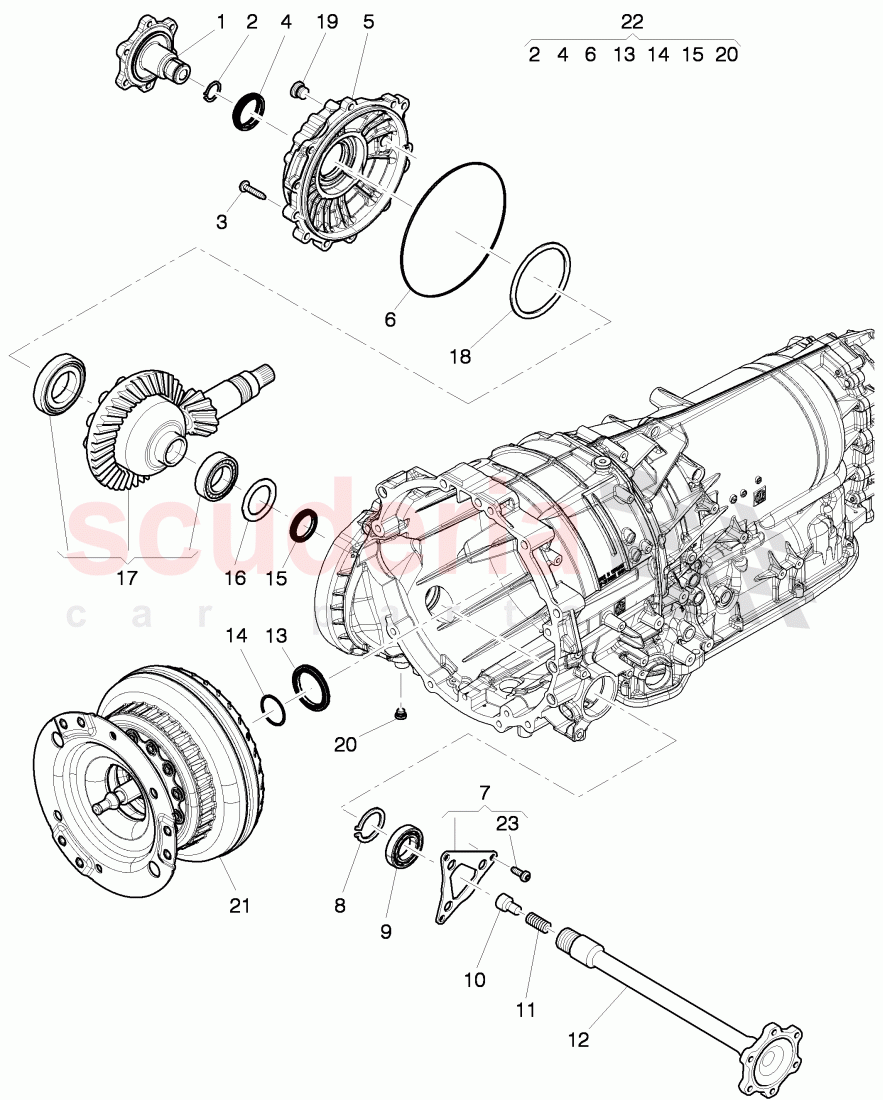

small parts kit, for front axle differential, for 8-speed automatic gearbox of Bentley Bentley Continental GTC (2011+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 B6409356B
flange shaft, D - 03.03.2014>>
side right, 		- 1 Enquire
2 9L409297
securing ring
IN STOCK 		- 1 Enquire
3 B6398747B
1 set hexagon socket flat, head bolts
M8X40, 		- 1 Enquire
4 B6409399B
seal
right outer, 		- 1 Enquire
5 CU409131
cover for, differential case
right front, 		- 1 Enquire
6 1V409133A
o-ring
IN STOCK 		- 1 Enquire
7 B6409131A
cover for final drive
left front, 		- 1 Enquire
8 9E409297
lock ring 		- 1 Enquire
9 B6409144A
roller bearing
35X62X14, 		- 1 Enquire
10 1V409380
thrust piece 		- 1 Enquire
11 1V409379
pressure spring 		- 1 Enquire
12 CU409355
flange shaft
side left, 		- 1 Enquire
22 BK498111B
set of gaskets for final drive 		- 1 Enquire
