disc brakes of Bentley Bentley Continental GTC (2006-2010)

View All

Bentley Continental GTC (2006-2010) - disc brakes

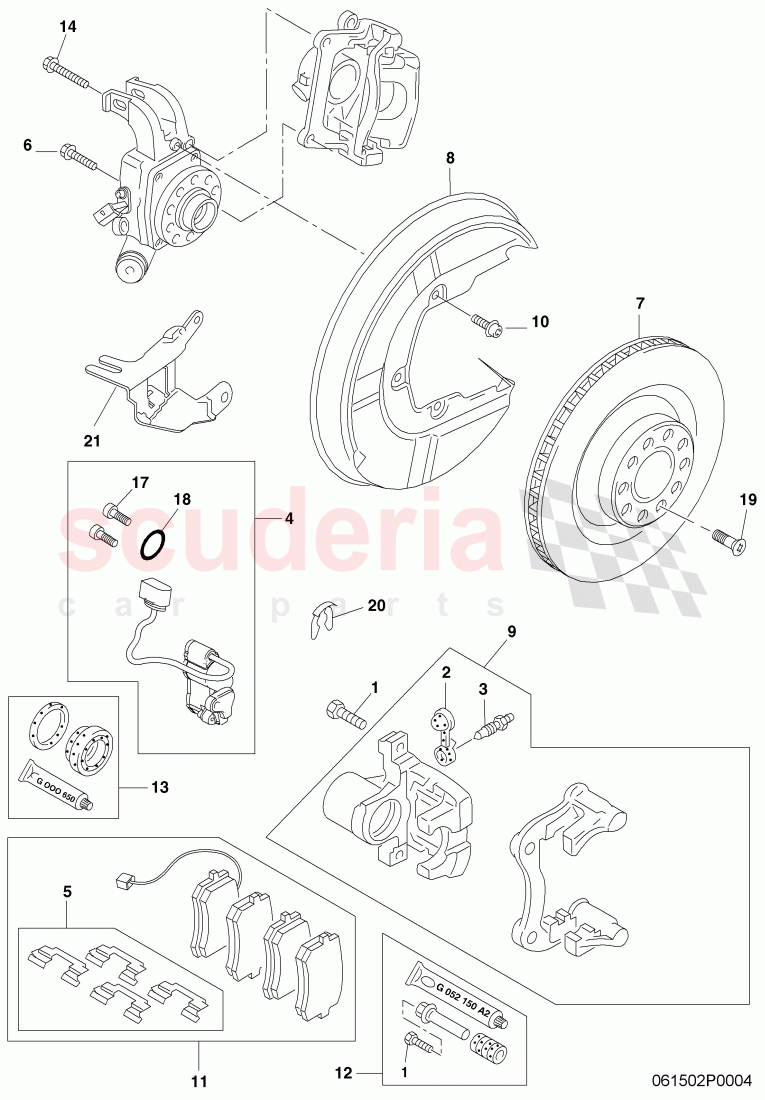

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0616825	screw, hex. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615207	dust cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	1K0615273C	breather valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698996E	Electronic parking brake, operating mechanism, Service kit	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0615231	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90961103	self-locking screw, D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0615601L	Rear Break Disc	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0615611A	splash shield for brake disc	Enquire
	3D0615612A	splash shield for brake disc	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698679EQB7	calliper without brake pads, D >> - MJ 2010	Enquire
	3W0698680EQB7	calliper without brake pads, D >> - MJ 2010	Enquire
	3W0698679E	brake caliper, D - MJ 2011>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698451N	SET BRAKE PADS WITH WEAR INDICATOR	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698470B	guide pin, dust cover, Service kit	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698671C	brake caliper housing service kit	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90961103	self-locking screw, D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01470111	bolt, with hex. socket, hd., D >> - 14.02.2011	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0615137	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10648301	hex socket countersunk bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90070303	retaining washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0615375D	bracket	Enquire
	4E0615376D	bracket	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0616825	screw, hex. hd.	3W0616825 screw, hex. hd. M8X22-MK,	-	2	Enquire
2	3W0615207	dust cap	3W0615207 dust cap	-	1	Enquire
3	1K0615273C	breather valve	1K0615273C breather valve	-	1	Enquire
4	3W0698996E	Electronic parking brake, operating mechanism, Service kit	3W0698996E Electronic parking brake, operating mechanism, Service kit	-	1	Enquire
5	3D0615231	retaining spring	3D0615231 retaining spring	-	2	Enquire
6	N90961103	self-locking screw, D - MJ 2007>>	N90961103 self-locking screw, D - MJ 2007>> M12X1,50X75,	-	1	Enquire
7	4E0615601L	Rear Break Disc	4E0615601L Rear Break Disc rear,	-	2	Enquire
8	3D0615611A	splash shield for brake disc	3D0615611A splash shield for brake disc left,	-	1	Enquire
8	3D0615612A	splash shield for brake disc	3D0615612A splash shield for brake disc right,	-	1	Enquire
9	3W0698679EQB7	calliper without brake pads, D >> - MJ 2010	3W0698679EQB7 calliper without brake pads, D >> - MJ 2010 left rear, black,	-	1	Enquire
9	3W0698680EQB7	calliper without brake pads, D >> - MJ 2010	3W0698680EQB7 calliper without brake pads, D >> - MJ 2010 right rear, black,	-	1	Enquire
9	3W0698679E	brake caliper, D - MJ 2011>>	3W0698679E brake caliper, D - MJ 2011>> left, PR-1KK	-	1	Enquire
9	3W0698680E	brake caliper, D - MJ 2011>>	3W0698680E brake caliper, D - MJ 2011>> right, PR-1KK	-	1	Enquire
10	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12,	-	3	Enquire
11	3W0698451N	SET BRAKE PADS WITH WEAR INDICATOR	3W0698451N SET BRAKE PADS WITH WEAR INDICATOR rear,	-	1	Enquire
12	3W0698470B	guide pin, dust cover, Service kit	3W0698470B guide pin, dust cover, Service kit rear,	-	1	Enquire
13	3W0698671C	brake caliper housing service kit	3W0698671C brake caliper housing service kit	-	1	Enquire
14	N90961103	self-locking screw, D - MJ 2007>>	N90961103 self-locking screw, D - MJ 2007>> M12X1,50X75,	-	1	Enquire
17	N01470111	bolt, with hex. socket, hd., D >> - 14.02.2011	N01470111 bolt, with hex. socket, hd., D >> - 14.02.2011 M6X12,	-	2	Enquire
18	4E0615137	o-ring	4E0615137 o-ring	-	1	Enquire
19	N10648301	hex socket countersunk bolt	N10648301 hex socket countersunk bolt M6X15,	-	2	Enquire
20	N90070303	retaining washer	N90070303 retaining washer M10,	-	1	Enquire
21	4E0615375D	bracket	4E0615375D bracket left,	-	1	Enquire
21	4E0615376D	bracket	4E0615376D bracket right,	-	1	Enquire
