brake line, brake hose, 3W-8-052 847>> of Bentley Bentley Continental GTC (2006-2010)

View All

Bentley Continental GTC (2006-2010) - brake line, brake hose, 3W-8-052 847>>

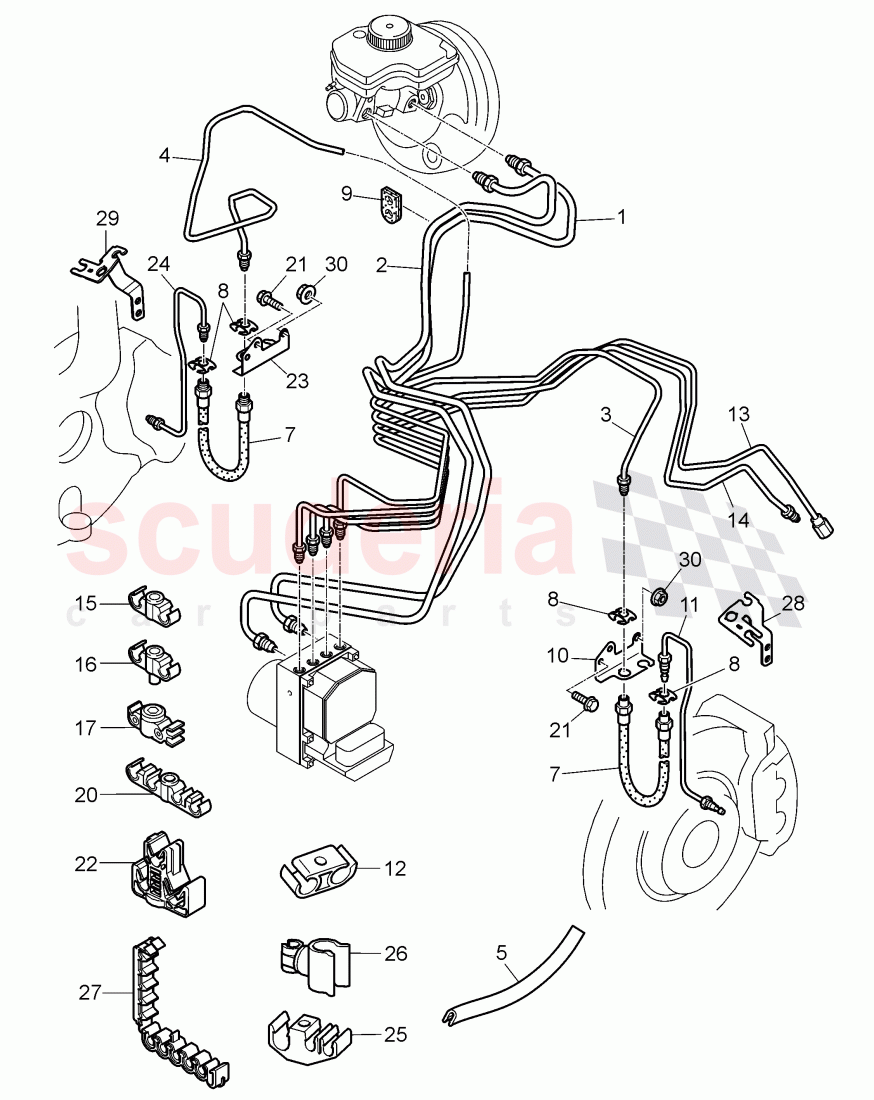

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W1614721L	brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516	Enquire
	3W2614721K	brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516	Enquire
	3W1614721K	brake line, brake booster, ABS-unit, F 3W-9-059 519>>, F ZA-A-062 022>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W1614722L	brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516	Enquire
	3W2614722H	brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516	Enquire
	3W1614722K	brake line, brake booster, ABS-unit, F 3W-9-059 519>>, F ZA-A-062 022>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W0614723H	brake line, ABS-unit	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0614724N	brake line, ABS-unit, D - 07.03.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0854551	Edge protection	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611701G	brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611715D	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1614769	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611843C	bracket for brake hose, brake hose, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611723C	brake pipe	Enquire
	3D0611721J	brake pipe from brake hose to, piston housing, F 3W-9-059 519>>, F ZA-A-062 022>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611797A	retainer for brake hose	Enquire
	6Q0611797C	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0614739H	brake line, ABS-unit, D >> - 26.05.2014	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0614740H	brake line, ABS-unit, D >> - 26.05.2014	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611797	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611797B	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611797E	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2611797	retainer for brake pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90245210	bolt, hex. hd. with shoulder, F 3W-8-051 366>>, F ZA-A-062 022>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611797	retainer for brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611844D	retainer for brake hose bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611724C	brake pipe	Enquire
	3D0611722J	brake pipe from brake hose to, piston housing, F 3W-9-059 519>>, F ZA-A-062 022>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611797D	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611797E	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	6Q0611797D	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611793F	bracket	Enquire
	3W0615133A	bracket for brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611794F	bracket	Enquire
	3W0615134A	bracket for brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W1614721L	brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516	3W1614721L brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516 left, lhd, PR-L0L	-	1	Enquire
1	3W2614721K	brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516	3W2614721K brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516 right, rhd, PR-L0R	-	1	Enquire
1	3W1614721K	brake line, brake booster, ABS-unit, F 3W-9-059 519>>, F ZA-A-062 022>>	3W1614721K brake line, brake booster, ABS-unit, F 3W-9-059 519>>, F ZA-A-062 022>> front, SECONDARY, lhd, PR-L0L	-	1	Enquire
1	3W2614721J	brake line, brake booster, ABS-unit, F 3W-9-059 519>>, F ZA-A-062 022>>	3W2614721J brake line, brake booster, ABS-unit, F 3W-9-059 519>>, F ZA-A-062 022>> front, SECONDARY, rhd, PR-L0R	-	1	Enquire
2	3W1614722L	brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516	3W1614722L brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516 left, lhd, PR-L0L	-	1	Enquire
2	3W2614722H	brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516	3W2614722H brake line, master cylinder, F 3W-8-052 847>> 3W-8-059 516 right, rhd, PR-L0R	-	1	Enquire
2	3W1614722K	brake line, brake booster, ABS-unit, F 3W-9-059 519>>, F ZA-A-062 022>>	3W1614722K brake line, brake booster, ABS-unit, F 3W-9-059 519>>, F ZA-A-062 022>> front, PRIMARY, lhd, PR-L0L	-	1	Enquire
2	3W2614722G	brake line, brake booster, ABS-unit, F 3W-9-059 519>>, F ZA-A-062 022>>	3W2614722G brake line, brake booster, ABS-unit, F 3W-9-059 519>>, F ZA-A-062 022>> front, rhd, PR-L0R	-	1	Enquire
3	3W0614723H	brake line, ABS-unit	3W0614723H brake line, ABS-unit left front,	-	1	Enquire
4	3W0614724N	brake line, ABS-unit, D - 07.03.2011>>	3W0614724N brake line, ABS-unit, D - 07.03.2011>> right front, ESC,	-	1	Enquire
5	3W0854551	Edge protection	3W0854551 Edge protection	-	1	Enquire
7	3D0611701G	brake hose	3D0611701G brake hose 19 INCH,	-	2	Enquire
8	3D0611715D	retaining spring	3D0611715D retaining spring	-	2	Enquire
9	3W1614769	grommet	3W1614769 grommet lhd, PR-L0L	-	1	Enquire
10	3D0611843C	bracket for brake hose, brake hose, Discont./New add.+FULU calc.	3D0611843C bracket for brake hose, brake hose, Discont./New add.+FULU calc. left,	-	1	Enquire
11	3W0611723C	brake pipe	3W0611723C brake pipe left front, PR-1LU	-	1	Enquire
11	3D0611721J	brake pipe from brake hose to, piston housing, F 3W-9-059 519>>, F ZA-A-062 022>>	3D0611721J brake pipe from brake hose to, piston housing, F 3W-9-059 519>>, F ZA-A-062 022>> left front, PR-1LL	-	1	Enquire
12	3W0611797A	retainer for brake hose	3W0611797A retainer for brake hose	-	3	Enquire
12	6Q0611797C	bracket	6Q0611797C bracket	-	1	Enquire
13	3W0614739H	brake line, ABS-unit, D >> - 26.05.2014	3W0614739H brake line, ABS-unit, D >> - 26.05.2014 left, TO REAR,	-	1	Enquire
14	3W0614740H	brake line, ABS-unit, D >> - 26.05.2014	3W0614740H brake line, ABS-unit, D >> - 26.05.2014 right, TO REAR,	-	1	Enquire
15	3D0611797	bracket	3D0611797 bracket	-	1	Enquire
16	3D0611797B	bracket	3D0611797B bracket	-	1	Enquire
17	3D0611797E	bracket	3D0611797E bracket	-	1	Enquire
20	3W2611797	retainer for brake pipe	3W2611797 retainer for brake pipe	-	1	Enquire
21	N90245210	bolt, hex. hd. with shoulder, F 3W-8-051 366>>, F ZA-A-062 022>>	N90245210 bolt, hex. hd. with shoulder, F 3W-8-051 366>>, F ZA-A-062 022>> M6X10,	-	2	Enquire
22	3W0611797	retainer for brake hose	3W0611797 retainer for brake hose	-	1	Enquire
23	3D0611844D	retainer for brake hose bracket	3D0611844D retainer for brake hose bracket right,	-	1	Enquire
24	3W0611724C	brake pipe	3W0611724C brake pipe right front, PR-1LU	-	1	Enquire
24	3D0611722J	brake pipe from brake hose to, piston housing, F 3W-9-059 519>>, F ZA-A-062 022>>	3D0611722J brake pipe from brake hose to, piston housing, F 3W-9-059 519>>, F ZA-A-062 022>> right front, PR-1LL	-	1	Enquire
25	3W0611797D	clamp	3W0611797D clamp (single pipe), 3 WAY,	-	1	Enquire
26	3W0611797E	clamp	3W0611797E clamp	-	1	Enquire
27	6Q0611797D	clip	6Q0611797D clip	-	1	Enquire
28	3D0611793F	bracket	3D0611793F bracket left, PR-1LL	-	1	Enquire
28	3W0615133A	bracket for brake hose	3W0615133A bracket for brake hose left, PR-1LU	-	1	Enquire
29	3D0611794F	bracket	3D0611794F bracket right, PR-1LL	-	1	Enquire
29	3W0615134A	bracket for brake hose	3W0615134A bracket for brake hose right, PR-1LU	-	1	Enquire
30	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	N02300212 hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742 M6,	-	2	Enquire
