vacuum system, Exhaust muffler with exhaust flap, F 3W-8-053 598>>, F ZA-A-062 022>> of Bentley Bentley Continental GTC (2006-2010)

View All

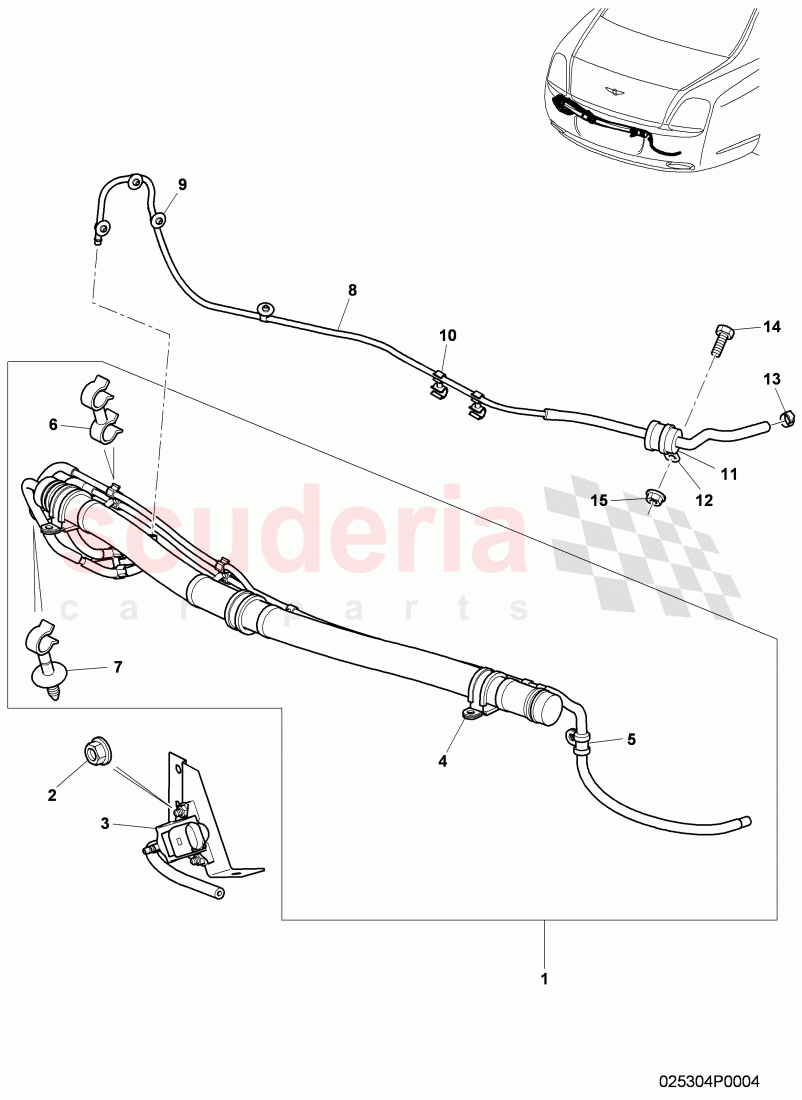

Bentley Continental GTC (2006-2010) - vacuum system, Exhaust muffler with exhaust flap, F 3W-8-053 598>>, F ZA-A-062 022>>

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0253674P	vacuum tank, Exhaust muffler with, exhaust flap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215804	Hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253674Q	solenoid valve, vacuum system, F >> 3W-G-051 745, F >> ZA-G-051 745	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10608801	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90851001	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335501	double clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10646401	terminal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253760F	vacuum pipe, D - 02.10.2006>>	Enquire
	3W0253760G	vacuum pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0971818B	tie wrap, f. hole/sheet metal thickness:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10298801	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	433862117	non-return valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90996001	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612391M	clamp, Only in combination with:, Only in combination with:	Enquire
	N10210501	clamp, D >> - 03.09.2012	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10434904	bolt, F 3Y-C-016 978>>, F ZH-C-016 978>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0253674P	vacuum tank, Exhaust muffler with, exhaust flap	3W0253674P vacuum tank, Exhaust muffler with, exhaust flap	-	1	Enquire
2	N90215804	Hexagon nut	N90215804 Hexagon nut M6,	-	6	Enquire
3	3W0253674Q	solenoid valve, vacuum system, F >> 3W-G-051 745, F >> ZA-G-051 745	3W0253674Q solenoid valve, vacuum system, F >> 3W-G-051 745, F >> ZA-G-051 745	-	1	Enquire
4	N10608801	clamp	N10608801 clamp 32X15,	-	3	Enquire
5	N90851001	clamp	N90851001 clamp	-	1	Enquire
6	N10335501	double clip	N10335501 double clip	-	2	Enquire
7	N10646401	terminal	N10646401 terminal	-	1	Enquire
8	3W0253760F	vacuum pipe, D - 02.10.2006>>	3W0253760F vacuum pipe, D - 02.10.2006>> PR-7GA,7GB	-	1	Enquire
8	3W0253760G	vacuum pipe	3W0253760G vacuum pipe PR-0GG,0GV,, 7GH,7MG	-	1	Enquire
9	8E0971818B	tie wrap, f. hole/sheet metal thickness:	8E0971818B tie wrap, f. hole/sheet metal thickness:	-	3	Enquire
10	N10298801	bracket	N10298801 bracket	-	3	Enquire
11	433862117	non-return valve	433862117 non-return valve	-	1	Enquire
12	N90996001	clamp	N90996001 clamp 24X15,	-	1	Enquire
13	3W0612391M	clamp, Only in combination with:, Only in combination with:	3W0612391M clamp, Only in combination with:, Only in combination with: 16X7X0,61, PR-0GG,0GV,, 7GH,7MG	-	1	Enquire
13	N10210501	clamp, D >> - 03.09.2012	N10210501 clamp, D >> - 03.09.2012 9,5X5X0,5, PR-7GA,7GB	-	1	Enquire
14	N10434904	bolt, F 3Y-C-016 978>>, F ZH-C-016 978>>	N10434904 bolt, F 3Y-C-016 978>>, F ZH-C-016 978>> M6X20,	-	1	Enquire
15	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	1	Enquire
