air conditioner compressor, air condtioner condenser, refrigerant circuit, Engine bay, F >> 3W-8-053 517 of Bentley Bentley Continental GTC (2006-2010)

View All

Bentley Continental GTC (2006-2010) - air conditioner compressor, air condtioner condenser, refrigerant circuit, Engine bay, F >>...

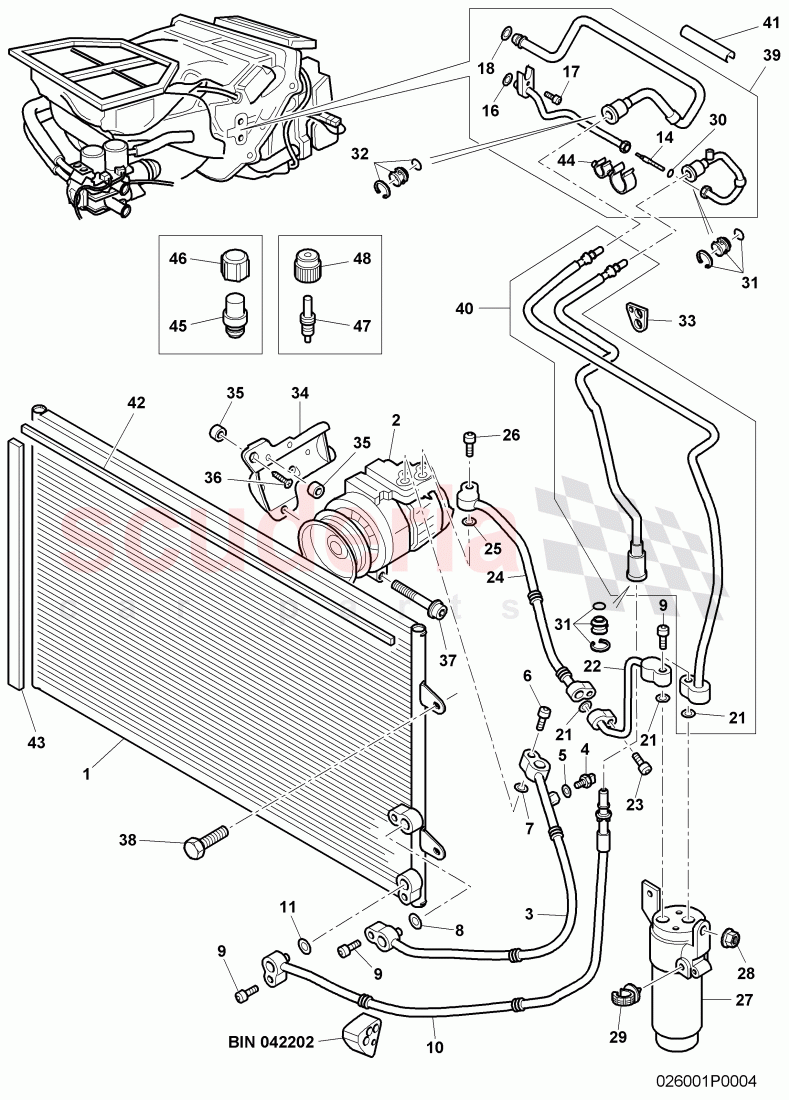

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0820411E	Air Con Condensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0820803	air conditioner compressor, for refrigerant:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0260701G	refrigerant line, D - 06.08.2007>> - 15.10.2007	Enquire
	3W0260701P	refrigerant line, D - 04.07.2011>> - 24.10.2011	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0959126D	pressure sensor, D - 04.07.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8A0260749AJ	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10414402	Socket head bolt with hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10414402	Socket head bolt with hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0260711F	refrigerant line, D - 06.08.2007>> - MJ 2008	Enquire
	3W0260711E	refrigerant line, D - MJ 2008>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0820177A	Restrictor valve, F 3W-5-030 348>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0447056	socket head bolt with hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0260707E	refrigerant line, intake manifold	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0195315	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0260707G	refrigerant line, D - 06.08.2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0195315	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0820189D	receiver drier, for refrigerant:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0820755	bracket for hose	Enquire
	3D0820755A	bracket for hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	6Q0298260A	repair kit for quick release coupling	Enquire

Photo	Part No	Description	Price (each)	Stock
	6Q0298260A	repair kit for quick release coupling	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0260753C	grommet, refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C260881A	bracket, air conditioner compressor	Enquire

Photo	Part No	Description	Price (each)	Stock
	3L260817	Centre sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10531402	oval head countersunk bolt with multi-point socket head D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10111203	bolt, with hex. socket hd., (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire
	N10111203	bolt, with hex. socket hd., (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90817003	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1260712G	refrigerant tube, D - 03.07.2006>>	Enquire
	3W2260712H	refrigerant line, D - 29.10.2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1260712H	refrigerant tube, D - 06.08.2007>>	Enquire
	3W2260712G	refrigerant tube, D - 29.10.2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0820567A	gasket, capacitor, D - MJ 2008>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0820567A	gasket, capacitor, D - MJ 2008>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0260762	mounting pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0820855	Evacuating and charging valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	8Z0260143A	cap closure for vehicles with electroni- cally regulated air condit.	Enquire

Photo	Part No	Description	Price (each)	Stock
	8A0820855AA	valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	357820809C	cap closure for vehicles with electroni- cally regulated air condit.	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0820411E	Air Con Condensor	3W0820411E Air Con Condensor	-	1	Enquire
2	3W0820803	air conditioner compressor, for refrigerant:	3W0820803 air conditioner compressor, for refrigerant:	-	1	Enquire
3	3W0260701G	refrigerant line, D - 06.08.2007>> - 15.10.2007	3W0260701G refrigerant line, D - 06.08.2007>> - 15.10.2007	-	1	Enquire
3	3W0260701P	refrigerant line, D - 04.07.2011>> - 24.10.2011	3W0260701P refrigerant line, D - 04.07.2011>> - 24.10.2011	-	1	Enquire
4	3D0959126D	pressure sensor, D - 04.07.2011>>	3D0959126D pressure sensor, D - 04.07.2011>>	-	1	Enquire
5	8A0260749AJ	o-ring	8A0260749AJ o-ring	-	1	Enquire
6	N10414402	Socket head bolt with hexagon socket head	N10414402 Socket head bolt with hexagon socket head M8X26,	-	1	Enquire
7	8E0260749C	seal ring	8E0260749C seal ring 10,8X1,82,	-	1	Enquire
8	4E0260749B	seal ring	4E0260749B seal ring 11X2,5,	-	1	Enquire
9	N10414402	Socket head bolt with hexagon socket head	N10414402 Socket head bolt with hexagon socket head M8X26,	-	4	Enquire
10	3W0260711F	refrigerant line, D - 06.08.2007>> - MJ 2008	3W0260711F refrigerant line, D - 06.08.2007>> - MJ 2008	-	1	Enquire
10	3W0260711E	refrigerant line, D - MJ 2008>>	3W0260711E refrigerant line, D - MJ 2008>>	-	1	Enquire
11	3D0260749C	seal ring	3D0260749C seal ring 9,5X2,5,	-	1	Enquire
14	4B0820177A	Restrictor valve, F 3W-5-030 348>>	4B0820177A Restrictor valve, F 3W-5-030 348>>	-	1	Enquire
16	4E0260749B	seal ring	4E0260749B seal ring 11X2,5,	-	1	Enquire
17	N0447056	socket head bolt with hexagon socket head	N0447056 socket head bolt with hexagon socket head M10X35,	-	1	Enquire
18	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5,	-	1	Enquire
21	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5,	-	3	Enquire
22	3W0260707E	refrigerant line, intake manifold	3W0260707E refrigerant line, intake manifold	-	1	Enquire
23	N0195315	Hex collared bolt	N0195315 Hex collared bolt M8X40,	-	1	Enquire
24	3W0260707G	refrigerant line, D - 06.08.2007>>	3W0260707G refrigerant line, D - 06.08.2007>>	-	1	Enquire
25	8E0260749C	seal ring	8E0260749C seal ring 23,8X2,4,	-	1	Enquire
26	N0195315	Hex collared bolt	N0195315 Hex collared bolt M8X40,	-	1	Enquire
27	3D0820189D	receiver drier, for refrigerant:	3D0820189D receiver drier, for refrigerant:	-	1	Enquire
28	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	2	Enquire
29	3D0820755	bracket for hose	3D0820755 bracket for hose 21,5MM,	-	1	Enquire
29	3D0820755A	bracket for hose	3D0820755A bracket for hose 15,5MM,	-	1	Enquire
30	8E0260749C	seal ring	8E0260749C seal ring 10,8X1,82,	-	1	Enquire
31	6Q0298260A	repair kit for quick release coupling	6Q0298260A repair kit for quick release coupling NW-8,	-	2	Enquire
32	6Q0298260A	repair kit for quick release coupling	6Q0298260A repair kit for quick release coupling NW-13,	-	1	Enquire
33	3W0260753C	grommet, refrigerant line	3W0260753C grommet, refrigerant line	-	1	Enquire
34	7C260881A	bracket, air conditioner compressor	7C260881A bracket, air conditioner compressor 12 Cylinder	-	1	Enquire
35	3L260817	Centre sleeve	3L260817 Centre sleeve 11,15X6,5,	-	4	Enquire
36	N10531402	oval head countersunk bolt with multi-point socket head D - MJ 2007>>	N10531402 oval head countersunk bolt with multi-point socket head D - MJ 2007>> M8X25,	-	6	Enquire
37	N10111203	bolt, with hex. socket hd., (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N10111203 bolt, with hex. socket hd., (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M8X85 S5,	-	3	Enquire
37	N10111203	bolt, with hex. socket hd., (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N10111203 bolt, with hex. socket hd., (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M8X83,	-	3	Enquire
38	N90817003	Hexagon socket head panel bolt	N90817003 Hexagon socket head panel bolt	-	4	Enquire
39	3W1260712G	refrigerant tube, D - 03.07.2006>>	3W1260712G refrigerant tube, D - 03.07.2006>> lhd, PR-L0L	-	1	Enquire
39	3W2260712H	refrigerant line, D - 29.10.2007>>	3W2260712H refrigerant line, D - 29.10.2007>> rhd, PR-L0R	-	1	Enquire
40	3W1260712H	refrigerant tube, D - 06.08.2007>>	3W1260712H refrigerant tube, D - 06.08.2007>> lhd, PR-L0L	-	1	Enquire
40	3W2260712G	refrigerant tube, D - 29.10.2007>>	3W2260712G refrigerant tube, D - 29.10.2007>> rhd, PR-L0R	-	1	Enquire
42	3W0820567A	gasket, capacitor, D - MJ 2008>>	3W0820567A gasket, capacitor, D - MJ 2008>>	-	2	Enquire
43	3W0820567A	gasket, capacitor, D - MJ 2008>>	3W0820567A gasket, capacitor, D - MJ 2008>>	-	2	Enquire
44	3W0260762	mounting pin	3W0260762 mounting pin	-	1	Enquire
45	8E0820855	Evacuating and charging valve	8E0820855 Evacuating and charging valve	-	1	Enquire
46	8Z0260143A	cap closure for vehicles with electroni- cally regulated air condit.	8Z0260143A cap closure for vehicles with electroni- cally regulated air condit. 13MM, return,	-	1	Enquire
47	8A0820855AA	valve	8A0820855AA valve	-	1	Enquire
48	357820809C	cap closure for vehicles with electroni- cally regulated air condit.	357820809C cap closure for vehicles with electroni- cally regulated air condit. 17MM, supply,	-	1	Enquire
