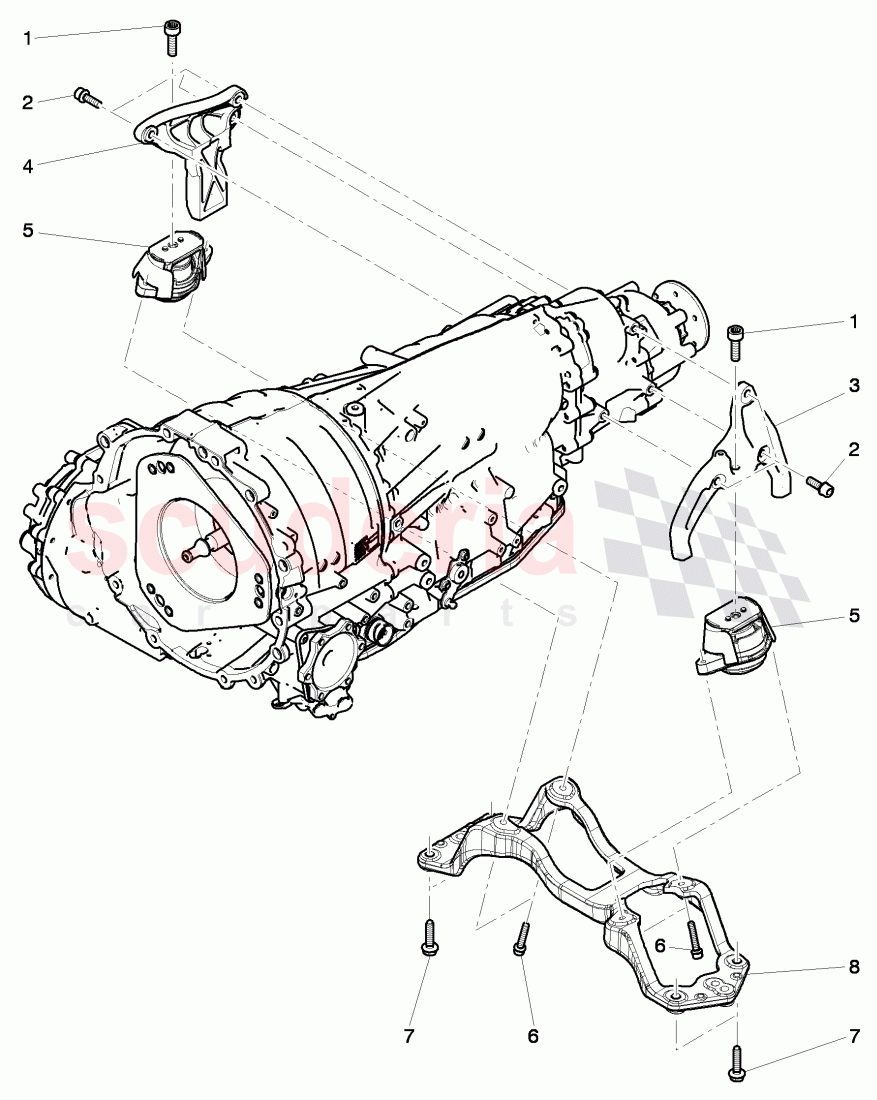

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N90320206	socket head bolt with hexagon socket head (combination) D - 29.05.2006>>	$3.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90320206	socket head bolt with hexagon socket head (combination) D - 29.05.2006>>	$3.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0399113A	support part, 6 speed automatic transmission	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0399114A	support part, 6 speed automatic transmission	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0399151AF	bonded rubber mounting	$320.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10613901	socket head bolt with inner multipoint head (kombi) D - 29.05.2006>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10241605	bolt, hex. hd. with shoulder, D - MJ 2011>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0399263G	cross member, Gearbox, D - MJ 2011>>	Enquire	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	N90320206	socket head bolt with hexagon socket head (combination) D - 29.05.2006>> IN STOCK	N90320206 socket head bolt with hexagon socket head (combination) D - 29.05.2006>> M10X33,4, IN STOCK	$3.25	2
2	N90320206	socket head bolt with hexagon socket head (combination) D - 29.05.2006>> IN STOCK	N90320206 socket head bolt with hexagon socket head (combination) D - 29.05.2006>> M10X33,4, IN STOCK	$3.25	6
3	3W0399113A	support part, 6 speed automatic transmission	3W0399113A support part, 6 speed automatic transmission left rear,	-	1	Enquire
4	3W0399114A	support part, 6 speed automatic transmission	3W0399114A support part, 6 speed automatic transmission right rear,	-	1	Enquire
5	3D0399151AF	bonded rubber mounting IN STOCK	3D0399151AF bonded rubber mounting left a. right, IN STOCK	$320.81	1
6	N10613901	socket head bolt with inner multipoint head (kombi) D - 29.05.2006>>	N10613901 socket head bolt with inner multipoint head (kombi) D - 29.05.2006>> M8X45,	-	4	Enquire
7	N10241605	bolt, hex. hd. with shoulder, D - MJ 2011>>	N10241605 bolt, hex. hd. with shoulder, D - MJ 2011>> M10X45,	-	4	Enquire
8	3W0399263G	cross member, Gearbox, D - MJ 2011>>	3W0399263G cross member, Gearbox, D - MJ 2011>> rear,	-	1	Enquire
