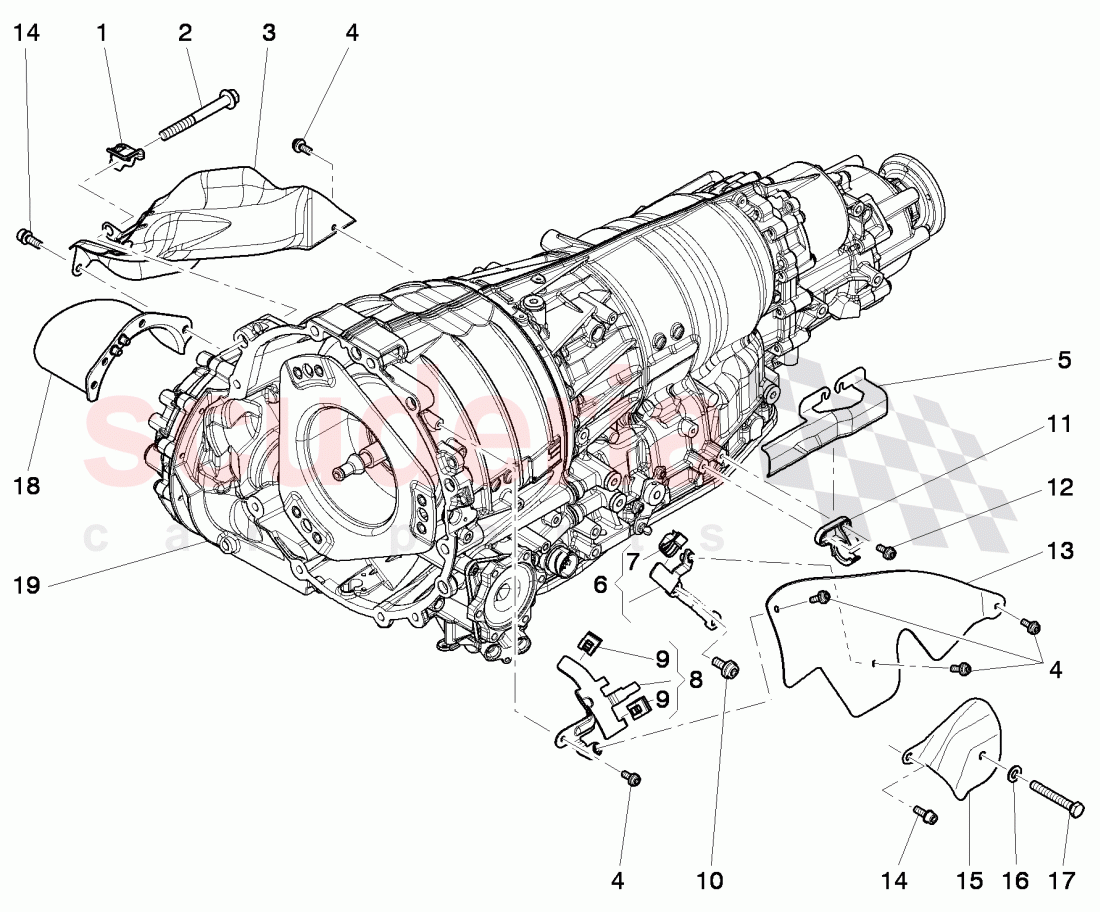

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0971501D	bracket wiring harness for starter and alternator	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0301328E	shield for transmission, D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0301328C	heat shield gear selector cable	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971501G	bracket, D - 19.02.2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	1H0971939E	terminal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971501H	bracket, D - 16.04.2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	1H0971939E	terminal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91026002	socket head bolt with inner multipoint head D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0301327C	guard plate for gearbox	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0301327A	heatshield, angled connector	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0971501D	bracket wiring harness for starter and alternator	3W0971501D bracket wiring harness for starter and alternator	-	1	Enquire
3	3W0301328E	shield for transmission, D - MJ 2007>>	3W0301328E shield for transmission, D - MJ 2007>> right,	-	1	Enquire
4	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	N10248003 socket hd. screw with, collar, D - 11.12.2006>> M6X14,	-	5	Enquire
5	3W0301328C	heat shield gear selector cable	3W0301328C heat shield gear selector cable	-	1	Enquire
6	3W0971501G	bracket, D - 19.02.2007>>	3W0971501G bracket, D - 19.02.2007>> left upper,	-	1	Enquire
7	1H0971939E	terminal	1H0971939E terminal	-	1	Enquire
8	3W0971501H	bracket, D - 16.04.2007>>	3W0971501H bracket, D - 16.04.2007>> left lower,	-	1	Enquire
9	1H0971939E	terminal	1H0971939E terminal	-	2	Enquire
10	N91026002	socket head bolt with inner multipoint head D - 11.12.2006>>	N91026002 socket head bolt with inner multipoint head D - 11.12.2006>> M10X20,	-	2	Enquire
13	3W0301327C	guard plate for gearbox	3W0301327C guard plate for gearbox left,	-	1	Enquire
15	3W0301327A	heatshield, angled connector	3W0301327A heatshield, angled connector	-	1	Enquire
