Find Your Part

elbow, throttle valve, D - MJ 2016>> of Bentley Bentley Continental GT (2011-2018)

View All

Bentley Continental GT (2011-2018) - elbow, throttle valve, D - MJ 2016>>

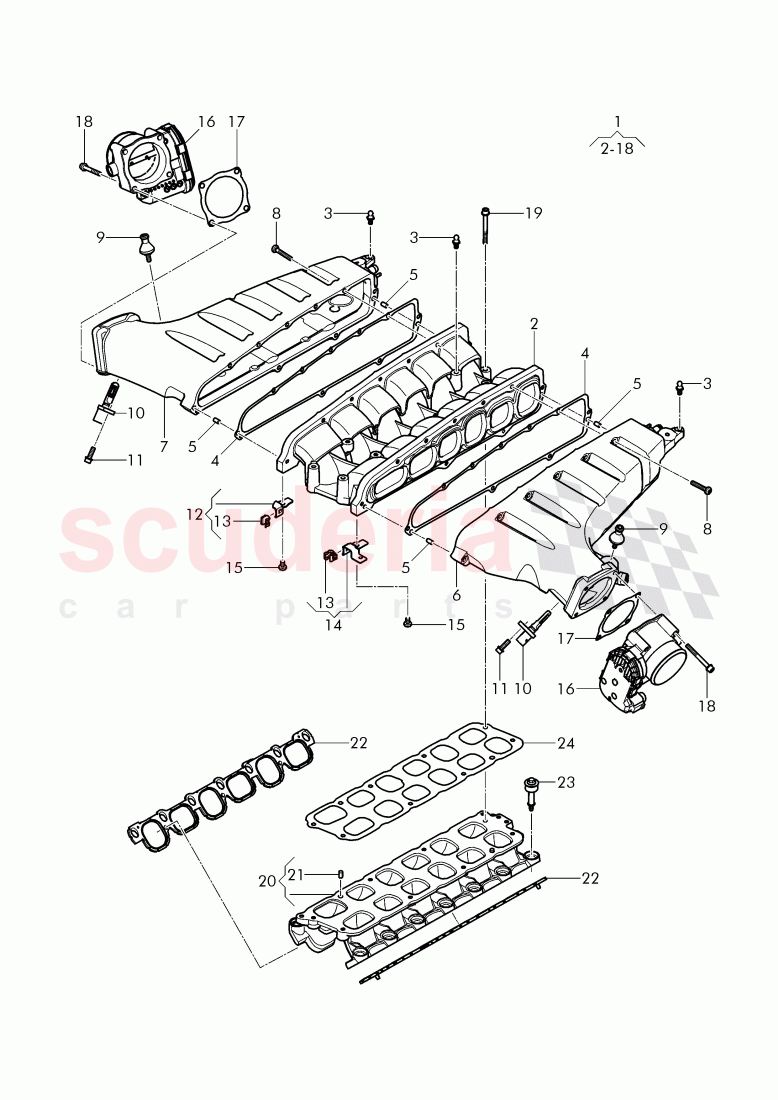

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7C133185CG	elbow, D - 27.03.2017>>	Enquire
	7C133185CF	elbow, D - 27.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133221AT	elbow, D - 27.03.2017>>	Enquire
	7C133221AS	elbow, D - 27.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000355	Ball screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133594A	gasket, intake manifold - upper part	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10527801	cylinder pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133263AG	elbow, D - 27.03.2017>>	Enquire
	7C133263AF	elbow, D - 27.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133262AD	elbow, D - 27.03.2017>>	Enquire
	7C133262AC	elbow, D - 27.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10554004	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	36129846B	ball head	Enquire

Photo	Part No	Description	Price (each)	Stock
	6B905379G	temperature sensor, D - 18.09.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10227805	socket head bolt with hexagon socket head (combination)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133332	bracket, engine cover plate, contains:, spring clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91009101	Cable fastener	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C612391	bracket, engine cover plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10170303	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133062C	throttle valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	21133073D	gasket, throttle valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10127005	socket head bolt with hexagon socket head (combination)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10158203	socket head bolt with hexagon socket head (combination)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133204R	intake manifold - lower part, D - 27.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10527801	cylinder pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C129717D	gasket, intake manifold - lower part	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133588D	Decoupling element	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133238F	Intake Manifold Gasket	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7C133185CG	elbow, D - 27.03.2017>>	7C133185CG elbow, D - 27.03.2017>> upper, silver, DBDA	-	1	Enquire
1	7C133185CF	elbow, D - 27.03.2017>>	7C133185CF elbow, D - 27.03.2017>> upper, black, DBDE,DBDD	-	1	Enquire
2	7C133221AT	elbow, D - 27.03.2017>>	7C133221AT elbow, D - 27.03.2017>> center upper, silver, DBDA	-	1	Enquire
2	7C133221AS	elbow, D - 27.03.2017>>	7C133221AS elbow, D - 27.03.2017>> center upper, black, BDBE,DBDD	-	1	Enquire
3	WHT000355	Ball screw	WHT000355 Ball screw	-	6	Enquire
4	7C133594A	gasket, intake manifold - upper part	7C133594A gasket, intake manifold - upper part	-	2	Enquire
5	N10527801	cylinder pin	N10527801 cylinder pin 6X12,	-	4	Enquire
6	7C133263AG	elbow, D - 27.03.2017>>	7C133263AG elbow, D - 27.03.2017>> left upper, silver, DBDA	-	1	Enquire
6	7C133263AF	elbow, D - 27.03.2017>>	7C133263AF elbow, D - 27.03.2017>> left upper, black, DBDE,DBDD	-	1	Enquire
7	7C133262AD	elbow, D - 27.03.2017>>	7C133262AD elbow, D - 27.03.2017>> right upper, silver, DBDA	-	1	Enquire
7	7C133262AC	elbow, D - 27.03.2017>>	7C133262AC elbow, D - 27.03.2017>> right upper, black, DBDE,DBDD	-	1	Enquire
8	N10554004	socket head bolt with inner multipoint head	N10554004 socket head bolt with inner multipoint head M6X35,	-	18	Enquire
9	36129846B	ball head	36129846B ball head	-	2	Enquire
10	6B905379G	temperature sensor, D - 18.09.2006>>	6B905379G temperature sensor, D - 18.09.2006>>	-	2	Enquire
11	N10227805	socket head bolt with hexagon socket head (combination)	N10227805 socket head bolt with hexagon socket head (combination) M6X20,	-	2	Enquire
12	7C133332	bracket, engine cover plate, contains:, spring clip	7C133332 bracket, engine cover plate, contains:, spring clip right front,	-	1	Enquire
13	N91009101	Cable fastener	N91009101 Cable fastener	-	2	Enquire
14	7C612391	bracket, engine cover plate	7C612391 bracket, engine cover plate left front,	-	1	Enquire
15	N10170303	round hd. screw	N10170303 round hd. screw M6X10,	-	2	Enquire
16	7C133062C	throttle valve	7C133062C throttle valve	-	2	Enquire
17	21133073D	gasket, throttle valve	21133073D gasket, throttle valve	-	2	Enquire
18	N10127005	socket head bolt with hexagon socket head (combination)	N10127005 socket head bolt with hexagon socket head (combination) M6X55,	-	8	Enquire
19	N10158203	socket head bolt with hexagon socket head (combination)	N10158203 socket head bolt with hexagon socket head (combination) M6X60,	-	8	Enquire
20	7C133204R	intake manifold - lower part, D - 27.03.2017>>	7C133204R intake manifold - lower part, D - 27.03.2017>>	-	1	Enquire
21	N10527801	cylinder pin	N10527801 cylinder pin 6X12,	-	2	Enquire
22	7C129717D	gasket, intake manifold - lower part	7C129717D gasket, intake manifold - lower part	-	2	Enquire
23	7C133588D	Decoupling element	7C133588D Decoupling element	-	14	Enquire
24	7C133238F	Intake Manifold Gasket	7C133238F Intake Manifold Gasket upper/lower,	-	1	Enquire
